Name: AOI UCS-Q1i Ultra Compact Underwater Strobe
Brand: AOI
SKU: UCS-Q1i
Price: 420 USD
Availability: InStock

Description

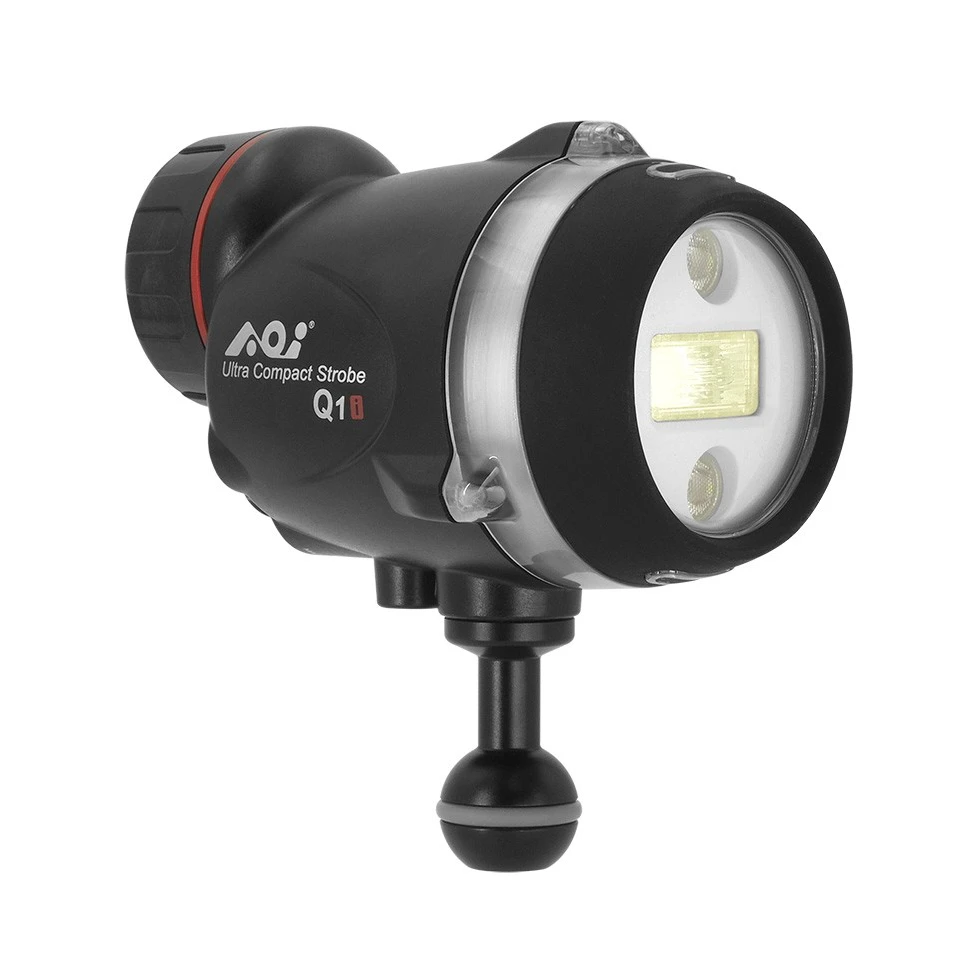

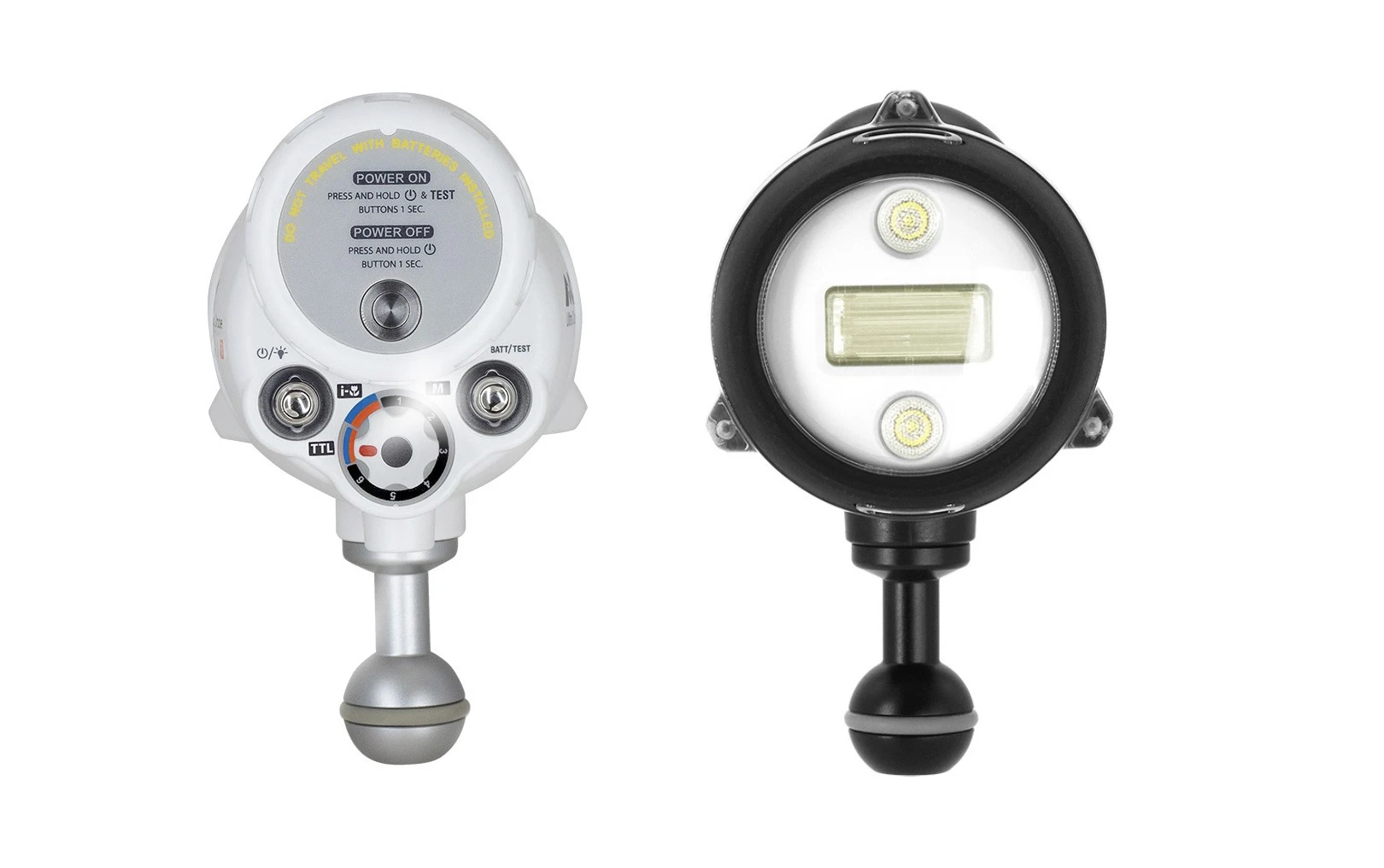

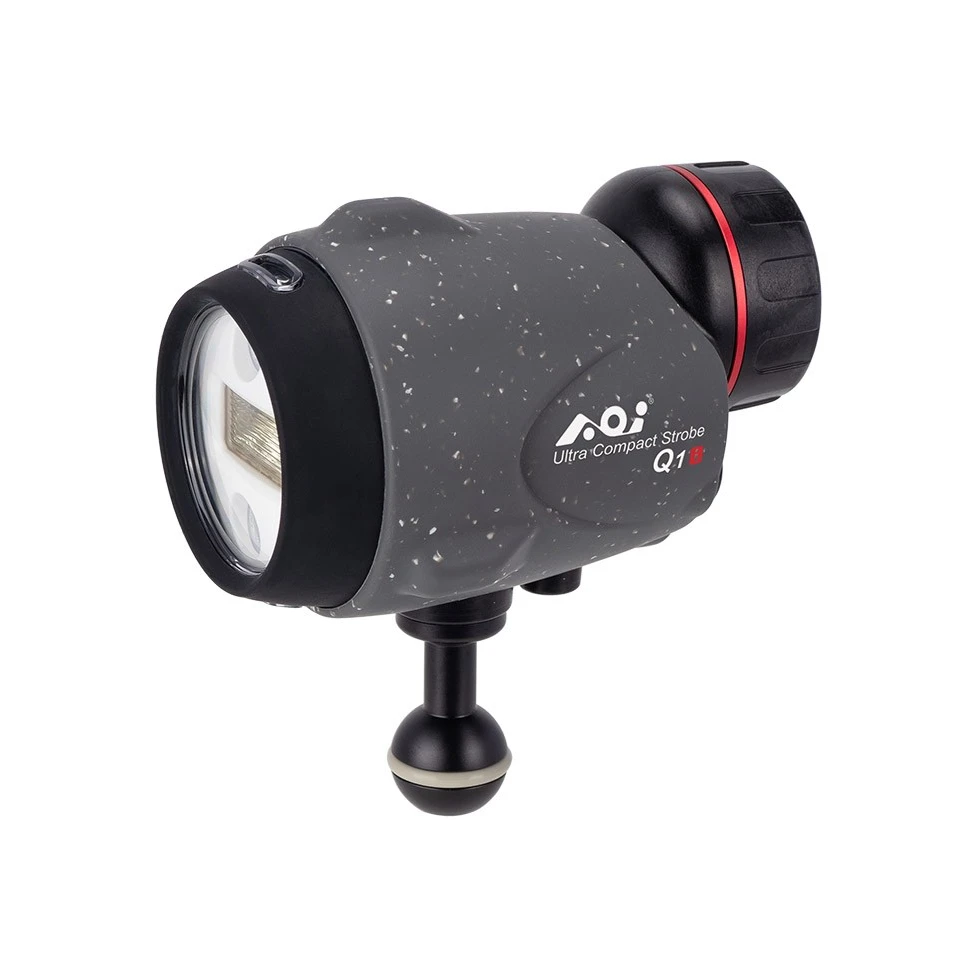

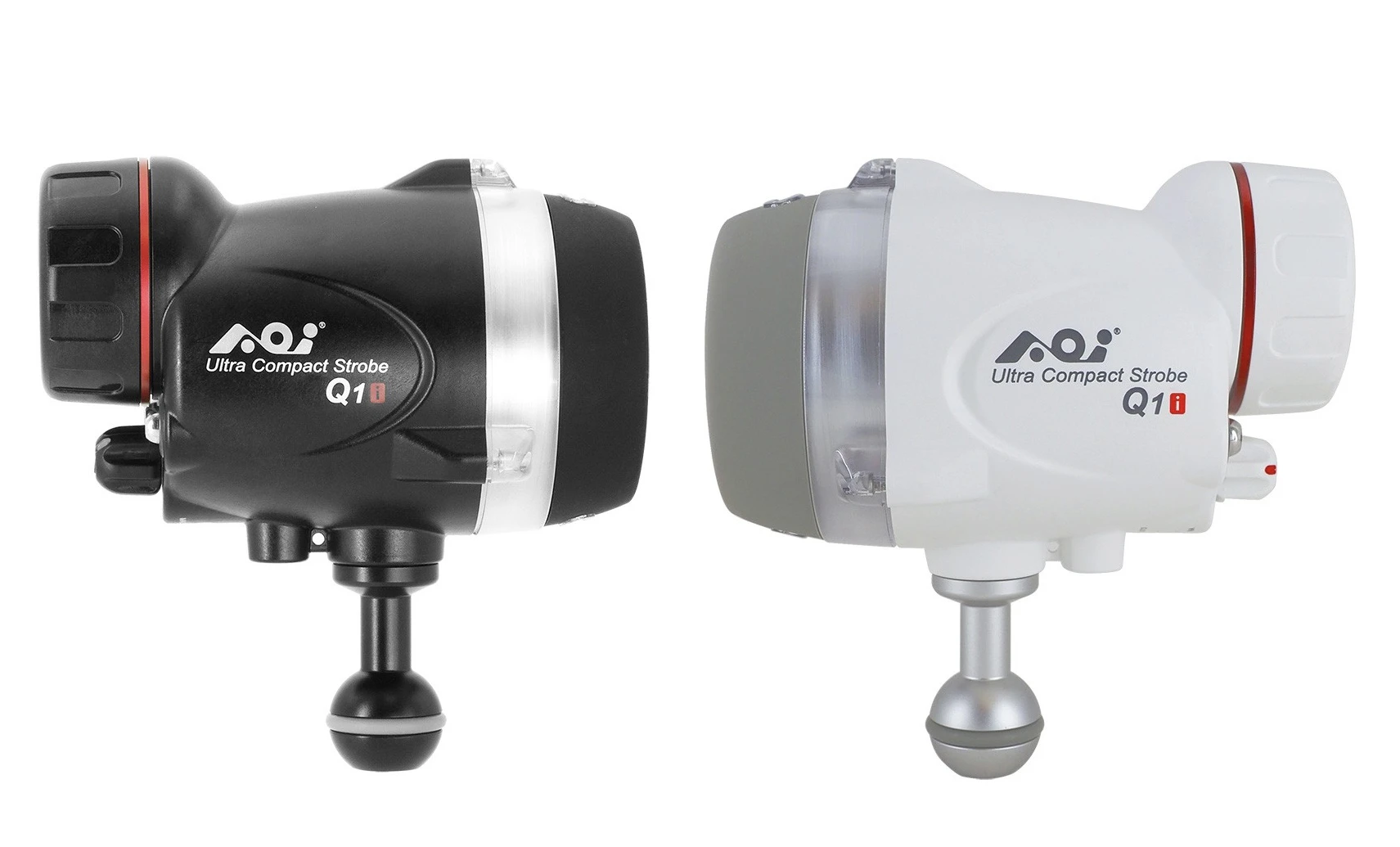

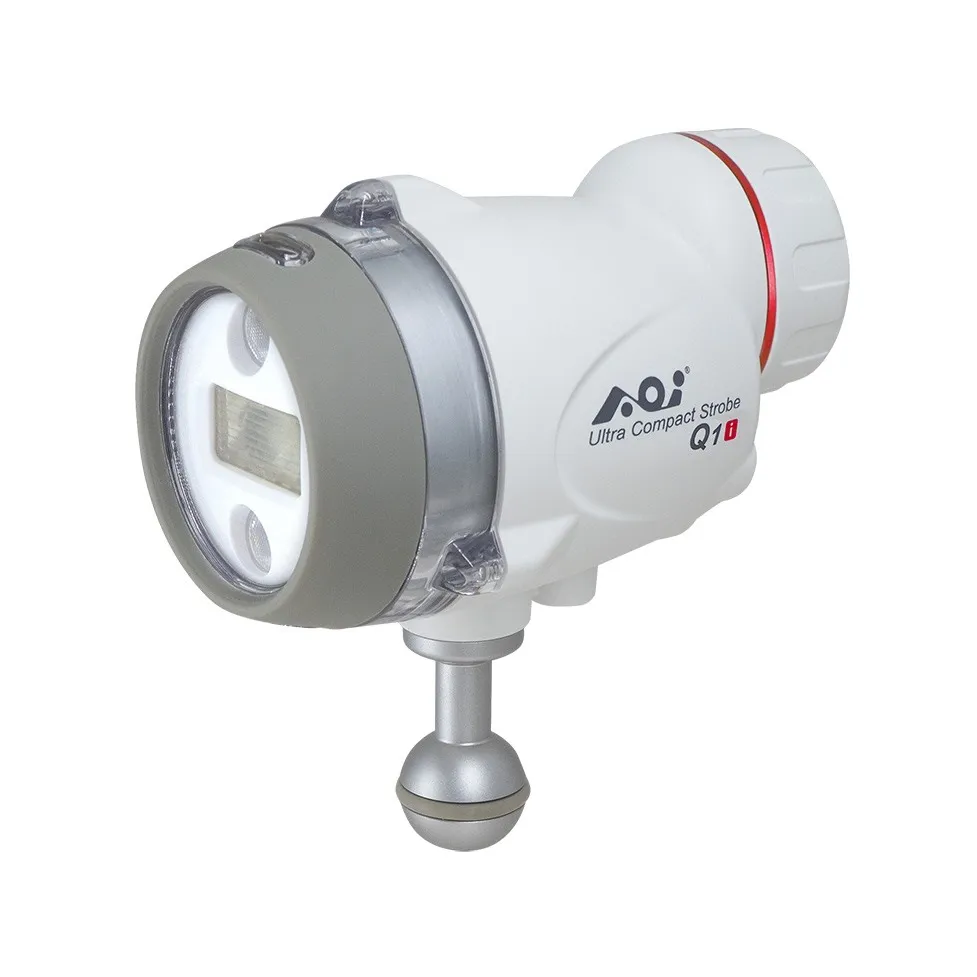

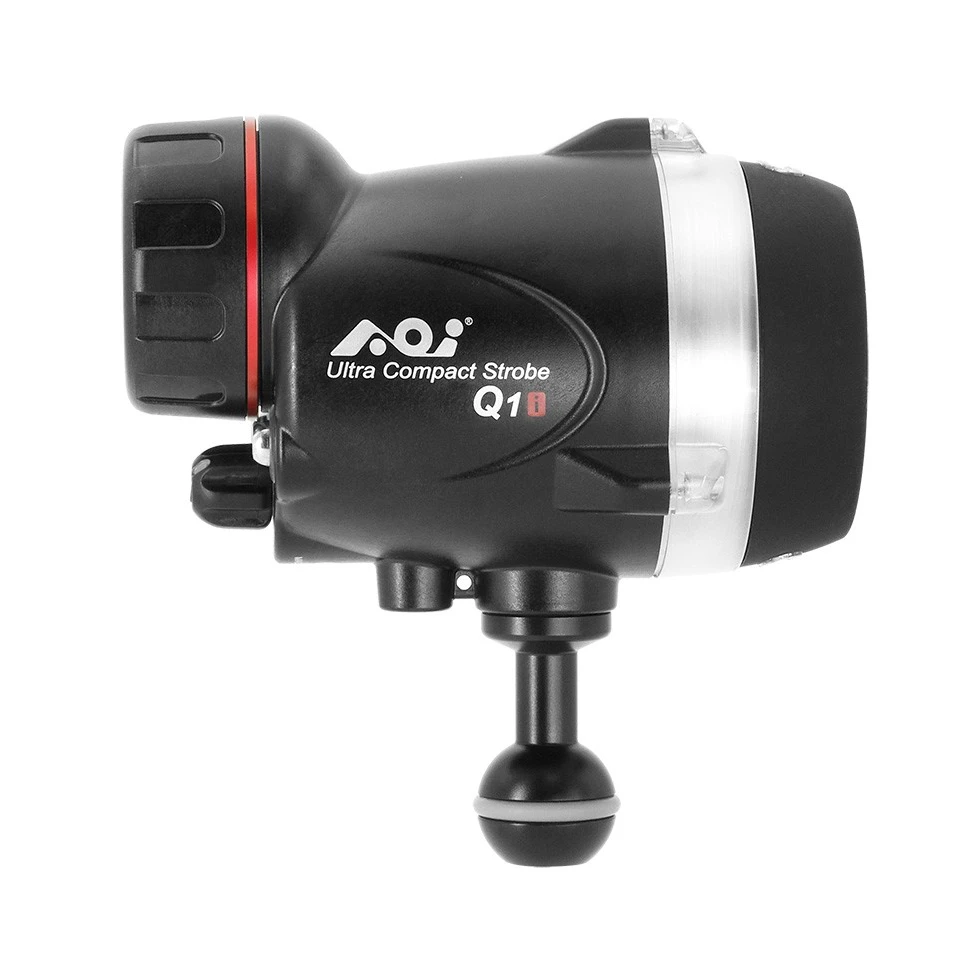

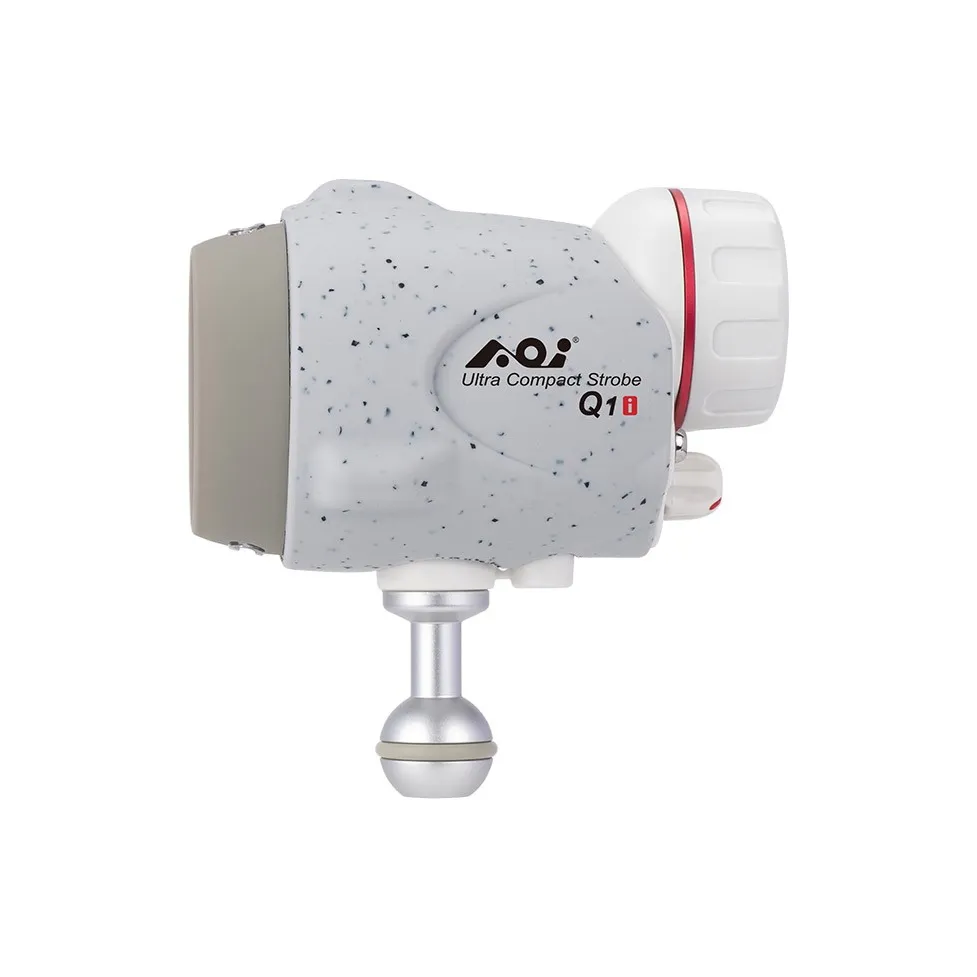

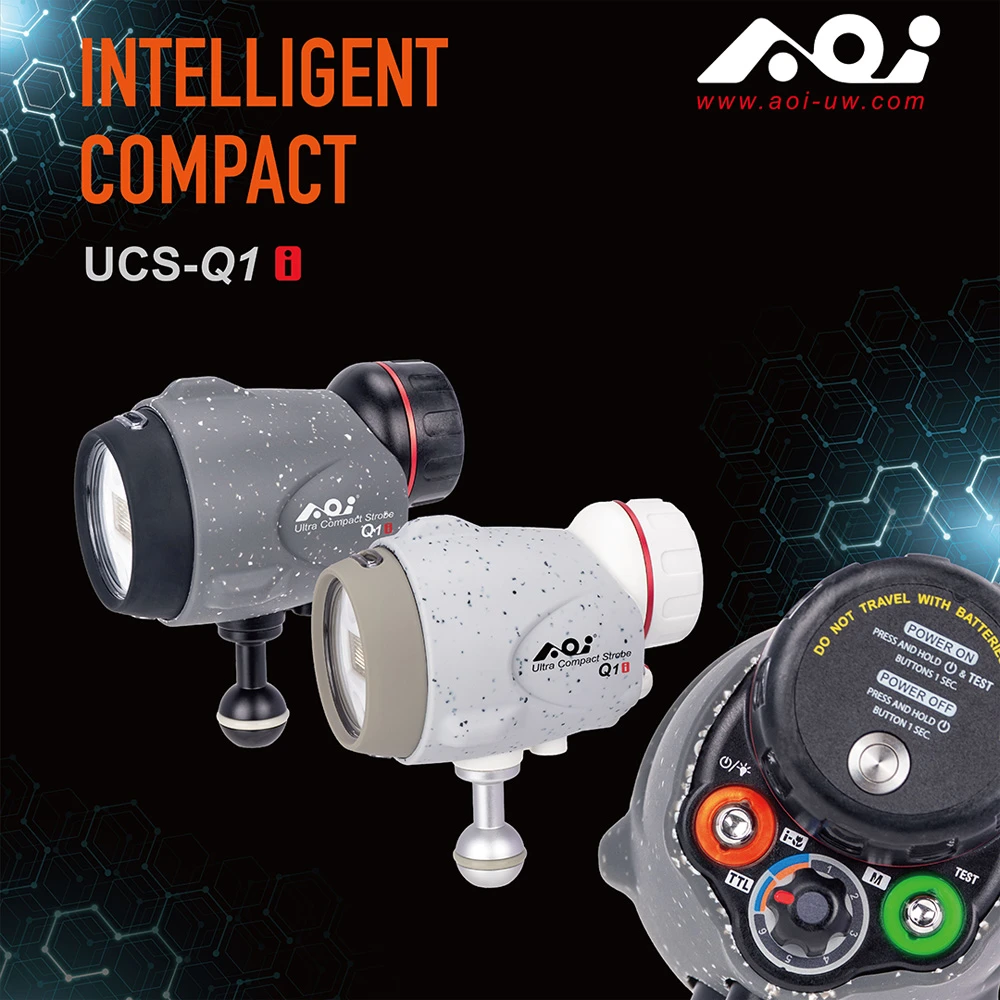

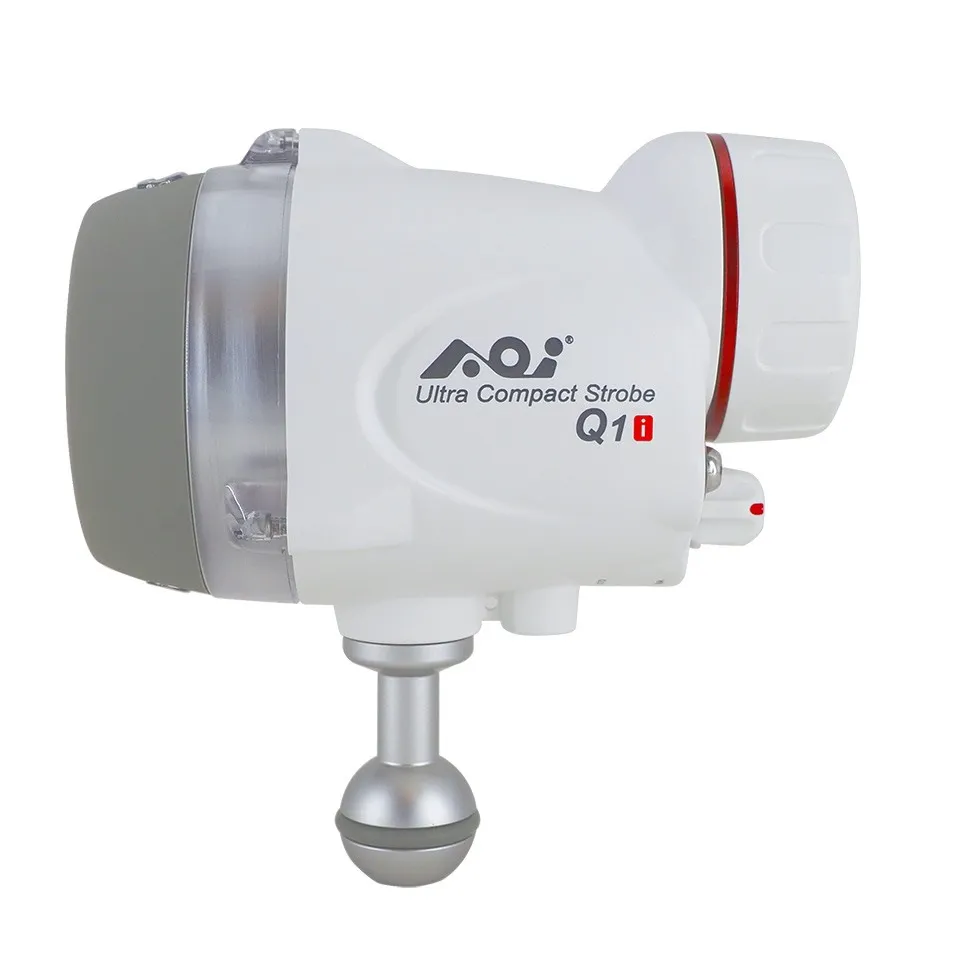

AOI UCS-Q1i Ultra-Compact Strobe

AOI Ltd is proud to announce the official launch of the UCS-Q1i, the newest addition to its Q1 series of ultra-compact underwater strobes, which includes the UCS-Q1 and UCS-Q1 RC.

The AOI UCS-Q1i is an ultra-small, intelligent strobe designed specifically for underwater photography. It combines the lightweight portability of the previous Q1 model with the advanced control technology of the UIS-P1, placing a strong emphasis on native support for Sony TTL and OM System (Olympus) RC-TTL.

Core Specifications & Performance

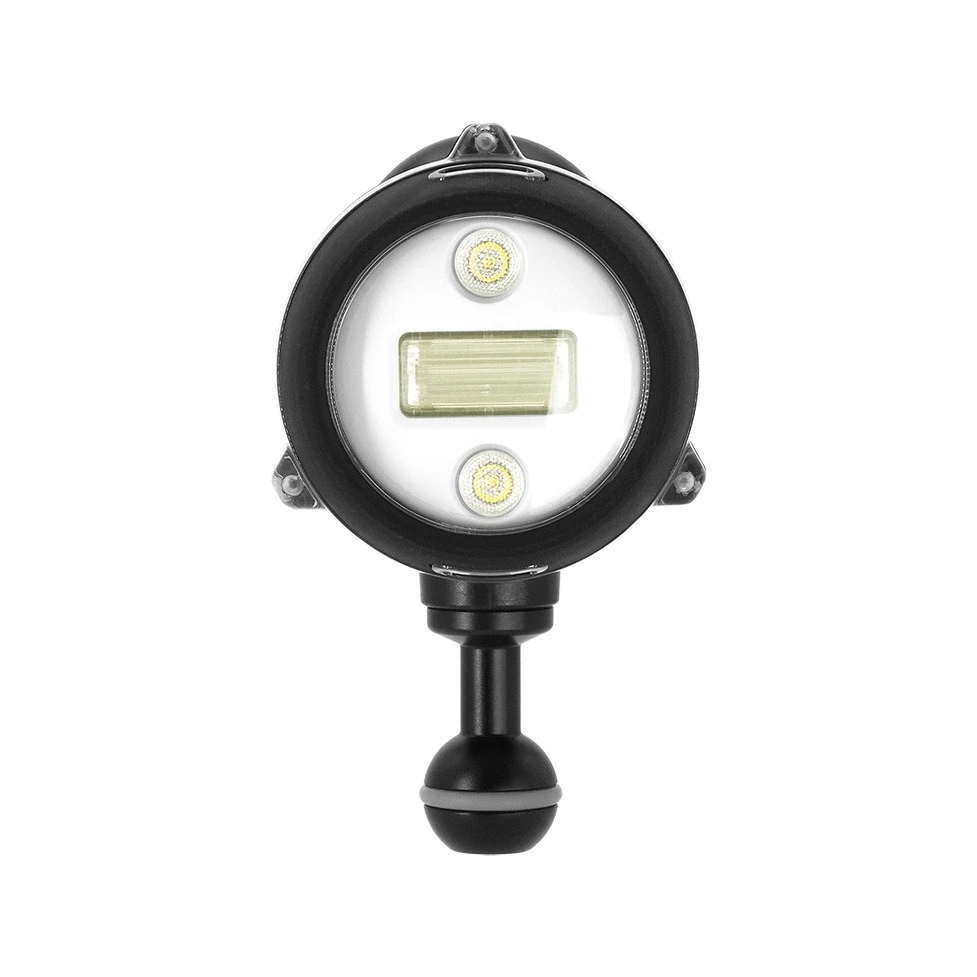

The new fiber-optic triggered strobe “combines the best features of the UCS-Q1 and UIS-P1″—though the UCS-Q1i utilizes a straight flash tube rather than the circular flash tube found on the UIS-P1.

Most importantly, the UCS-Q1i remains the brightest strobe in its class, boasting an impressive Guide Number of 22 (GN22) at ISO 100, a 5600K color temperature, and an 85° beam angle (with diffuser) to deliver powerful underwater illumination. Like the UIS-P1, the UCS-Q1i supports High-Speed Sync (HSS) for Sony cameras, enabling photographers to capture fast-moving underwater action with precision and clarity.

Guide Number (GN): 22 at ISO 100/m, offering the highest brightness level in the compact strobe category.
Recycle Time: Only approx. 0.85 seconds at full power output.
Color Temperature: 5600K (bare bulb), which softens to approx. 5000K when used with the included diffuser for a warmer, more natural light effect.
Beam Angle: 85° both horizontally and vertically when paired with the diffuser.
Depth Rating: Waterproof down to 60 meters (200 feet).

Intelligent Technology (InTeLi™ Mode)

The UCS-Q1i features AOI’s InTeLi™ Intelligent Mode, a system designed to optimize underwater exposure:

Like the UIS-P1, this new strobe is equipped with InTeLi mode, which is engineered to ensure “accurate and consistent” TTL exposure across different camera systems. In manual mode, the power output can be adjusted across six levels, ranging from full power down to 1/64 power.

Multi-System TTL Support: Supports Sony TTL and High-Speed Sync (HSS), as well as OM System RC-TTL.
i-Macro Mode: Optimized specifically for macro photography, automatically and precisely adjusting the light output for the extremely short distances of macro shots.
Self-Learning Function: The fiber-optic synchronization features an automatic learning function to adapt to the pre-flash patterns of various cameras.

Power & Design

Built-in Modeling Light: Integrates a 700-lumen LED light, which can be used as a focus light, a macro photography light source, or a general dive torch.
Battery Requirements: Powered by two 18650 Li-ion batteries (sold separately). A full charge (based on 3,100mAh batteries) provides approximately 1,500 full-power flashes.
Ultra-Lightweight Design: Weighs approximately 550g on land and only about 90g underwater (including batteries), making it ideal for travel.
Mounting Interface: Comes with a built-in, non-interchangeable 1-inch ball mount.

Specification

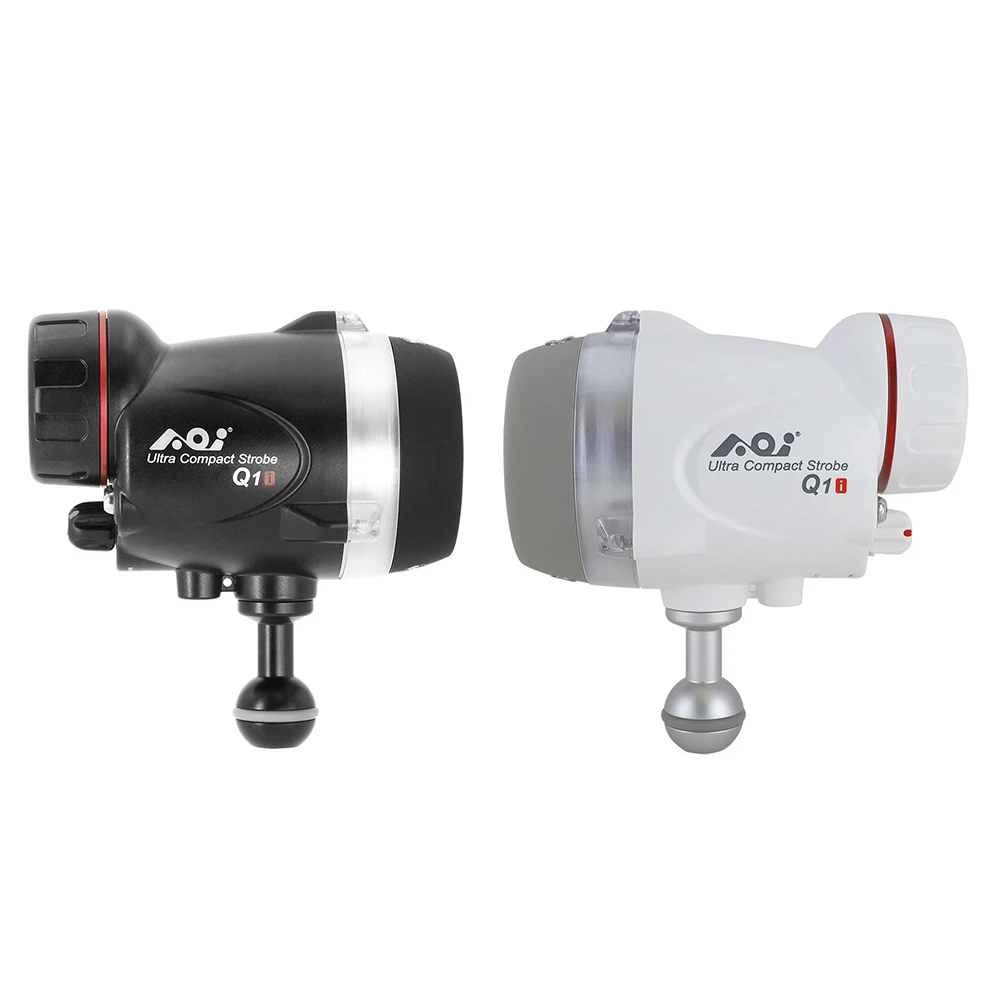

MODEL NUMBER	AOI UCS-Q1i-WHT ／ AOI UCS-Q1i-BLK
DESCRIPTION	Ultra Compact Strobe- Q1i
MAIN BODY COLOR	White / Black
MAIN BODY MATERIAL	Polycarbonate + Glass Fiber
DEPTH RATING	60 meters
STROBE	Guide Number	GN= 22
	Color Temperature	5,600K (5,000K with Diffusor)
	Beam Angles	With Diffusor Horizontal- 85°, Vertical- 85°
	Flash Recharge Time	0.85 Second (Full Power)
	Number of Flashes	1,500 times (Using Flash Only, Full Power and with 3,100mAh Li-Ion Batteries)
	Flash Sync.	By Fiber Optical Cable (Multi-cores Fiber Optical Cable is Recommended)
	Pre-flashes Sync.	Pre-Flash Auto Learning / P re-Flash Cancellation
	Flash Modes	TTL Mode and i-Macro Mode	OMDS	RC FLASH (Group A, Channel 1) TTL AUTO, MANUAL,FP TTL AUTO, FP MANUAL
		TTL Mode and i-Macro Mode	SONY	TTL,HSS TTL

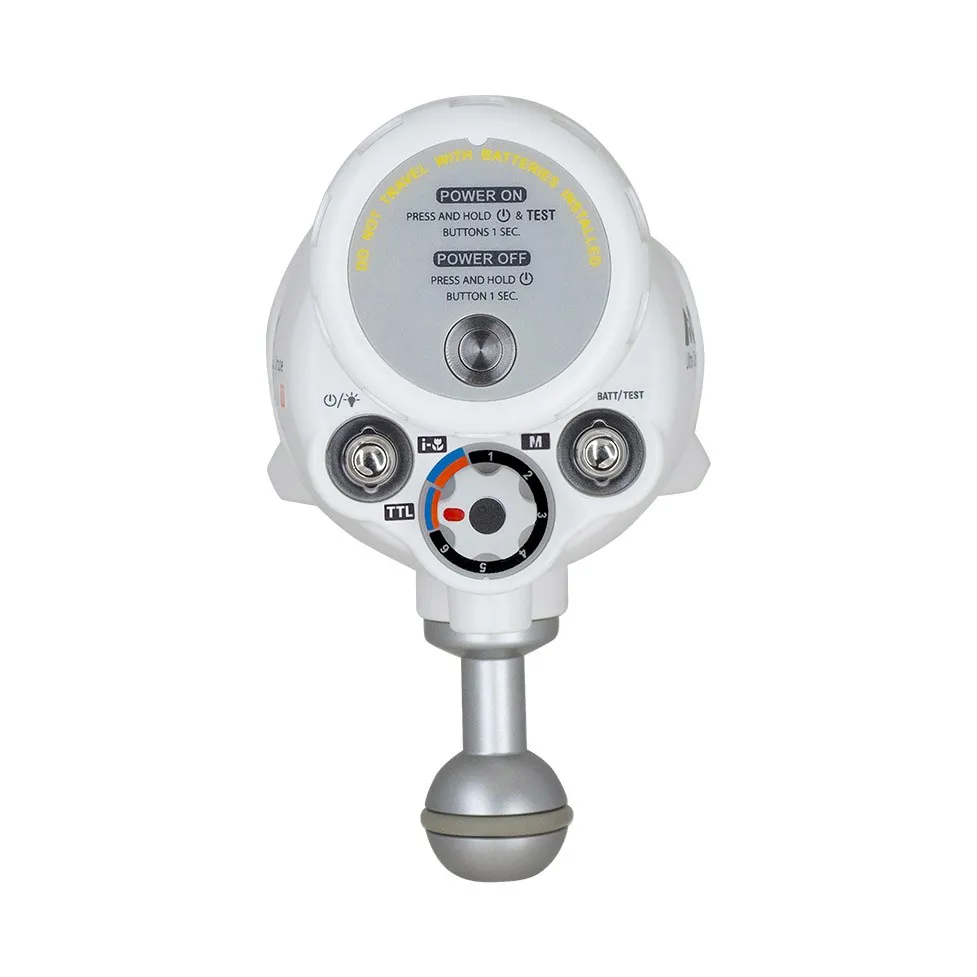

		Manual Mode	6 Steps Setting: 1/64, 1/32+0.5, 1/8, 1/4, 1/2 & FULL
	Modelling Flash	2 Seconds Flashing Duration
	Flash Test Button	Yes
LED LIGHTS	Maximum Output	700 Lumens
	Power Control	25%, 50%, 100% and OFF
	Color Temp.	5600K
	Beam Angles	45°
	Burn Time	130 Minutes (Using LED Only, Full Power and with 3,100mAh Li-Ion Batteries.)
BATTERY REQUIREMENTS	18650 Li-Ion Rechargeable Battery x2pcs (Battery is not included with the product)
	Output Current	Minimum 5A
	Battery Length	Minimum 69mm
STROBE MOUNTING	1″ Ball Mount Only (Non-replaceable)
DIMENSIONS	125mm (L) x 77mm (W) x 131mm (H)
WEIGHT	On Land	Approx. 550g (Batteries included)
WEIGHT	Underwater	Approx. 90g (Batteries included)

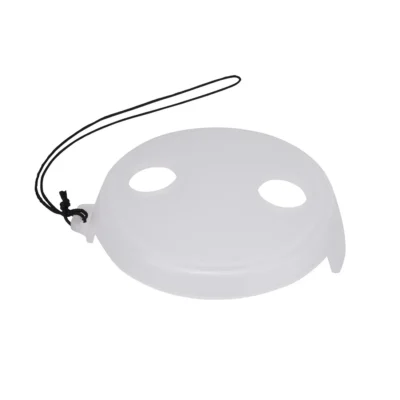

STANDARD ACCESSORIES	Strobe Diffusor for Q1 Series SD-01

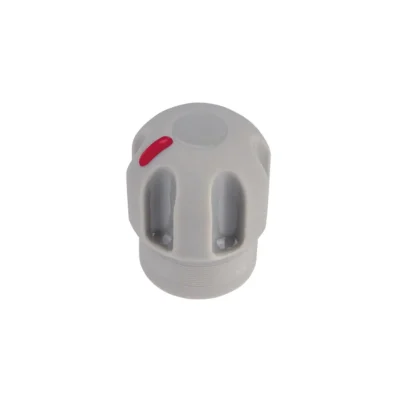

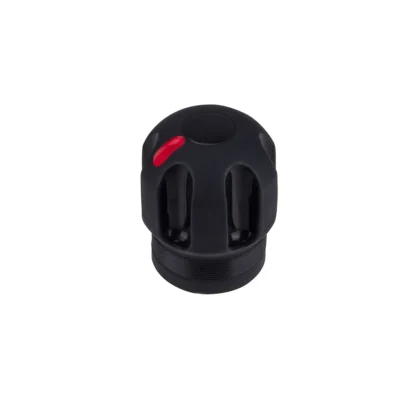

	Control Knob Extension for Q1 Series CKE-01
	Spare O-ring set for Q1 Series SOR-01
	O-ring Remover ORR-02
	Silicone Grease (1.5g)
	Battery Storage Case BSC-18650-2 (Rechargeable Battery is not included)
