Name: Nauticam NA-CV1 for Canon PowerShot V1
Brand: Canon
SKU: 17340P 17340
Availability: InStock

Description

Nauticam NA-CV1 for Canon PowerShot V1

(Pro Package inc. flexitray, right handle, two balls, M16 valve, shutter extension)

The Canon PowerShot V1

Key Camera Specifications

22.3MP 1.4″ CMOS Sensor
16-50mm Equivalent f/2.8-4.5 Lens
Full-Width 4K 30p; 4K 60p with 1.4x Crop
10-bit Recording; Canon Log 3
Dual Pixel AF II for PowerShot
Optical Stabilization; 3-Stop ND Filter
Active Cooling Extends Shooting Times

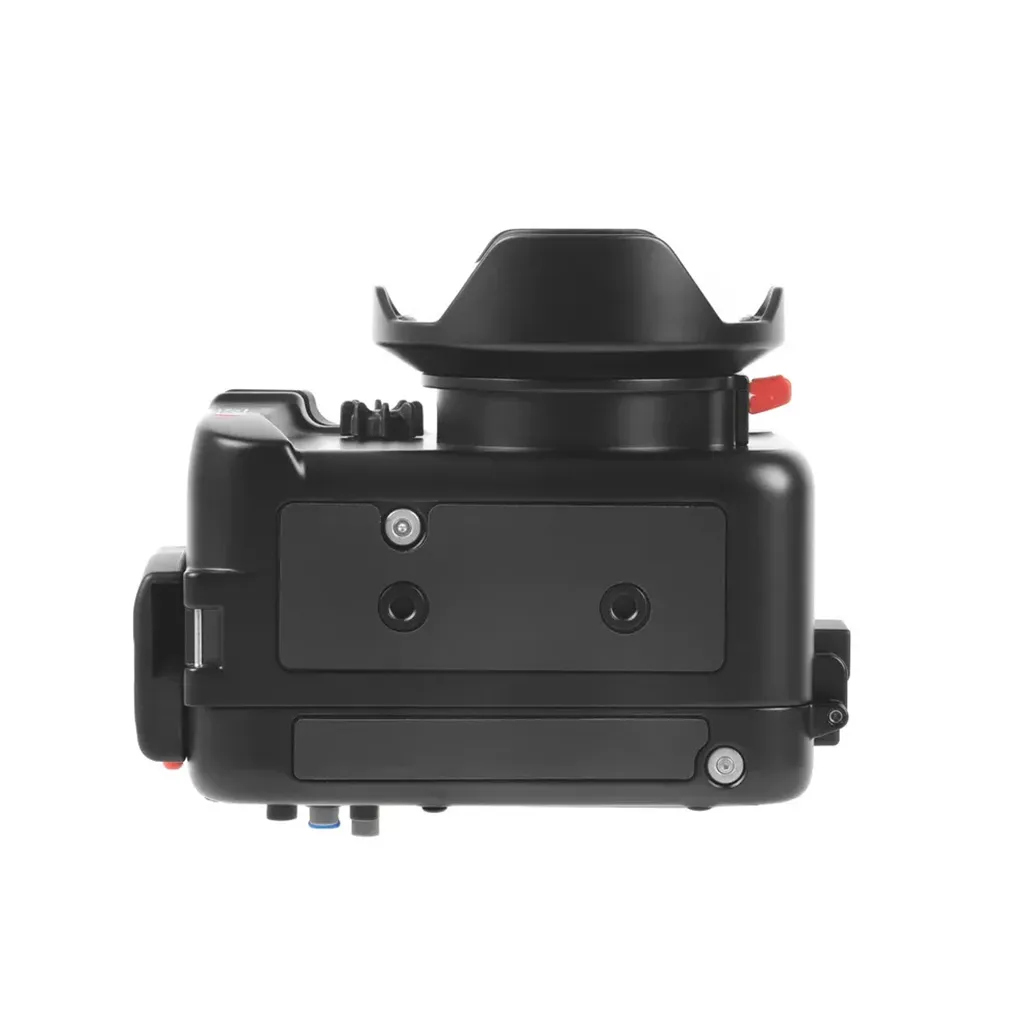

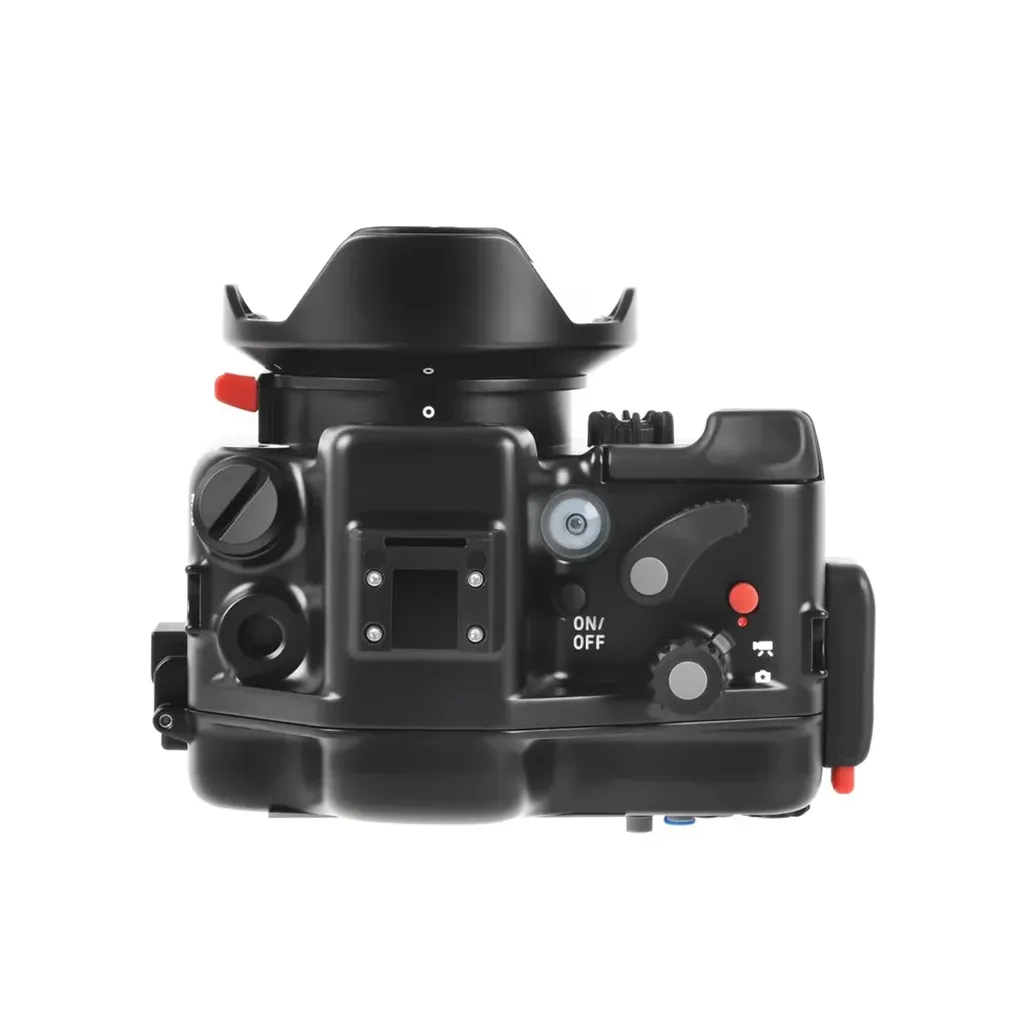

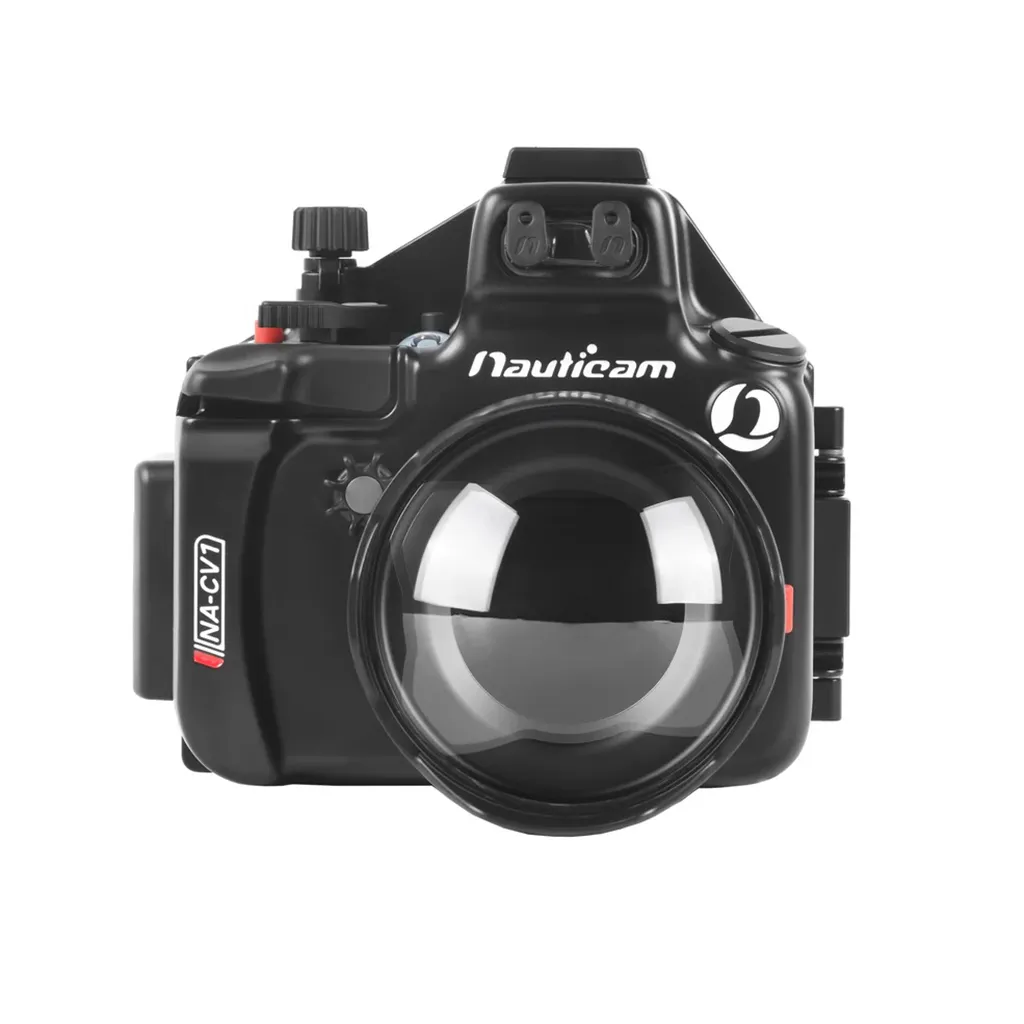

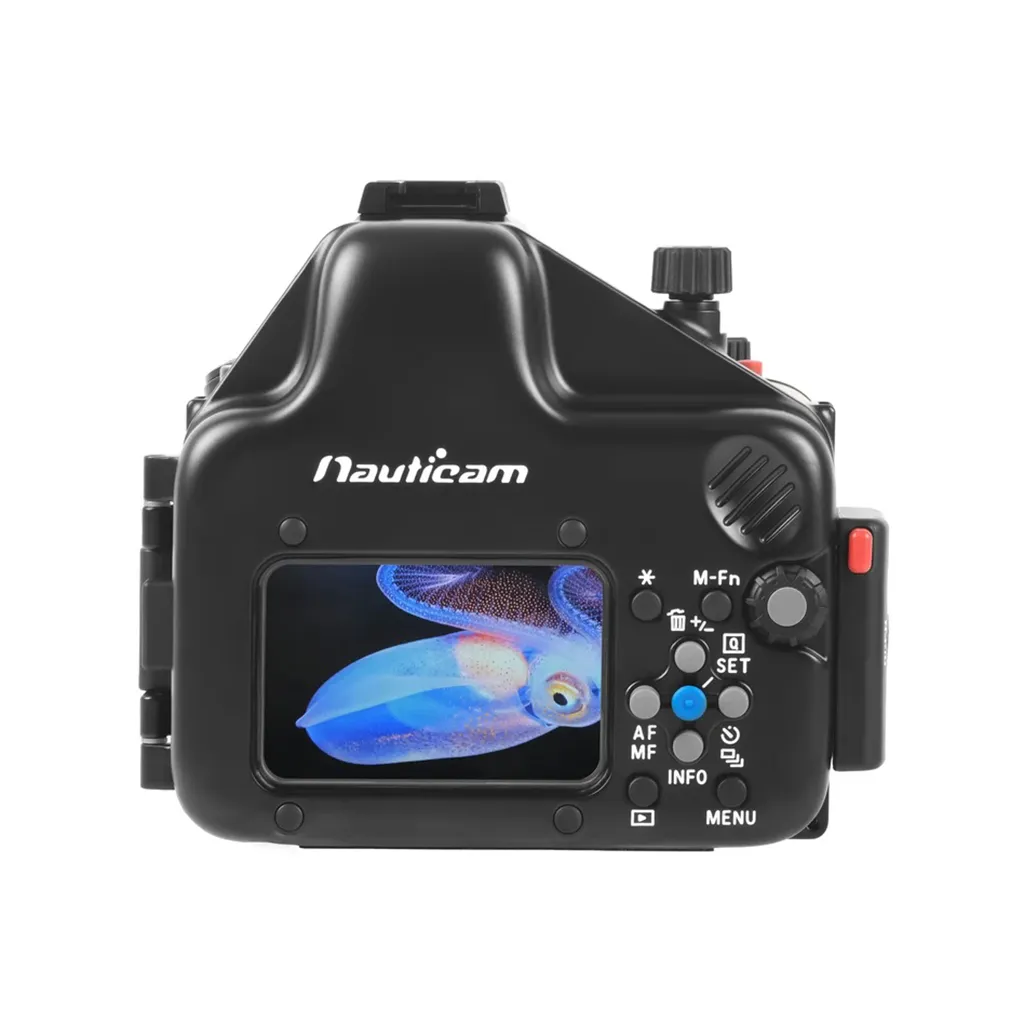

The Nauticam NA-CV1 Housing

NA-CV1 is the latest iteration in a lineup of advanced housings for very capable compact cameras supported by Nauticam. Many features found on professional DSLR systems have been integrated into this system, and the result is an underwater housing that allows the user to harness the full potential of this advanced compact camera in the water.

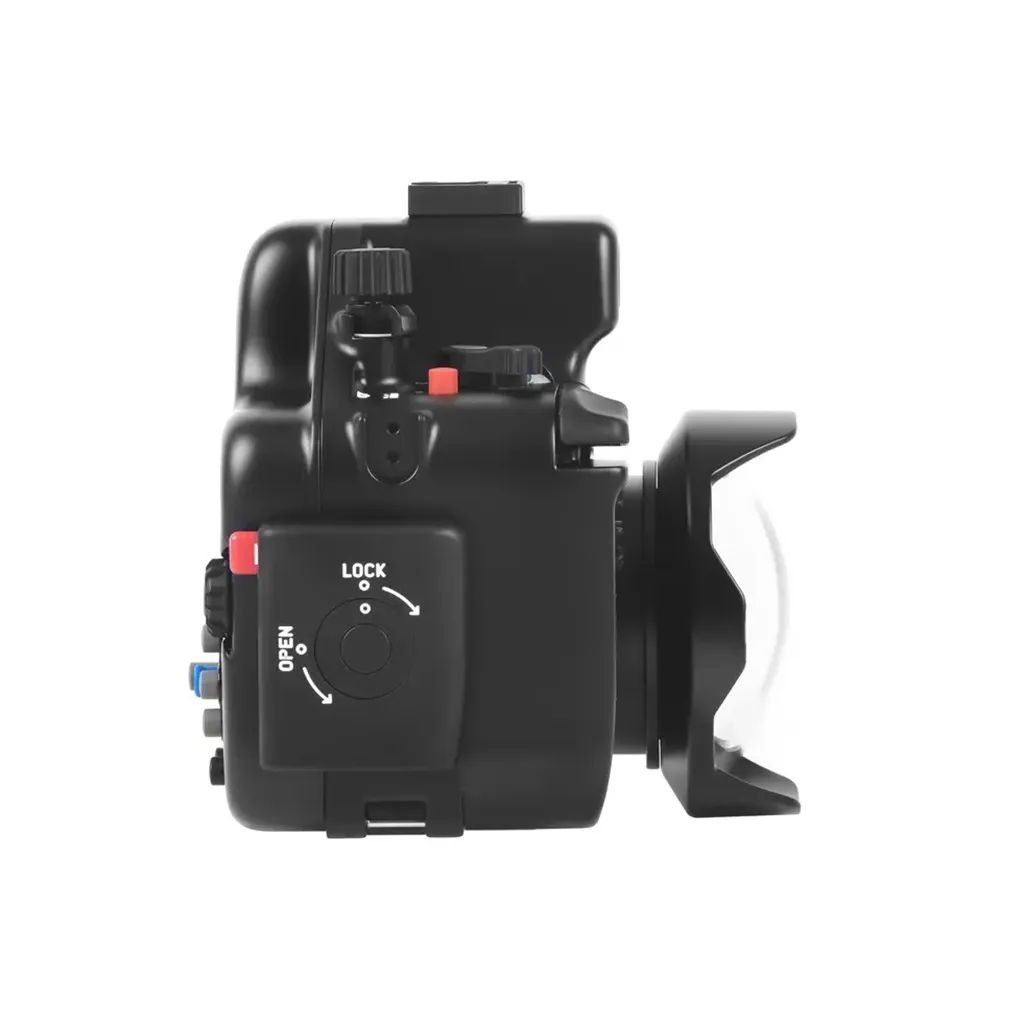

The basic functions and ergonomic enhancements that Nauticam users have grown to know and love are incorporated in NA-CV1. The housing is machined from a solid block of aluminum, then hard anodized to seal out corrosive salt water. It is closed via a simple, yet secure locking rotary latch. The right side of the housing is sculpted to fit the palm of the user’s hand, and Nauticam’s two-stage shutter release lever provides clear differentiation between the half press and full press shutter release positions. All functions are clearly labeled.

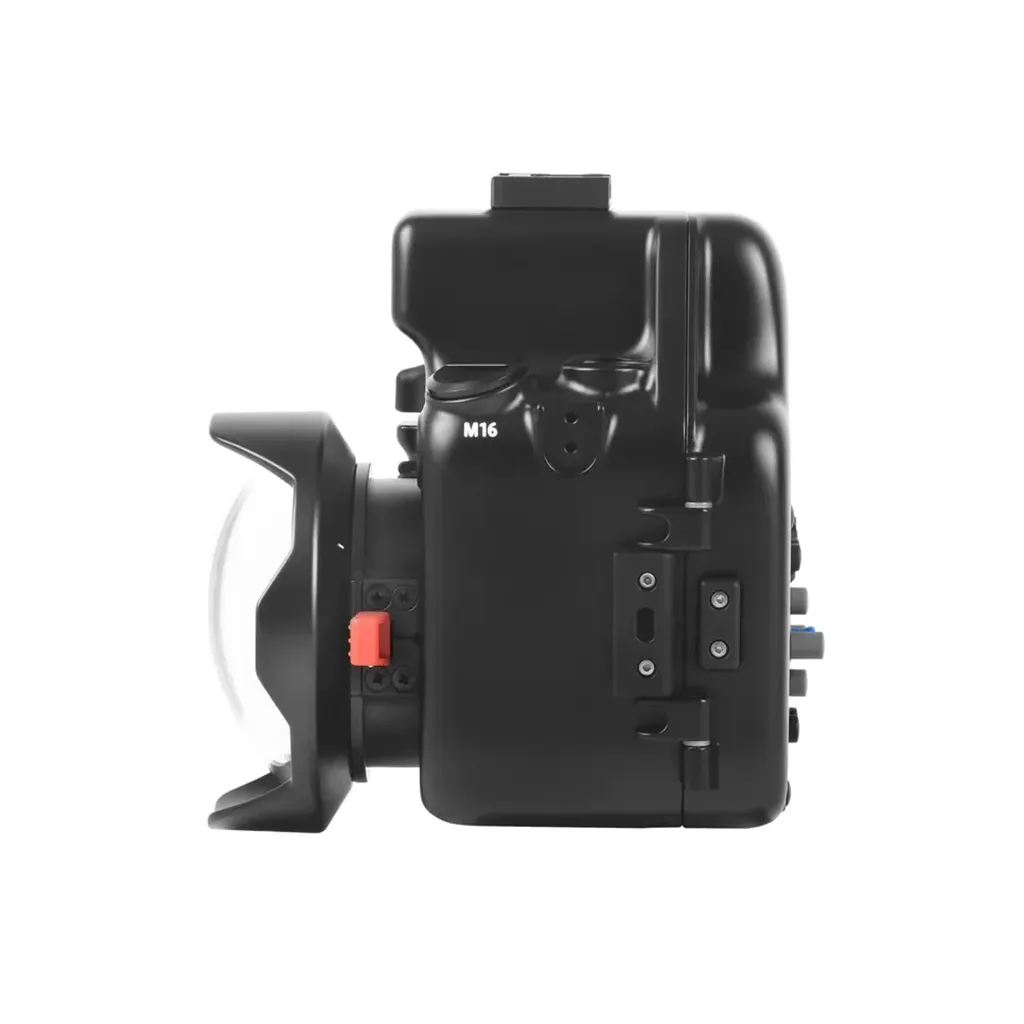

The Nauticam leak alarm and vacuum monitoring system is installed as standard equipment. This system provides an audible and visual alert to any water entry in the housing, and when combined with an optional accessory M16 Vacuum Valve II (25625) the watertight integrity of the system can be tested before ever entering the water and monitored during every dive.

Expert product design, modern manufacturing techniques, top quality materials backed by a two-year warranty, and a critical focus on the user experience combine to produce the premier system for Canon Powershot V1.

N50 Port System

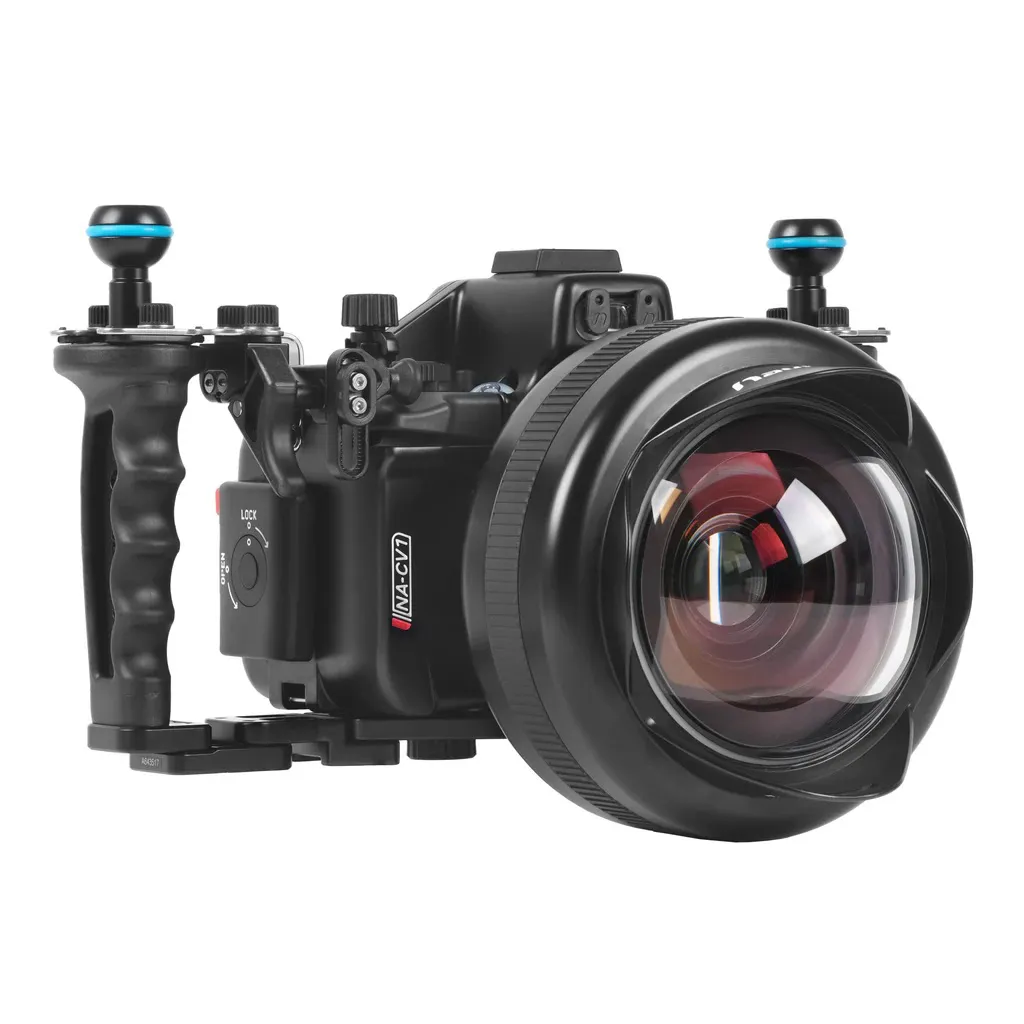

The NA-CV1 ships with the N50 3.5″ Acrylic Dome Port that allows the full 16-50mm zoom range, but other ports are available from the N50 system. When combined with the 38703 N50 Short Port 25, you can add on the 83203 WWL-C for a converted FOV of 130 degrees to 71 degrees.

*Test at focal range 50mm	The Smallest Subject Size	Working Distance
N50 Port Chart
1. N50 3.5” acrylic dome port , Zoom Range: 16-50mm. *The minimum focus distance at Wide 16mm is 25mm, and at Tele 50mm is 530mm.
2. 38703 N50 Short Port 25 + 83203 WWL-C, Lens FOV 84-46º, Converted FOV. 130-71º, Zoom Range 24-50mm *slight vignetting at 24mm.
3. 38703 N50 Short Port 25 + 83202 WWL-1B, Lens FOV 75-46º, Converted FOV. 130-80º, Zoom Range 28-50mm
4. 38703 + 83214 Bayonet Mount Adaptor for SMC/CMC with MFO-1, CMC-2/1.

without diopter	105 x 70 mm	175-∞
with 81501 MFO-1	89 x 59.3 mm	116-1150 mm
with 81302 CMC-2	48 x 32 mm	55-125 mm
with 81301 CMC-1	38 x 25.4 mm	37-74 mm

Optional Pro Package Configuration

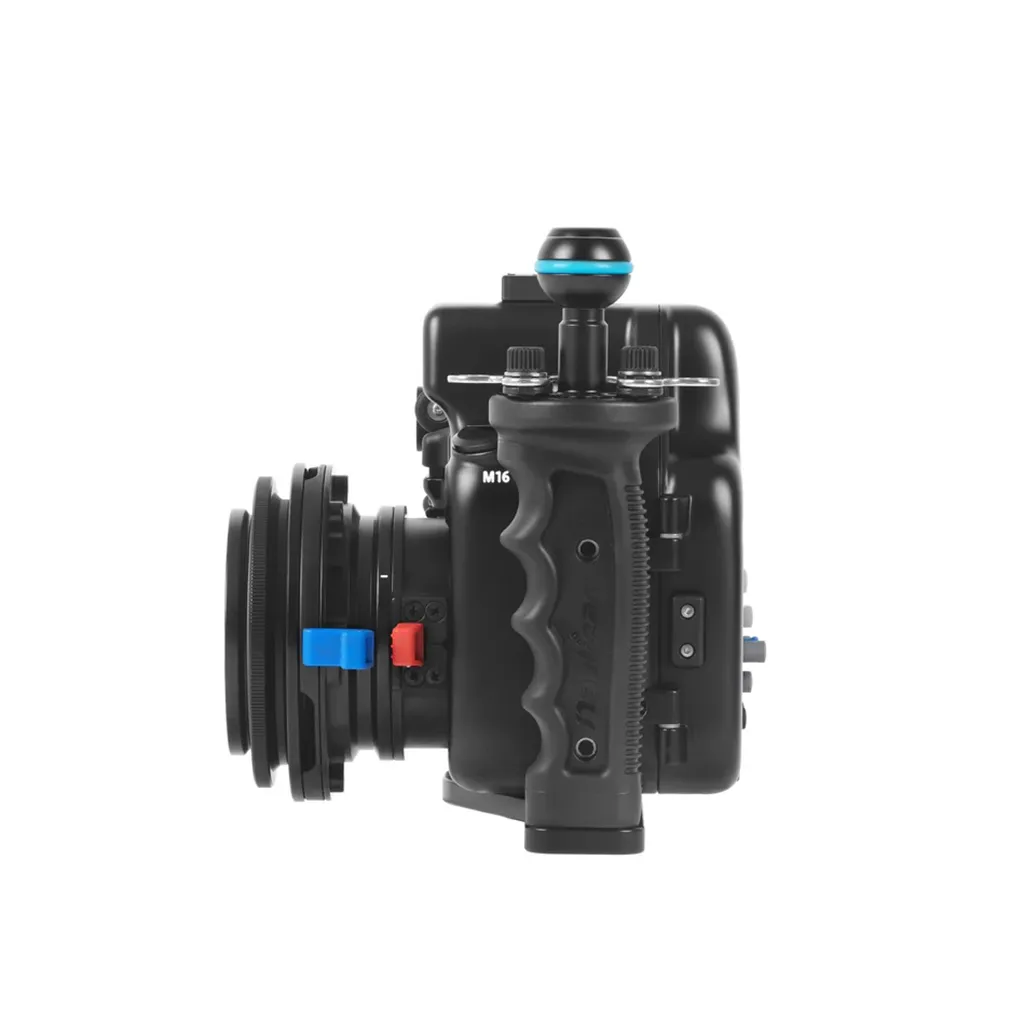

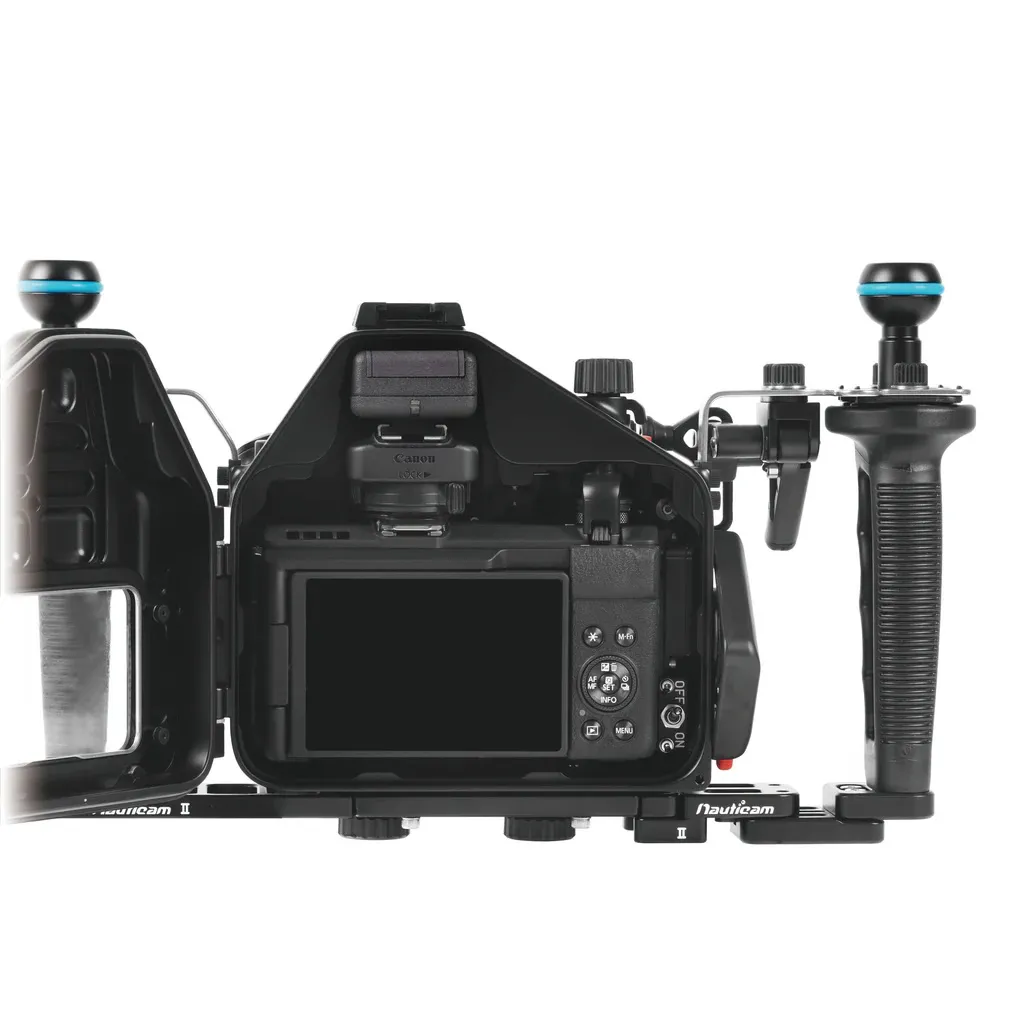

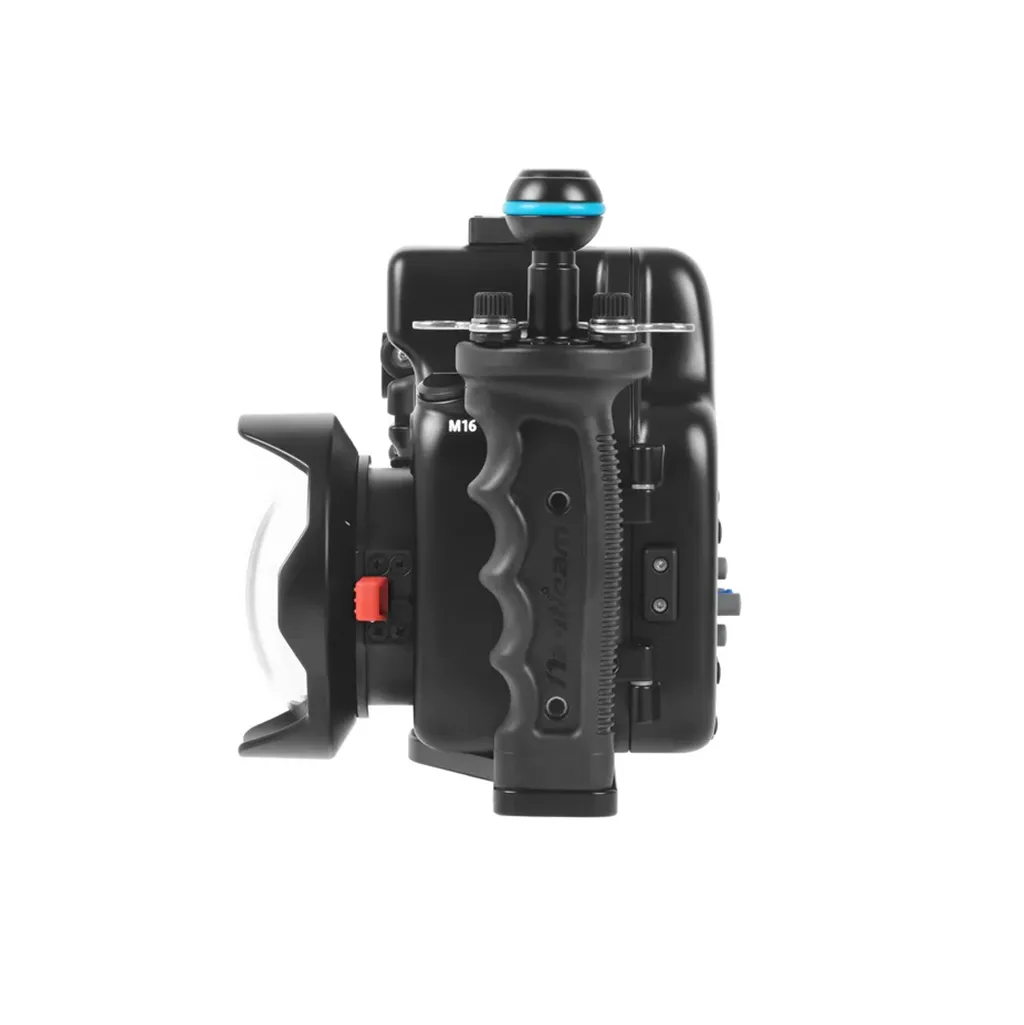

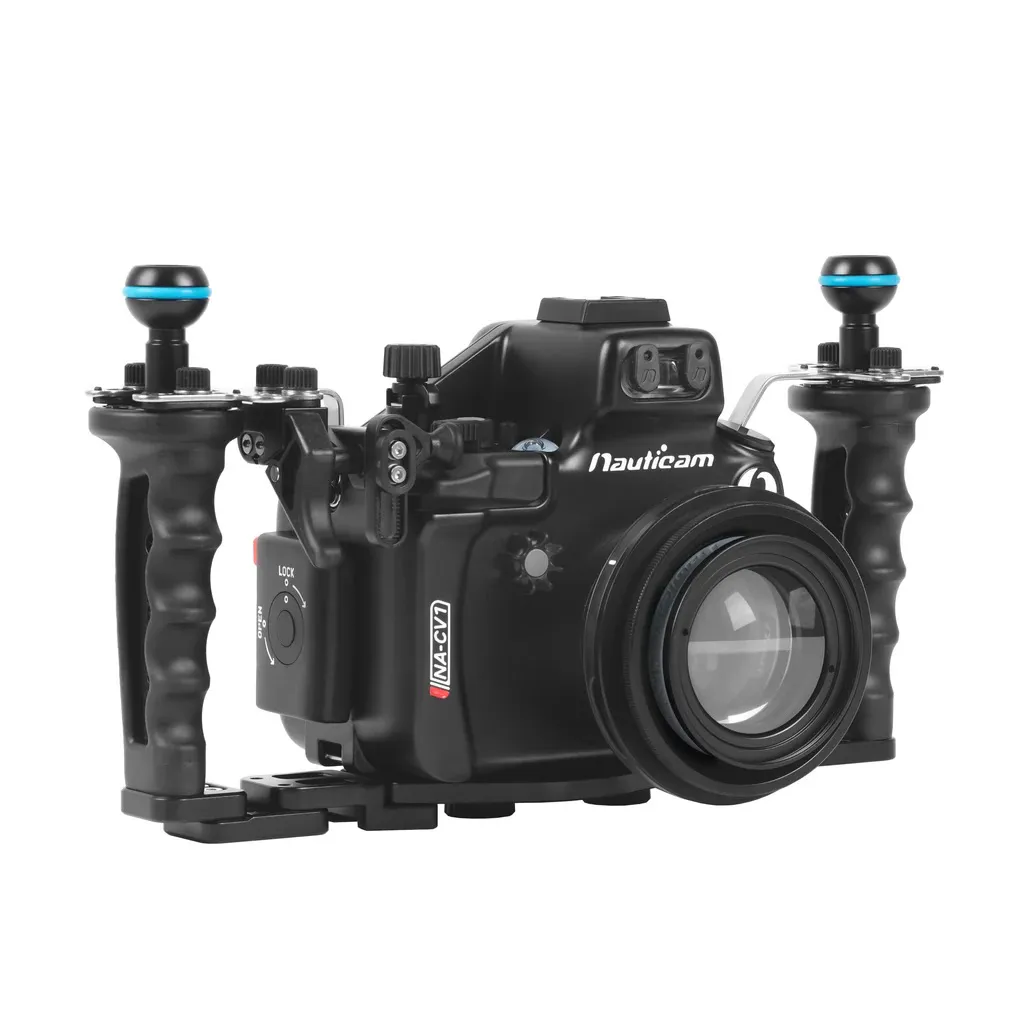

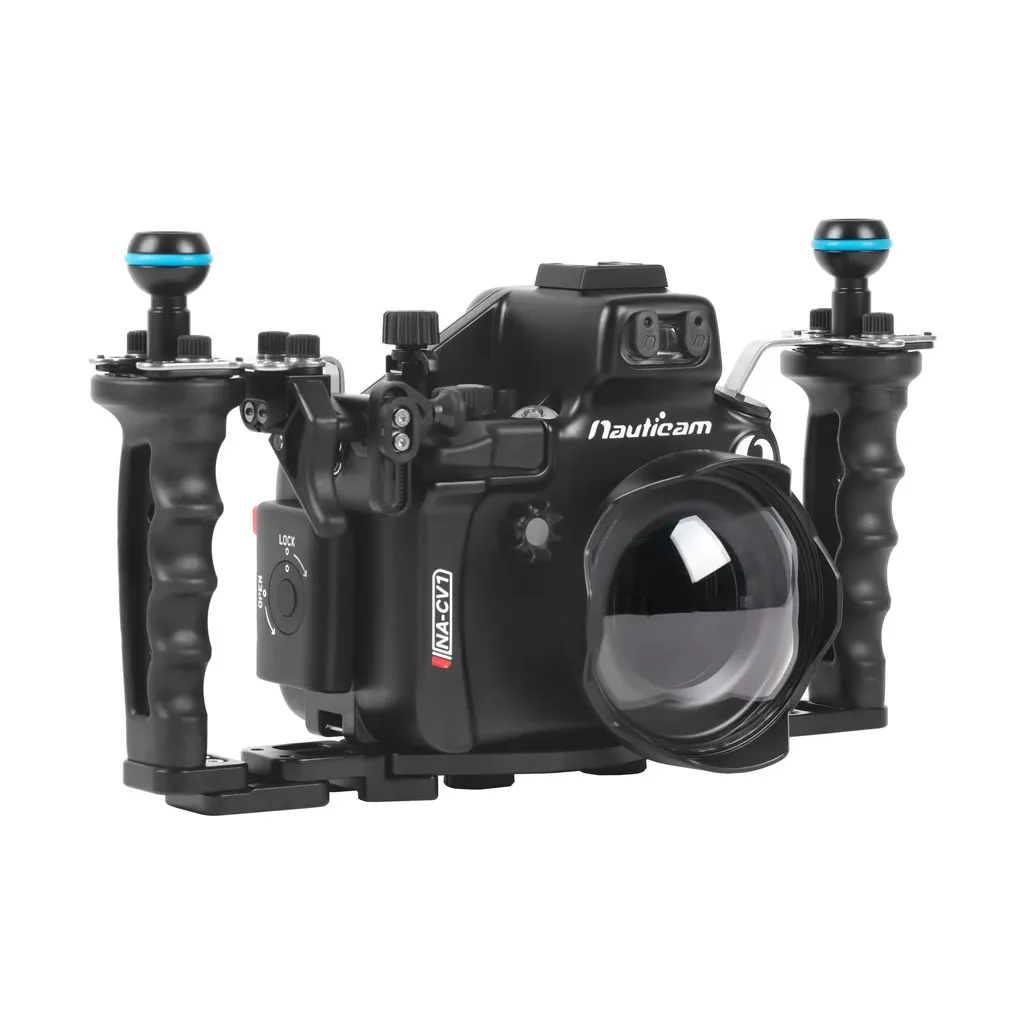

The NA-CV1 is also available in the Pro Package configuration that comes with the Flexitray II, Right Handle, two ball-mounts and M16 vacuum valve pre-installed. The standard NA-CV1 ships with stainless steel stiffening brackets and shutter release extension should a Nauticam Easitray or Flexitray be added later.

Flash Triggering

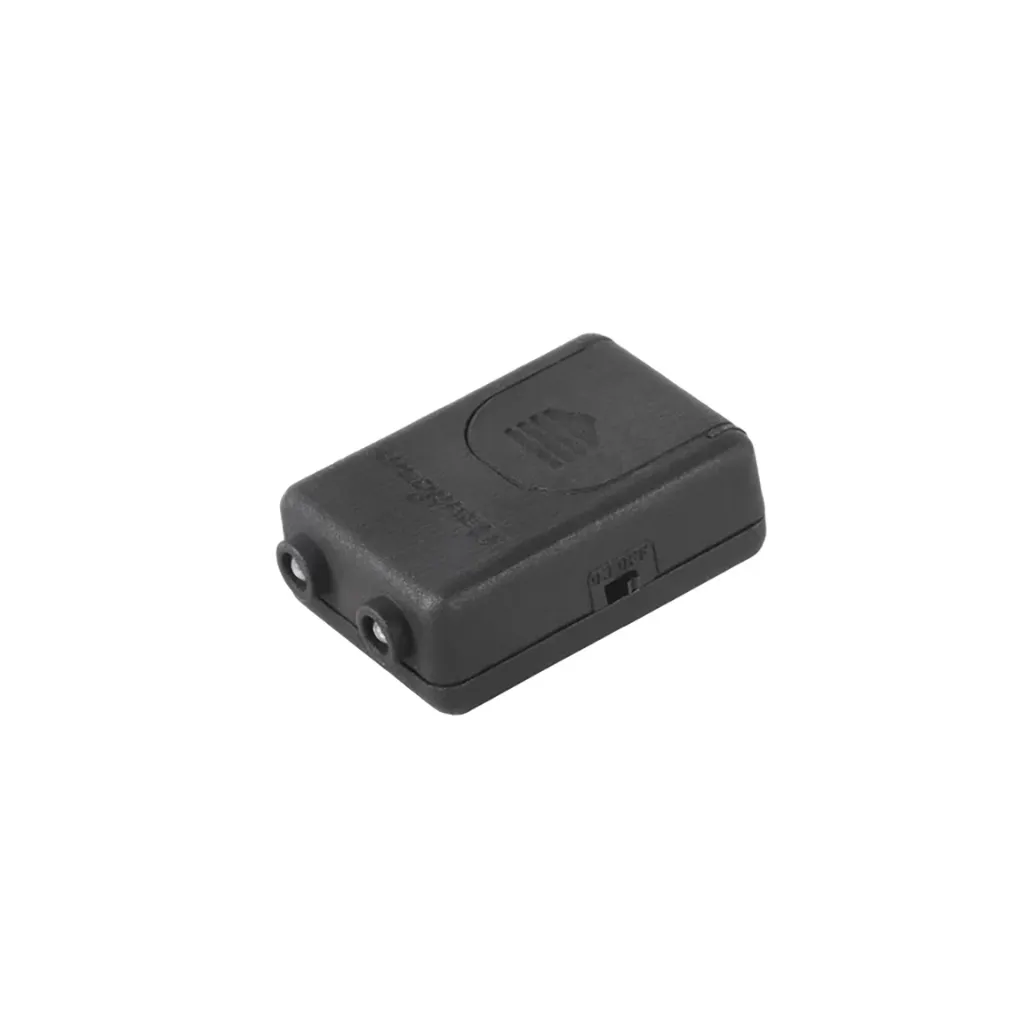

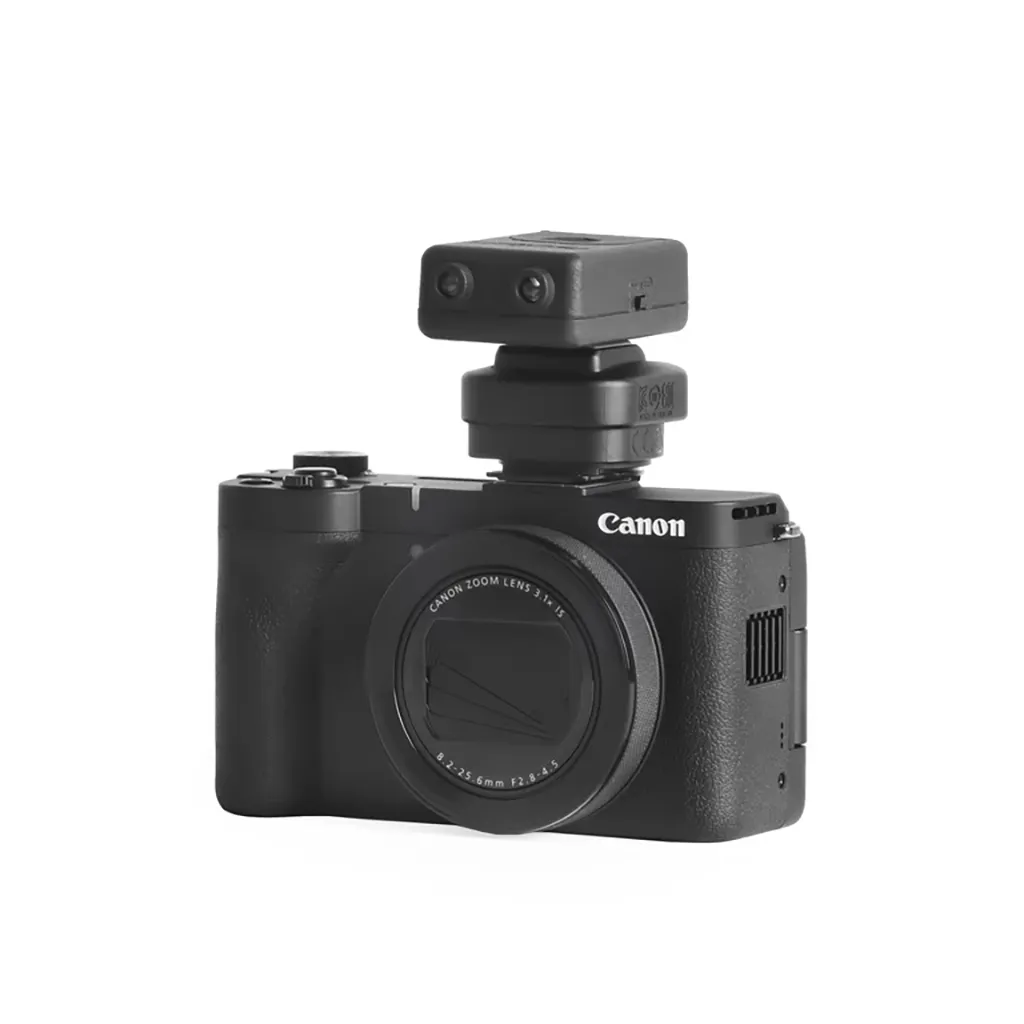

The 26353 Mini Flash Trigger for NA-CV1 combine with the Canon Hotshoe Adapter AD-E1 provides reliable and fast triggering for fiber optic compatible strobes.

Technical Specifications
Dimensions	165mm (W) x 149 mm(H) x 139 mm(D)
Weight in air	1.22 kg
Buoyancy in Water	Negtive 0.1g (incl. camera and battery)
Depth Rating	100m
Port Mount	N50
Accessory Ports	Front M16 x 1, M10 x1 on Top

What’s in the box:

NA-CV1 housing
N50 3.5″ Acrylic Port
Spare main housing o-ring (90131)
O-ring remover
CR2032 battery (for moisture alarm)
Lubricant
Set of Allen keys
Padded Housing Bag
Set of handle brackets with shutter release trigger
Pro Package only (Pre-installed)
- Flexitray II
- Right Handle
- two ball-mounts
- M16 vacuum valve

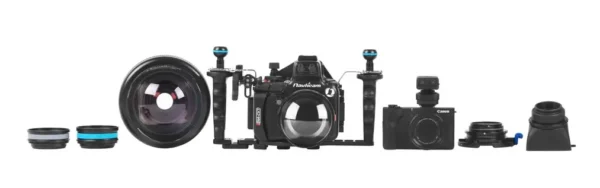

Recommended Accessories

25625 M16 Vacuum Valve II (Pushbutton Release)
26353 Mini Flash Trigger for NA-CV1

* Usable in combination with the AD-E1 Multi-Accessory Canon Shoe Adapter

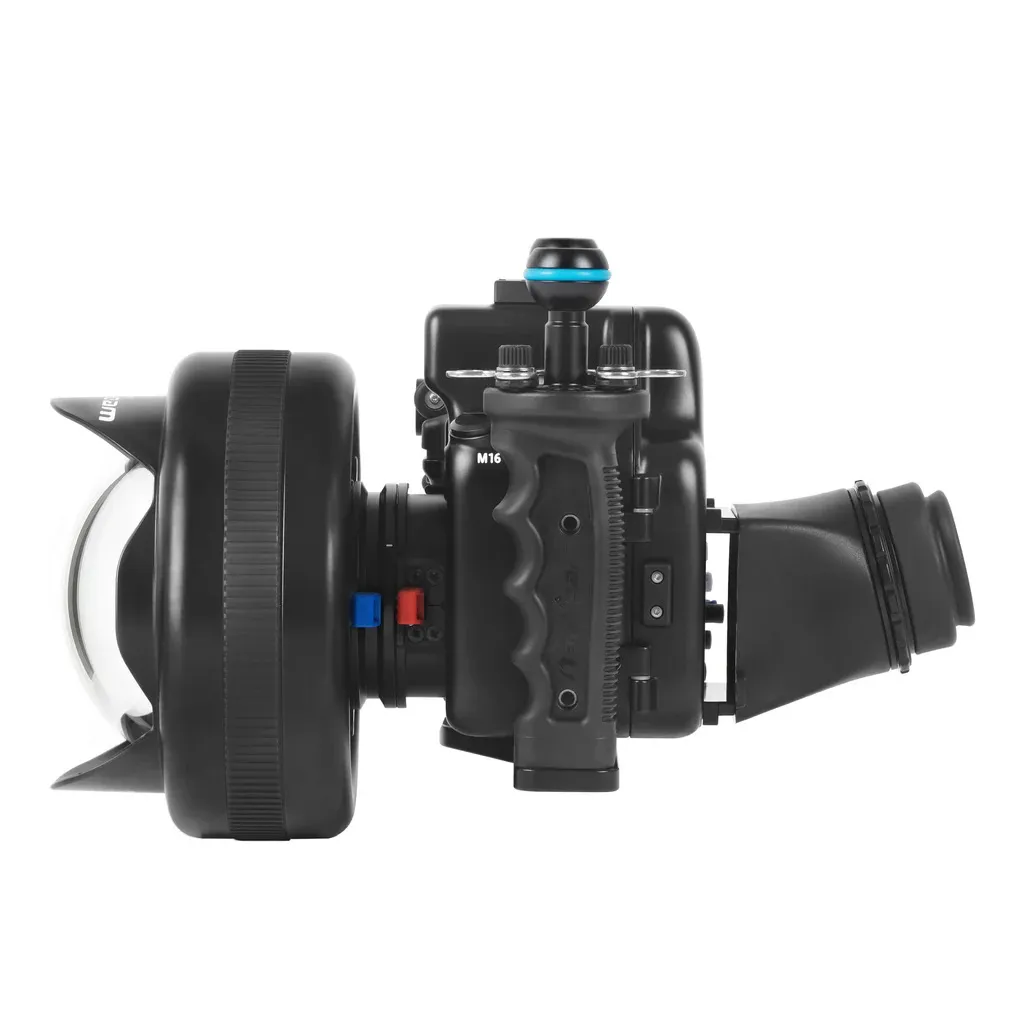

25121 LCD Magnifier attachment rails
25106 25106 LCD Magnifier with Dioptric Adjustment
71206 Easitray II with left handle (with 2pcs 1/4” screws)
71207 Flexitray II with left handle (with 2pcs 1/4” screws)
71208 Adjustable right handle II (for Easitray II &Flexitray II)
38703 N50 Short Port with Bayonet Mount (To use with WWL-C or WWL-1B)
83203 Wet Wide Lens for Compact Cameras (WWL-C)
83202 Wet Wide Lens 1 (WWL-1B) 130 deg. FOV with compatible 28mm Lenses
83214 Bayonet Mount Adaptor for SMC/CMC
81301 Compact Macro Convertor 1 (CMC-1, 4.5x Magnification)
81302 Compact Macro Convertor 2 (CMC-2, 2.8x Magnification)
