Name: Weefine WED-5 Pro Monitor Housing Monitor
Brand: Weefine
SKU: WED-5 Pro
Price: 1200 USD
Availability: InStock

Description

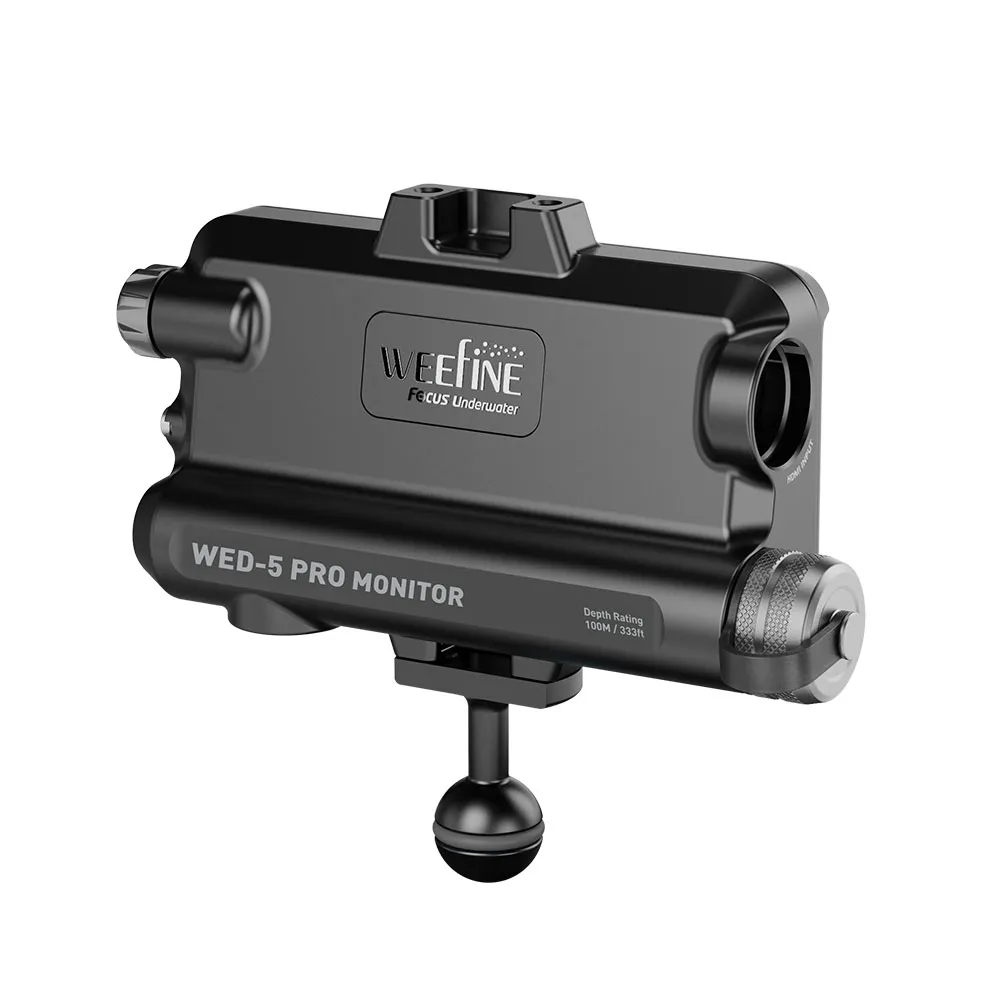

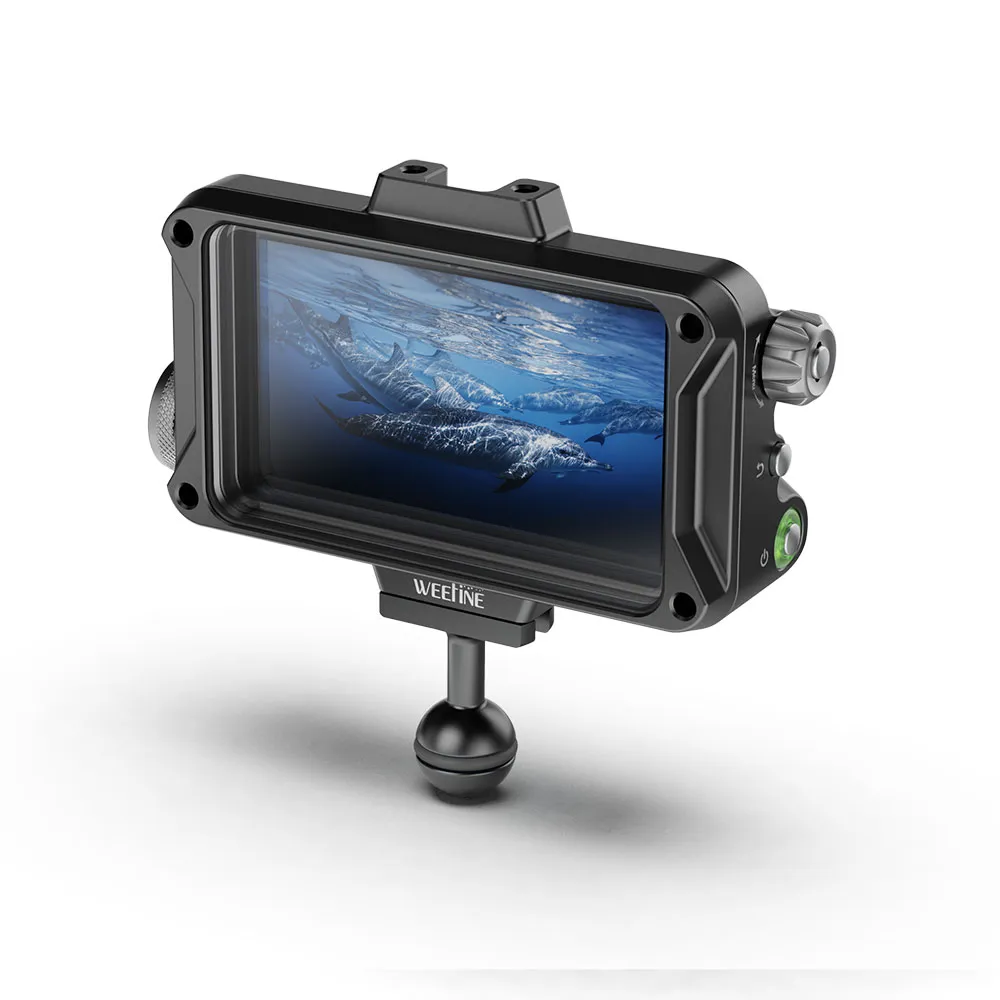

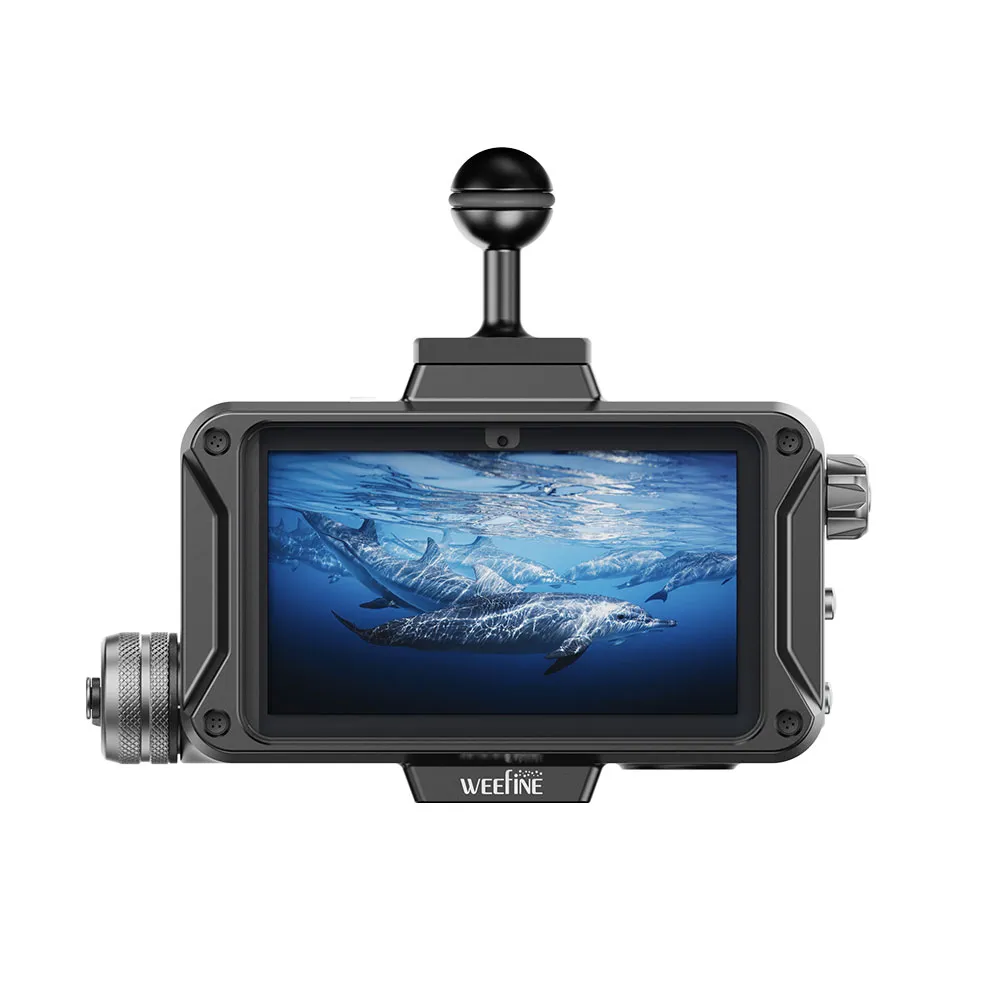

Weefine WED-5 Pro Monitor Housing

The Weefine WED-5 PRO is a premium 5-inch external monitor built specifically for underwater photography and videography.

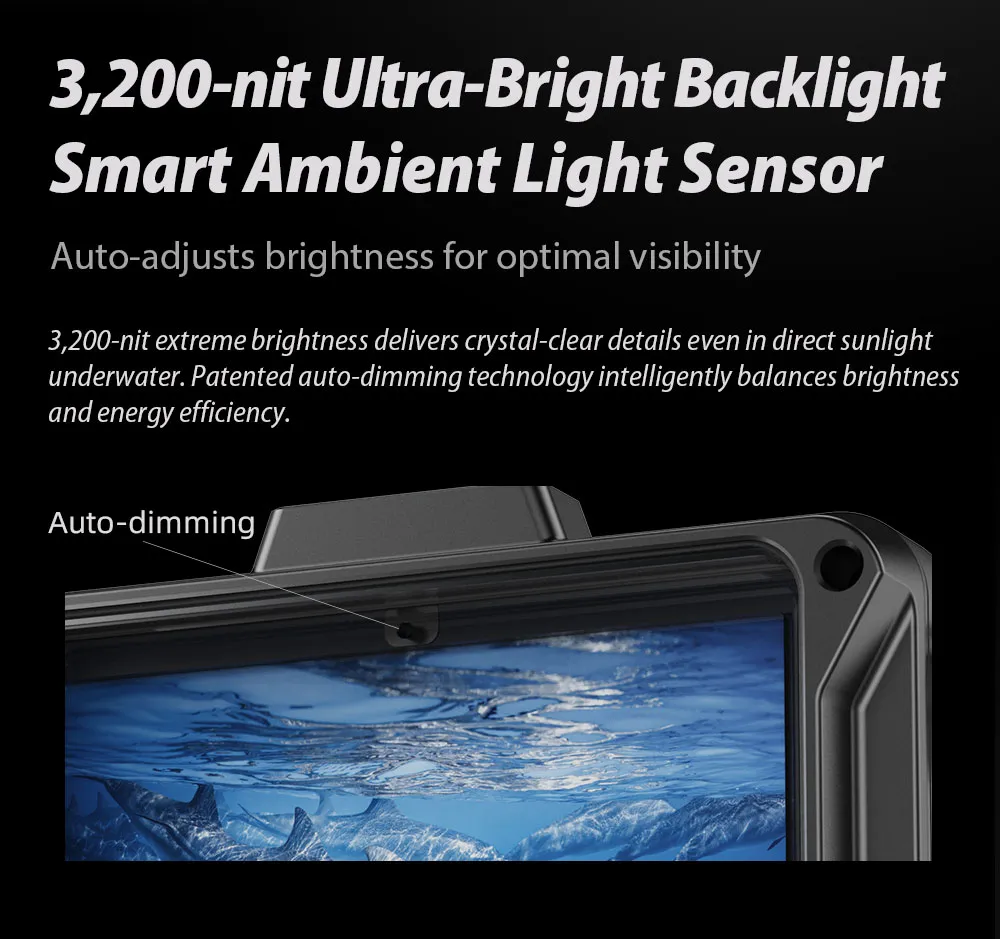

The most critical upgrade of the PRO version compared to the older WED-5 is its ultra-bright 3200-nits screen panel. It acts as a perfect magnifying glass and field monitor, completely changing how you shoot underwater with your Olympus/OM System TG-7.

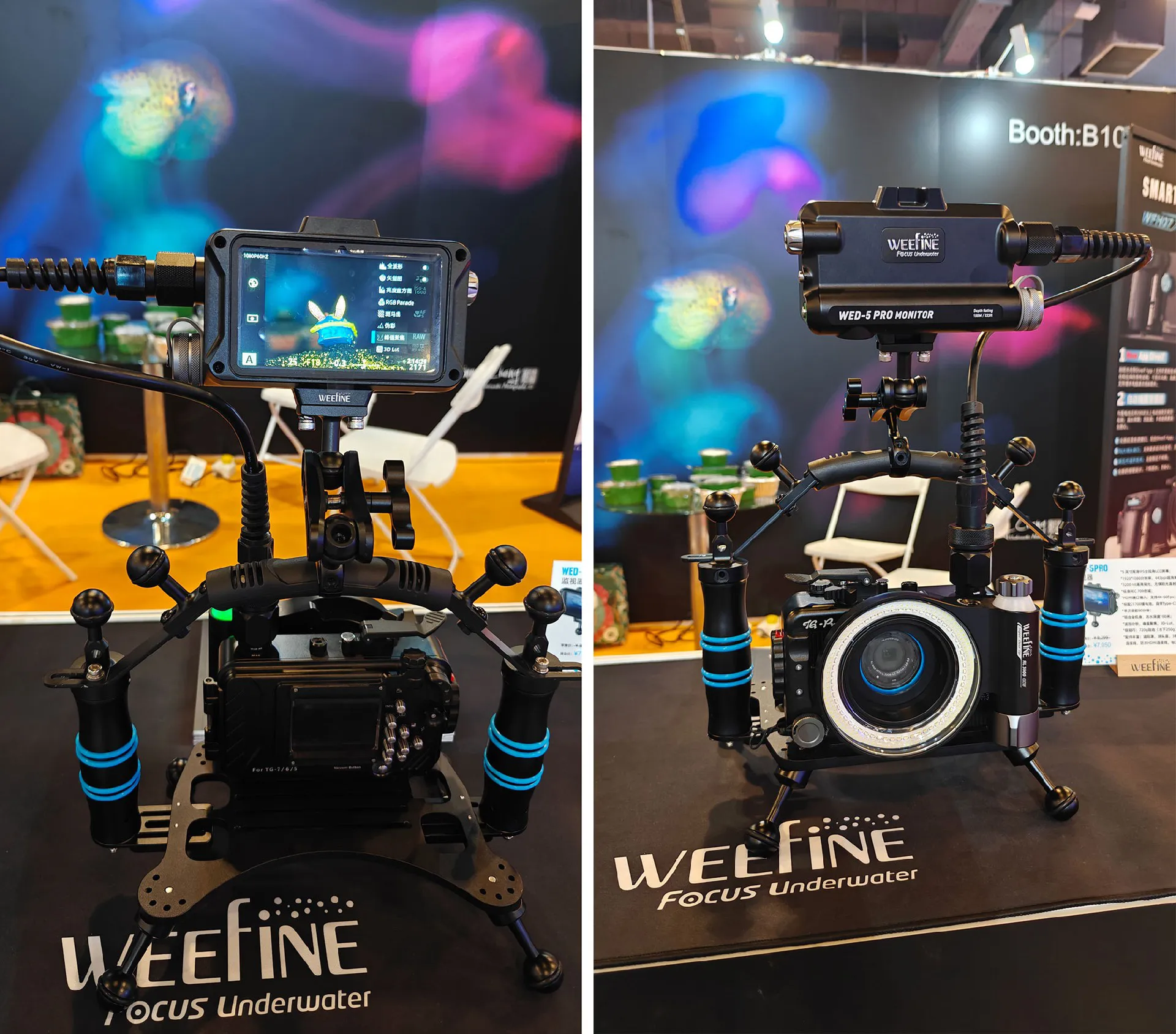

The flagship WED-5 PRO Underwater Monitor featured a high-resolution, wide-color-gamut, high-brightness display and customized professional monitor functions, along with an ultra-lightweight design, this product significantly enhances the underwater photography experience. Visitors enthusiastically participated in hands-on demos, praising its lightweight structure, ease of use, and outstanding display quality.

Why It’s a Game Changer for the TG-7 & Pro 2 Housing

Perfect for Macro Shooting (The Macro Savior): The TG-7 has an incredible Microscope mode, but its small built-in screen makes it hard to see if your tiny subject is perfectly in focus. The WED-5 PRO features Focus Peaking, which highlights the sharpest areas of your image in a bright color, ensuring you never miss a shot on micro marine life.
Beats the Bright Sunlight: When diving in shallow waters or under direct sunlight, the camera’s built-in screen often becomes completely washed out due to glare. The 3200-nits panel (paired with the included silicone sun hood) guarantees a crystal-clear view and accurate composition anywhere, at any depth.

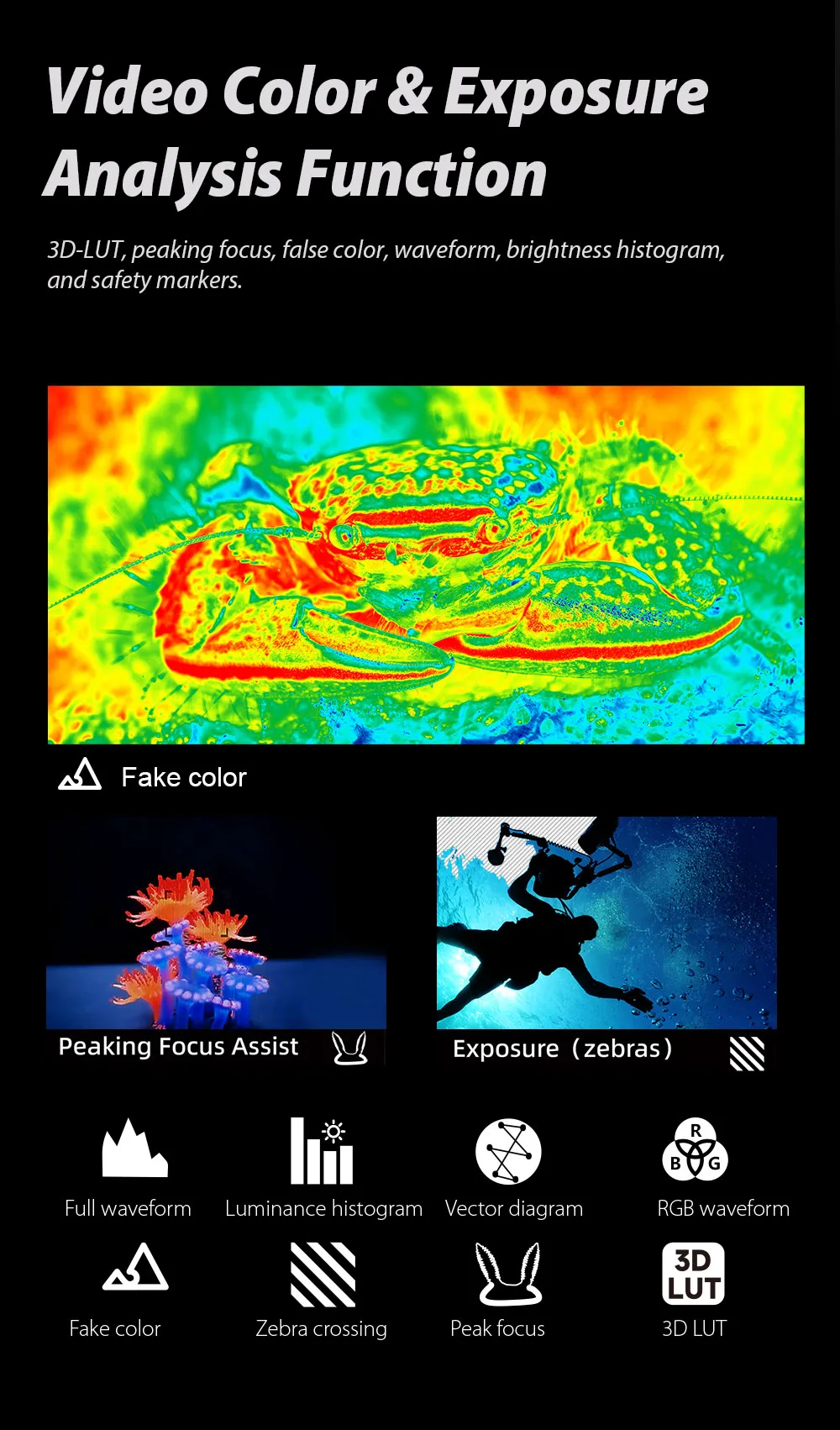

Professional Exposure Tools: It includes advanced recording tools like Zebra stripes (exposure warning), Histogram, Waveform, and False Color. This helps you monitor and fix overexposed areas instantly while shooting video.

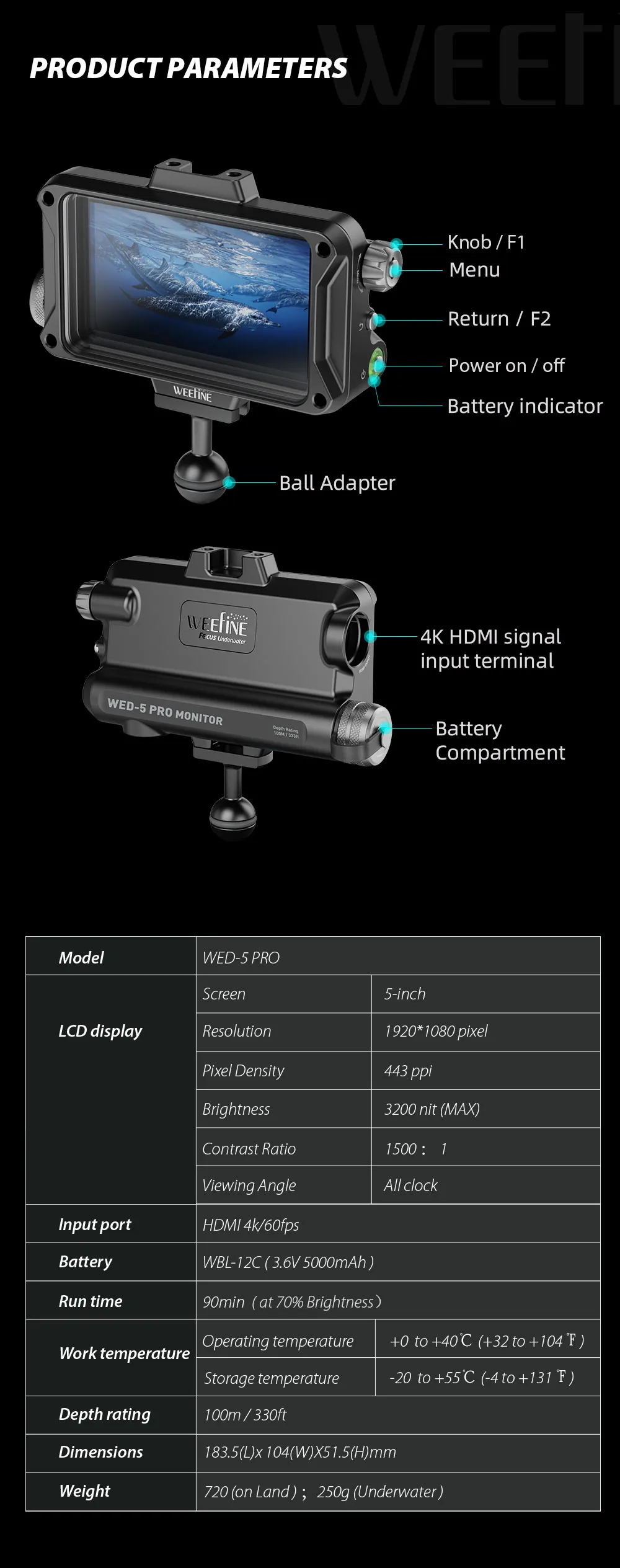

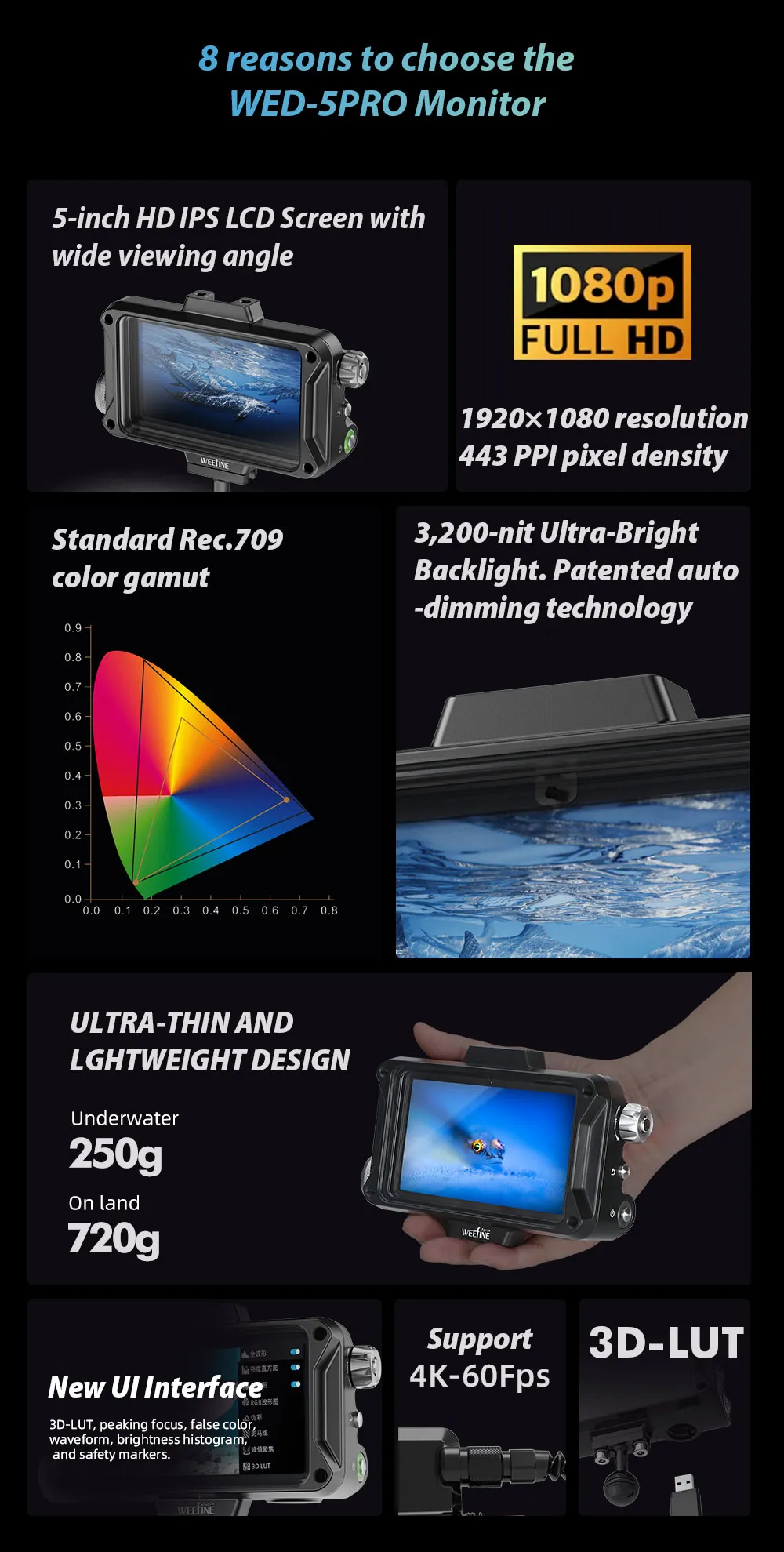

Core Specifications

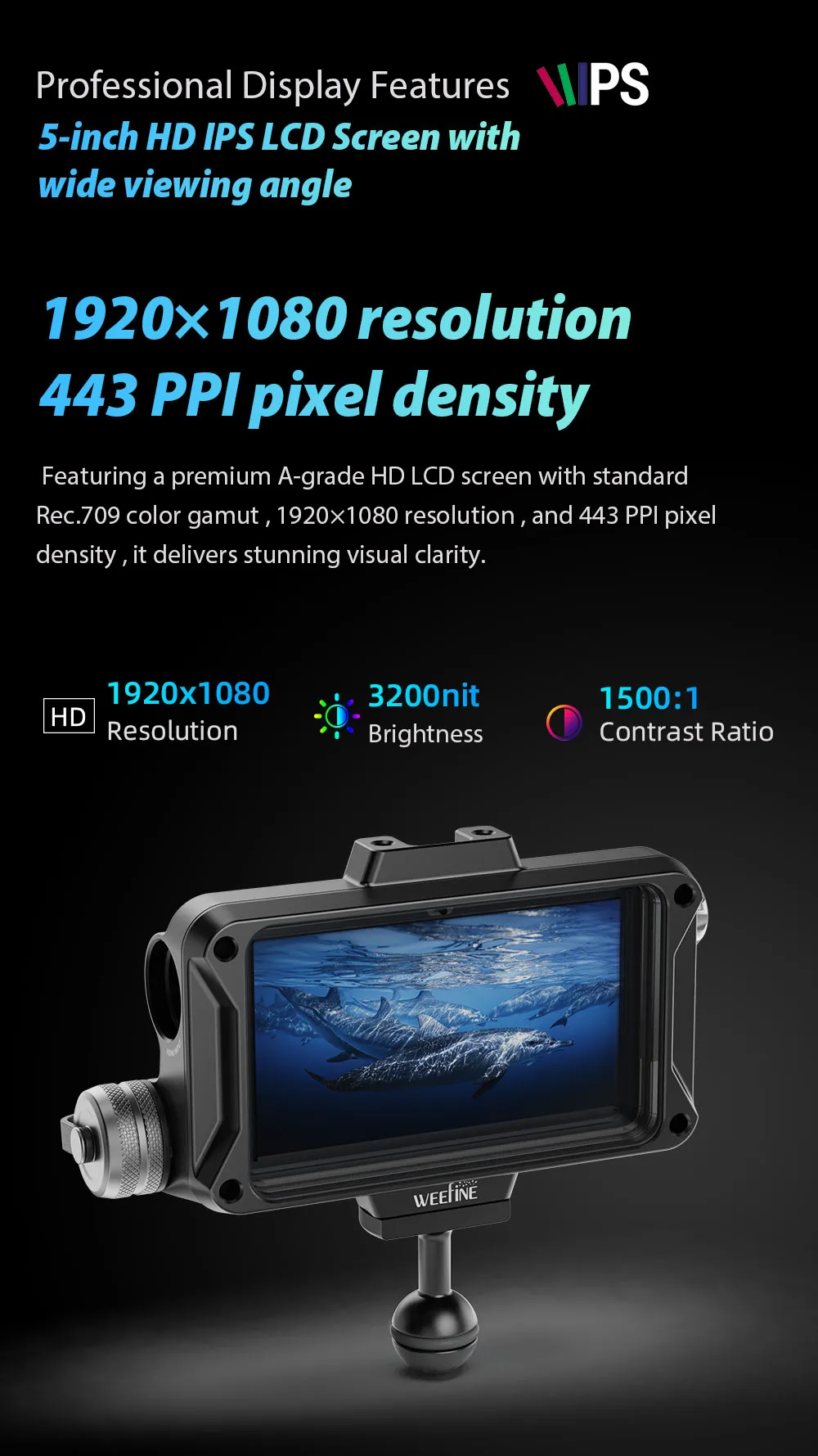

Display: 5-inch Full HD (1920×1080) IPS panel.
Depth Rating: 100 meters (330 feet).

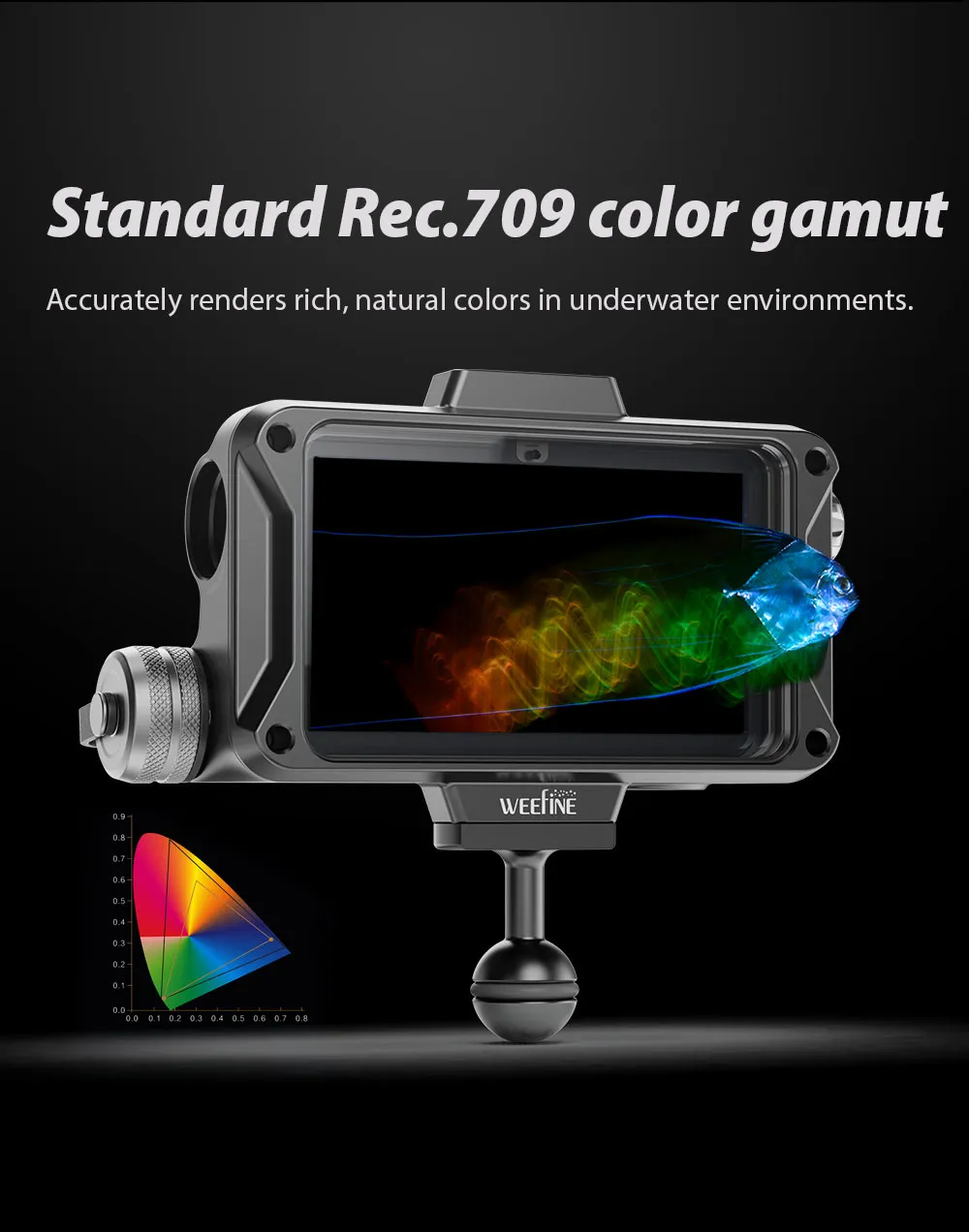

Viewing Angle & Color: 178° wide viewing angle. It supports 3D LUT loading and Rec.709 color gamut calibration.

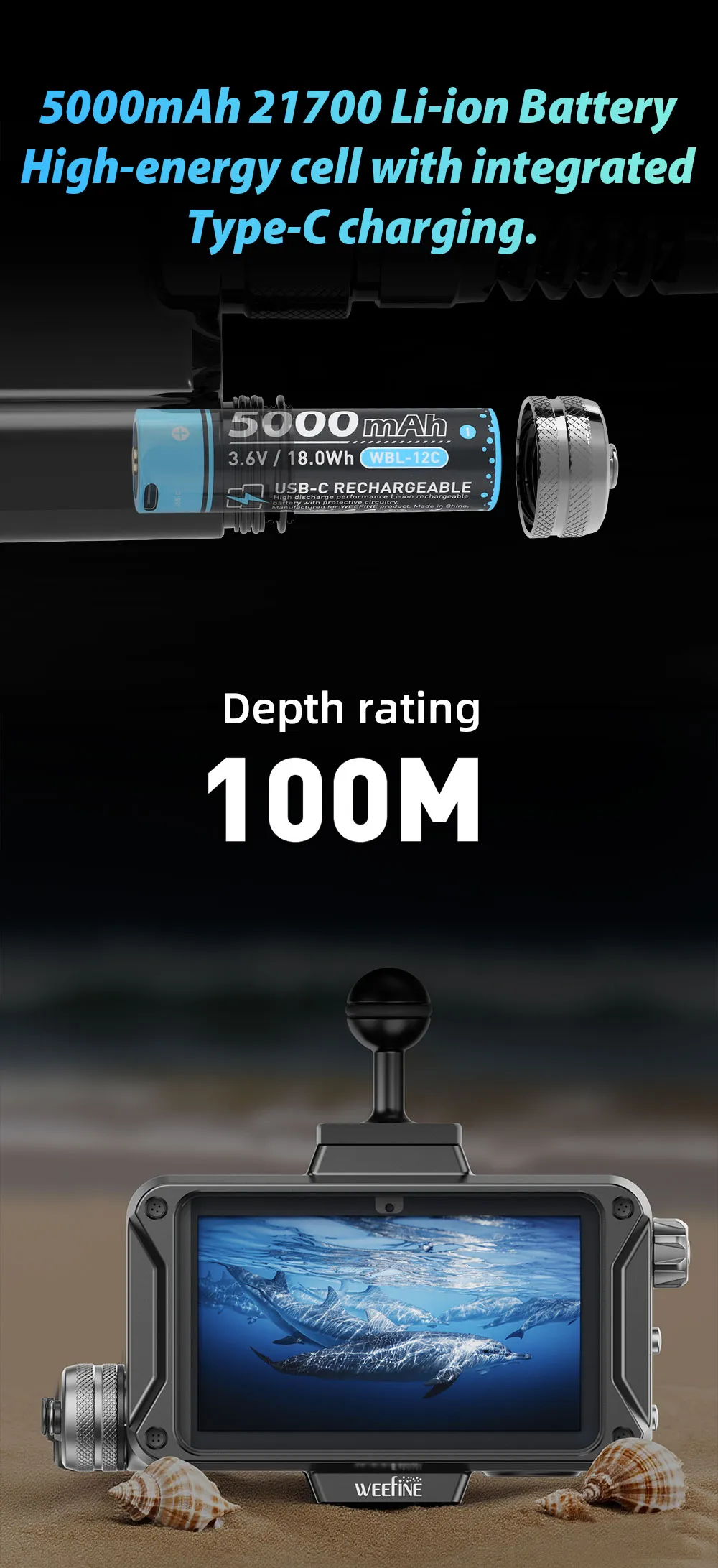

Battery Life: Powered by a dedicated rechargeable lithium battery (WBL-12C), giving you around 90 minutes of continuous runtime.
Weight: Crafted from rugged aluminum alloy. It weighs about 720g on land but has low negative buoyancy underwater (around 250g), so it won’t make your camera rig feel overly heavy.

How it Connects to Your TG-7 Pro 2 Housing

Weefine is very generous with included accessories, making it seamless to mount onto your setup:

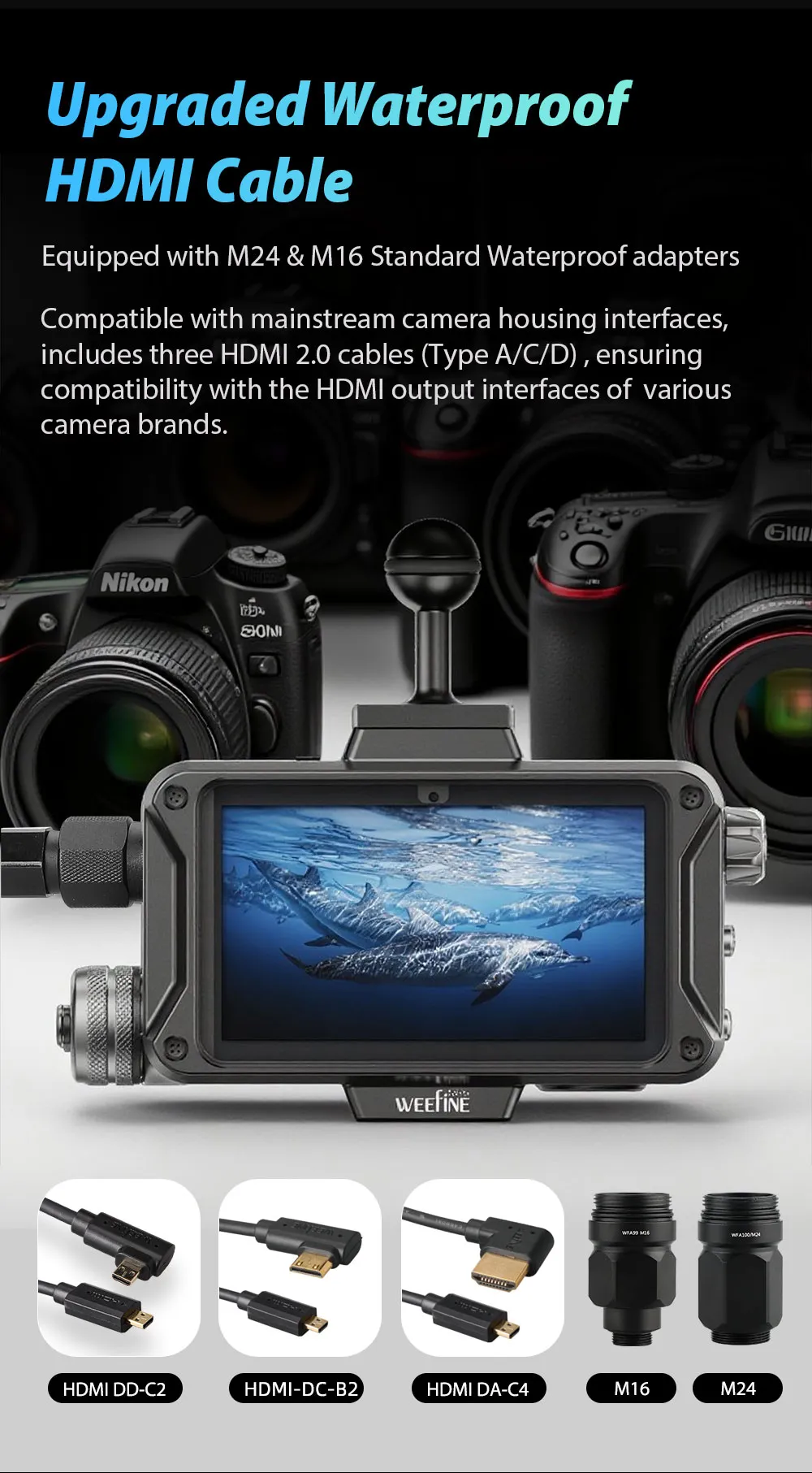

The M16 Port connection: Your Weefine TG Pro 2 housing features a built-in M16 thread port on top. The WED-5 PRO box directly includes M16 and M24 bulkhead adapters, meaning you don’t need to purchase third-party connectors.

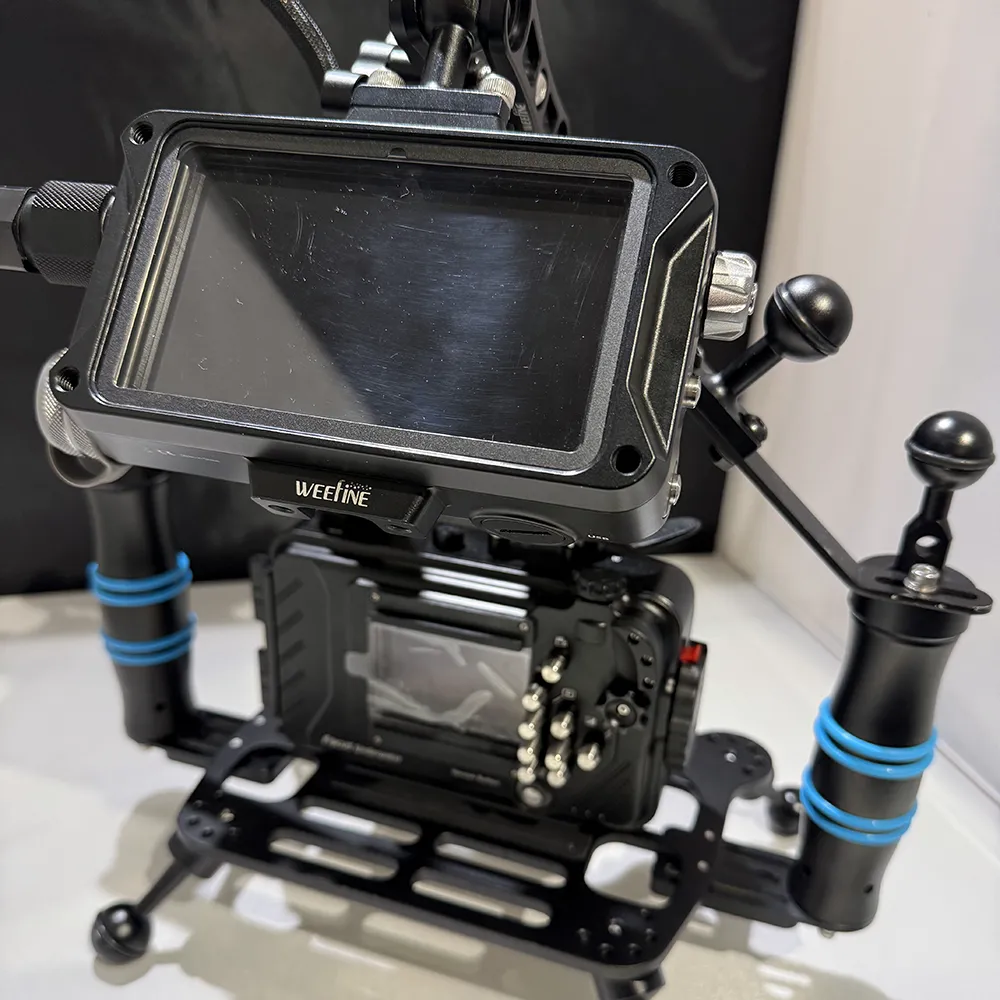

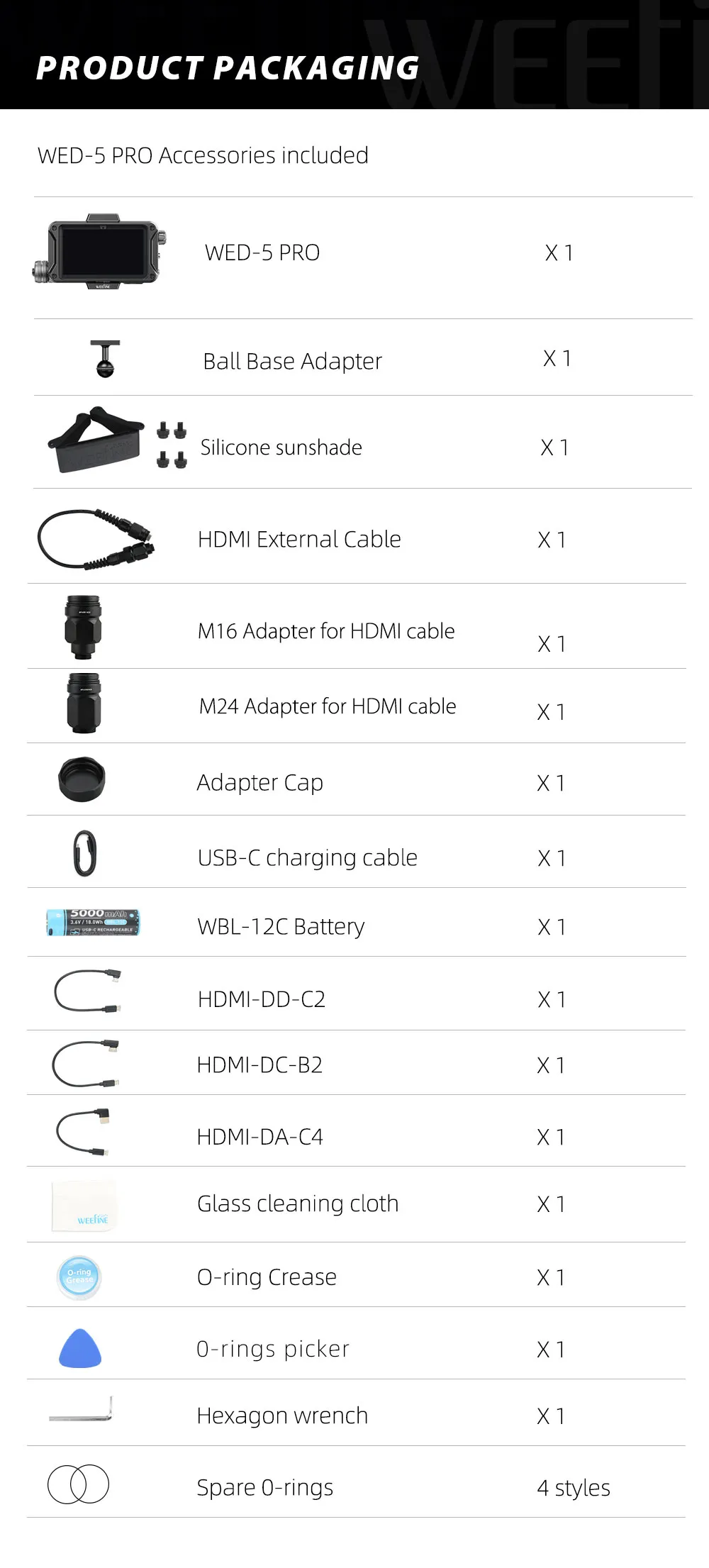

Cables & Mounts Included: The standard retail package comes with a heavy-duty HDMI underwater cable (including 3 types of compatible connectors), an upper/lower ball mount, and a standard rail mount. You can easily fix it directly to the top of your housing or integrate it into a dual-handle tray system.
