AOI UIS-P1 Strobe Series Accessory
Price on Option List

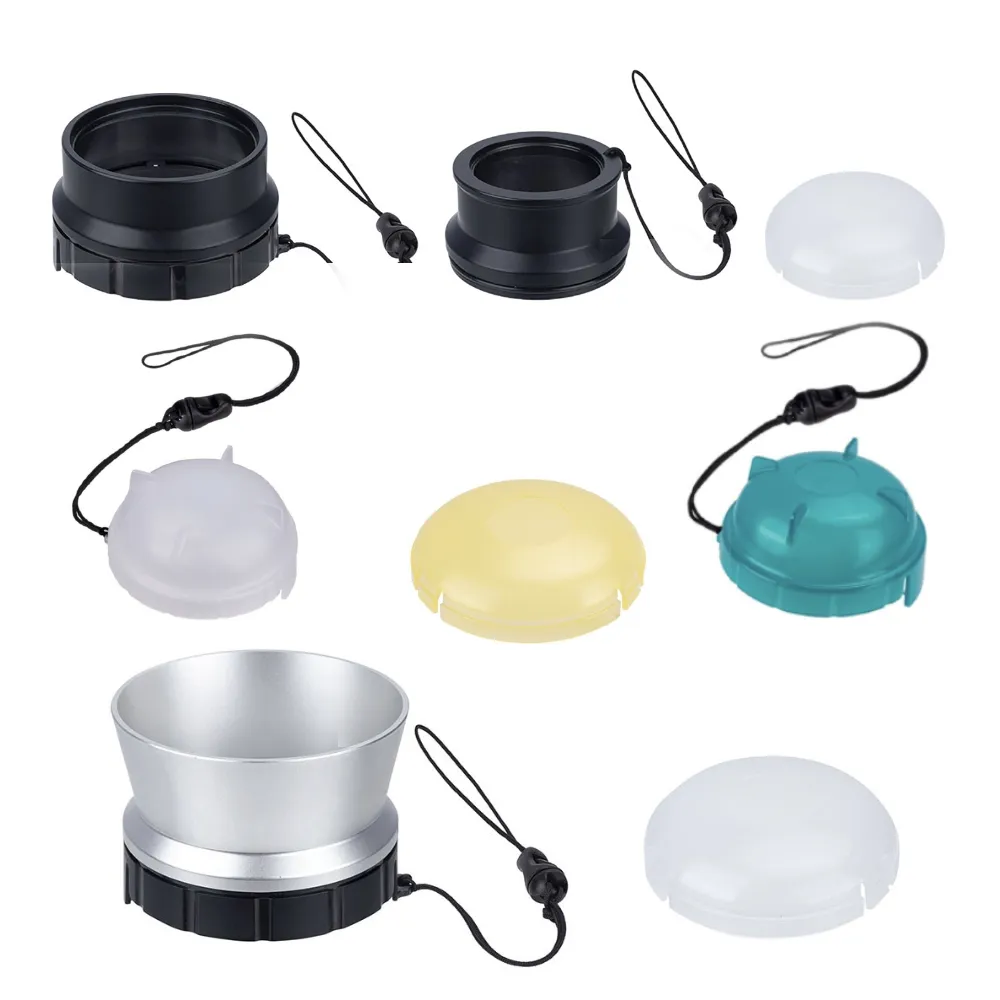

- The AOI SD-03-4500K / 5500K / Blu is warm diffuser / white diffuser / blue filter/diffuser specifically designed for the AOI UIS-P1 flagship strobe
- AOI RFR-01 (full name: External Reflector Ring) is an external reflector ring specifically designed for the AOI UIS-P1 flagship strobe. Its primary function is to concentrate the light beam through a physical reflection mechanism, significantly enhancing the strobe’s central light output.
- AOI RDR-01 (full name: Beam Reduction Ring) is a beam reduction ring specifically designed for the AOI UIS-P1 flagship strobe. Its primary purpose is to drastically narrow down the UIS-P1’s original ultra-wide (150°) beam through physical blocking and internal reflection, providing highly directional fill light.
- The AOI SD-04-4500K / 5500K / Blu is specifically designed for the optional RDR-01 Beam Reduction Ring and RFR-01 External Reflector Ring accessories.
Description
AOI UIS Strobe Series Accessory
- AOI SD-03-4500K is a warm diffuser specifically designed for the AOI UIS-P1 flagship strobe.
- AOI SD-03-5500K is a standard white diffuser specifically designed for the AOI UIS-P1 flagship strobe.
- AOI SD-03-Blu is a dedicated optical blue filter/diffuser specifically designed for the AOI UIS-P1 flagship strobe.
- AOI RFR-01 (full name: External Reflector Ring) is an external reflector ring specifically designed for the AOI UIS-P1 flagship strobe. Its primary function is to concentrate the light beam through a physical reflection mechanism, significantly enhancing the strobe’s central light output.
- AOI RDR-01 (full name: Beam Reduction Ring) is a beam reduction ring specifically designed for the AOI UIS-P1 flagship strobe. Its primary purpose is to drastically narrow down the UIS-P1’s original ultra-wide (150°) beam through physical blocking and internal reflection, providing highly directional fill light.
- The AOI SD-04-4500K / 5500K / Blu is specifically designed for the optional RDR-01 Beam Reduction Ring and RFR-01 External Reflector Ring accessories.

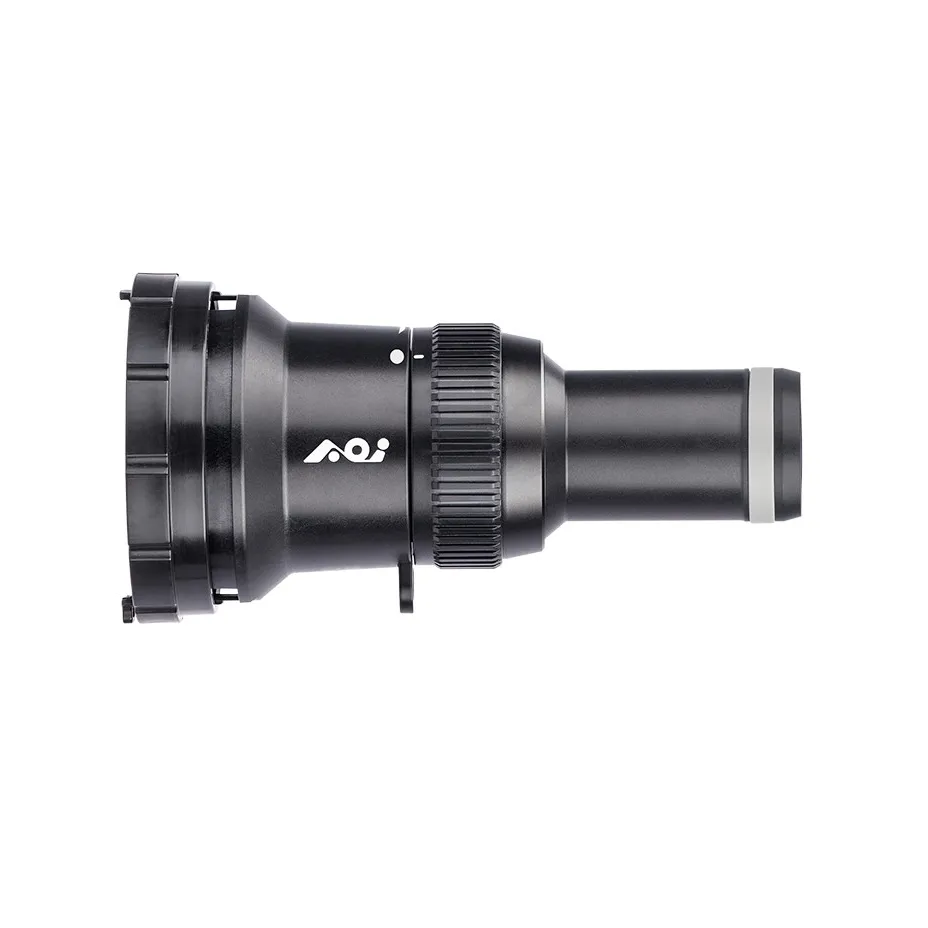

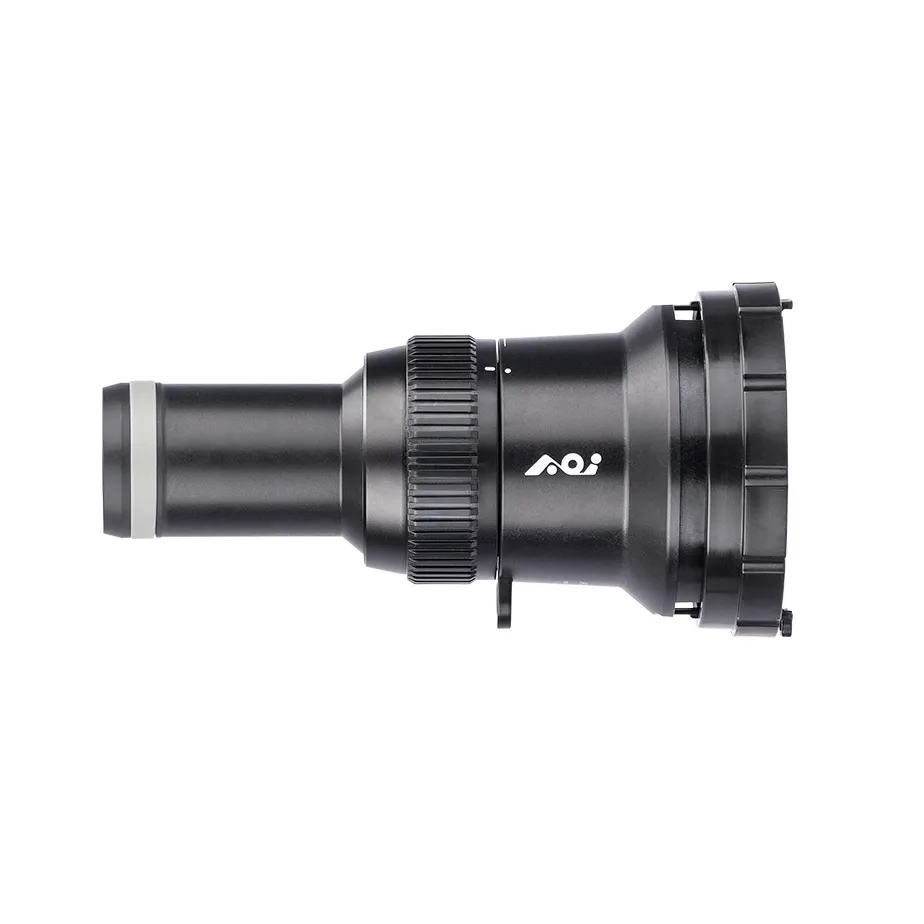

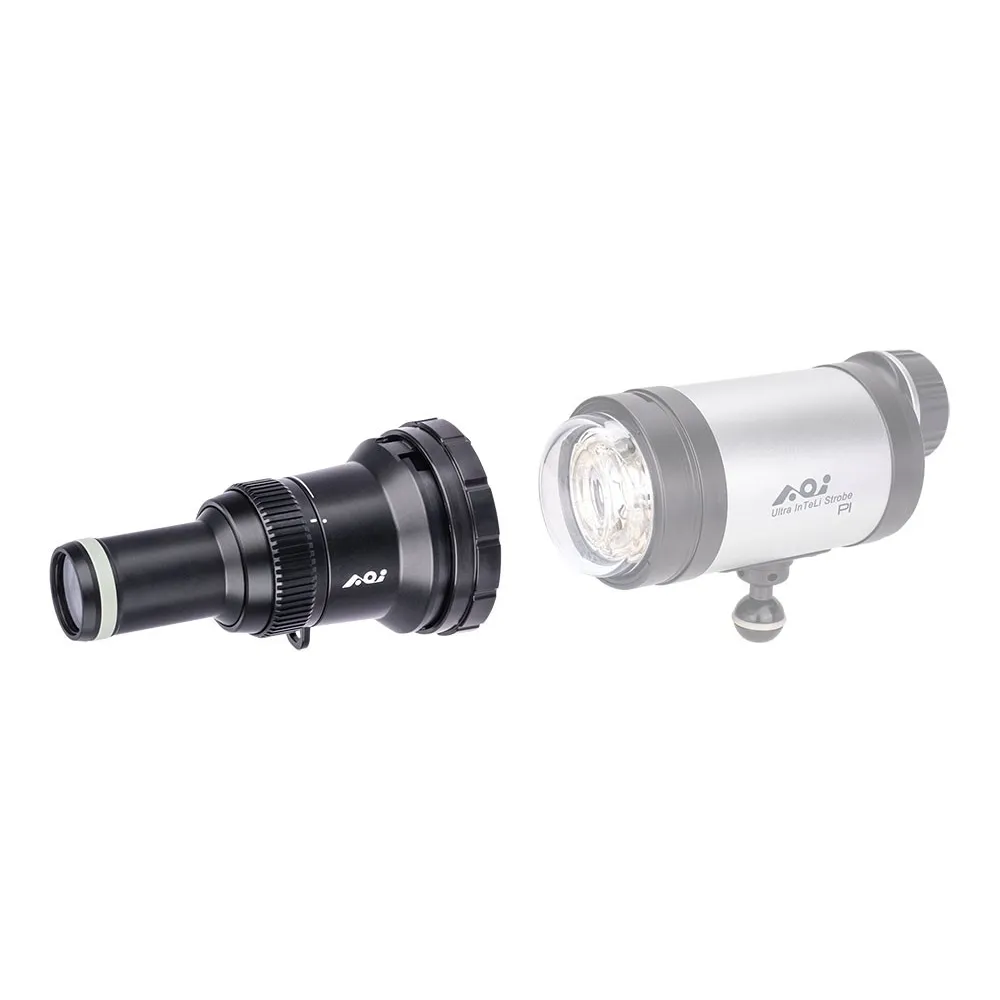

- The AOI SNT-04 is an optical stepless snoot designed for the AOI UIS-P1 flagship strobe to isolate subjects in macro and blackwater photography with a focused beam. It features a built-in stepless iris allowing one-handed spot size adjustment from 4mm to 40mm underwater without swapping tips.
| MODEL | AOI SD-03-5500K |
AOI SD-03-4500K |
AOI SD-03-BLU |
|||
|---|---|---|---|---|---|---|
| DESCRIPTION | P-series Strobe Diffusor | |||||
| 顏色 | White(5500K) | Yellow(4500K) | Blue | |||
| CHANGES OF BEAM ANGLE | Horizontal 130° Vertical 130° |
|||||
| MATERIAL | PC | |||||
| DIMENSIONS | Φ91mm (D) x 46.5 mm(H) | |||||
| WEIGHT | 38.5g | |||||
| MODEL | AOI SD-04-5500K |
AOI SD-04-4400K |
AOI SD-04-BLU |
|||
| DESCRIPTION | Diffuser Insert Plate | |||||
|---|---|---|---|---|---|---|
| COMPATIBILTY | RDR-01,RFR-01 | |||||
| 顏色 | White(5500K) | Yellow(4400K) | Blue | |||
| MATERIAL | PC | |||||
| DIMENSIONS | Φ78mm (D) x 22 mm(H) | |||||
| WEIGHT | 18.2g | |||||
| MODEL | AOI RFR-01 | AOI RDR-01 | AOI SNT-04 |
|
|
|
|
| DESCRIPTION | External Reflector Ring | Beam Reduction Ring | Snoot 04 for UIS-P1 Series Strobe (Optical Snoot) |
| COMPATIBILTY | AOI UIS-P1 Strobe | ||
| MATERIAL | Anodized Aluminum, PC | PC, PC+GF | PC+GF, Black Hard Anodized Aluminum |
| CHANGES OF BEAM ANGLE | From 150° to 85° | For the 1st Opening Φ48mm From 150° to 50° For the 2nd Opening Φ70mm From 150° to 80° |
NA |
| SPOTS VS FOCUS DIST |
NA | Spot Sizes:from D=4mm to 40mm Focus Dist:from 165mm to 135mm |
|
|---|---|---|---|
| DIMENSIONS | 96mm (D) X 68mm (L) | 96mm (D) X 83mm (L) | 101mm(D) x 194mm(L) |
| WEIGHT | 130g | 120g | 422g |
| ACCESSORIES | Lanyard x2pcs, Diffuser Plate x1pc. | Lanyard (AOI QRL-01) x1pc. Micro-Fiber Cleaning Cloth (AOI MC-01) x1pc | |
