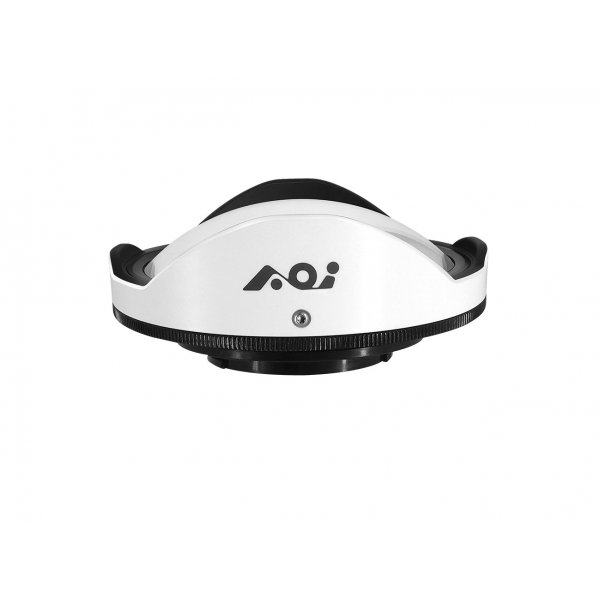

Name: AOI UWL-03II Series 0.73X Wide Angle Conversion Lens for Action Camera and Phone
Brand: AOI
SKU: UWL-03II Series
Availability: InStock

Description

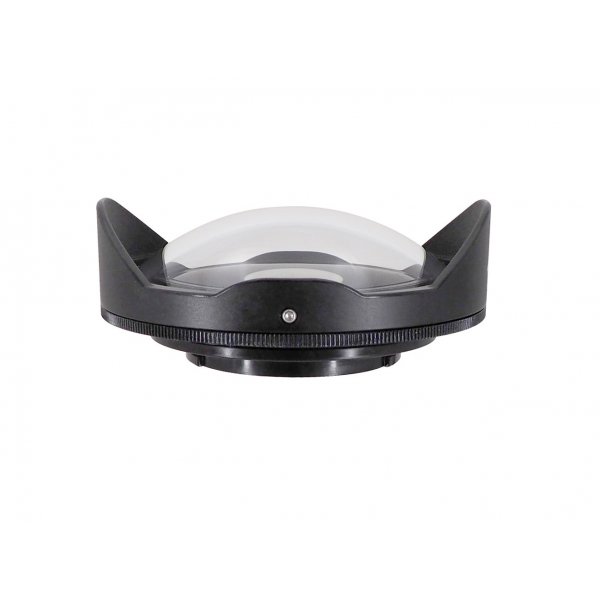

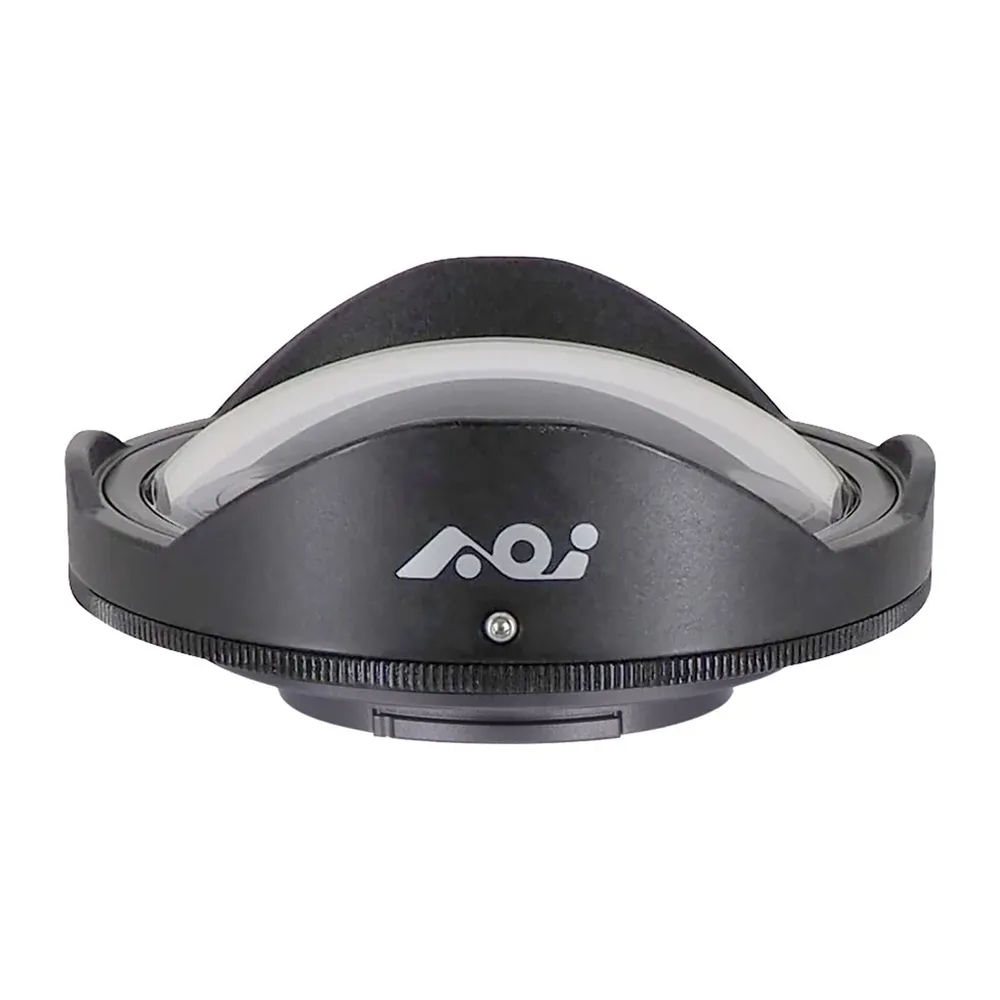

AOI UWL-03 Series 0.73X Wide Angle Conversion Lens for Action Camera and Phone

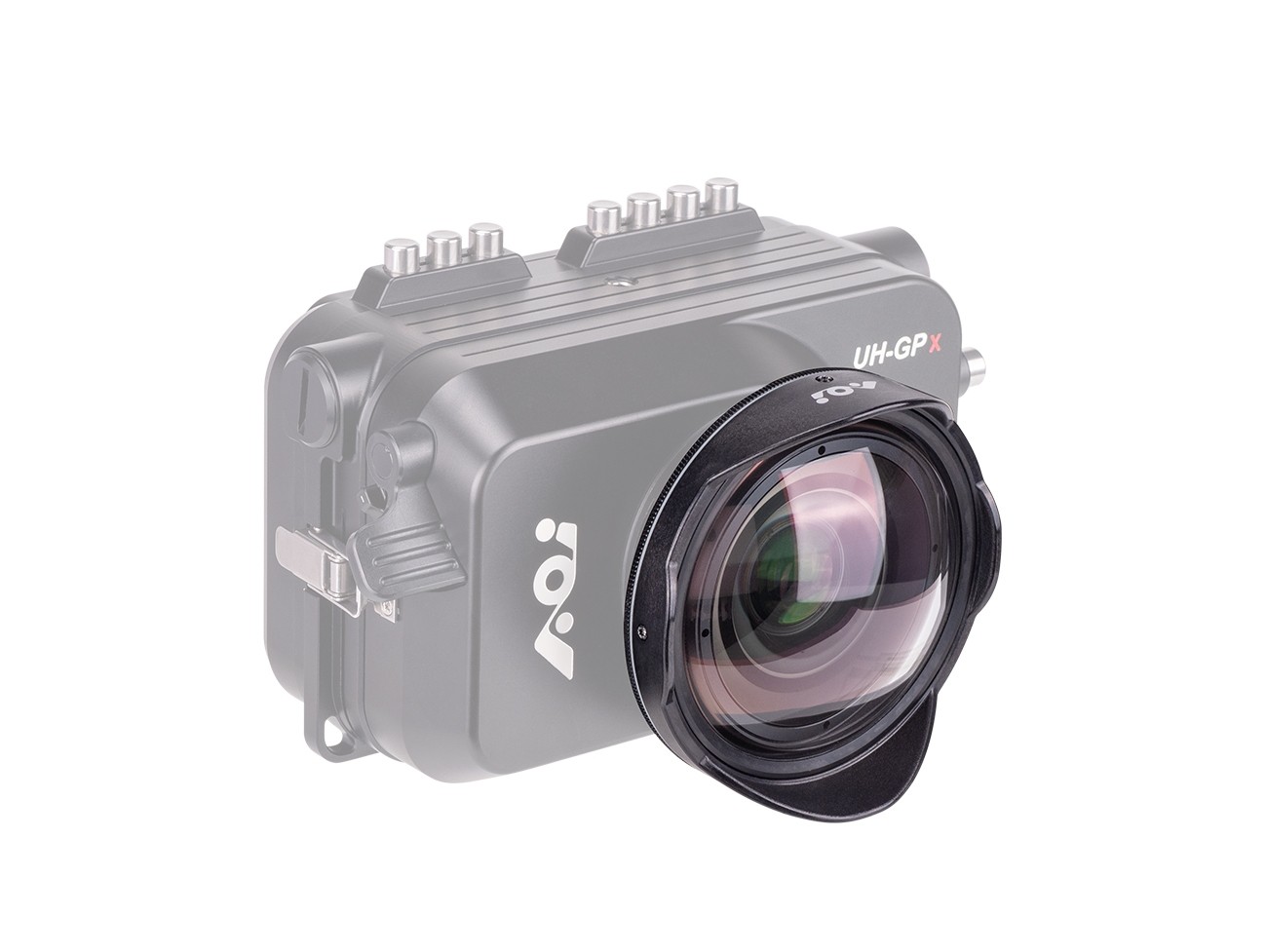

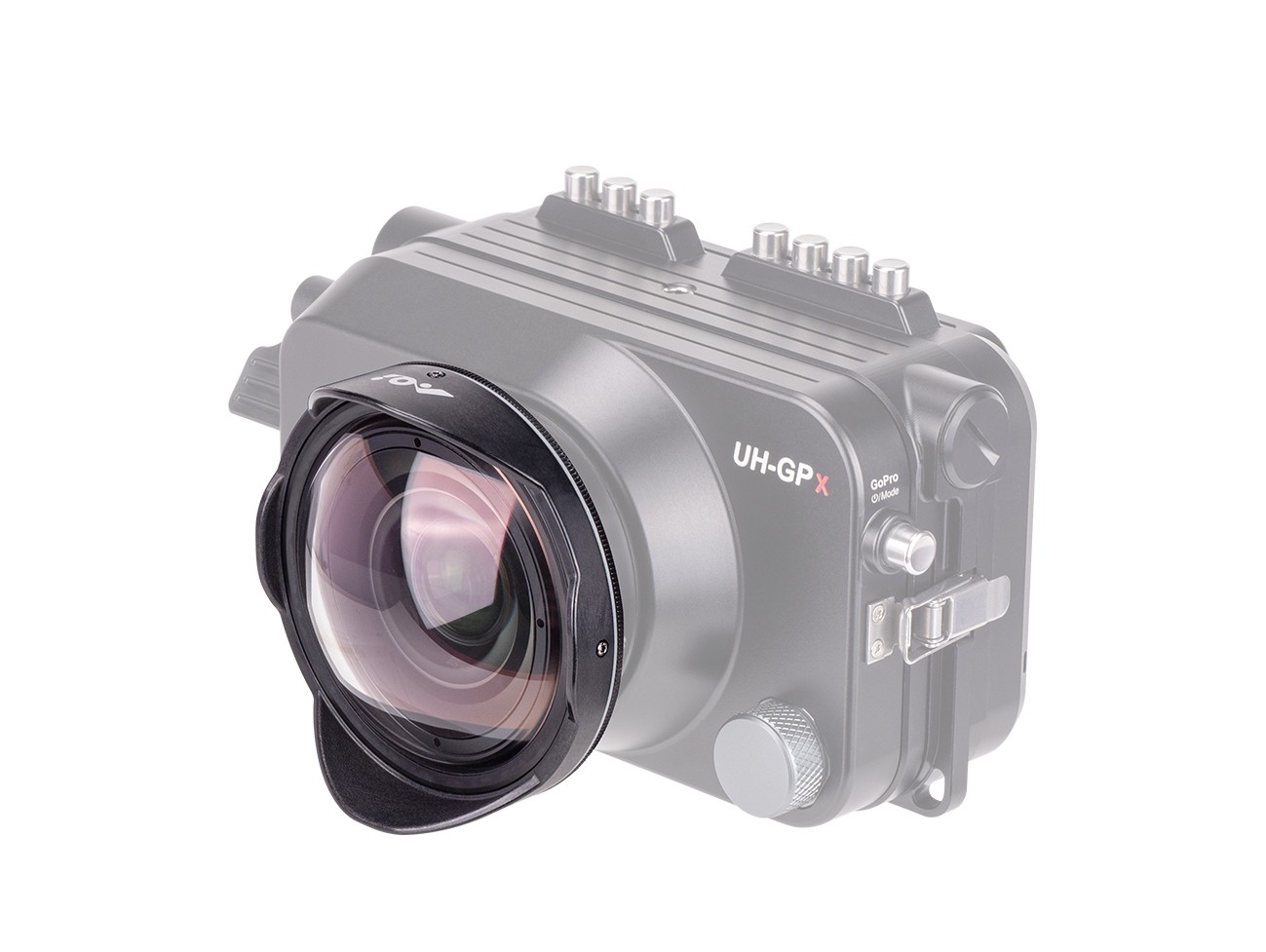

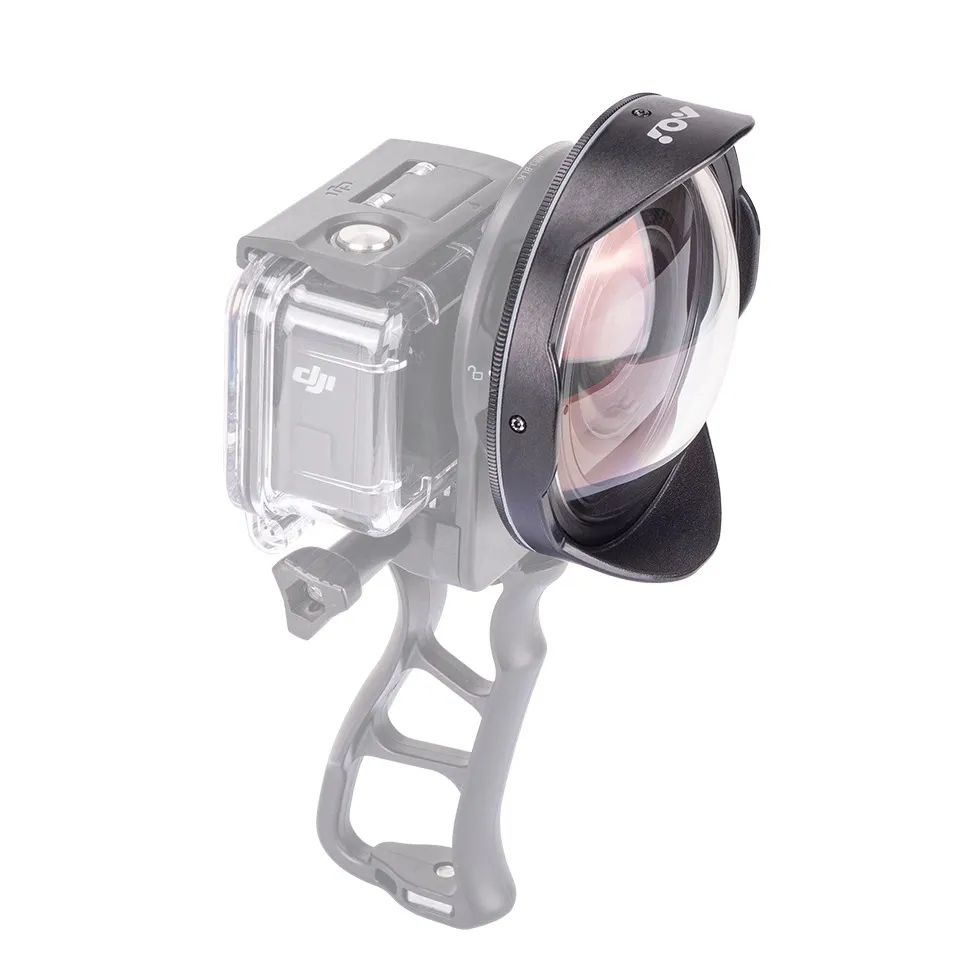

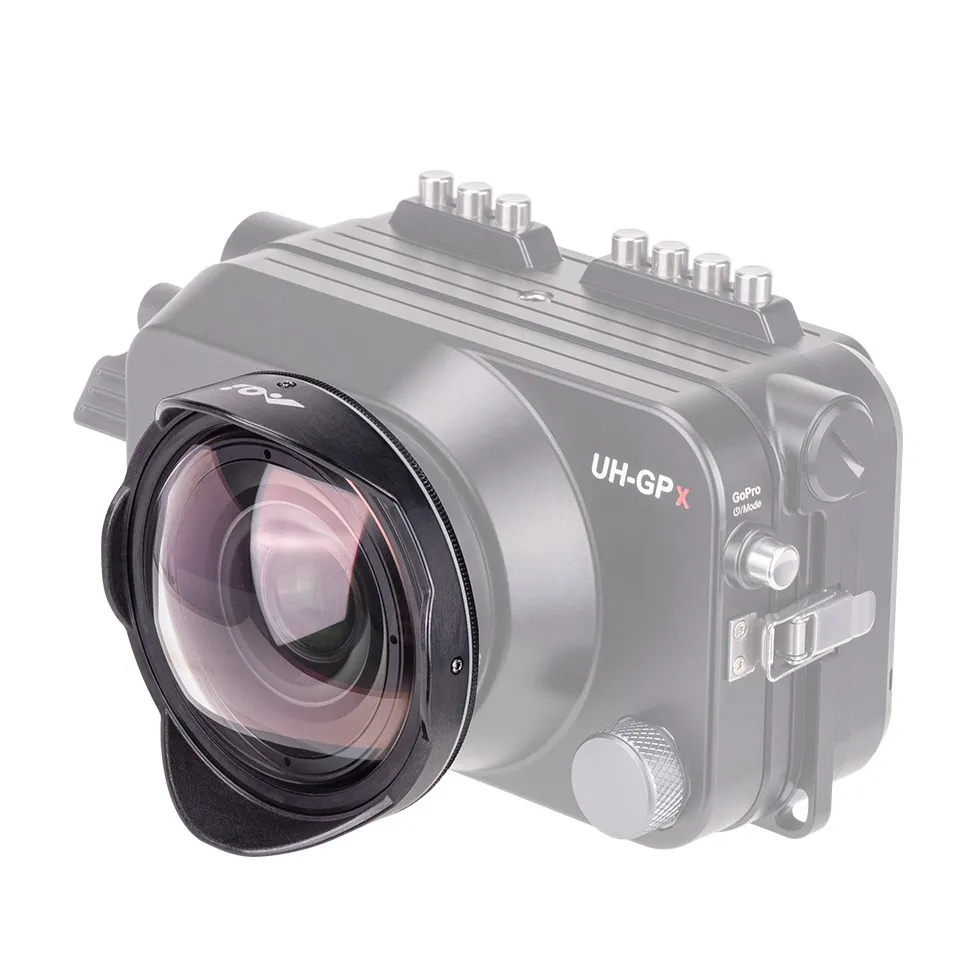

The AOI UWL-03 II is a premium underwater wide-angle wet lens specifically designed for action cameras (such as GoPro, DJI Action, and Insta360) and smartphone housing systems.

It corrects the underwater light refraction that causes your camera’s field of view to narrow. By converting a standard action camera view into a 140° ultra-wide field of view with a 0.73X magnification, it allows you to get incredibly close to your subject while capturing expansive reef scapes or large marine life with maximum clarity.

Core Specifications & Features

140° Underwater FOV: Expands your underwater perspective (150° on land) and allows you to shoot up to 4 times closer to your subject, which drastically cuts down on water distortion and backscatter particles.

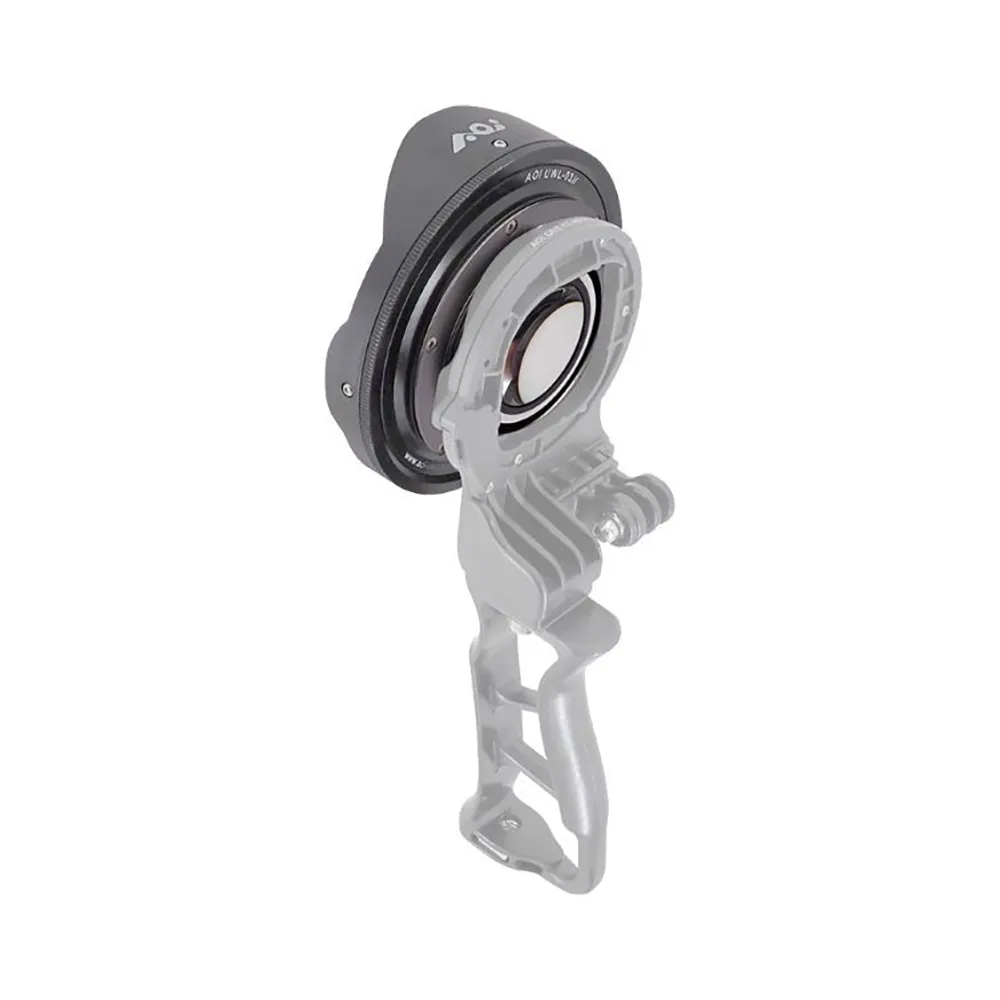

Quick Release System: Utilizes the AOI QRS-02 (Quick Release System-02) mechanism, enabling you to mount or remove the lens underwater in seconds depending on your shooting needs.
Rugged Build: The body is constructed from hard-anodized aluminum alloy, designed to withstand harsh marine environments.

Key Features & Differences

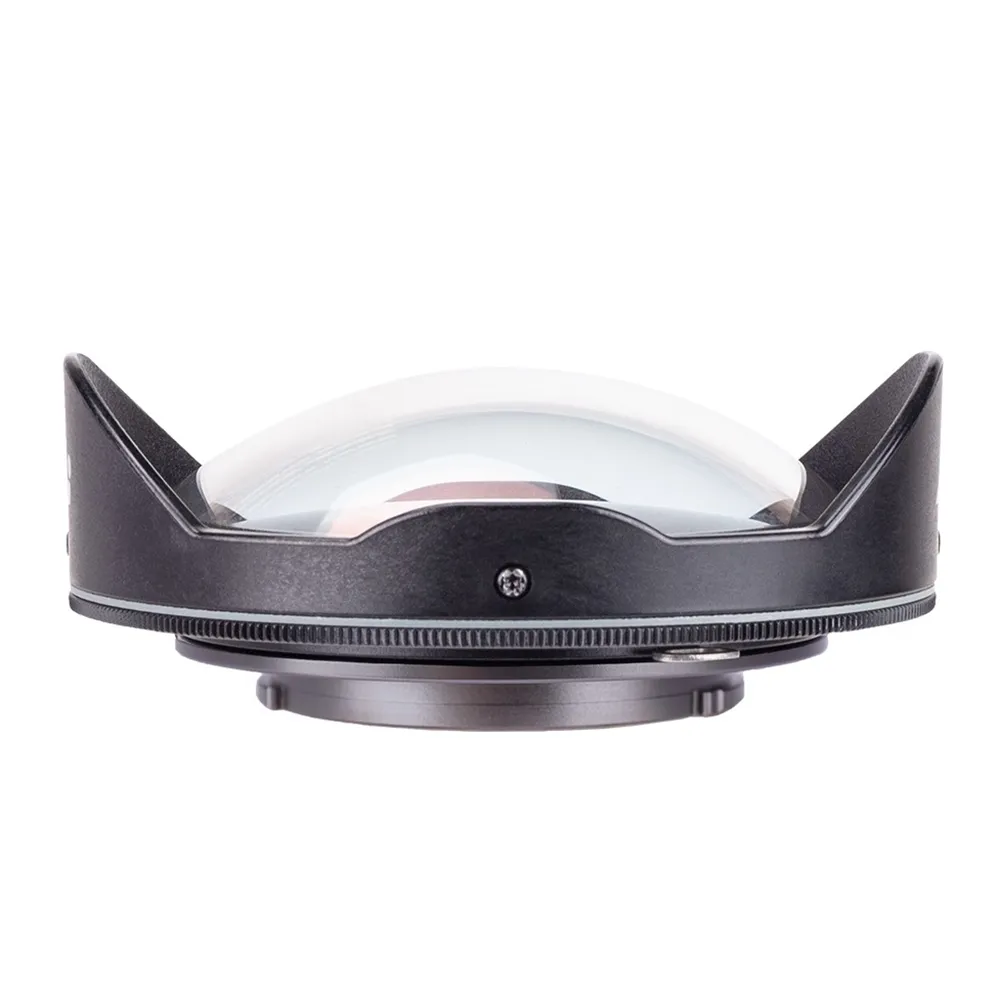

AOI UWL-03 II:Best Value: Features optimized optical elements for better light transmission. Uses an optical-grade polycarbonate (acrylic) dome lens with hard scratch-resistant coating.

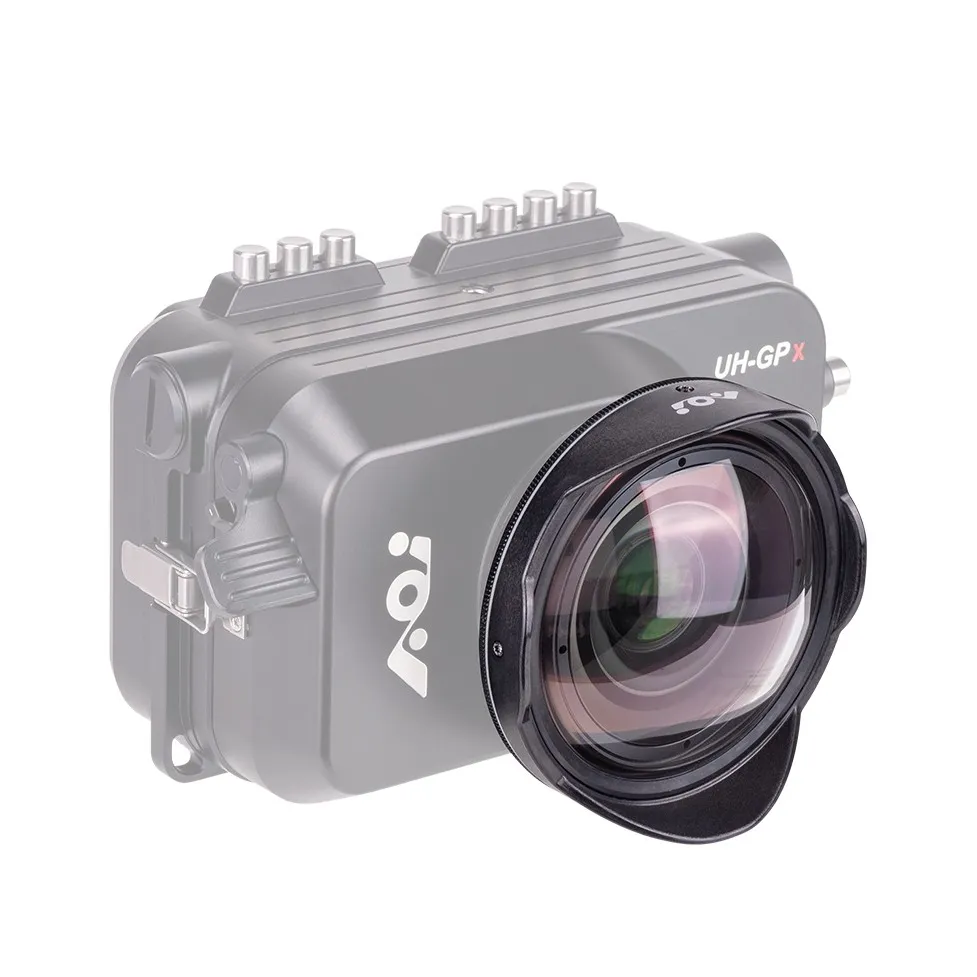

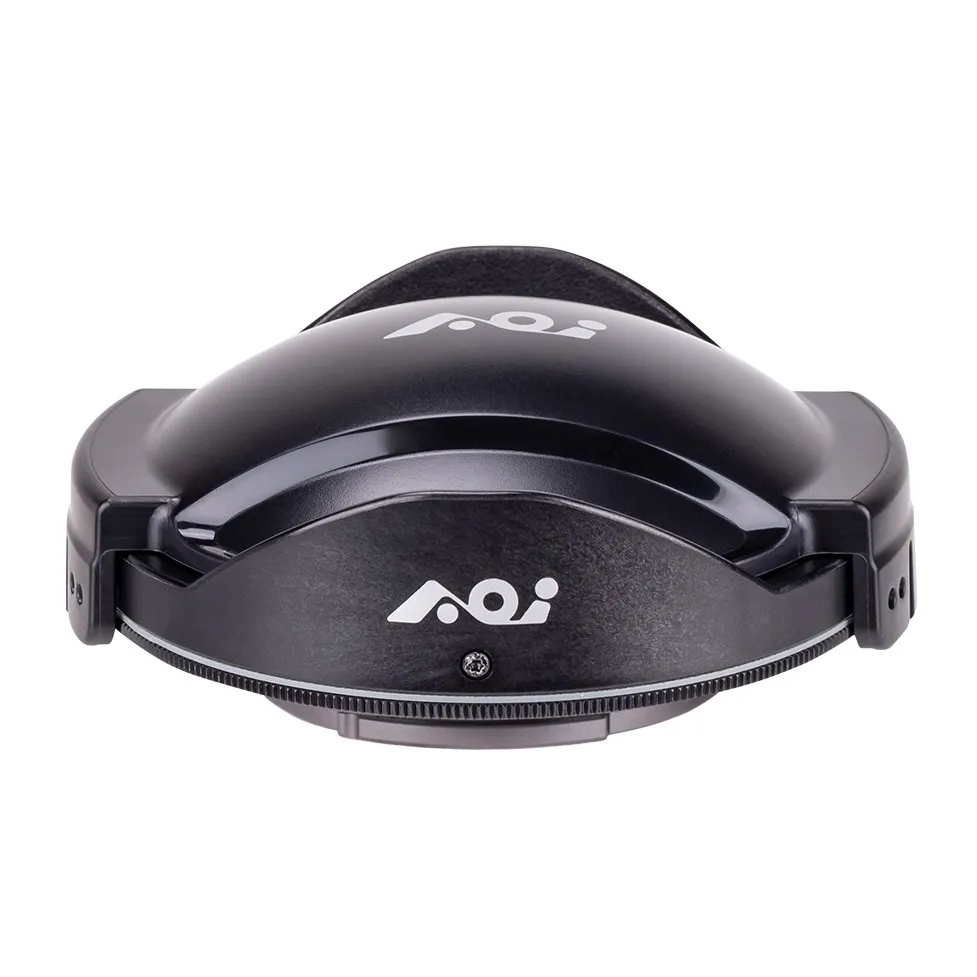

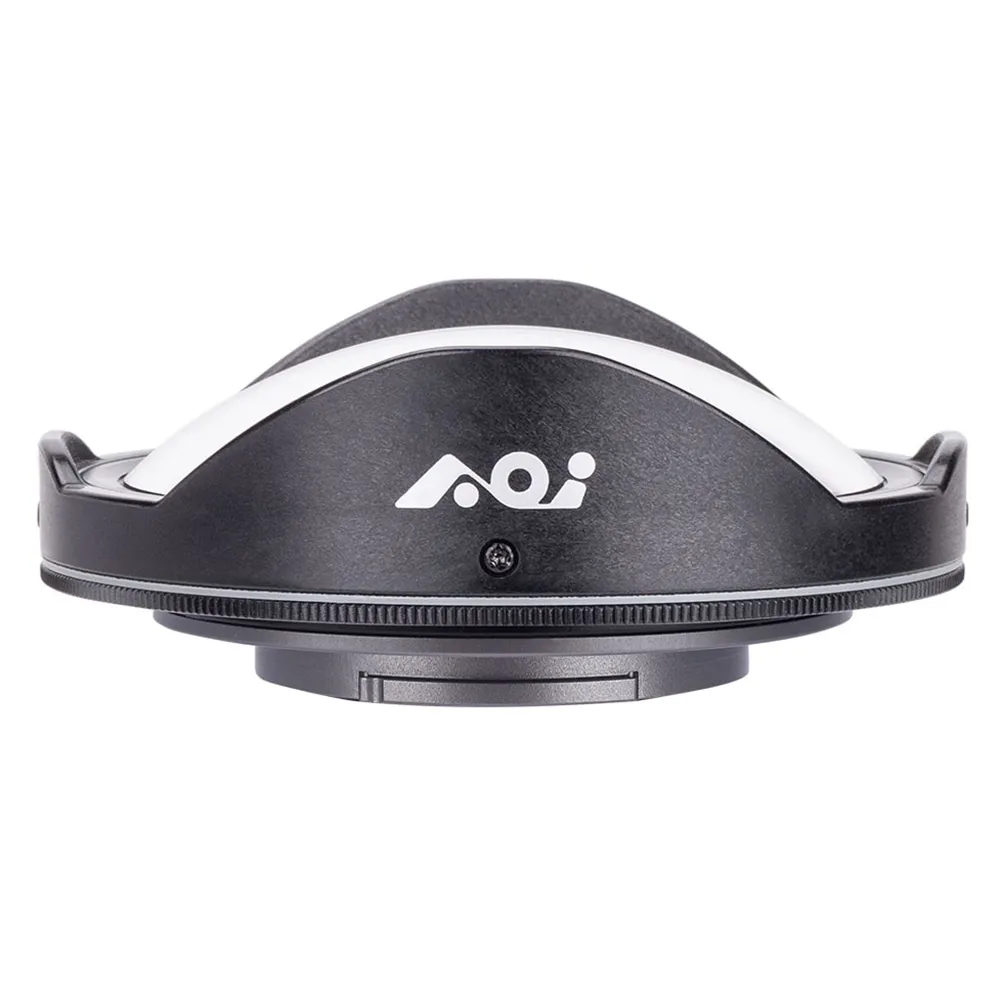

AOI UWL-03 PRO II:Premium Quality: Upgrades to a multi-layer AR coated optical glass dome. Offers superior scratch resistance, completely eliminates internal reflection/flare in bright sun, and provides sharper edge-to-edge clarity.

Specification

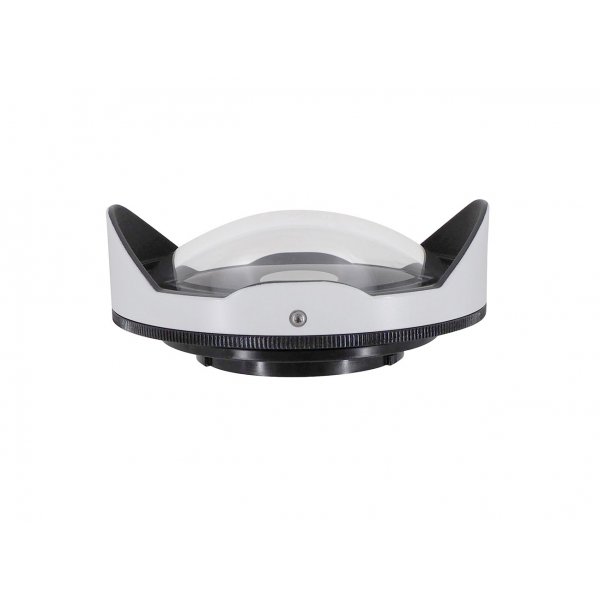

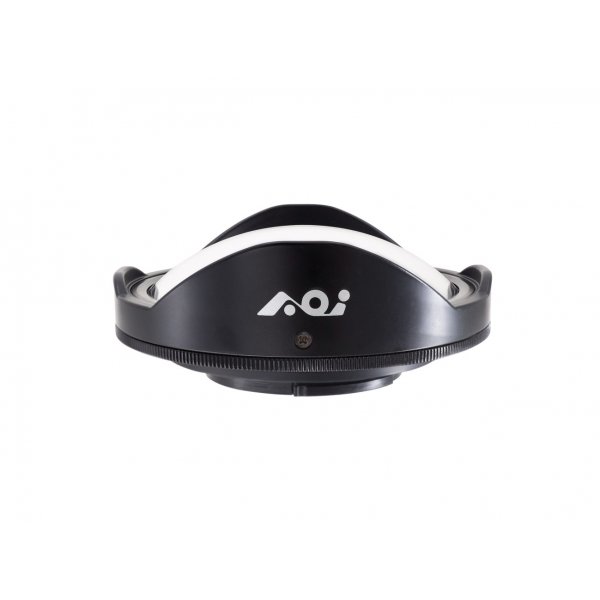

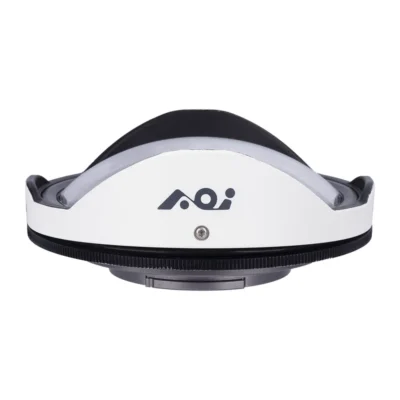

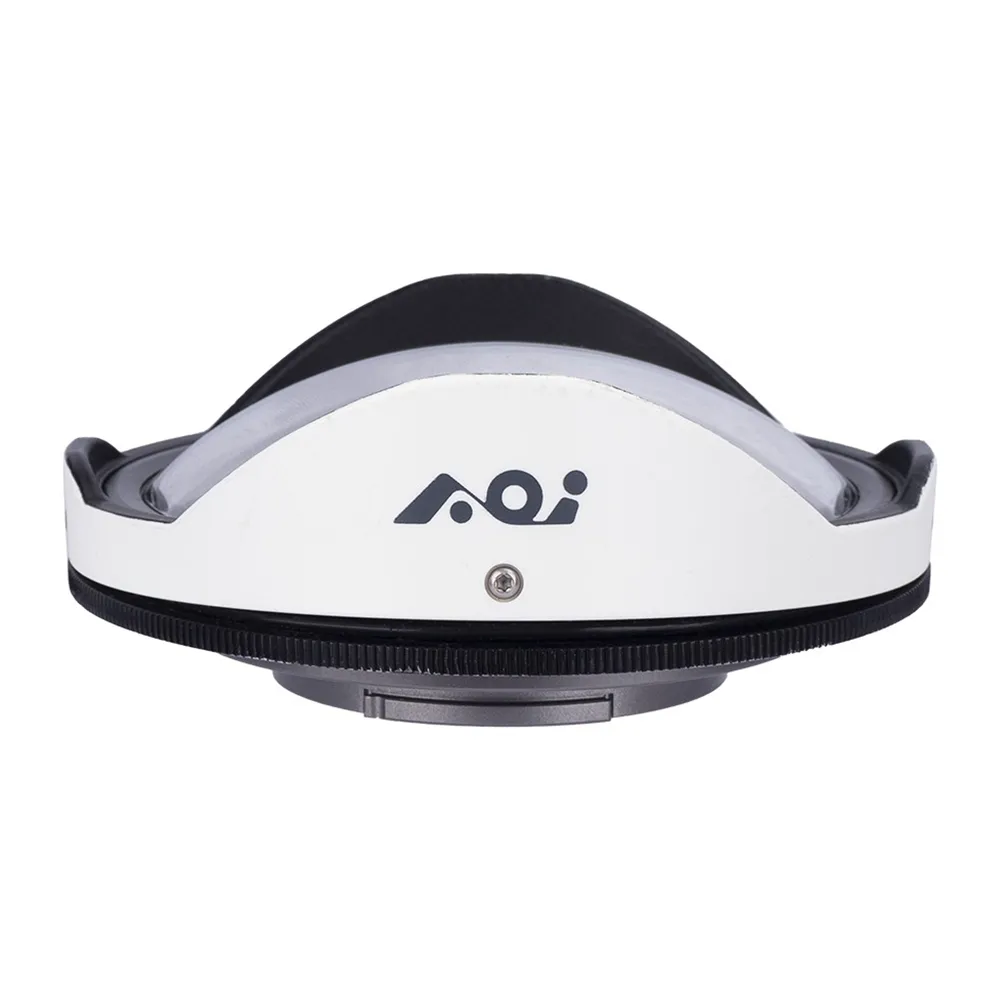

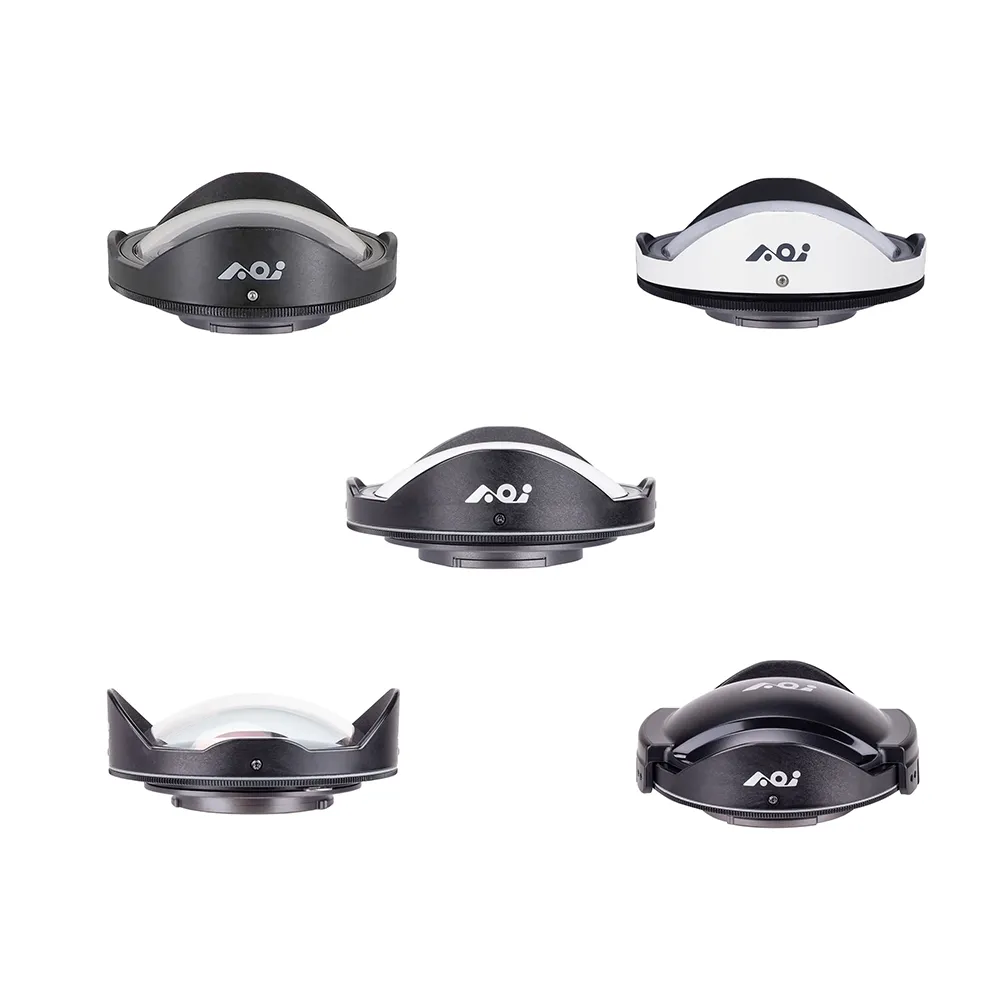

Model	AOI UWL-03II-BLK	AOI UWL-03II-WHT	AOI UWL-03PROII
Model
Description	0.73X Wide Angle Lens Mark II		0.73X Wide Angle Lens Pro Mark II
Lens Constraction	4 Elements in 4 Groups
Lens Coating	Glass Lens Elements with Multi-layers AR Coating, Front Dome Element in Polycarbonate with Hard Coating		All Glass Elements with Multi-layers AR Coating Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR Coating
Field of View	140° (underwater) 150° (on land)
Magnification	0.73X (underwater)
Mounting System	Using AOI Quick Release System- 02 (QRS-02) Lens pre-installed with QR2 Mount (compatible with the most popular AD Mount) Optional Mounting Adapter in M55, M52 & M46 available
Depth Rating	60 Meters / 200 Ft.		100 Meters / 328 Ft.
Lens Barrel / Dome Lens / Lens Hood Material	Aluminum Alloy with Black Hard Anodized / Optical-Grade Polycarbonate (acrylic) / Polycarbonate		Aluminum Alloy with Black Hard Anodized / Glass Lens / Polycarbonate
Dimensions	99mm (D) X40.3mm (H)
Weight	364 g (on land) 164 g (underwater)		400 g (on land) 200 g (underwater)

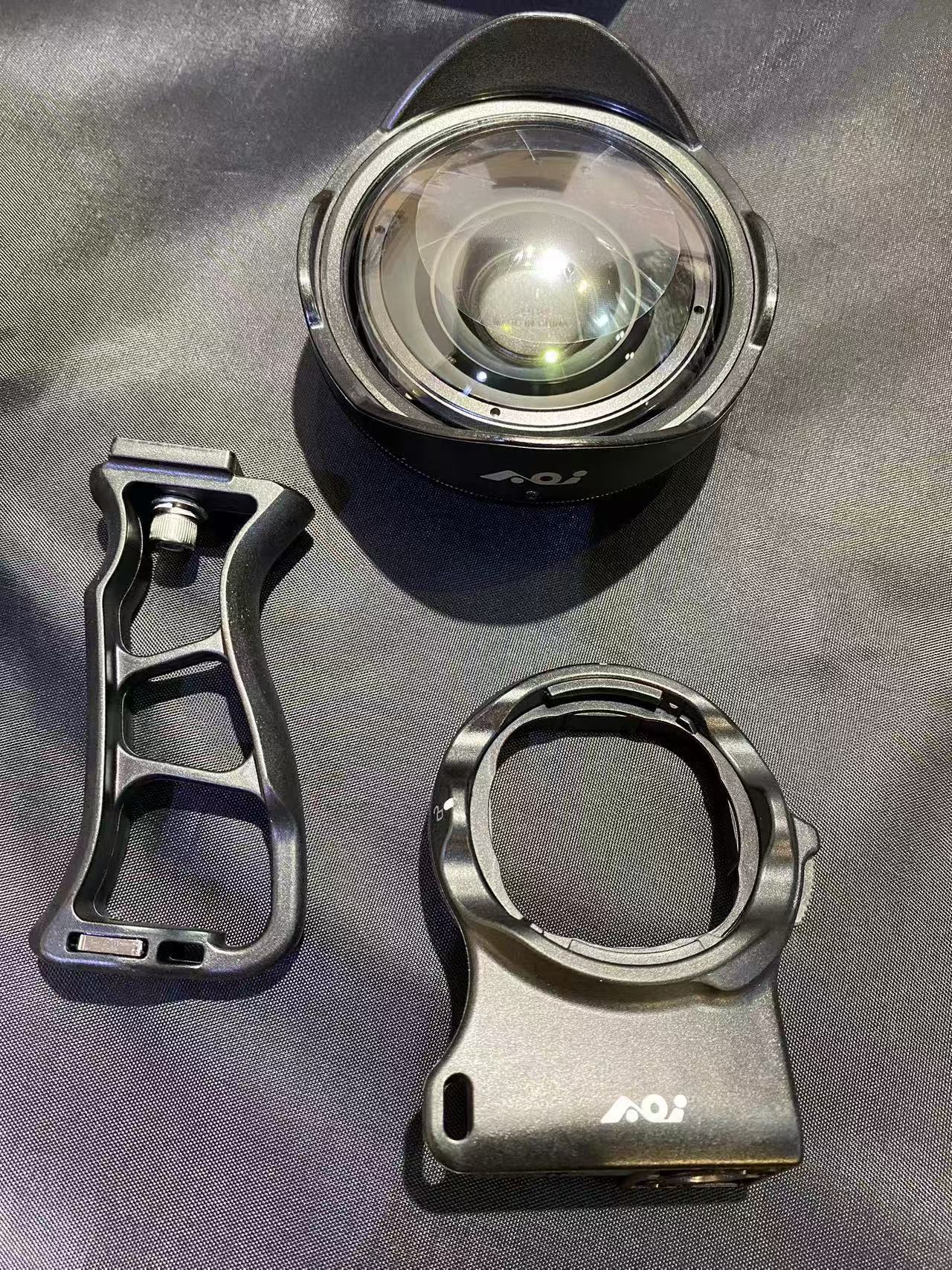

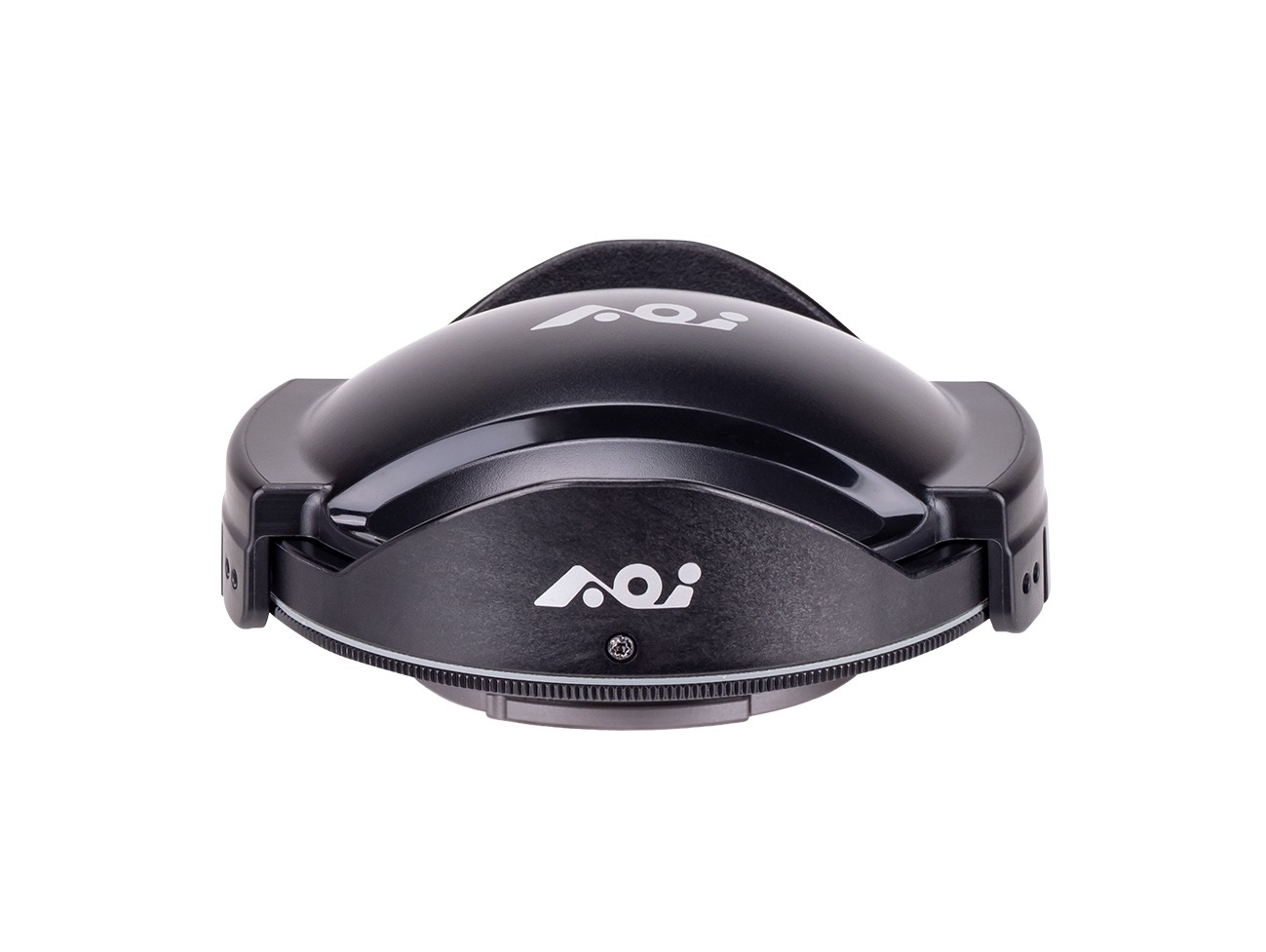

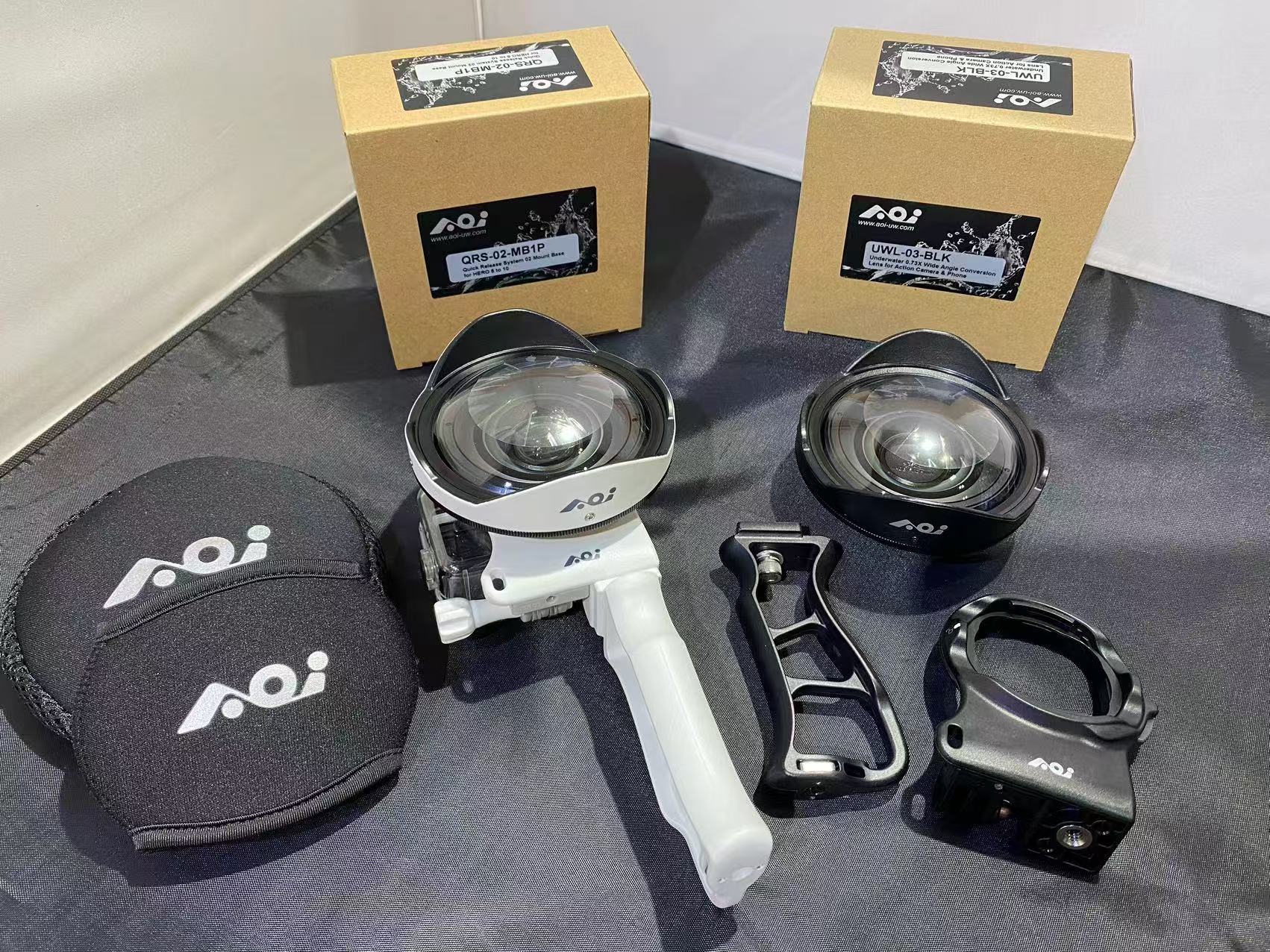

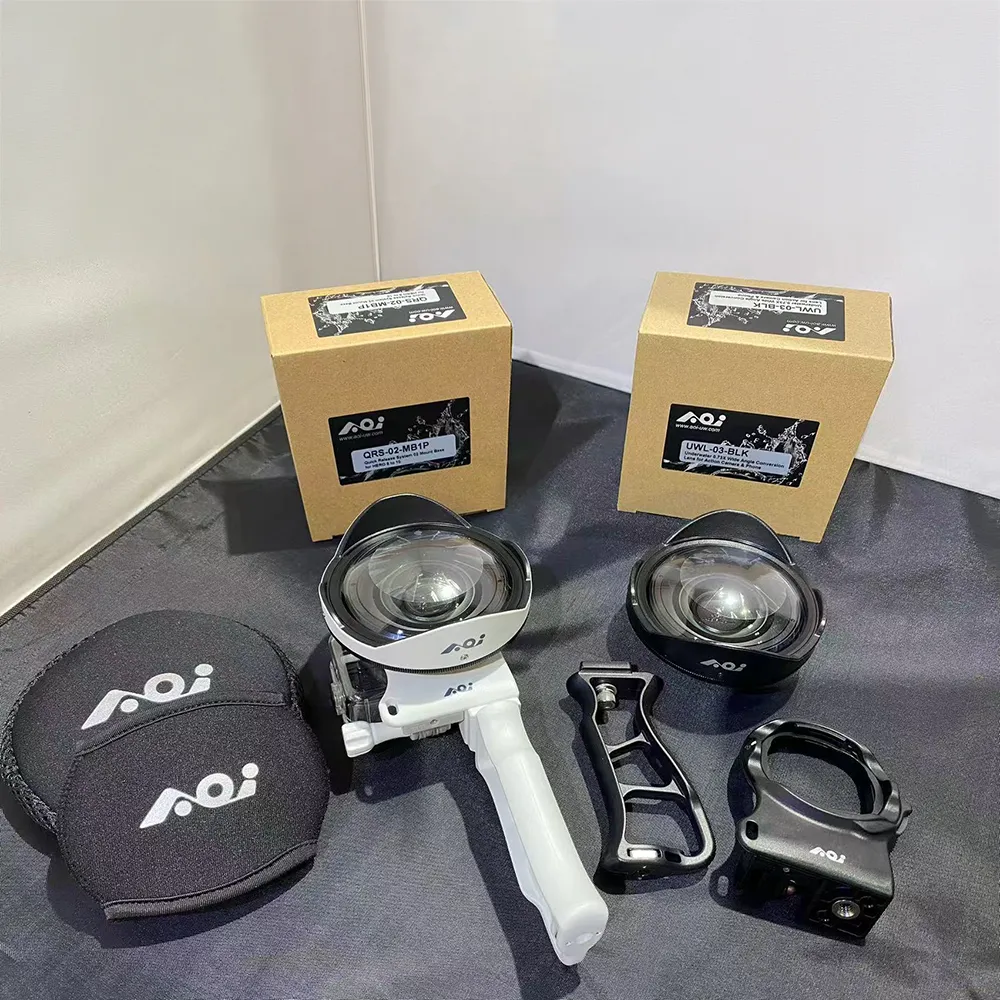

Accessories	Dome Lens Hard Cover (AOI DHC-02) & Rear Lens Cap (AOI QRS-02-RC1), Lens Secure Line, Lens Pouch

*Specifications and Appearances are subject to change without prior notice.

Option Accessories:

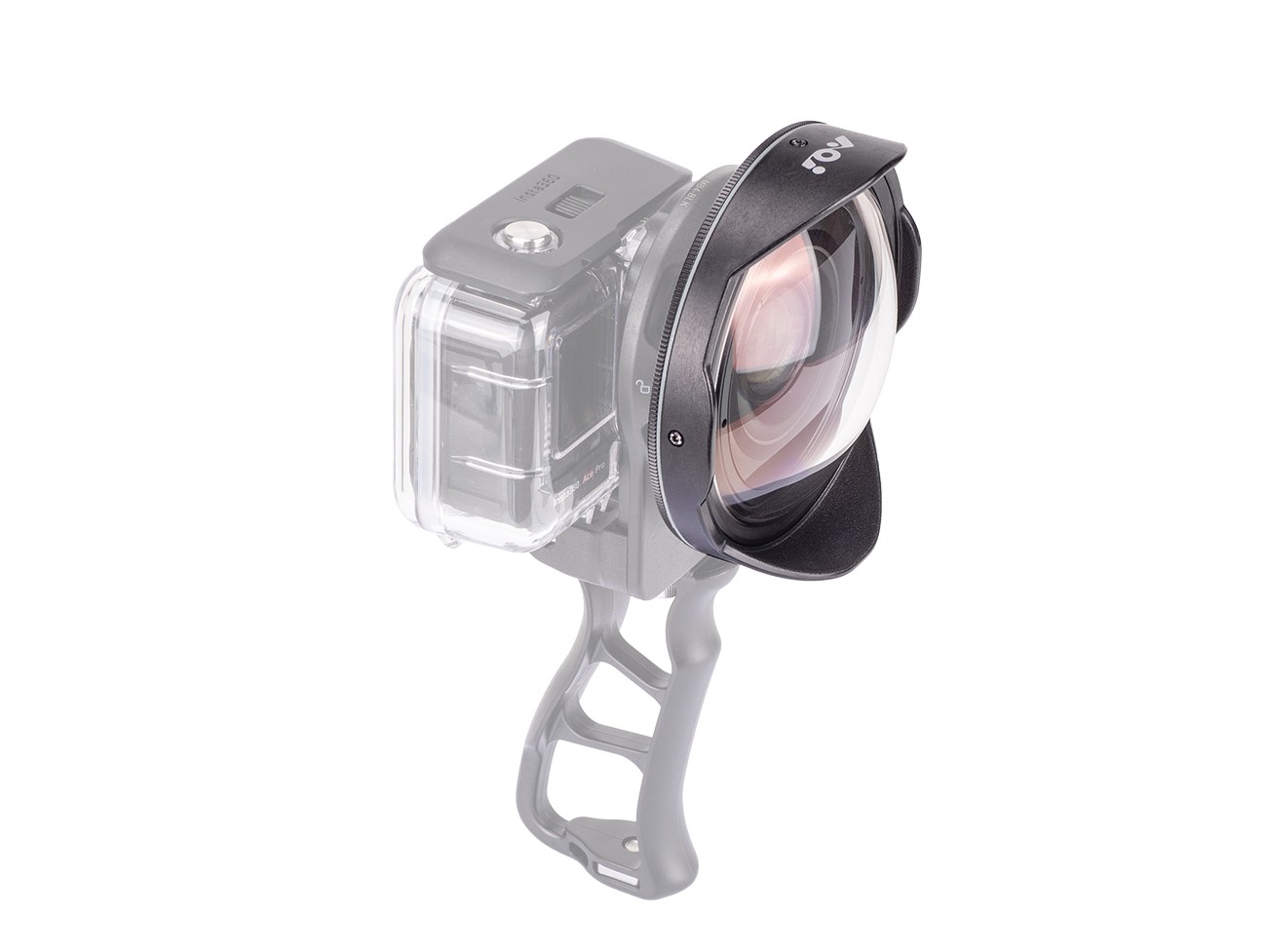

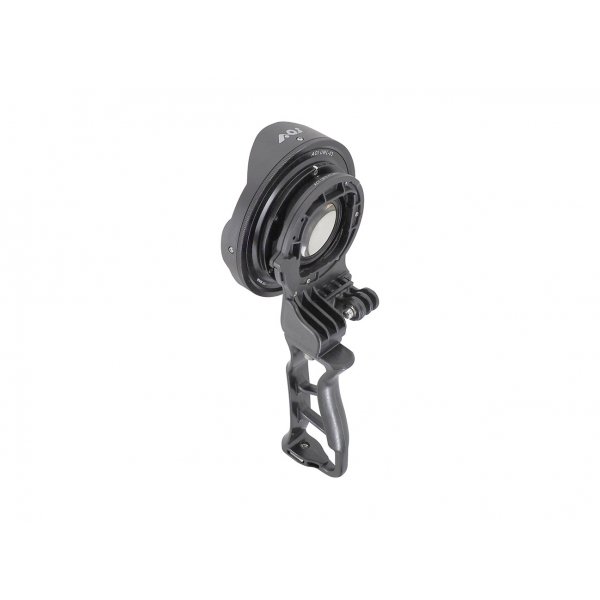

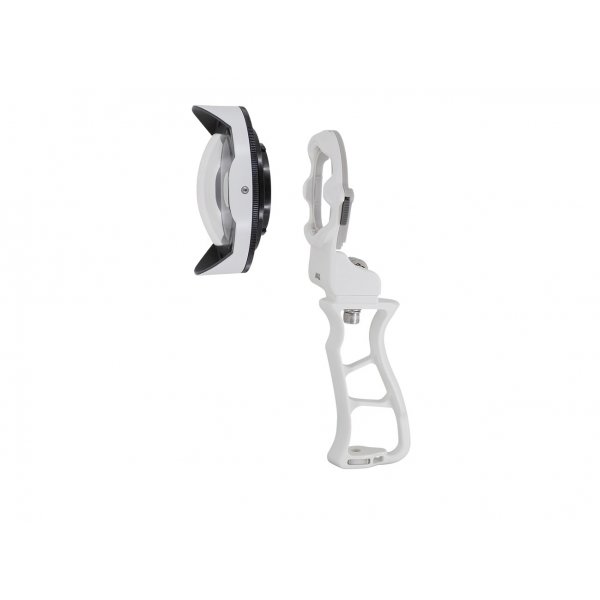

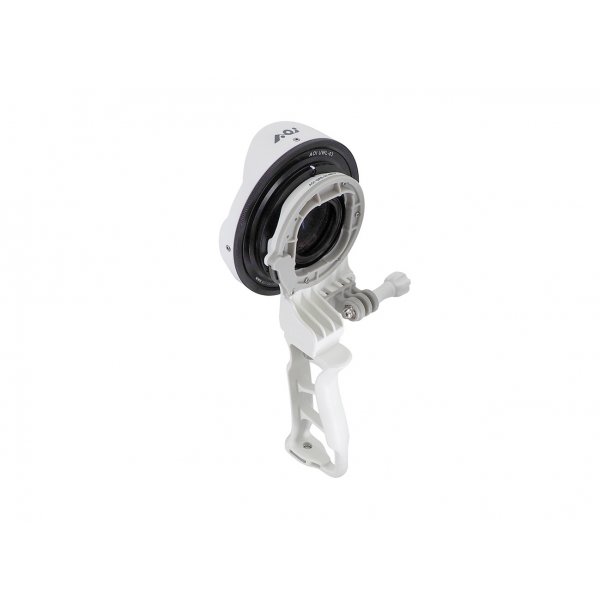

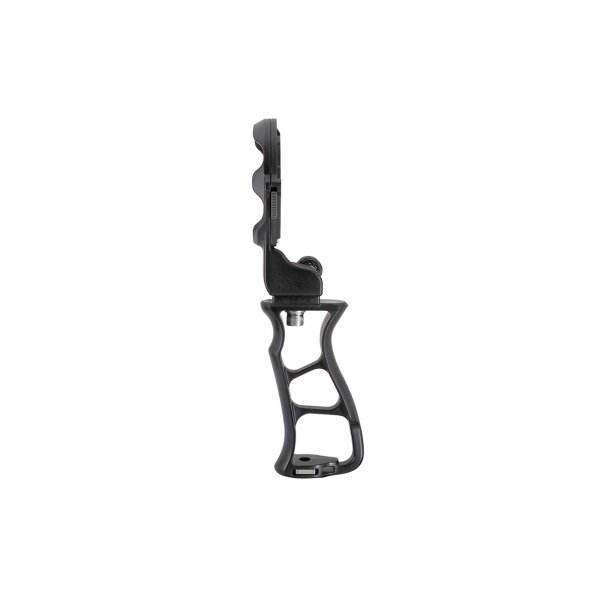

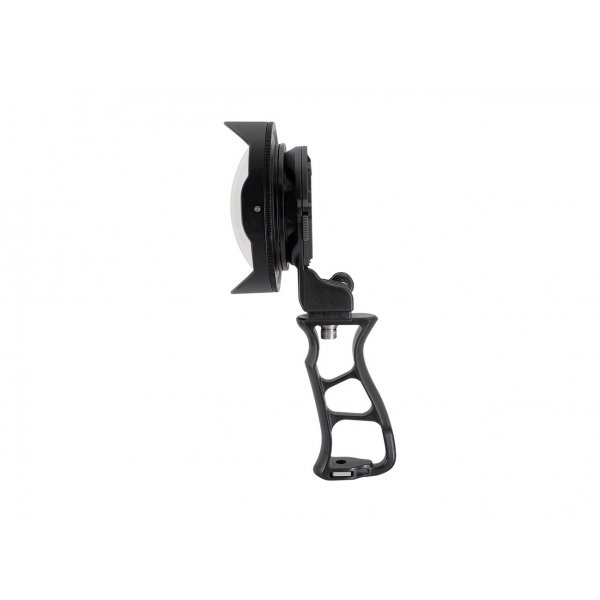

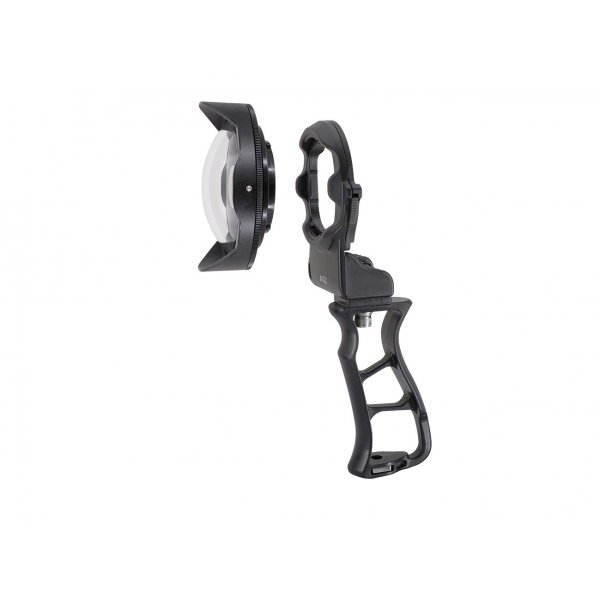

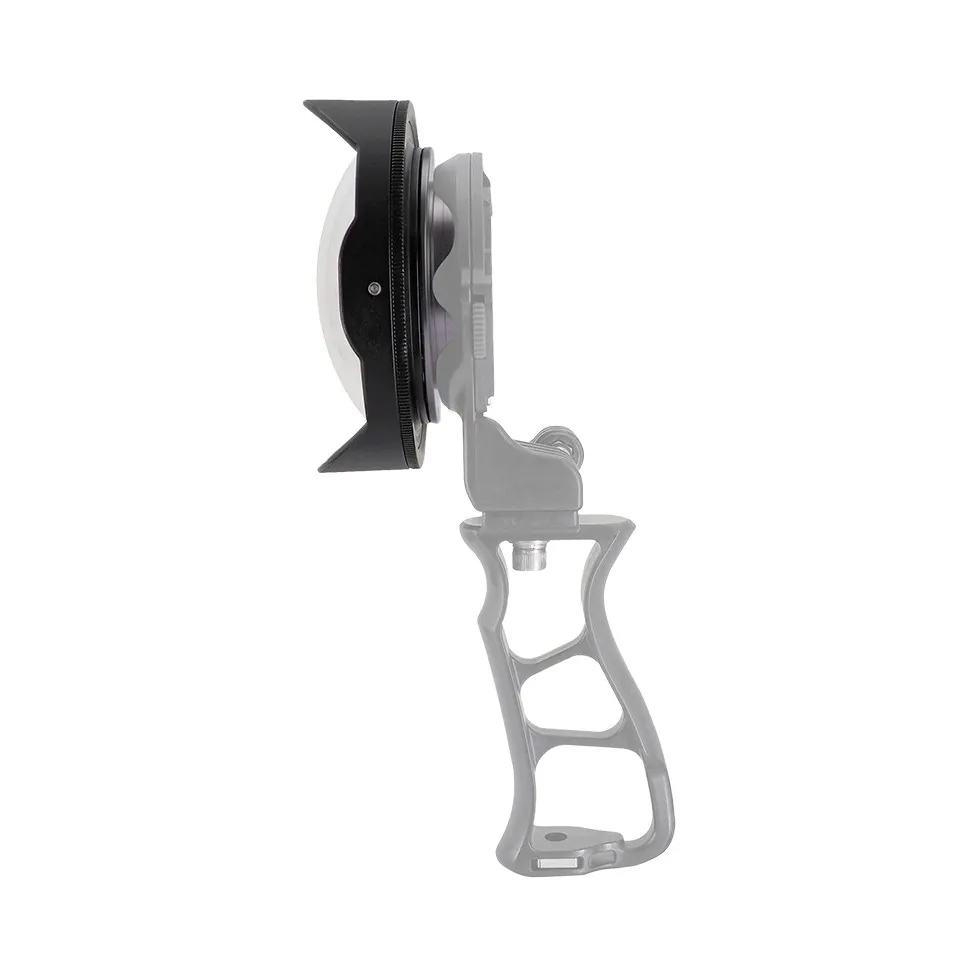

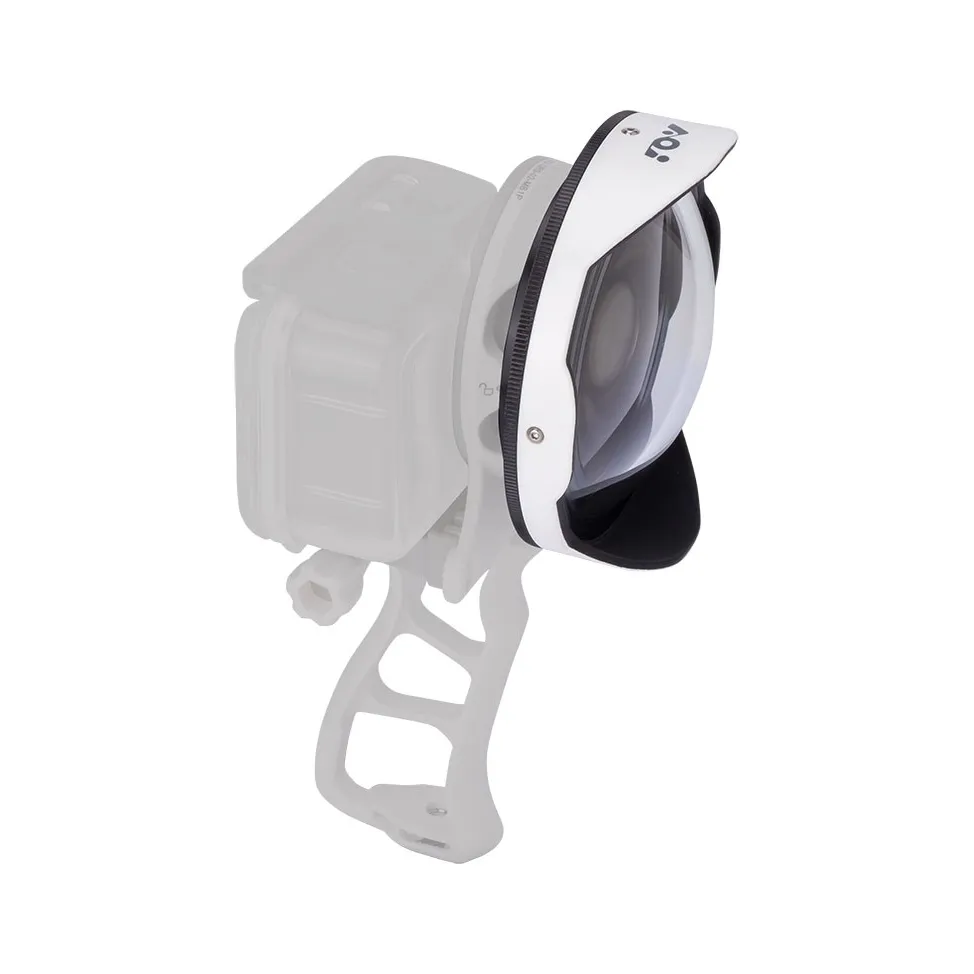

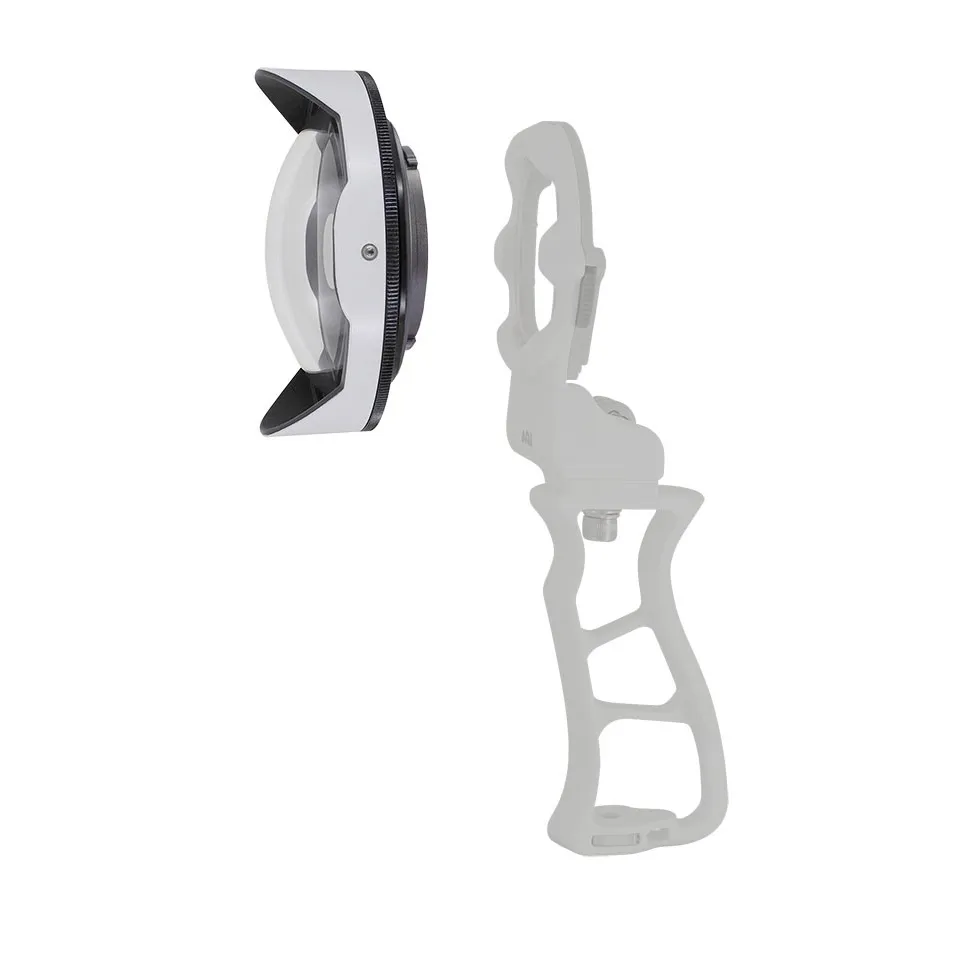

Quick Release System 02 Mount Base Pistol Grip for Original Factory Waterproof Case, available in Black and White)

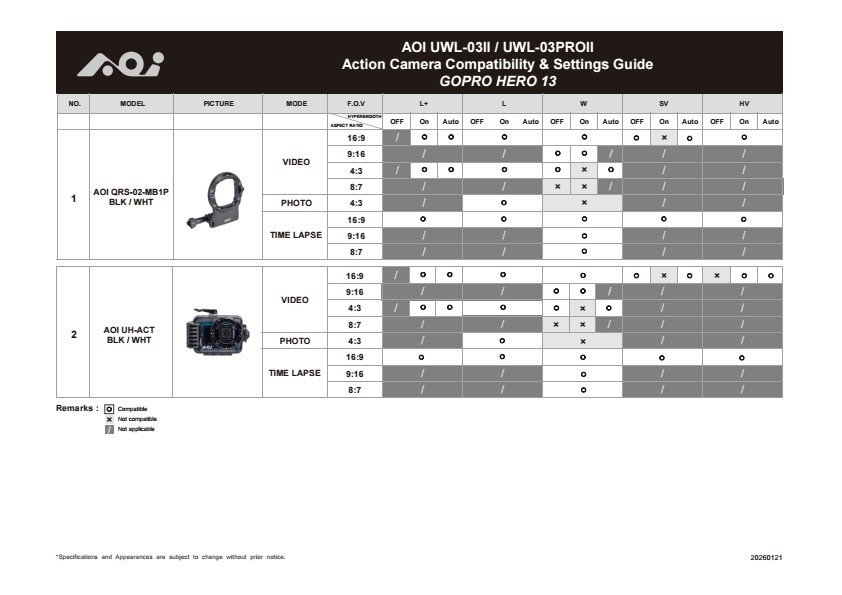

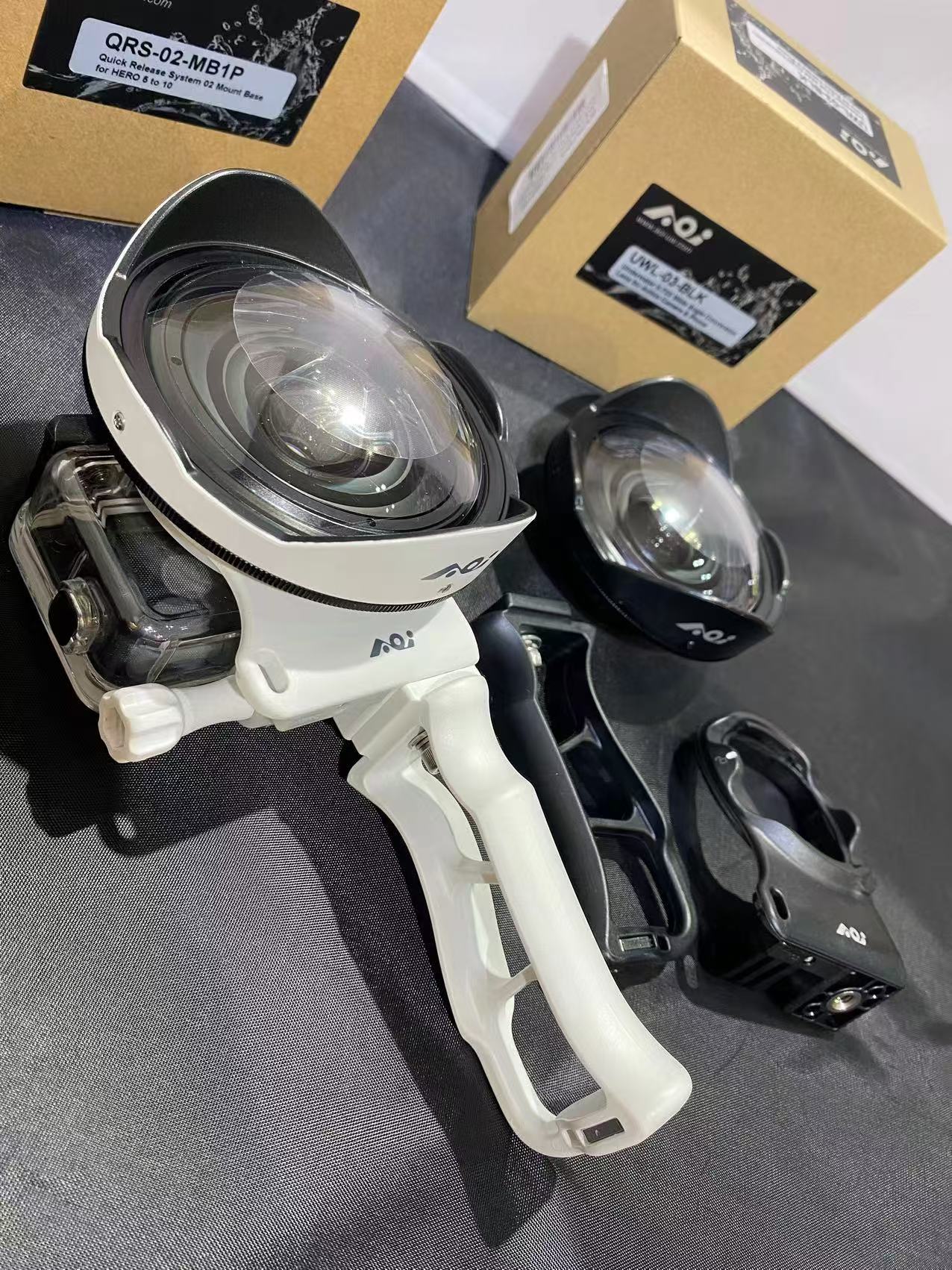

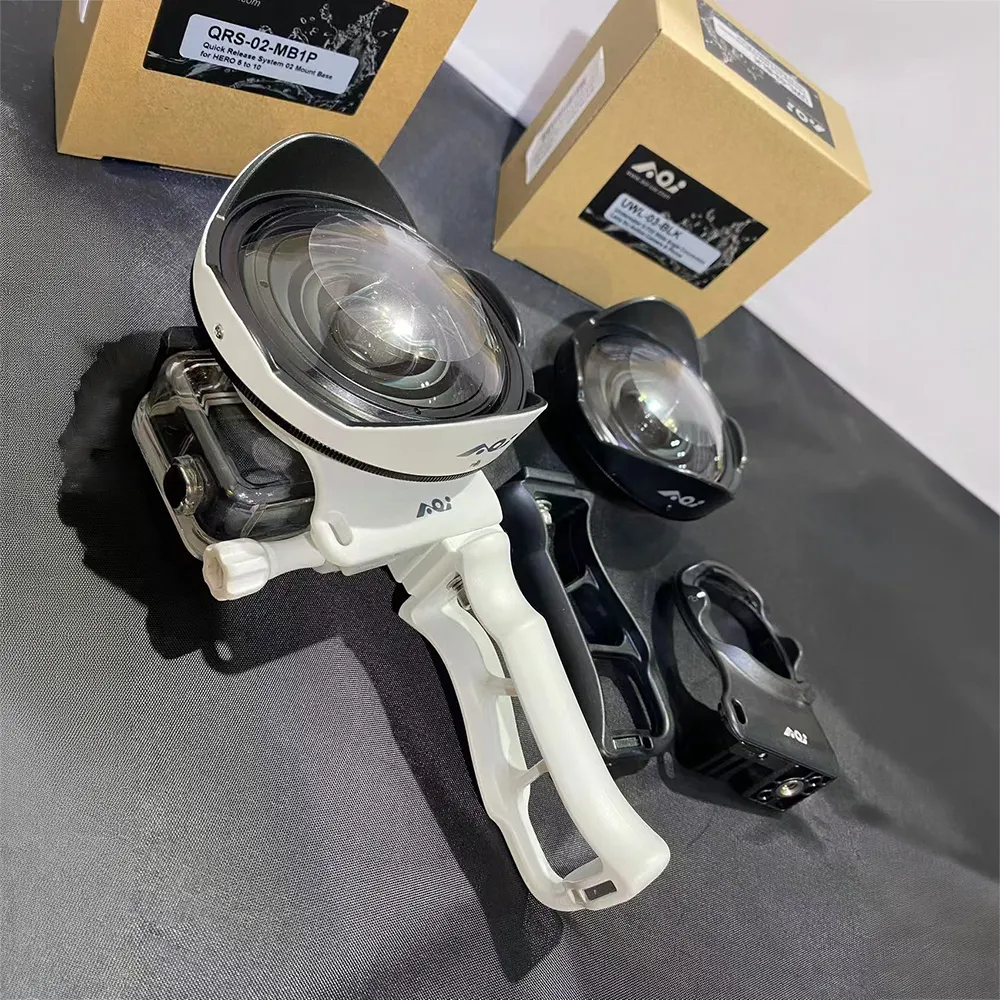

Go Pro 9-13 : QRS-02-MP1P
- GoPro Hero 11 12,13 LCD Magnifier require RK-GP11-BD + UMG-01

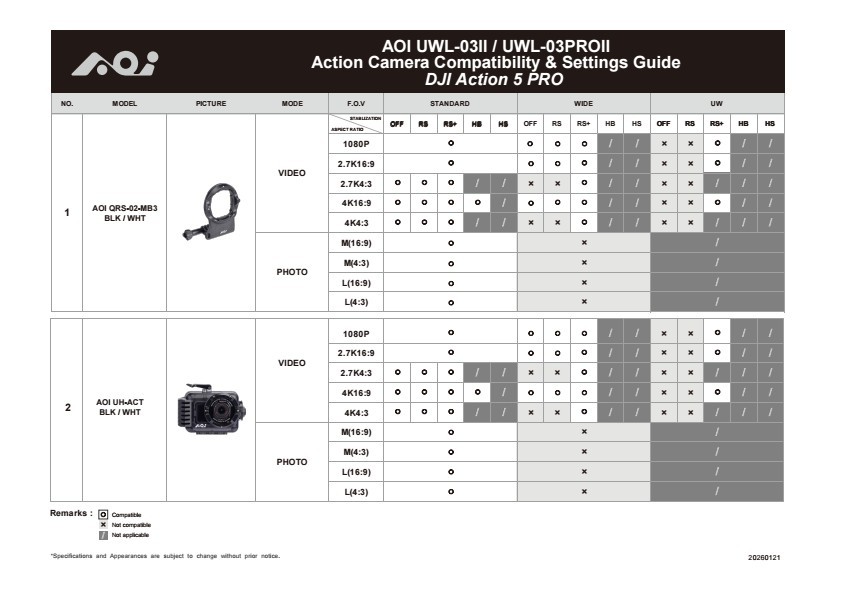

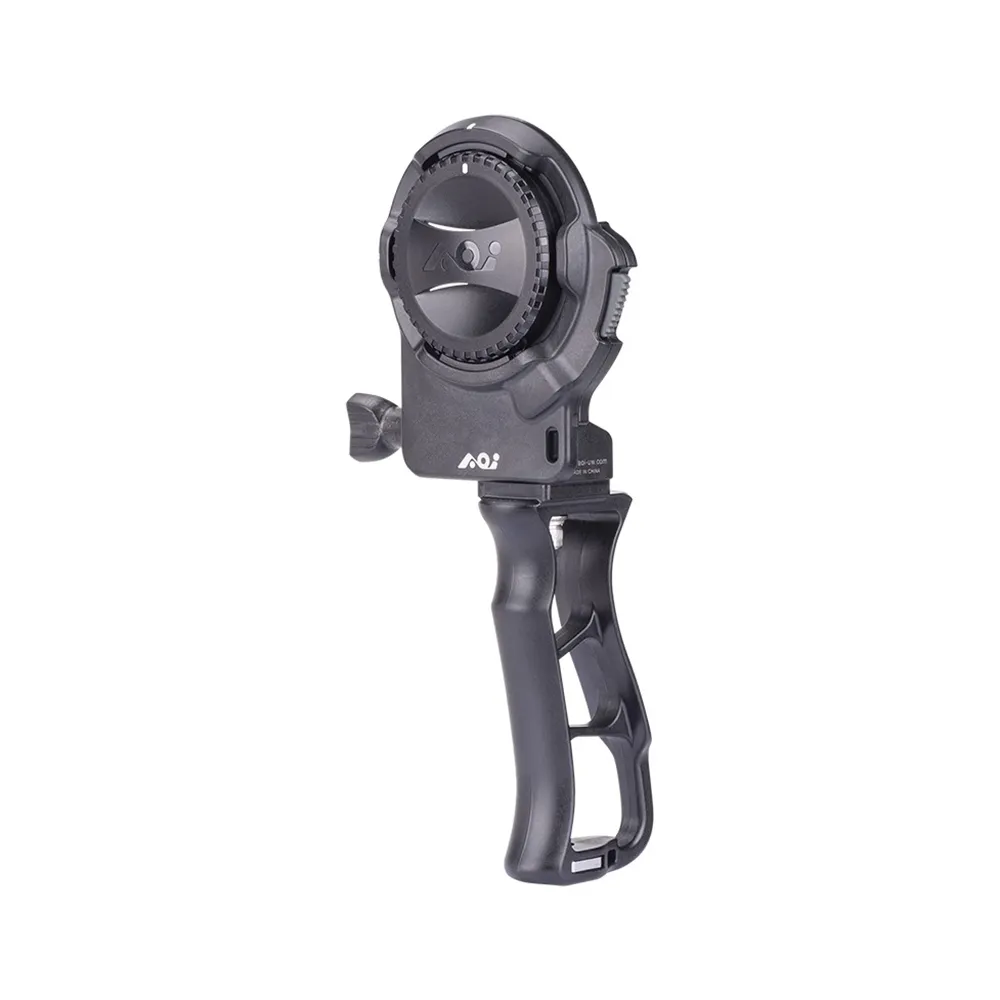

DJI Osmo Action 5/4 : QRS-02-MB3

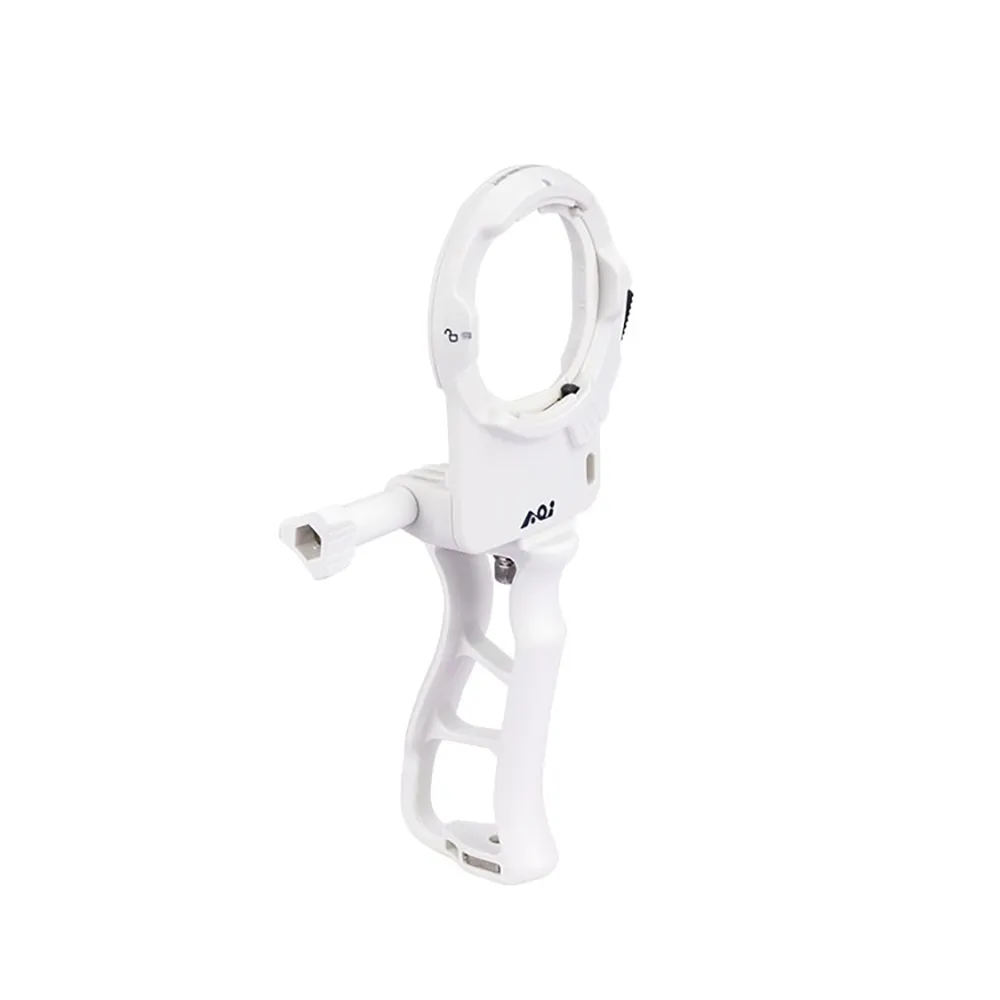

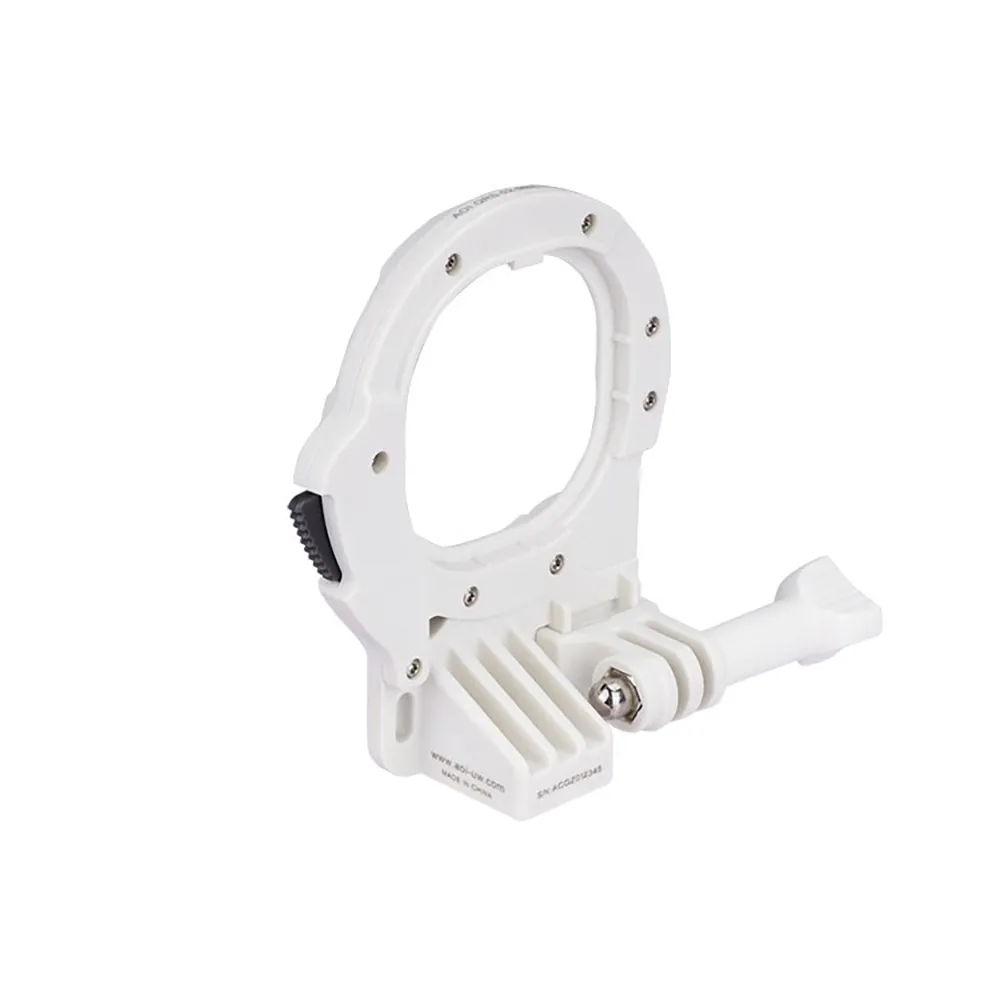

DJI Osmo Action 6 : QRS-02-MB6

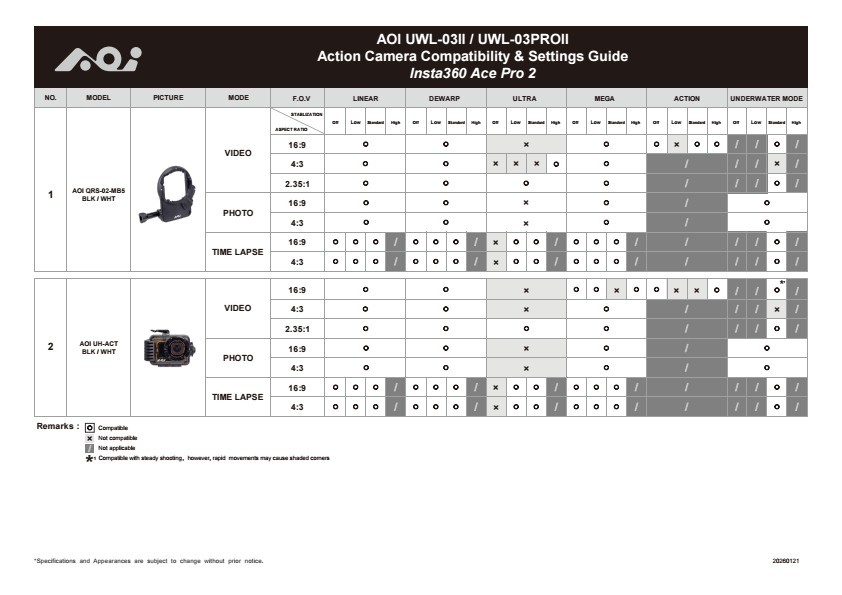

Insta360 AcePro 2 : QRS-02-MB5
Insta360 AcePro : QRS-02-MB4
