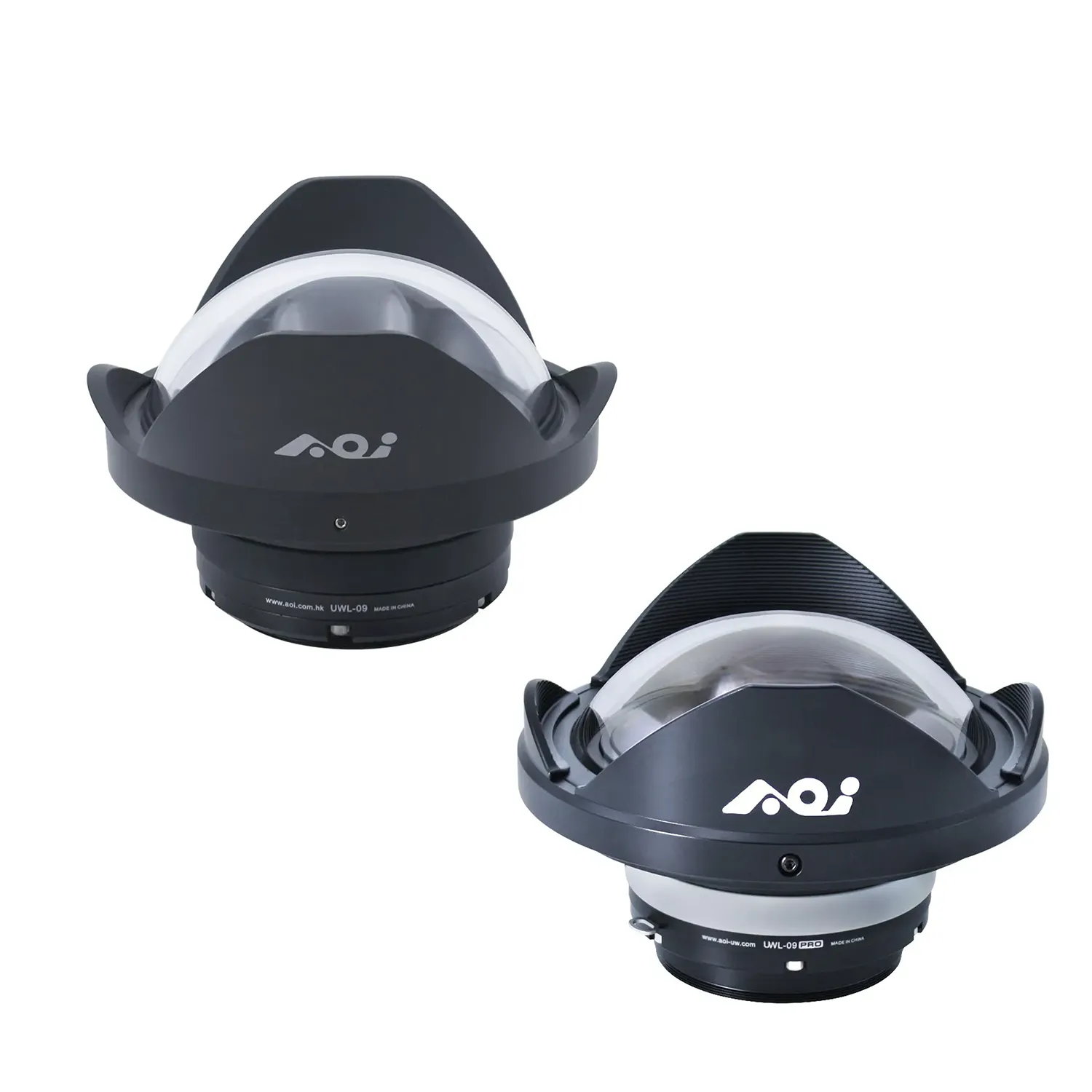

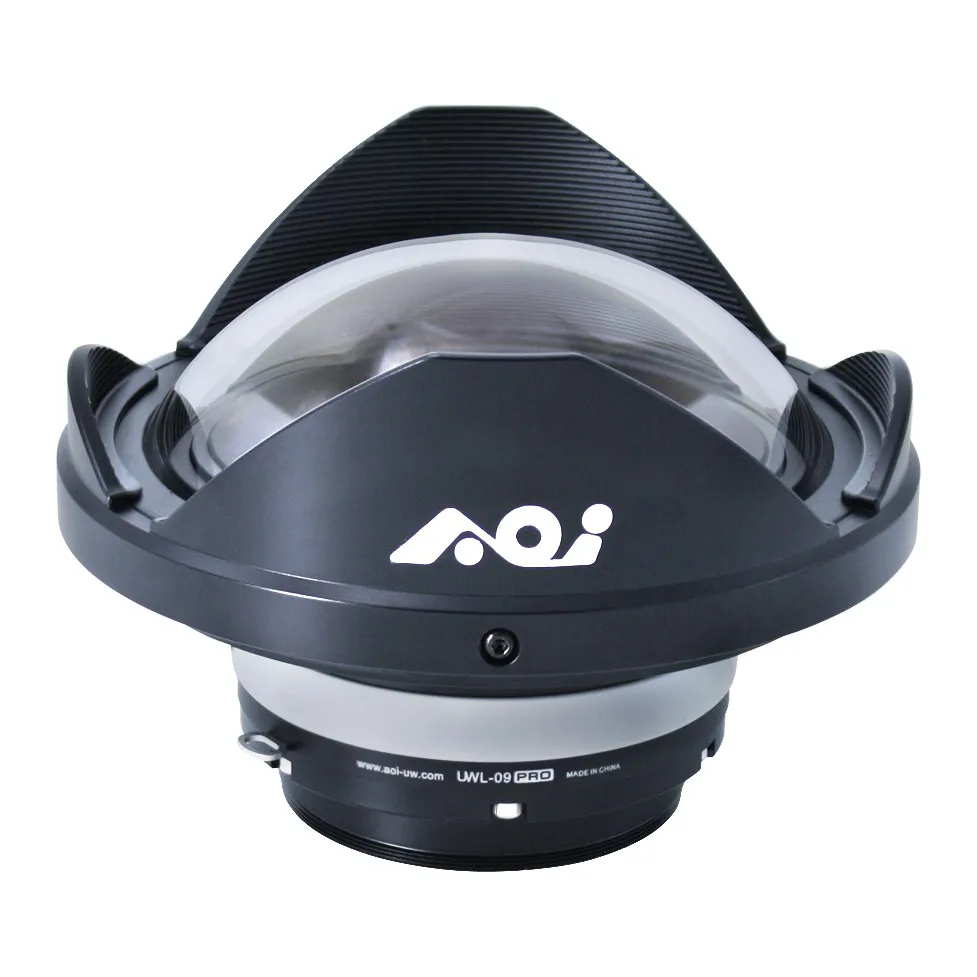

AOI UWL-09 Series Wide Angle Lens
Price on Option List
The AOI UWL-09 series consists of professional-grade, interchangeable wet wide-angle lenses optimized for compact, mirrorless, or DSLR housings using a standard 67mm (M67) thread. These lenses allow full “zoom-through,” meaning you can use your camera’s optical zoom underwater without losing focus or needing to remove the wet lens.
All lenses in the AOI UWL-09 series use a standard M67 (67mm) thread mount.
Description
AOI UWL-09 Series Wide Angle Lens
The AOI UWL-09 series consists of professional-grade, interchangeable wet wide-angle lenses optimized for compact, mirrorless, or DSLR housings using a standard 67mm (M67) thread. These lenses allow full “zoom-through,” meaning you can use your camera’s optical zoom underwater without losing focus or needing to remove the wet lens.
All lenses in the AOI UWL-09 series use a standard M67 (67mm) thread mount.
Key Series Advantages
- Dual-Adapter Versatility: The series famously ships with two variations of the M67 adapter (Adapter A and B). This accommodates different housing thread depths, allowing you to seat the lens closer to your housing’s flat port glass to minimize vignetting (dark corners).
- Zero Minimum Focus Distance: You can shoot subjects directly touching the front dome, which is perfect for Close-Focus Wide-Angle (CFWA) photography.
- Rotatable Lens Hood: The built-in petal shades/wings can be adjusted underwater without tools to match horizontal or vertical compositions and eliminate sun flare.
| UWL-09 Series Wide Angle Lens | ||
|---|---|---|
| Model | AOI UWL-09 | AOI UWL-09PRO |
|
|
|
| Description | Underwater 0.45X Wide Angle Conversion Lens | |
| Lens Construction | 5 Elements in 5 Groups | 6 Elements in 6 Groups |
| Lens Coating | All Glass Lens Elements with Multi-layers AR Coating, Front PC Dome Lens with Hard Coating |
All Glass Lens Elements with Multi-layers AR Coating, Optical Grade Glass Dome Lens with Inner Surface Multi-layers AR Coating |
| Field of View (Diagonal) | 130°(with 28mm Lens) | |
| Magnification | 0.45X | |
| Minimum Object Distant | 0 mm to the Front Dome Lens | |
| Mount System | M67 Thread | |
| Depth Rating | 100 Meters / 330 Ft. | |
| Lens Barrel / Lens Hoods | Aluminum Alloy with Black Hard Anodized / ABS | |
| Dimensions | 132mm (W) X94mm (H) | 139mm (D) X99mm (H) |
| Weight | 1010 g (on land) 430 g (underwater) |
1408 g (on land) 770 g (underwater) |
| Accessories | Neoprene Dome Cover (DNC-04) , Rear Lens Cap (LRC-02), Lens Secure Line (LSL-02), Type B M67 Adapter (UWL-09-Type B) with Allen Key and Carry Case(LPC-03) |
Neoprene Dome Front Cover (DNC-04), Rear Lens Cap (LRC-02), Lens Secure Line (LSL-02), Type B M67 Adapter (UWL-09P-Type B) with Allen Key and Carry Case (LPC-02) |
*Specifications and Appearances are subject to change without prior notice.
