AOI UWL M52 Mount Series Wide Angle Lens
Price on Option List

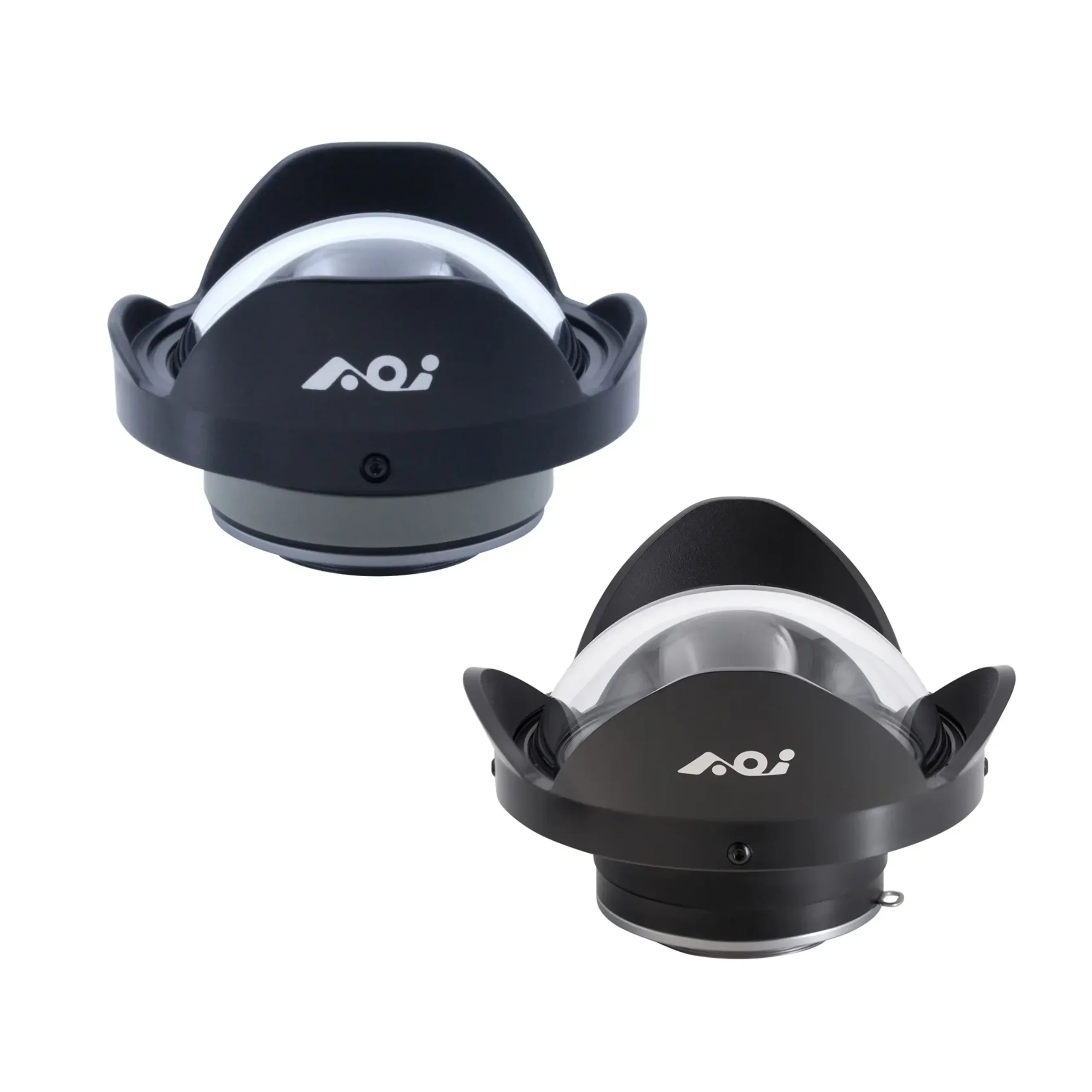

The AOI UWL M52 series (UWL-04A, UWL-400A) wide angle wet lens are high-quality underwater conversion lenses and feature different optical profiles, field-of-view ranges, and camera compatibility. Lens use a standard M52 (52mm) thread mount and compatible with Quick Release Mount QRS-01-AD3 for easy lens exchange between Wide angle or Macro shoot.
Description
AOI UWL M52 Mount Series Wide Angle Lens
The AOI UWL M52 series (UWL-04A, UWL-400A) wide angle wet lens are high-quality underwater conversion lenses and feature different optical profiles, field-of-view ranges, and camera compatibility. Lens use a standard M52 (52mm) thread mount and compatible with Quick Release Mount QRS-01-AD3 for easy lens exchange between Wide angle or Macro shoot.
Key Features & Choosing the Right Lens

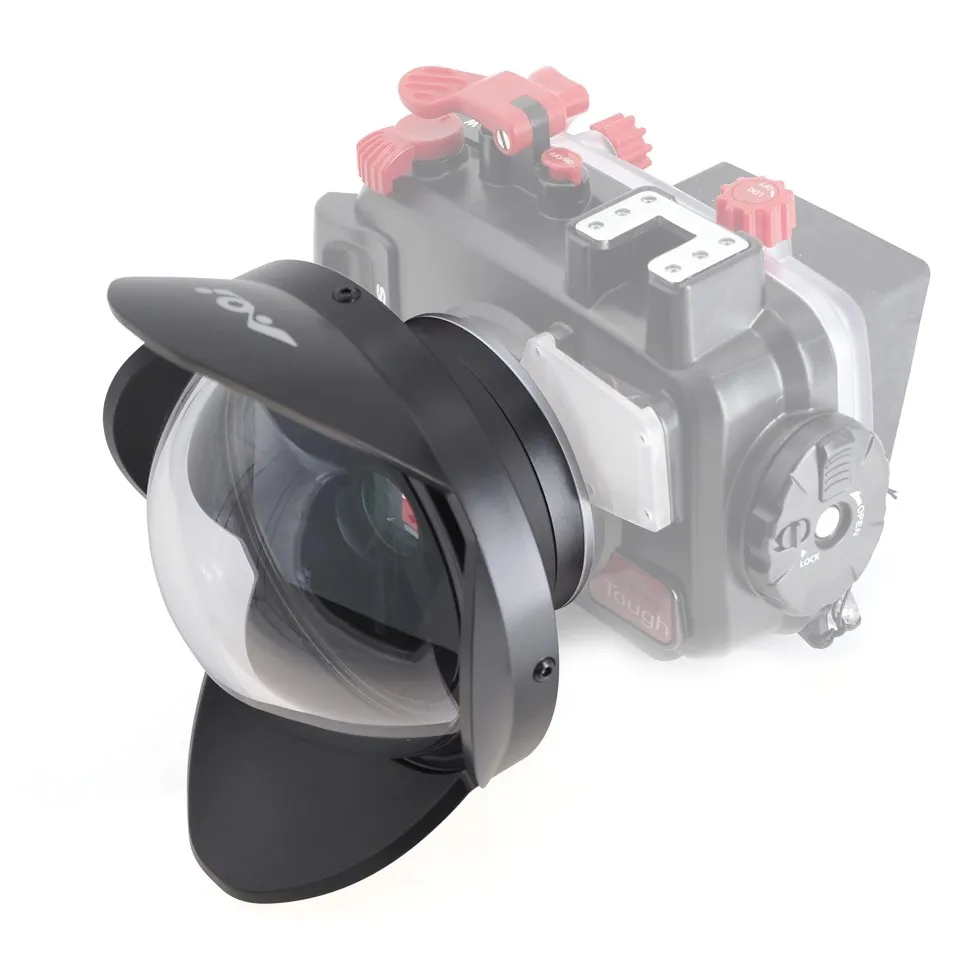

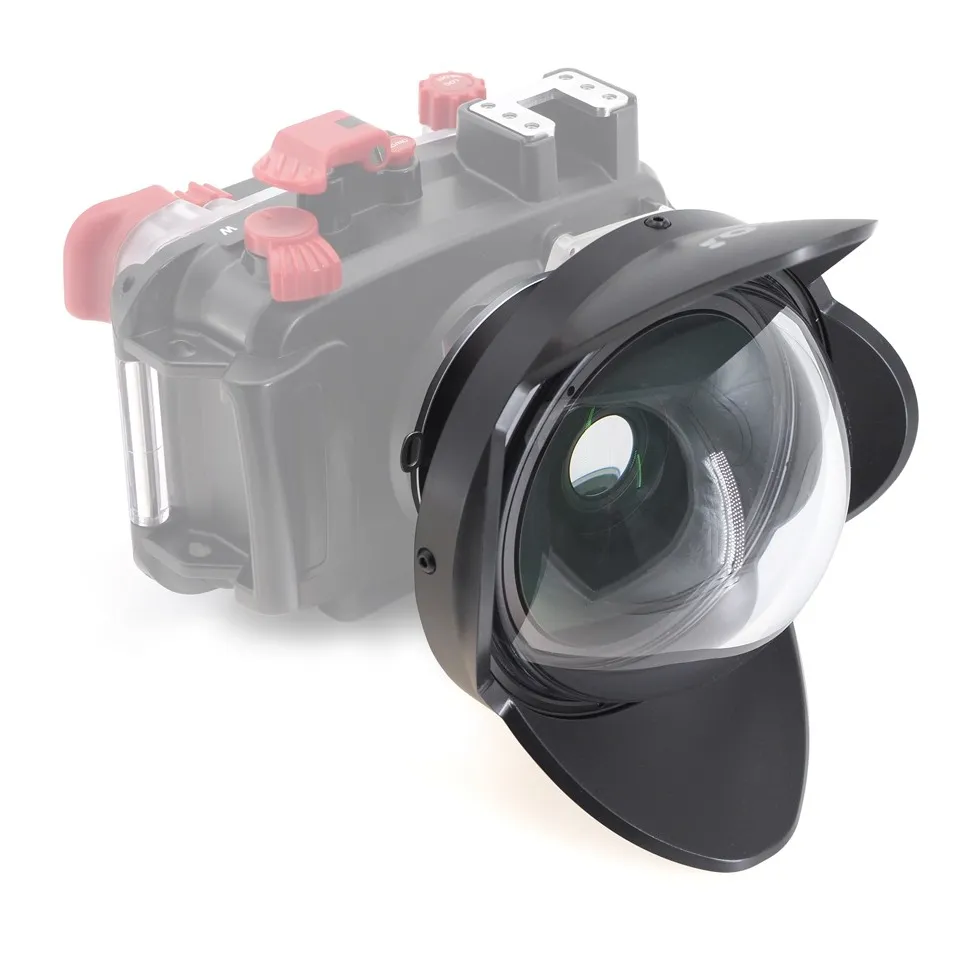

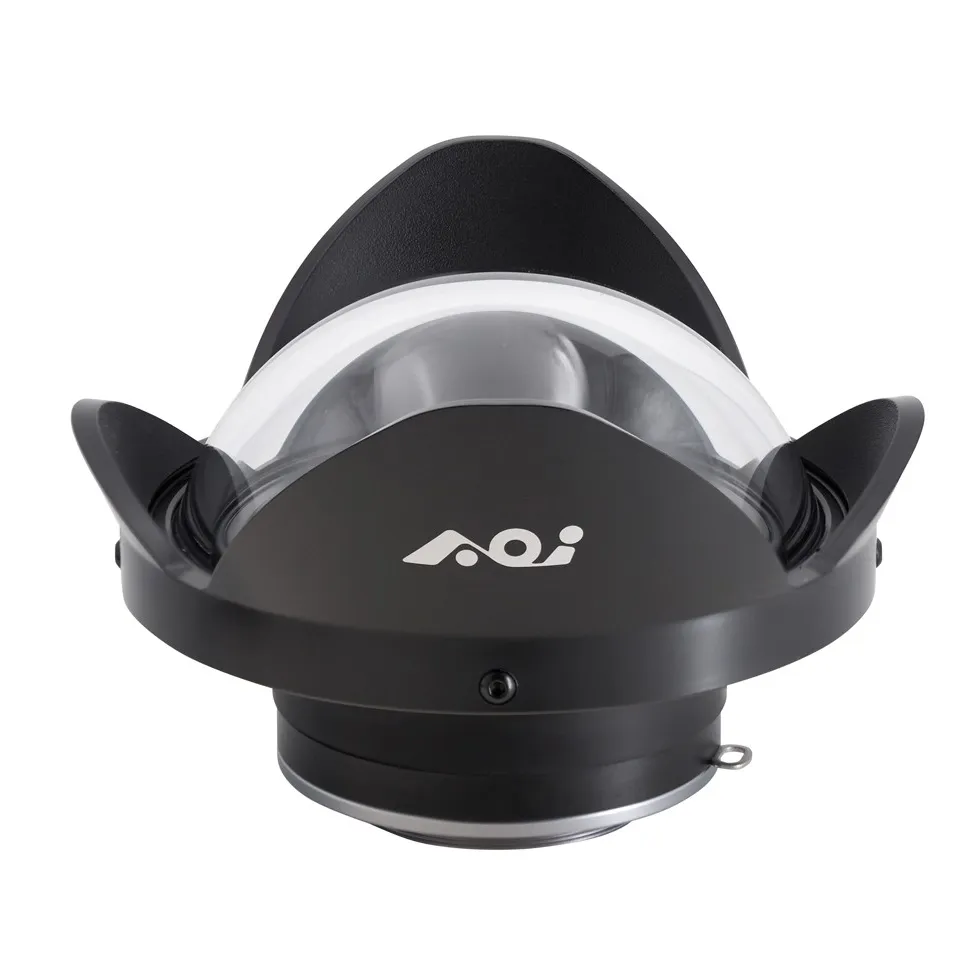

- AOI UWL-04 / 04A: The “Big Eye” for TG-Series Users
- Extreme Field of View: Delivers a sweeping 160° fisheye perspective underwater. It maximizes dramatic distortion and deep perspective.

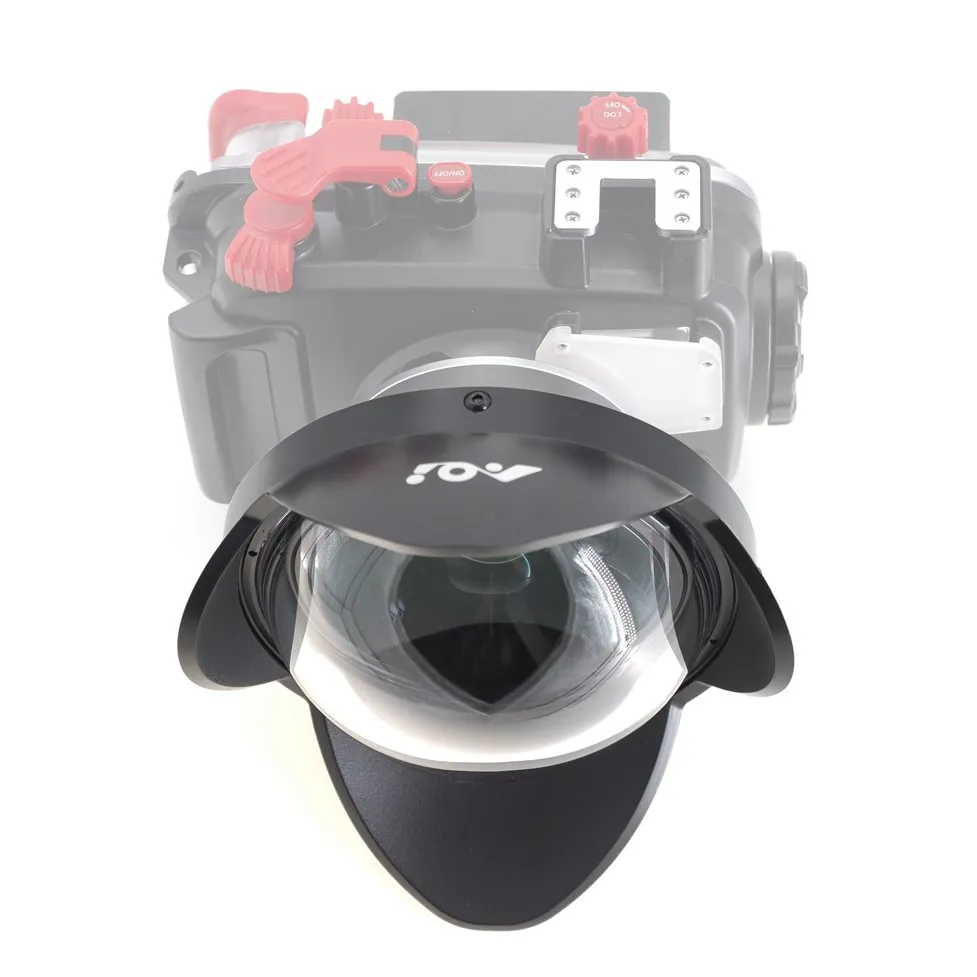

- Optimized for Olympus TG-6 / TG-7: Designed specifically for camera housings with a 28mm equivalent focal length (like the Olympus PT-059). When paired with TG cameras, it offers a completely vignetting-free (no black corners) ultra-wide image.
- Close Focus Wide Angle (CFWA): Features a 0mm minimum object distance, allowing you to push the dome lens right up to a small subject (like a nudibranch or anemone) while keeping a massive coral reef background in full focus.

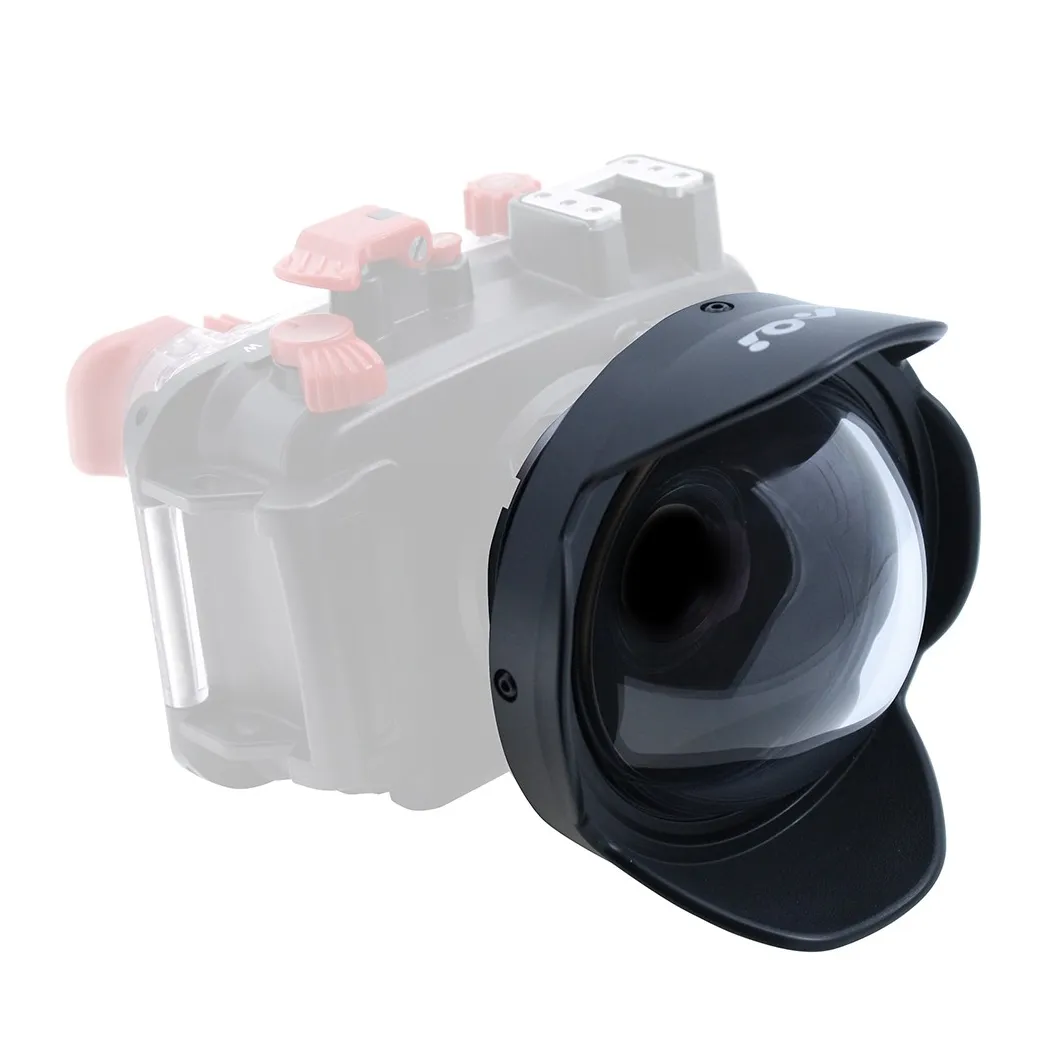

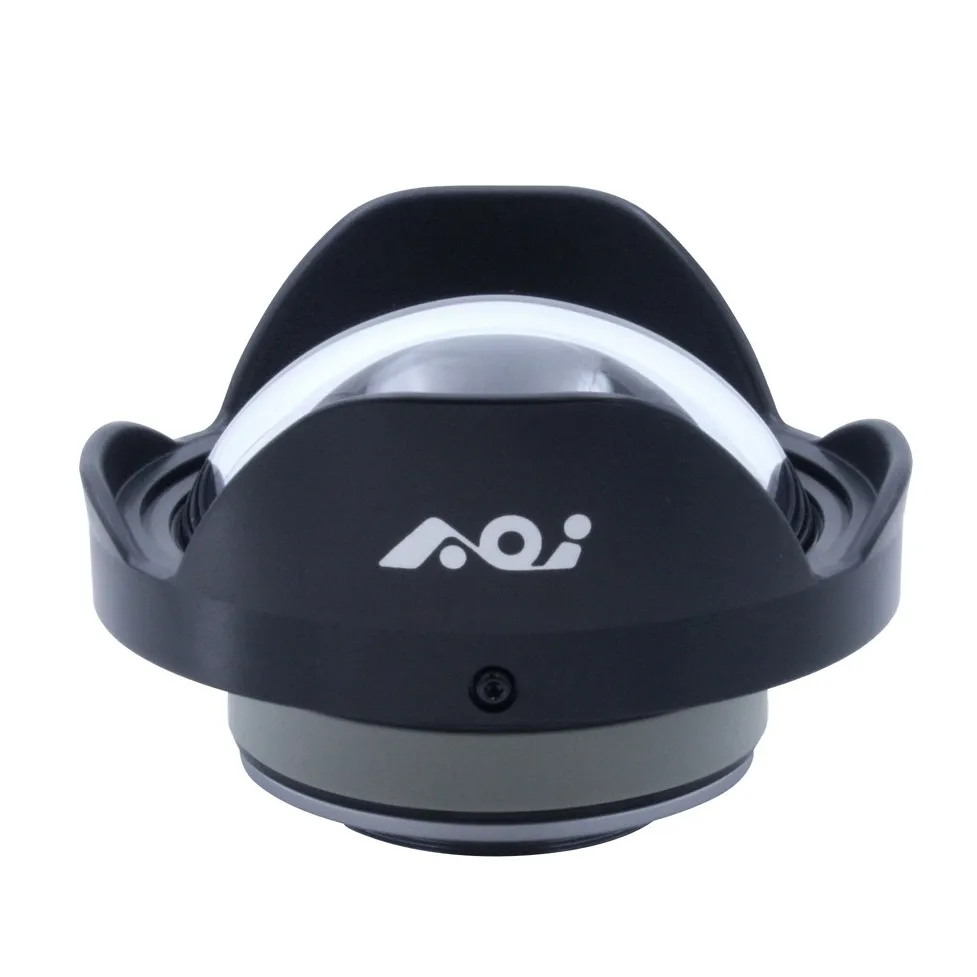

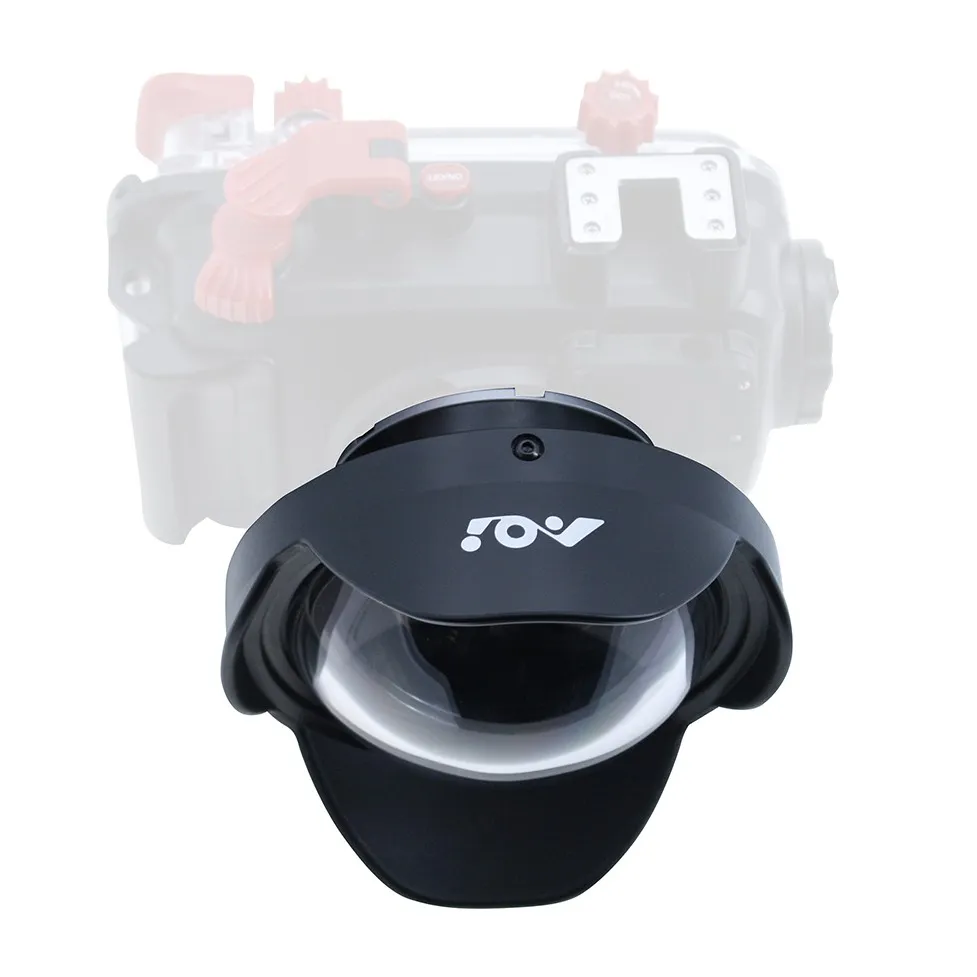

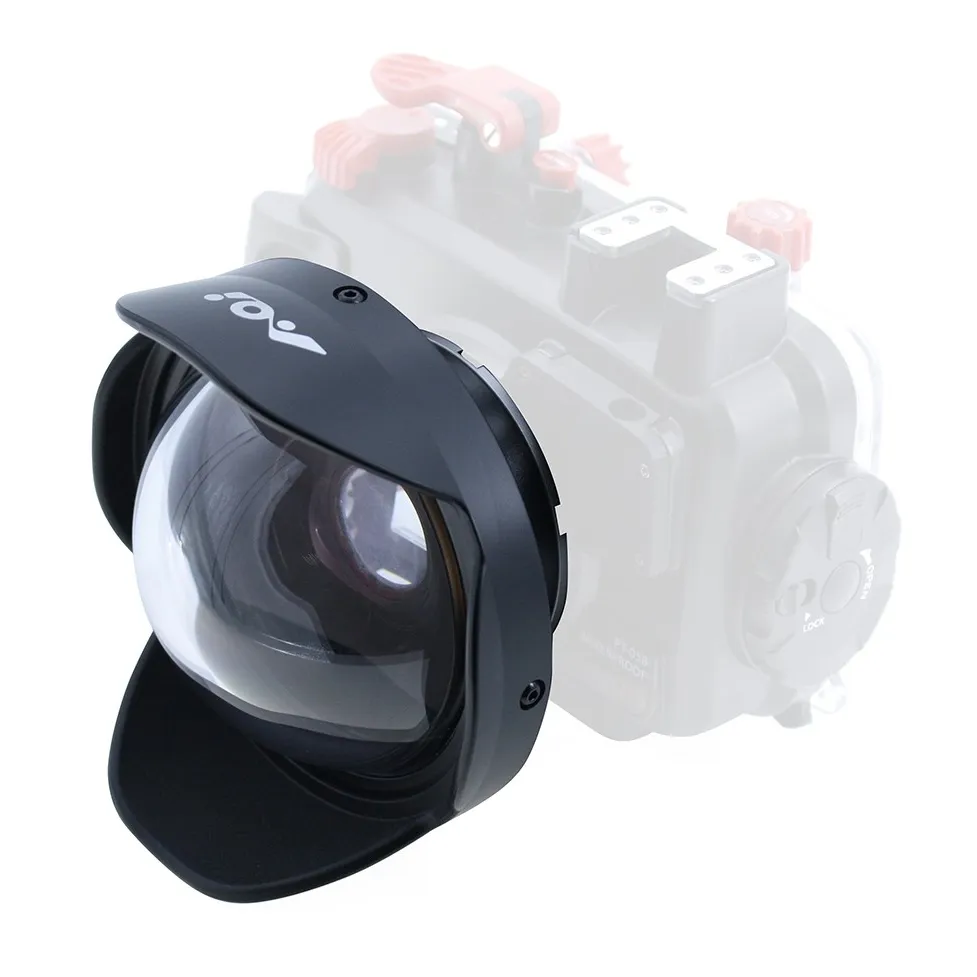

- AOI UWL-400 / 400A: The Versatile Solution for 1-Inch Sensor Compacts
- Vignette-Free for 24mm Lenses: High-end compact cameras like the Sony RX100 series or Canon G7X series start at a wider 24mm equivalent focal length. Standard wet lenses cause dark corners (vignetting) on these systems. The UWL-400 is mathematically corrected to sit perfectly in front of 24mm lenses, delivering a rectilinear, natural 120° wide-angle view.
- Technical Diving Grade: It features a reinforced construction depth-rated to 100 meters (330 ft), making it the preferred choice for tech divers or deep trimix exploration.
- Both optics are wet lenses, meaning they can be attached or detached freely underwater. They can also both utilize the AOI QRS-01 (Quick Release System) bayonet system, allowing you to swap between these wide lenses and a macro diopter in seconds under the water.
| UWL M52 Mount Series Wide Angle Lens | ||
|---|---|---|
| Model | AOI UWL-04A | AOI UWL-400A |
|
|
|
| Description | Underwater 0.42X Wide Angle Conversion Lens (Included QRS-01-AD3) | Underwater 0.50X Wide Angle Conversion Lens (Not Included QRS-01-AD3) |
| Lens Construction | 5 Elements in 5 Groups | |
| Lens Coating | All Glass Lens Elements with Multi-layers AR Coating, Front PC Dome Lens with Hard Coating |
|
| Field of View (Diagonal) | 160°(with 28mm Lens) | Underwater 120°(with 25mm Lens) |
| Magnification | 0.42X | 0.50X (on land / underwater) |
| Minimum Object Distant | 0 mm to the Front Dome Lens | |
| Mount System | M52 Thread Mount / QRS-01 compatibility | |
| Depth Rating | 60 Meters / 200 Ft. | 100 Meters / 330 Ft. |
| Lens Barrel / Lens Hoods | Aluminum Alloy with Black Anodize / ABS | ABS / Hard Anodized Aluminum Alloy |
| Dimensions | 157mm (D) X92mm (H) | 121.8mm (D) X76mm (H) |
| Weight | 725 g (on land) 210 g (underwater) |
606 g (on land) 224 g (underwater) |
| Accessories | Neoprene Dome Cover (DNC-04), Rear Lens Cap (LRC-01), Carry Case (LPC-03) and Adaptor (QRS-01-AD3) |
Dome Lens Hard Cover (DHC-01), Rear Lens Cap (LRC-01), Lens Secure Line (LSL-03) and Carry Case(LPC-04) |
*Specifications and Appearances are subject to change without prior notice.
