AOI UCL M67 Series Close Up Lens
Price on Option List

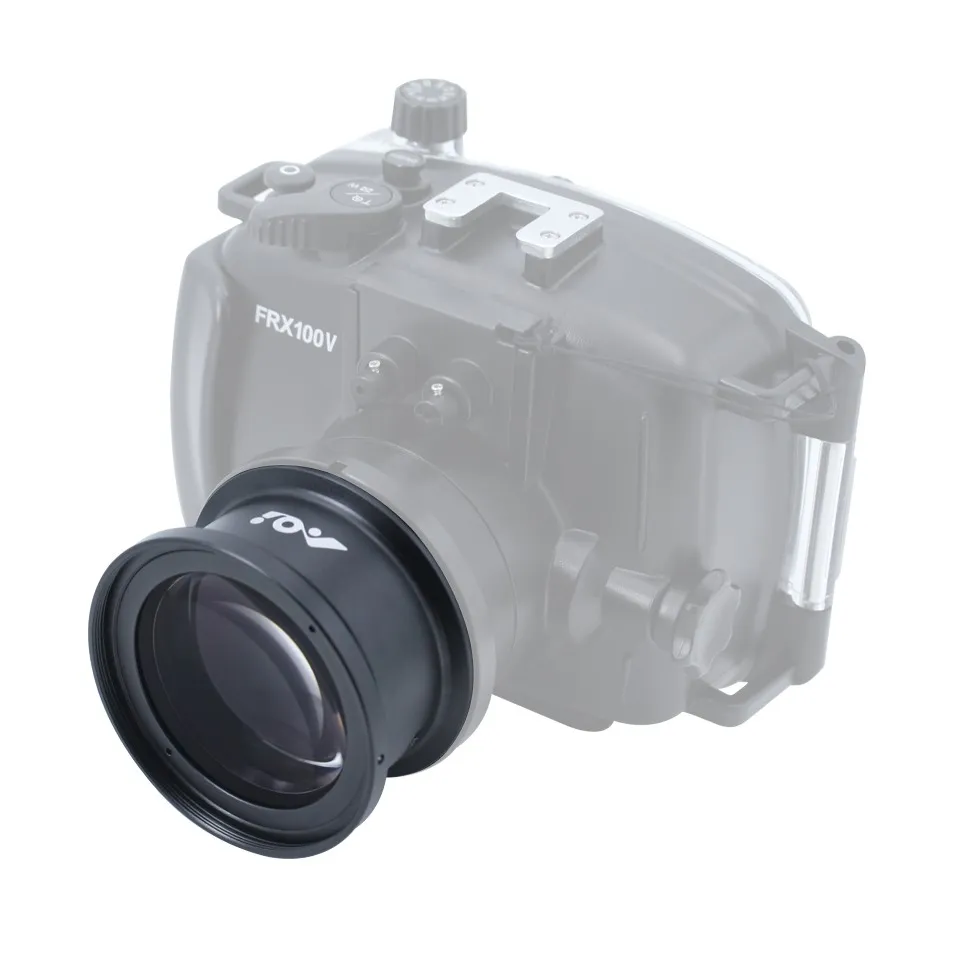

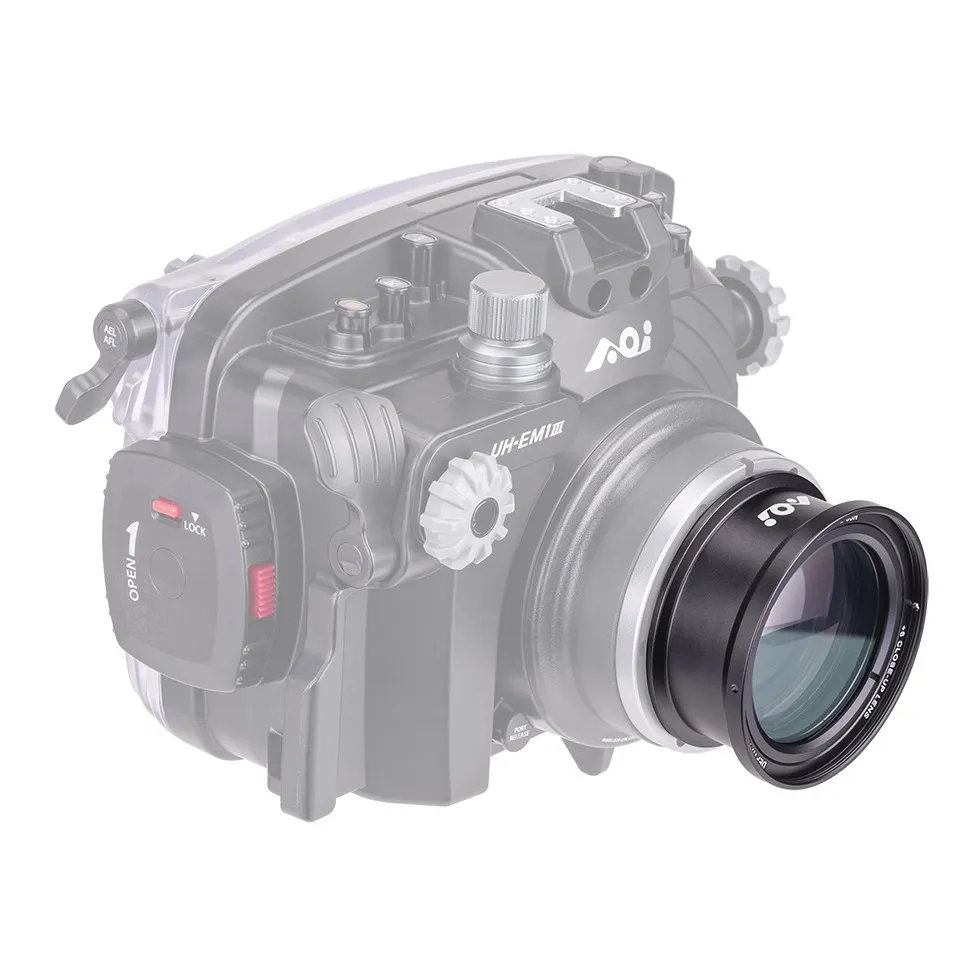

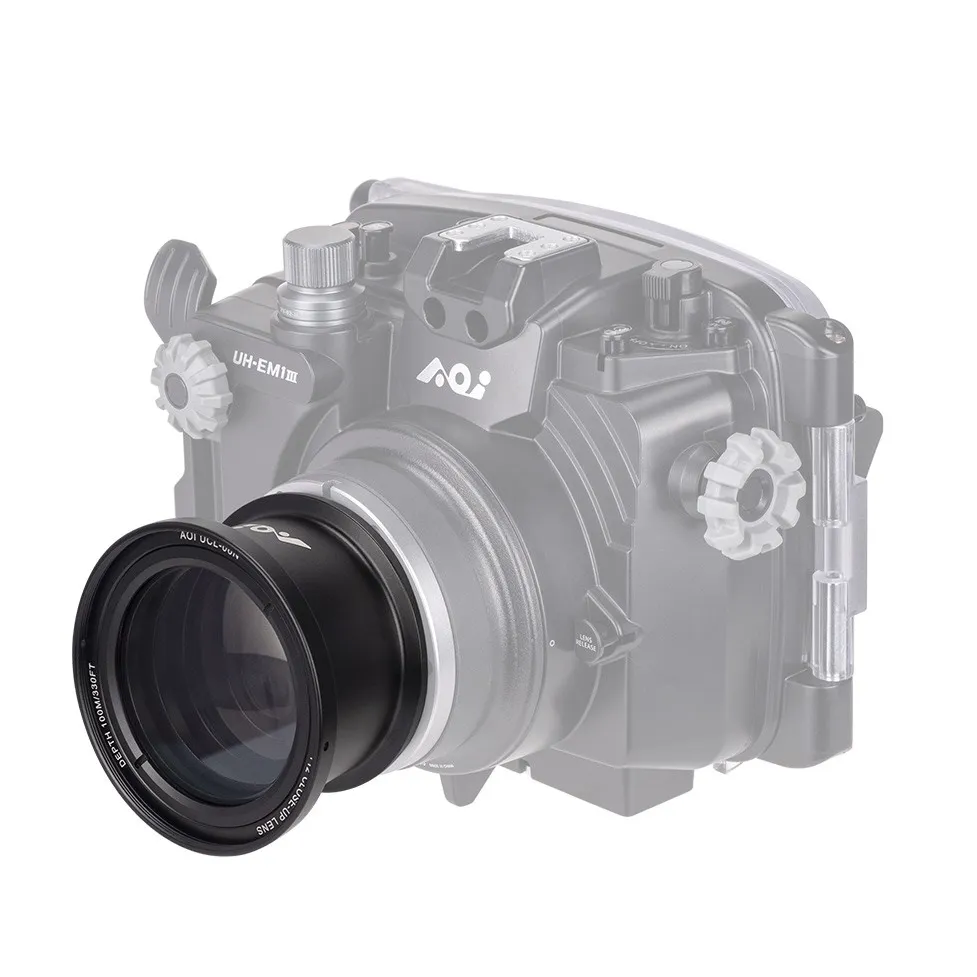

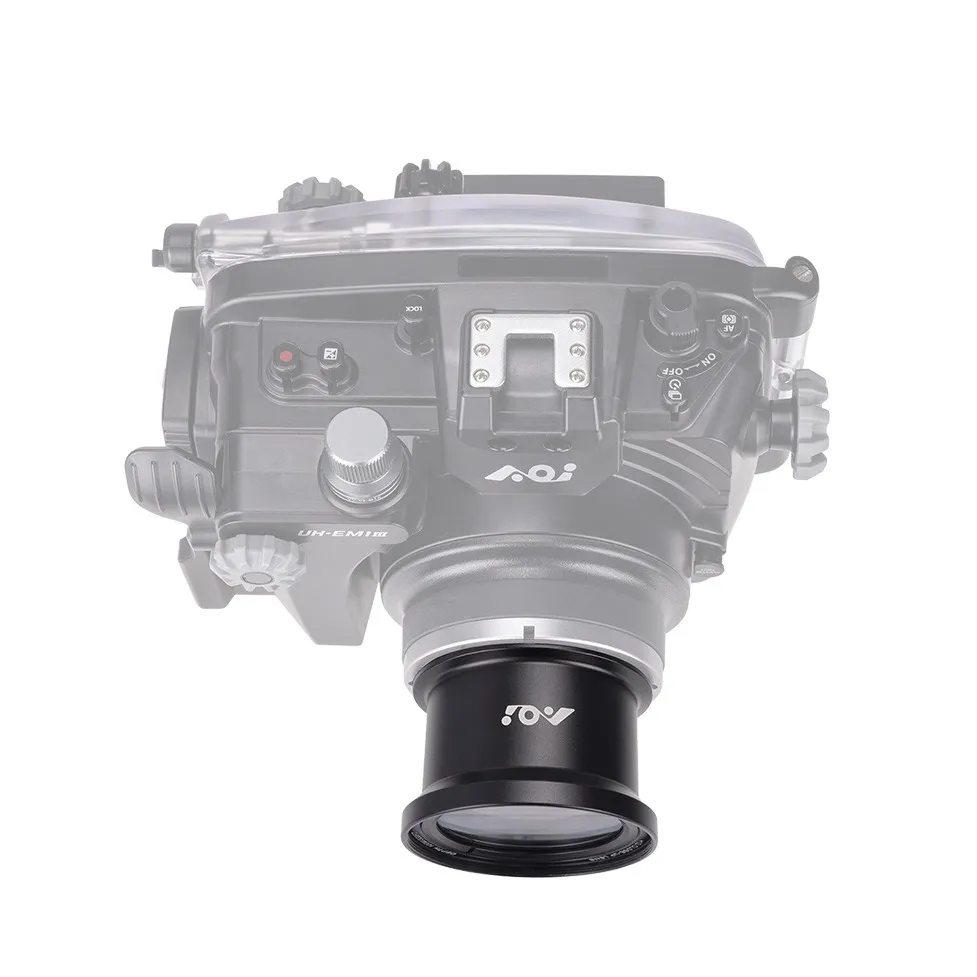

The AOI M67 Close-up / Macro Lens series (also known as wet macro diopters) is a lineup of high-quality underwater conversion lenses designed to capture small marine life. These lenses all feature a native M67 (67mm) threaded male mount at the base, allowing them to screw directly onto the front port of most compact, mirrorless, and DSLR camera housings.

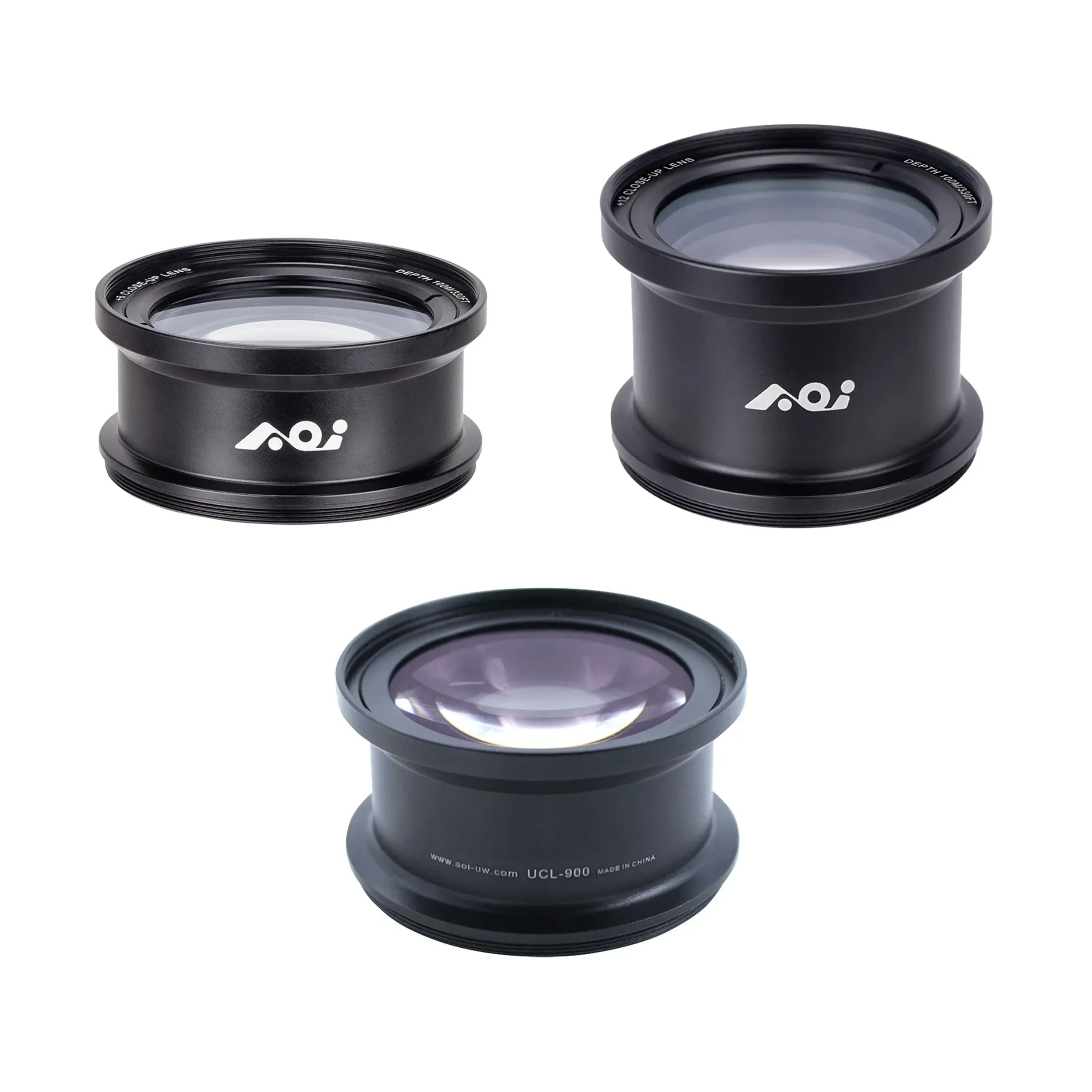

AOI offers four primary tiers of M67 close-up lenses based on their magnification power (Diopter) and optical performance: (UCL-05N, UCL-06N, UCL-900, UCL Pro series – premier flagship line of high-end underwater macro wet lenses). Click here for Pro Series.
Description
AOI UCL M67 Series Close Up Lens
The AOI M67 Close-up / Macro Lens series (also known as wet macro diopters) is a lineup of high-quality underwater conversion lenses designed to capture small marine life. These lenses all feature a native M67 (67mm) threaded male mount at the base, allowing them to screw directly onto the front port of most compact, mirrorless, and DSLR camera housings.
AOI offers four primary tiers of M67 close-up lenses based on their magnification power (Diopter) and optical performance: (UCL-05N, UCL-06N, UCL-900, UCL Pro series – premier flagship line of high-end underwater macro wet lenses). Click here for Pro Series.

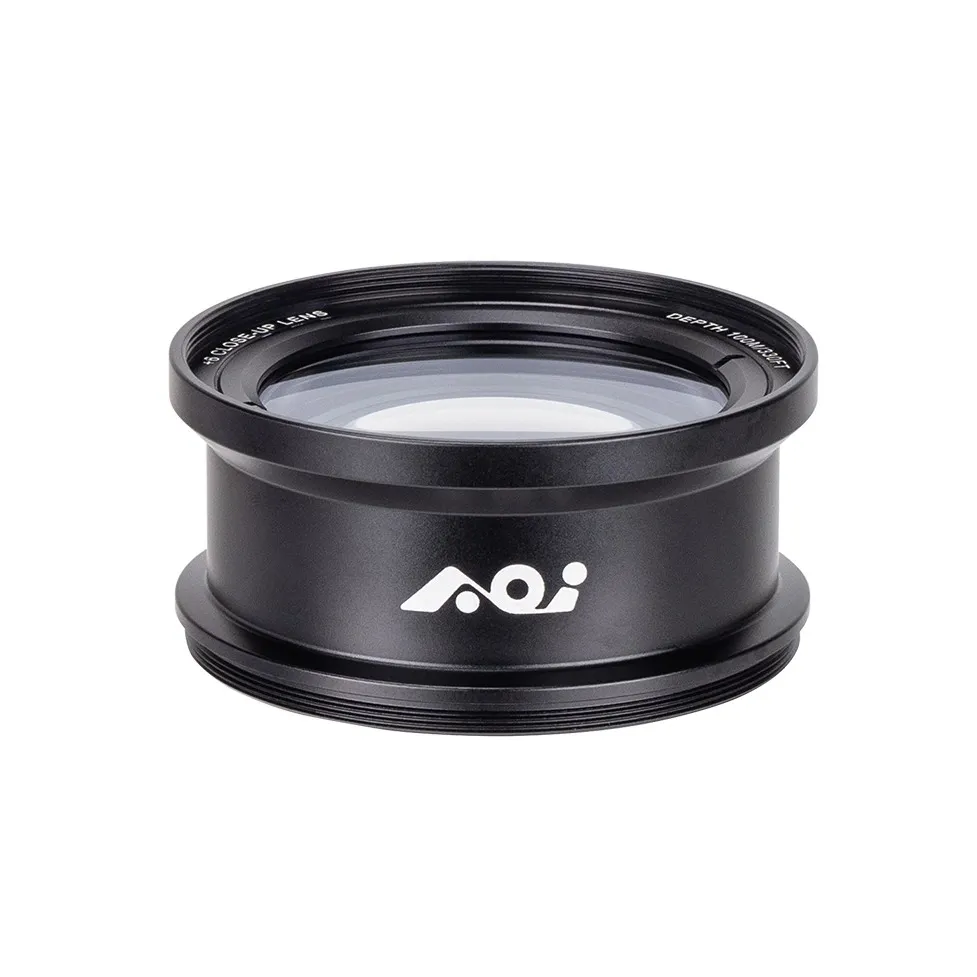

- Universal Compatibility: They can be screwed directly onto any camera housing port or lens adapter that features a standard M67 thread.
- Removable Rear Thread Ring: The rear M67 thread ring can be unscrewed and removed. This allows the lens to be mounted closer to the housing port when using flip adapters, reducing vignetting and maximizing image quality.
- Front M67 Thread: The front of the lens also features an M67 female thread, allowing you to stack another macro lens or attach color filters.
- Quick Release System (QRS) Ready: They can be adapted to the AOI QRS (Quick Release System) using an optional bayonet adapter ring, allowing you to mount or unmount the lens in seconds underwater.
| M67 Series Close Up Lens | |||
|---|---|---|---|

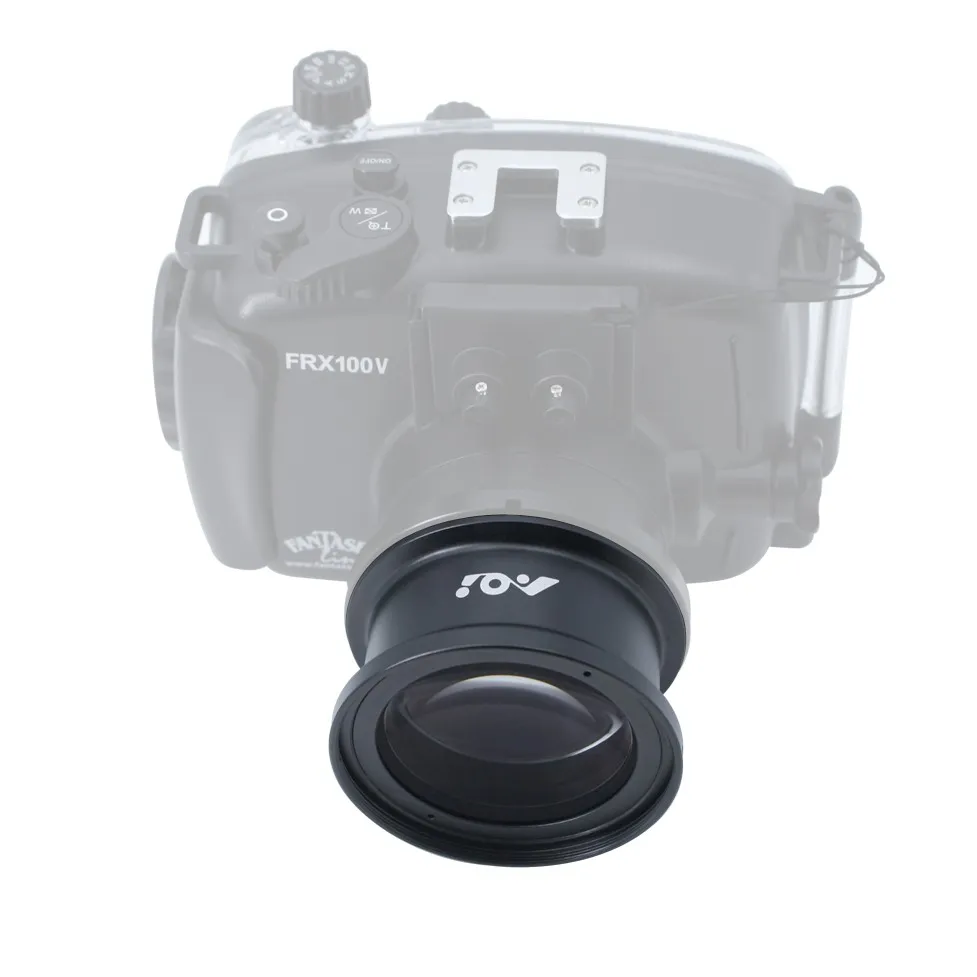

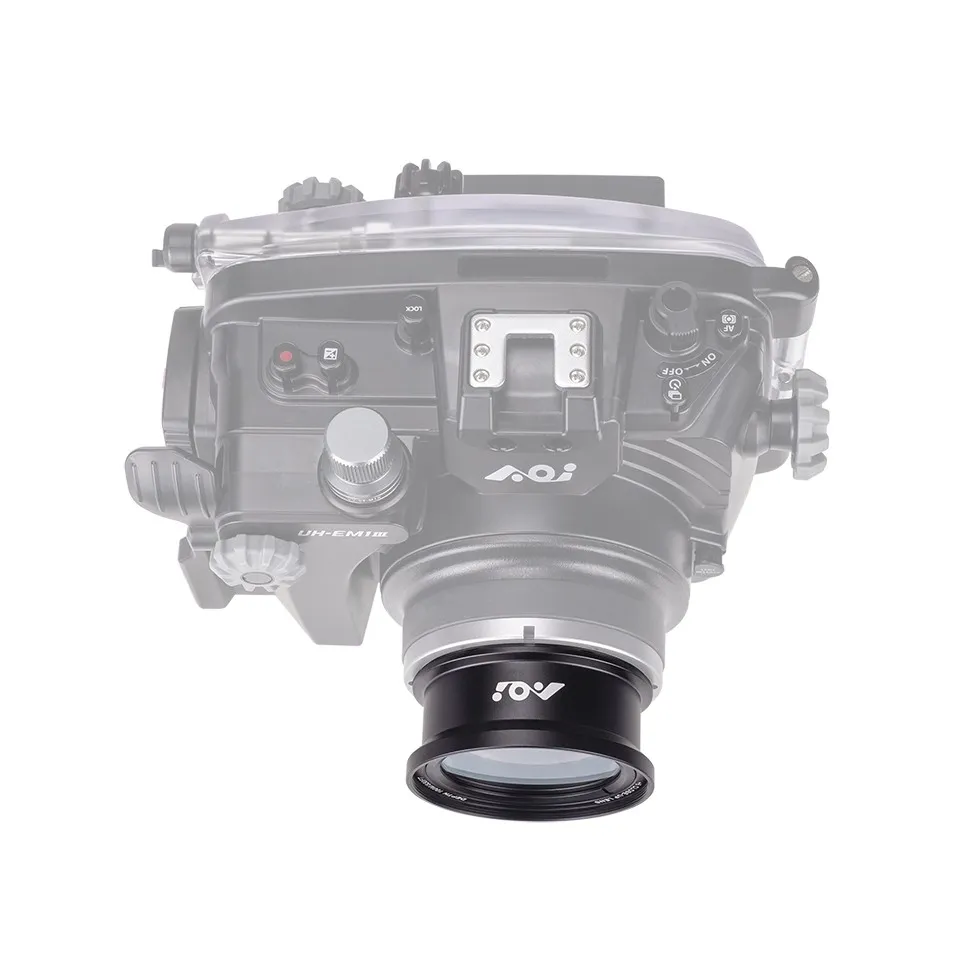

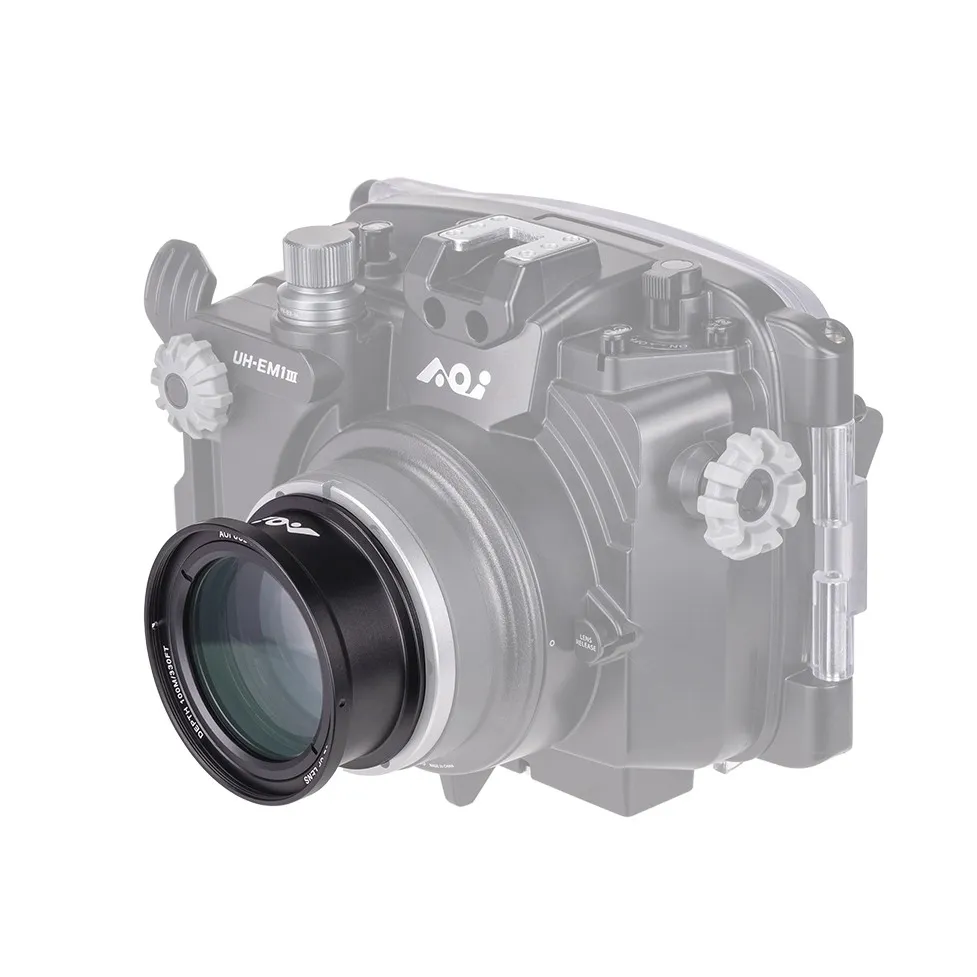

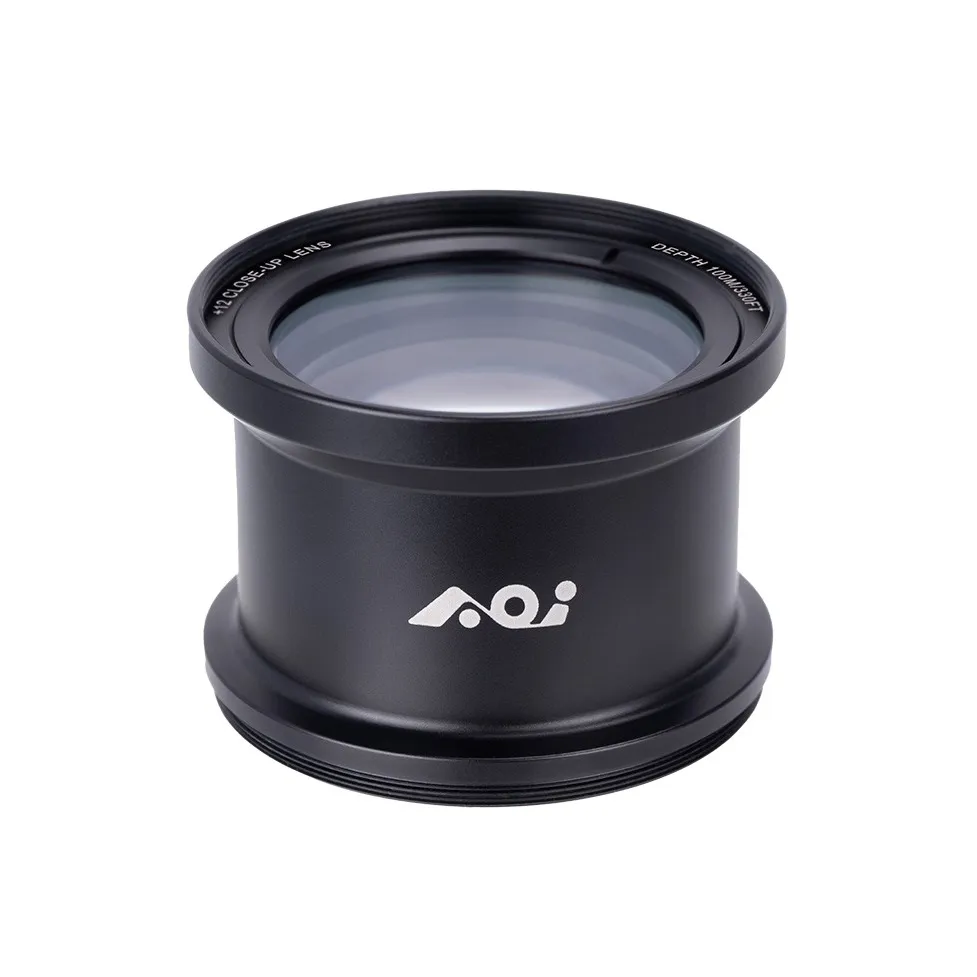

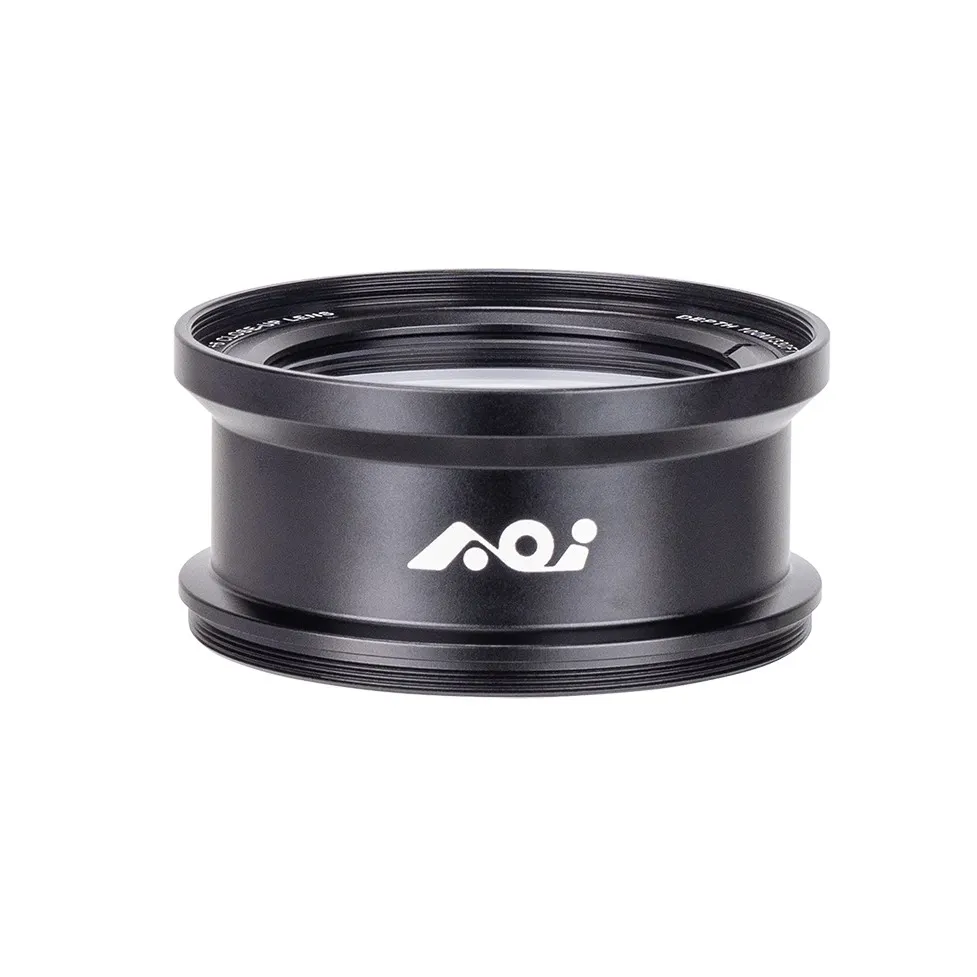

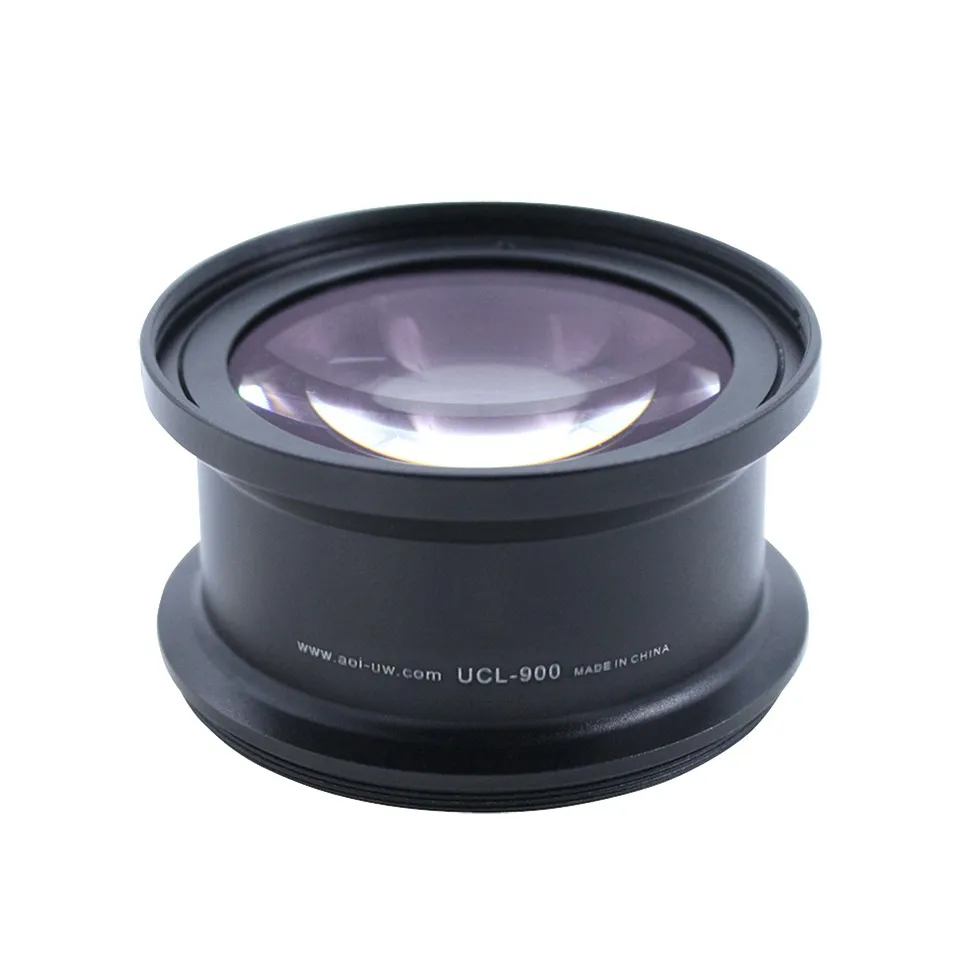

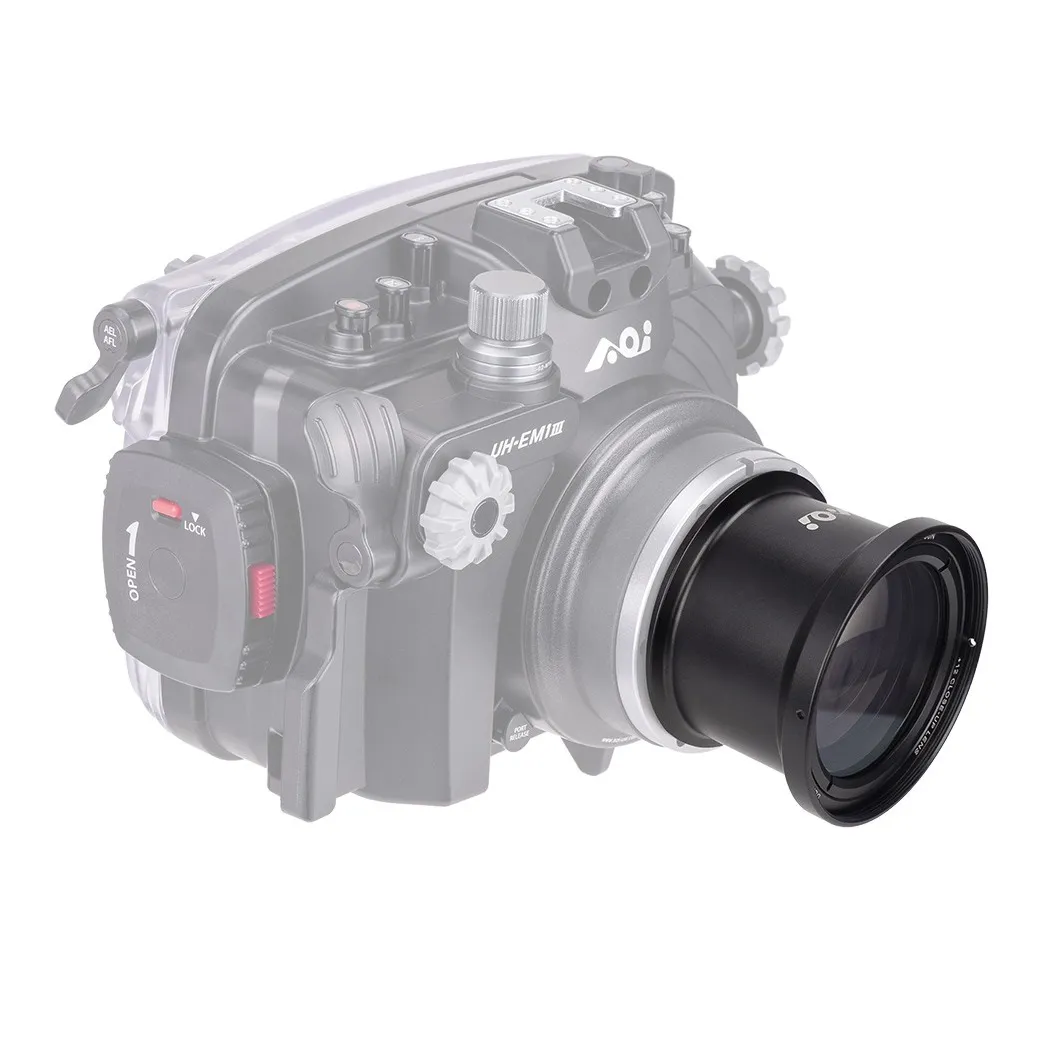

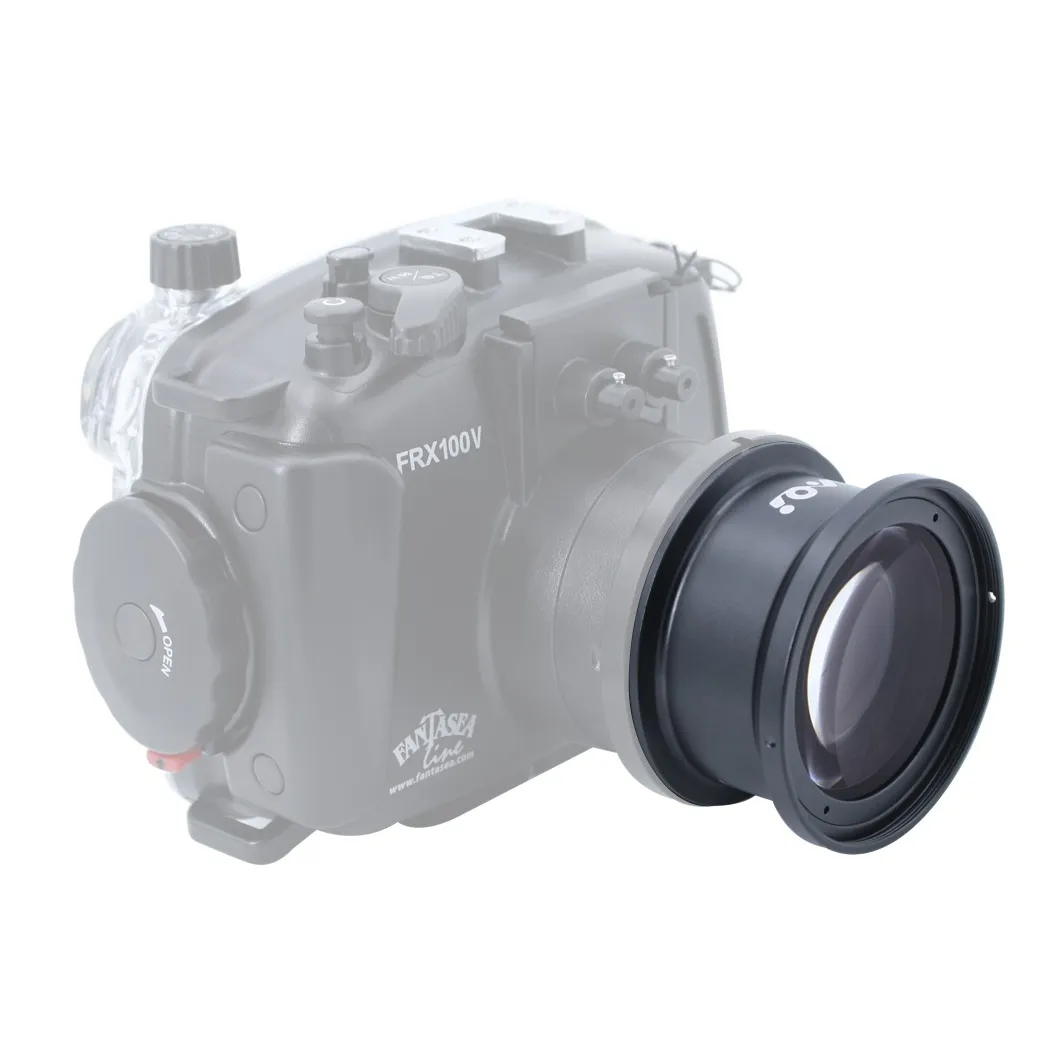

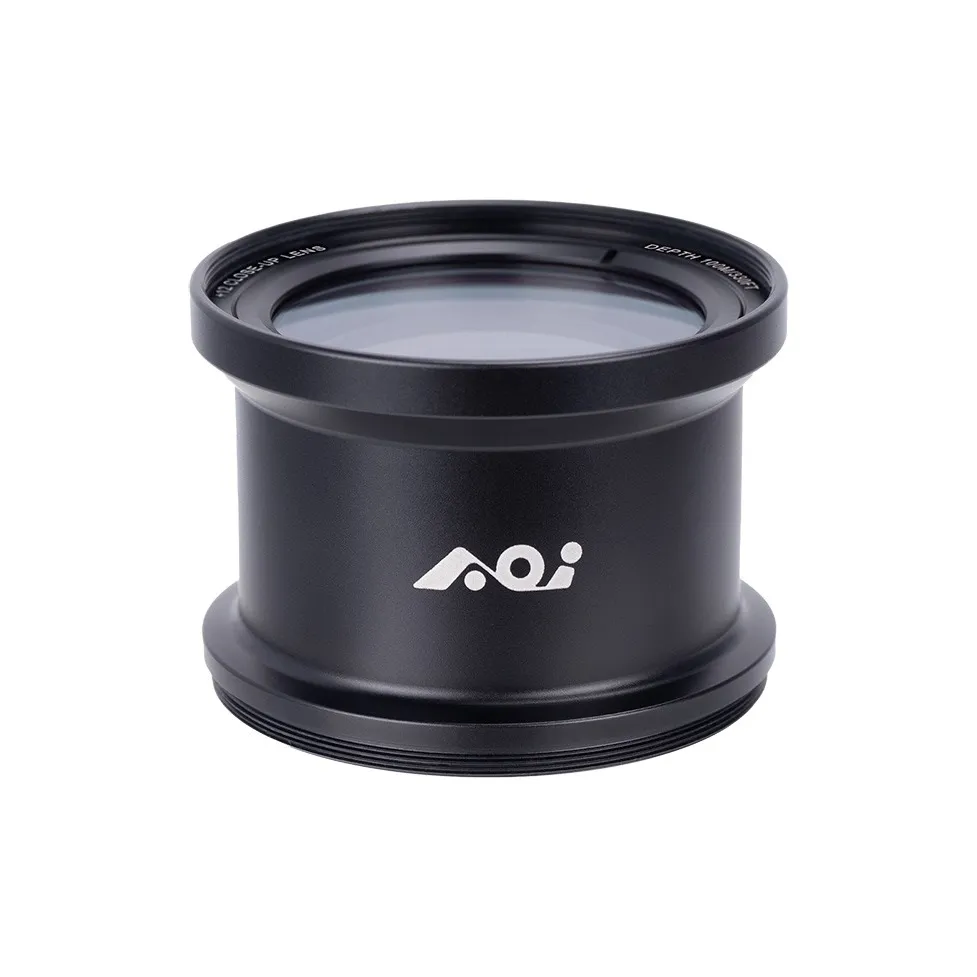

| Model | AOI UCL-05N | AOI UCL-06N | AOI UCL-900 |
|
|
|
|
| Description | +6 Close-up Lens | +12 Close-up Lens | +15 Close-up Lens |
| Material | Hard Anodized Aluminum Alloy Barrel | ||
| Lens Element | 4 Lenses Elements in 3 Groups with Multi-layers AR Coating | 6 Lenses Elements in 4 Groups with Multi-layers AR Coating | 2 Groups 5 Elements Lenses with Multi-layers AR Coating |
| Waterproof | 100 Meters | 60 Meters | |
| Dimensions | 70mm (D) X 33mm (H) | 70mm (D) X 50mm (H) | 70mm (D) X38.6mm (H) |
| Weight | 197.5 g (on land) 110 g (underwater) |
302 g (on land) 250 g (underwater) |
270.5 g (on land) 170 g (underwater) |
| Accessories | Lens Pouch (LPC-01), Port Front Cap (PFC-02), Rear Lens Cap (LRC-02) and Lens Secure Line (LSL-01) |
||
*Specifications and Appearances are subject to change without prior notice.
