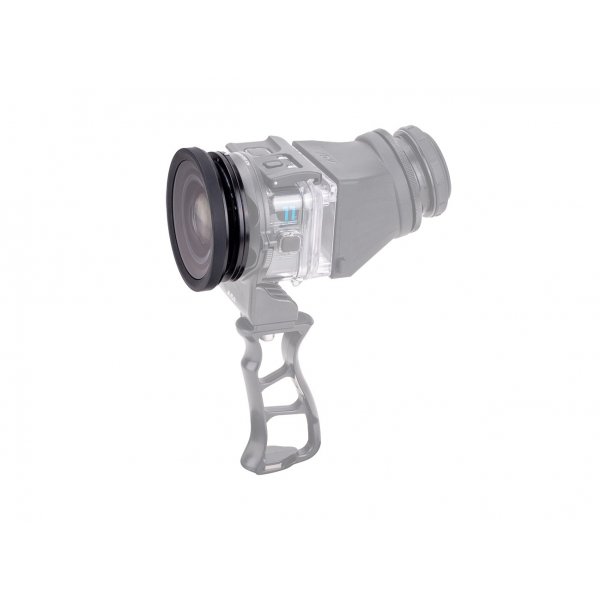

AOI UCL-03 Close Up Lens Action Camera
$230
AOI UCL-03 is an underwater wet close-up macro lens specifically designed for action cameras (such as GoPro, DJI Osmo Action, and Insta360 Ace Pro series) as well as smartphones. It addresses the common limitation where action cameras cannot focus at close range underwater, allowing scuba divers and snorkelers to capture crisp, detailed macro shots of tiny marine life like nudibranchs, shrimps, and coral textures.
Description

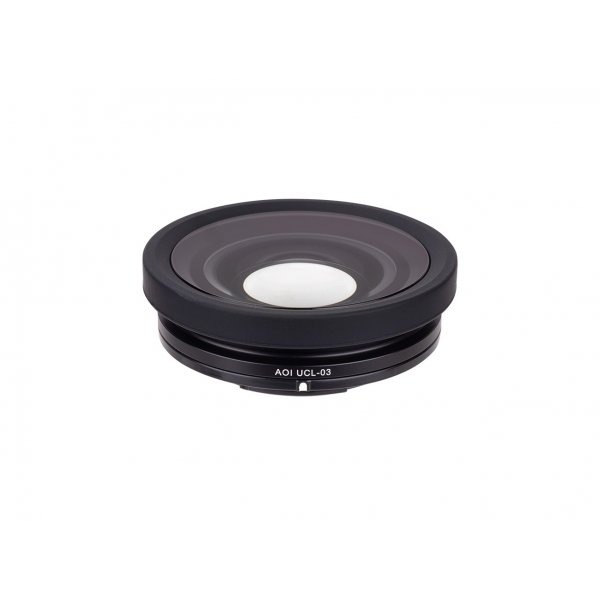

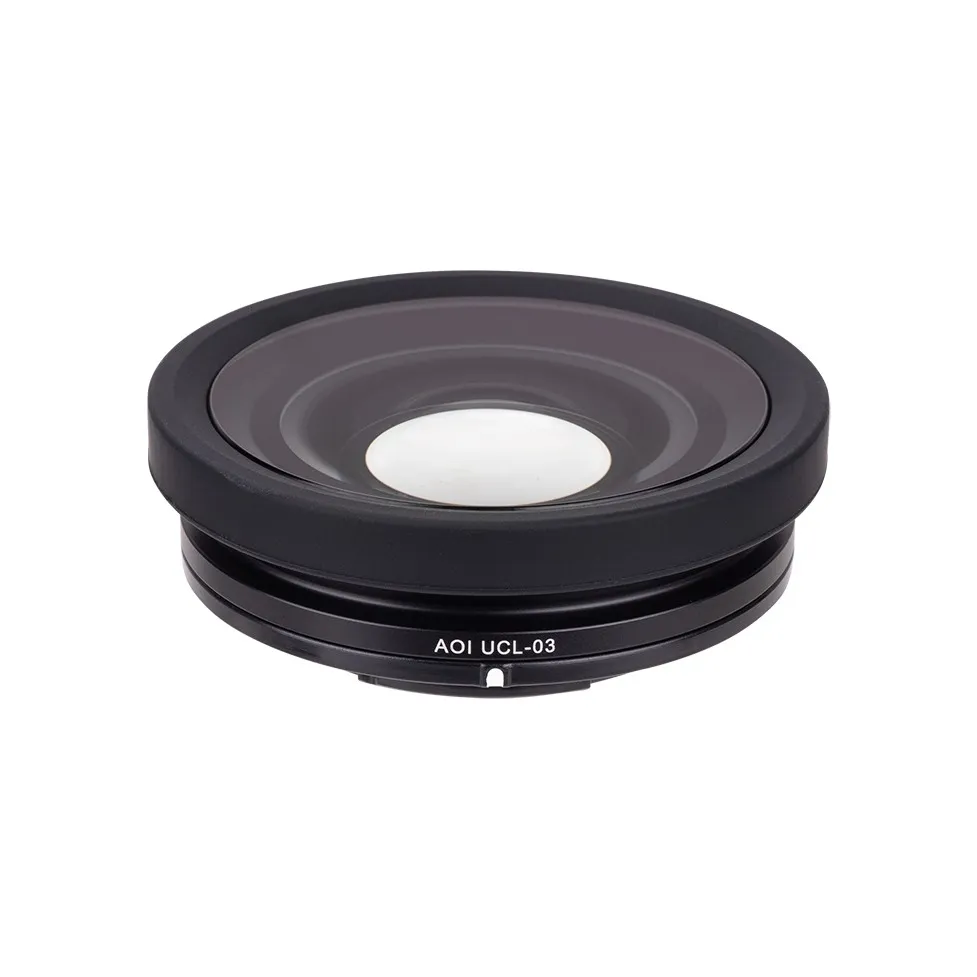

AOI UCL-03 Close Up Lens for Action Camera & Phone
AOI UCL-03 is an underwater wet close-up macro lens specifically designed for action cameras (such as GoPro, DJI Osmo Action, and Insta360 Ace Pro series) as well as smartphones. It addresses the common limitation where action cameras cannot focus at close range underwater, allowing scuba divers and snorkelers to capture crisp, detailed macro shots of tiny marine life like nudibranchs, shrimps, and coral textures.
|
|
🛠️ Core Specifications & Technical Features
According to the official product details, here are the key specifications for the UCL-03:
- Optical Construction: It features 3 elements in 3 groups with multi-layer AR (Anti-Reflective) coatings on all optical glass lenses, ensuring sharp imaging and minimal flare.
- Underwater Focus Distance: The effective shooting range is approximately 40mm to 78mm, allowing you to achieve sharp focus just about 4 cm away from the lens.
- Field of View (FOV): Approximately 90 degrees underwater.>
- Quick Release System: Pre-installed with a QR2 mount, making it fully compatible with the AOI QRS-02 (Quick Release System). This allows divers to hot-swap between macro and wide-angle lenses in just one second while underwater.
- Depth Rating: Waterproof up to 60 meters (200 feet).
- Material & Weight: Constructed with a hard-anodized aluminum alloy barrel and a silicone rubber front bumper. It weighs roughly 181g on land and 175g underwater.

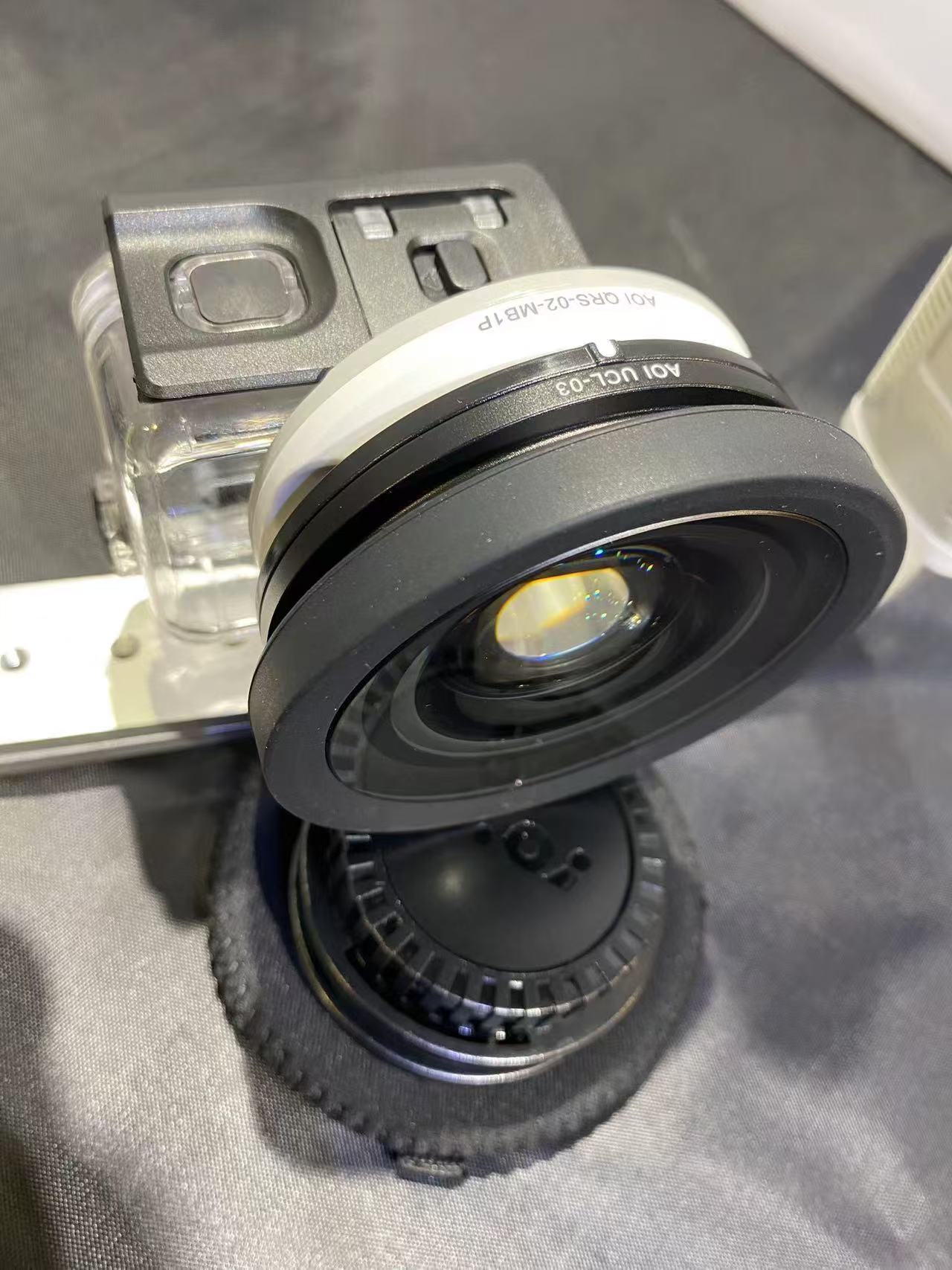

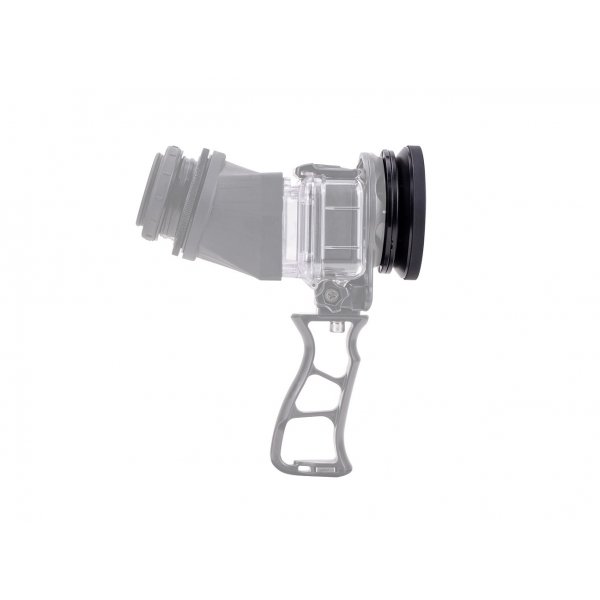

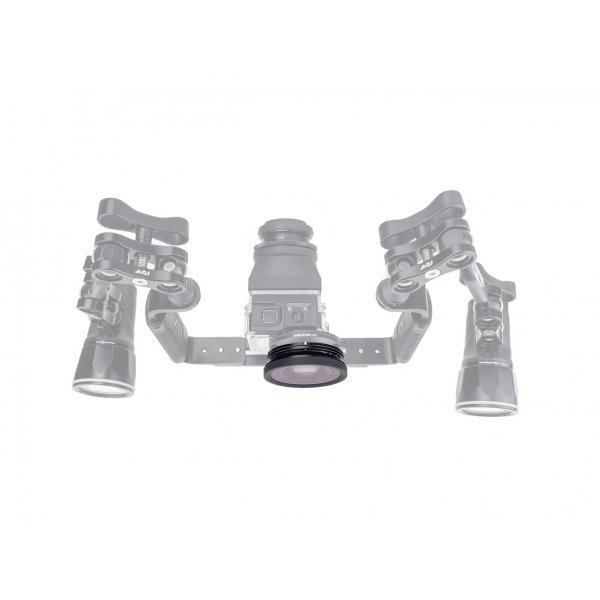

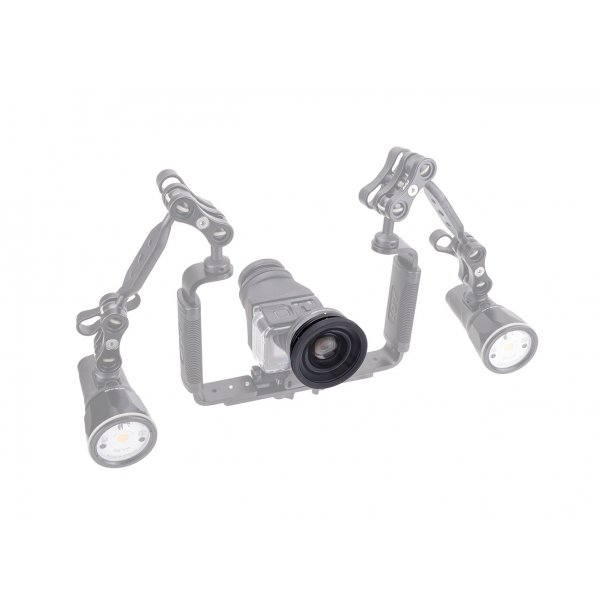

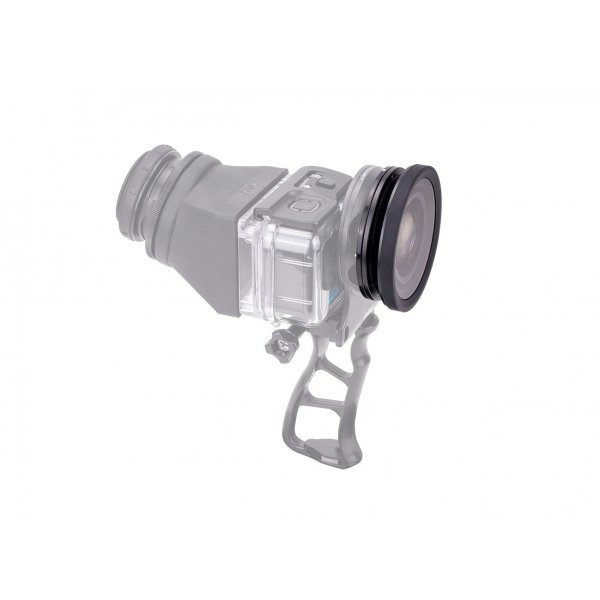

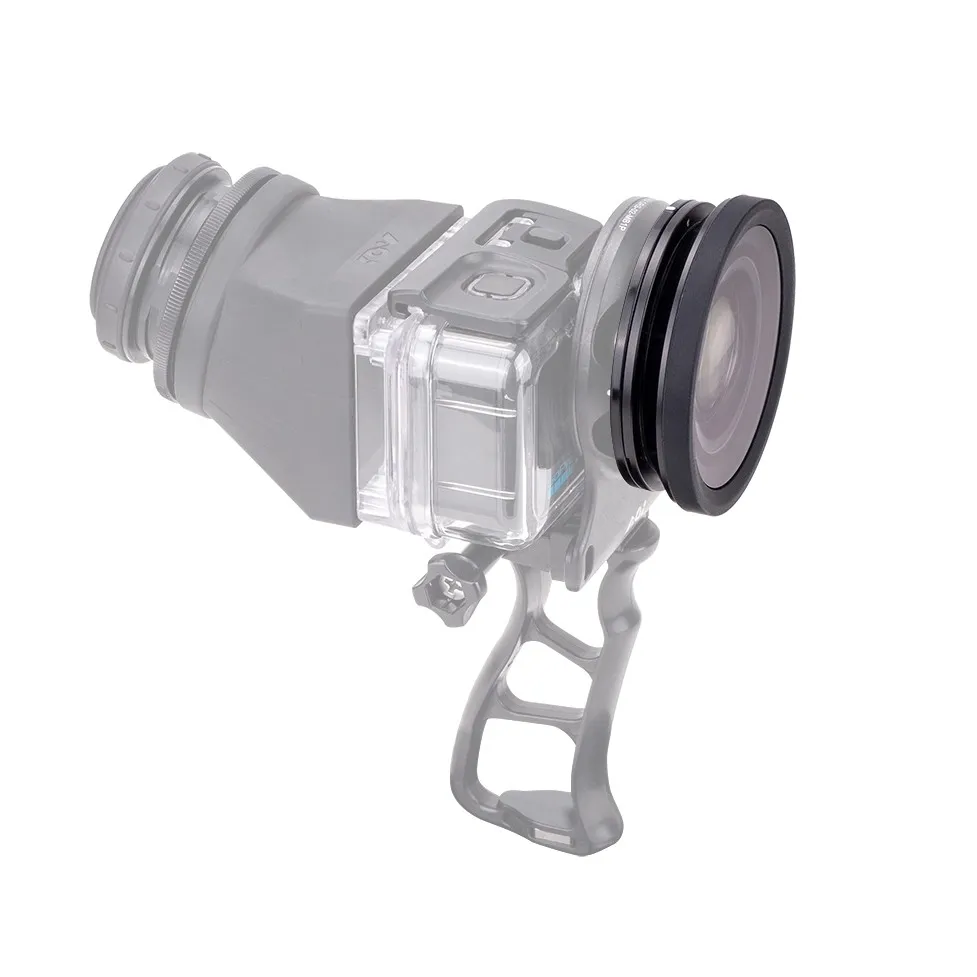

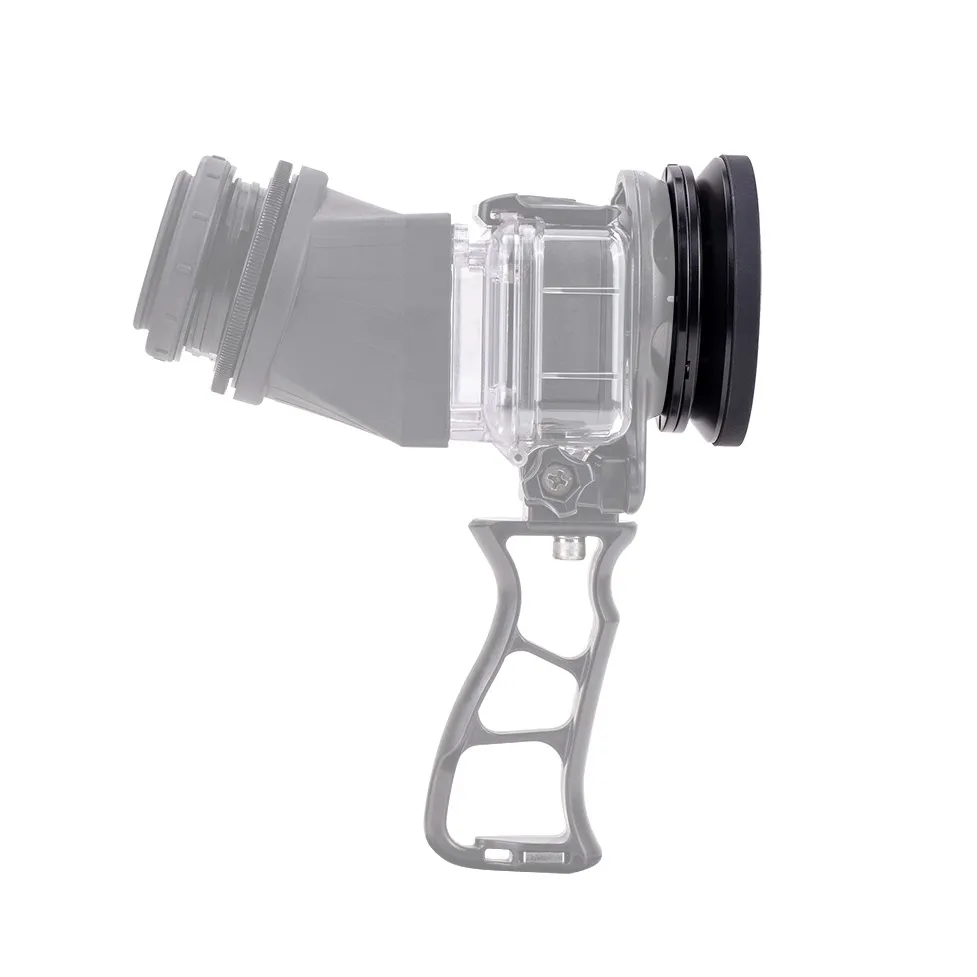

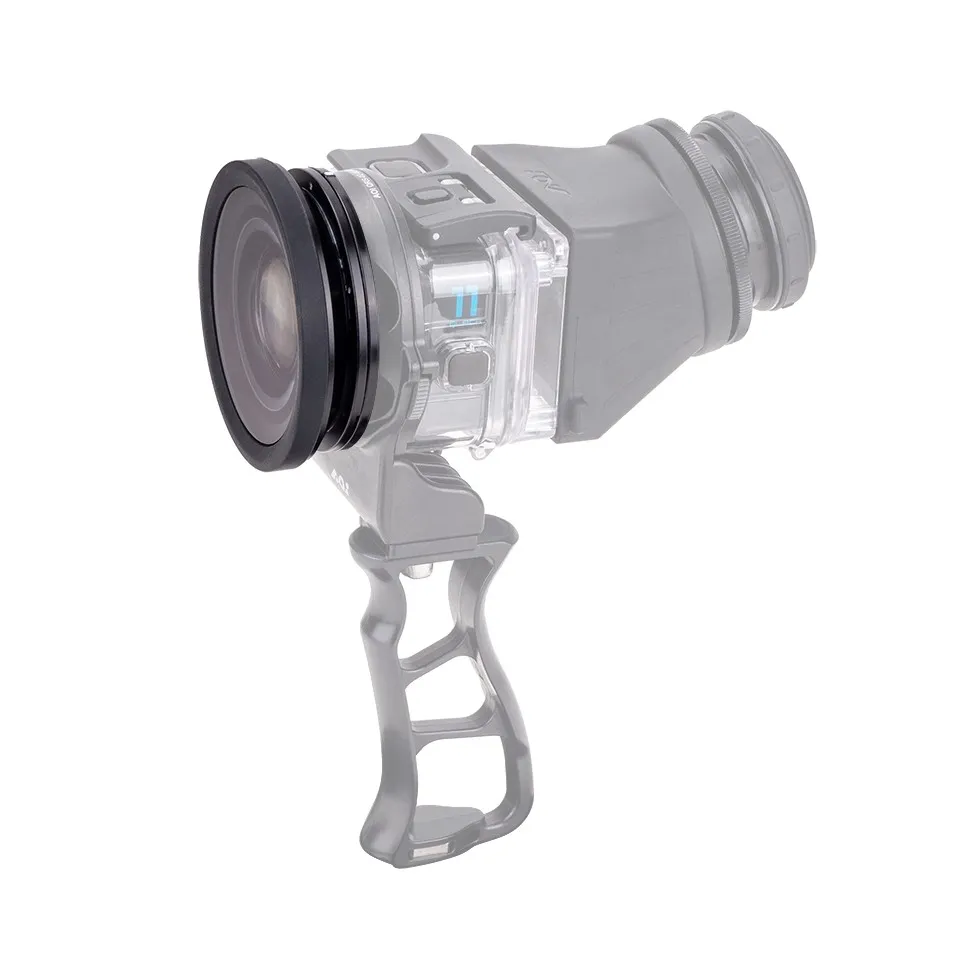

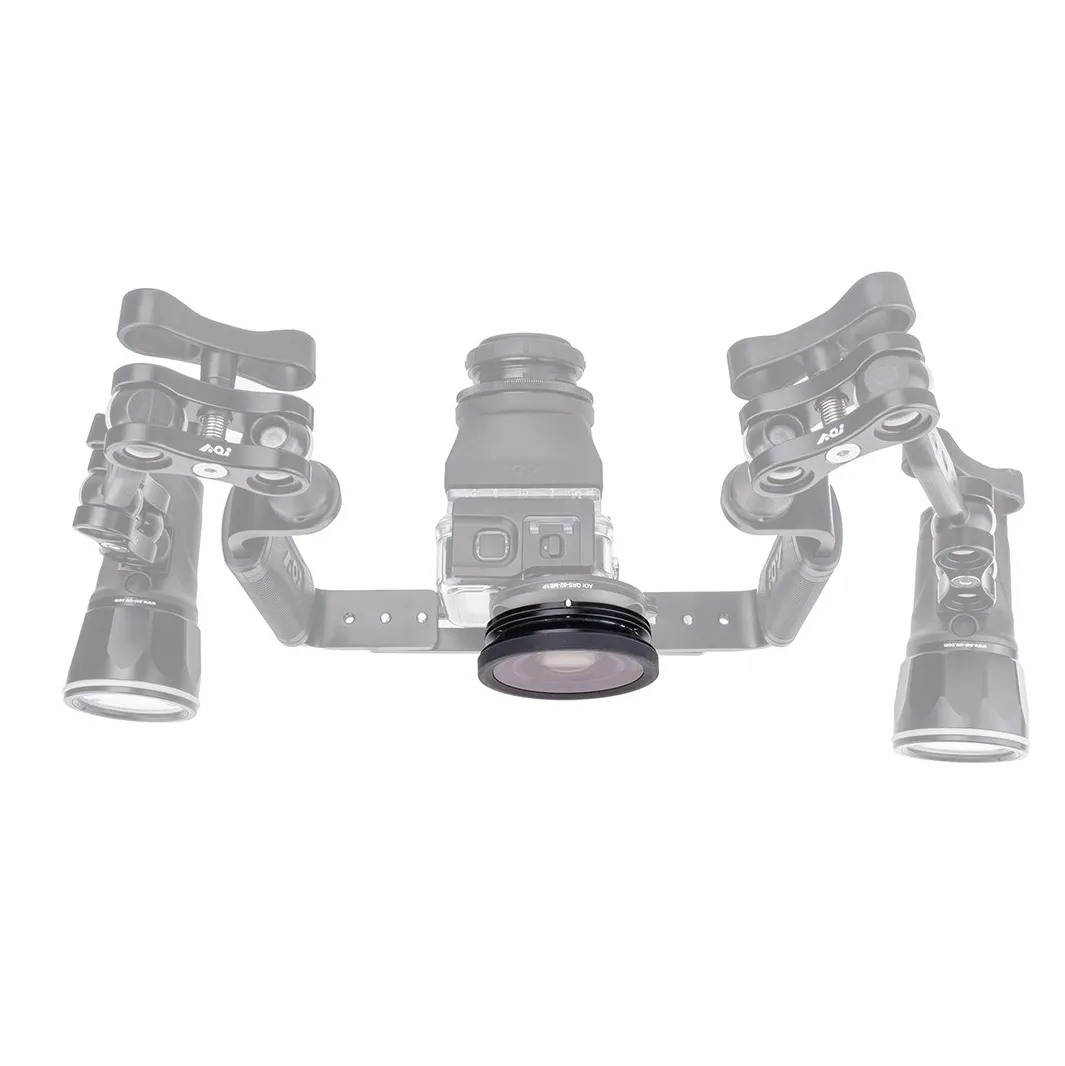

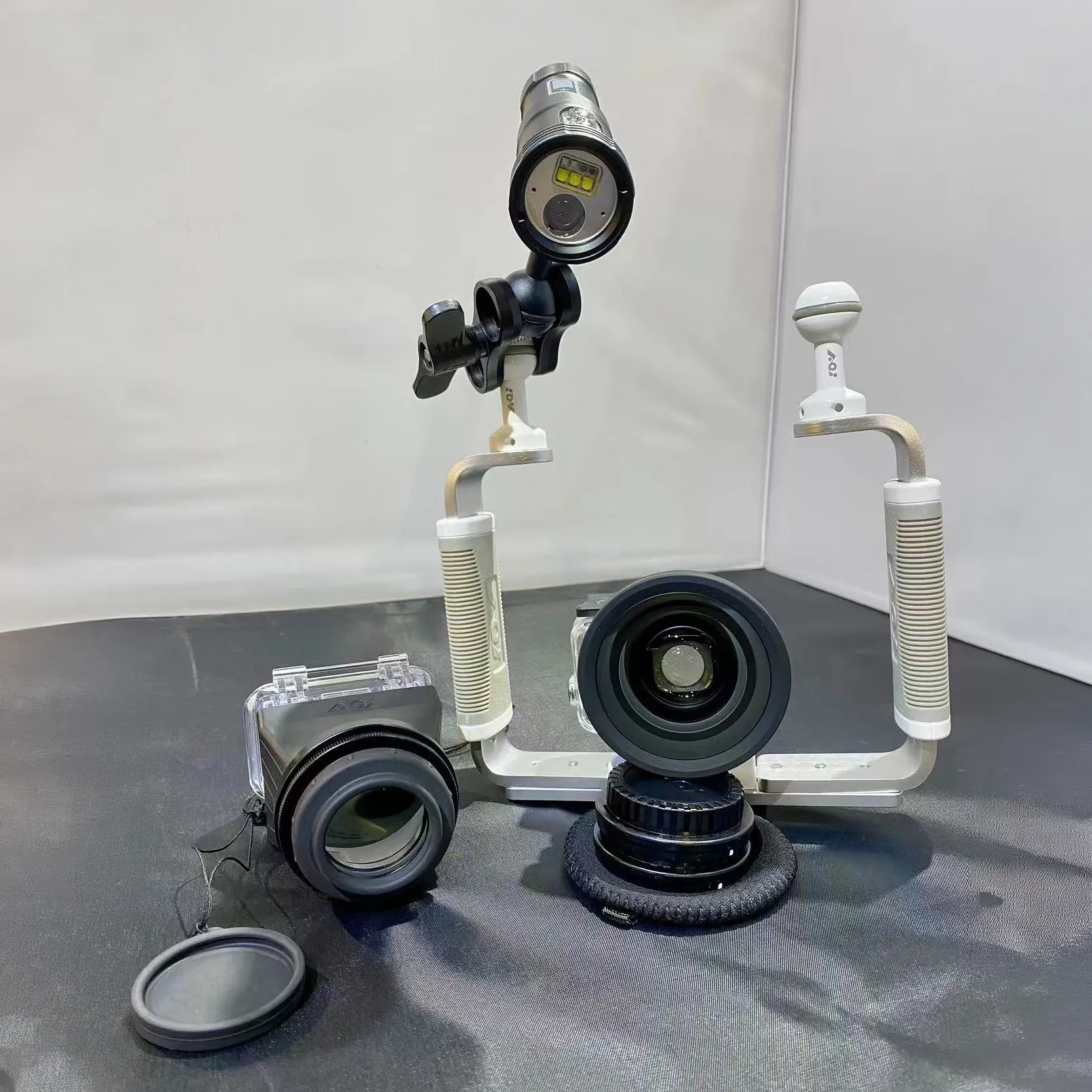

Camera Compatibility & Mounting GuideBecause this is a “wet lens,” it must be mounted onto the outside of your camera’s underwater dive housing. You will need a camera-specific AOI adapter base (sold separately):

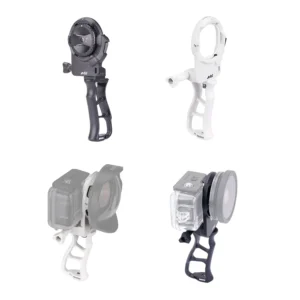

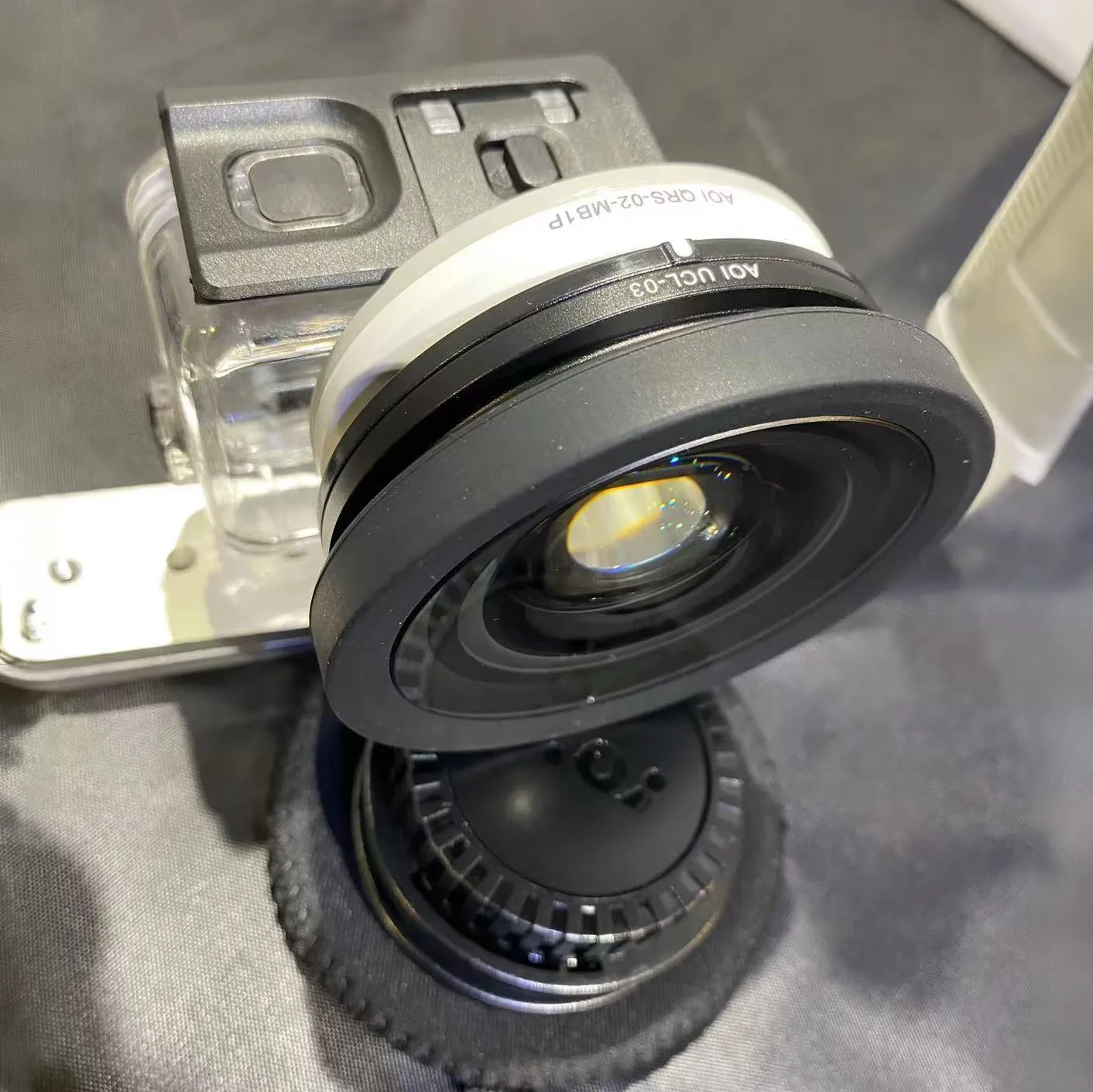

- GoPro Series (Hero 9 to 13): Requires the QRS-02-MP1P adapter.

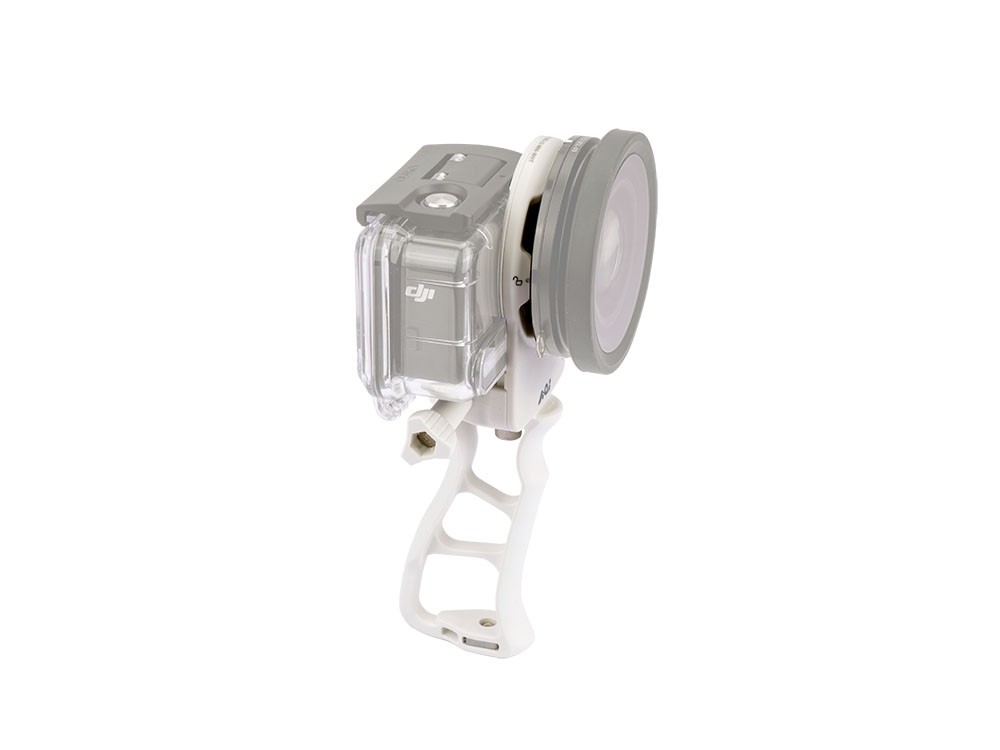

- DJI Osmo Action Series: Action 4/5 requires QRS-02-MB3; Action 6 requires QRS-02-MB6.
- Insta360 Ace Pro Series: Ace Pro uses QRS-02-MB4; Ace Pro 2 uses QRS-02-MB5.
- Standard Thread Mounts: Can be converted using AD-UCL-03-M52 (52mm) or AD-UCL-03-M55 (55mm) thread adapters.
| Specification | |
|---|---|
| Model | AOI UCL-03 |
| Description | Underwater Close-up Lens for Action Camera & Phone |
| Material | All Lens Elements in Optical Glass Lens Barrel in Hard Anodized Aluminum Alloy Silicone Front Bumper Ring |
| Lens Element | 3 Elements in 3 Groups All Glass Lens Elements with Multi-layers AR Coating |
| Field of View (Underwater) |
90 Degree |
| Focus Distant (Underwater) |
40mm (min.) to 78mm (max.) From the front lens element to the Subject |
| Lens Mount | Using AOI Quick Release System- 02 (QRS-02) Lens pre-installed with QR2 Mount (Compatible with the most popular AD Mount) |
| Option Lens Mounts | AD-M55-UWL-03 Adapter for UWL-03 with M55 Thread Mount AD-M52-UWL-03 Adapter for UWL-03 with M52 Thread Mount AD-QR2-UWL-03 Adapter for UCL-03 with QR2 Mount |
| Waterproof | 60 Meters / 200 ft. |
| Dimensions | Φ81mm(D) x 28.5mm(H) |
| Weight | 283 g (on land) / 180 g (underwater) |
| Accessories | Neoprene Front Lens Cap, Rear Lens Cap in QR2 Mount, Lens Pouch (AOI LPC-01), Lens Secure Line (AOI QRL-01) |
*Specifications and Appearances are subject to change without prior notice.
