AOI Optical Fiber Cables and Related Accessories
Price on Option List

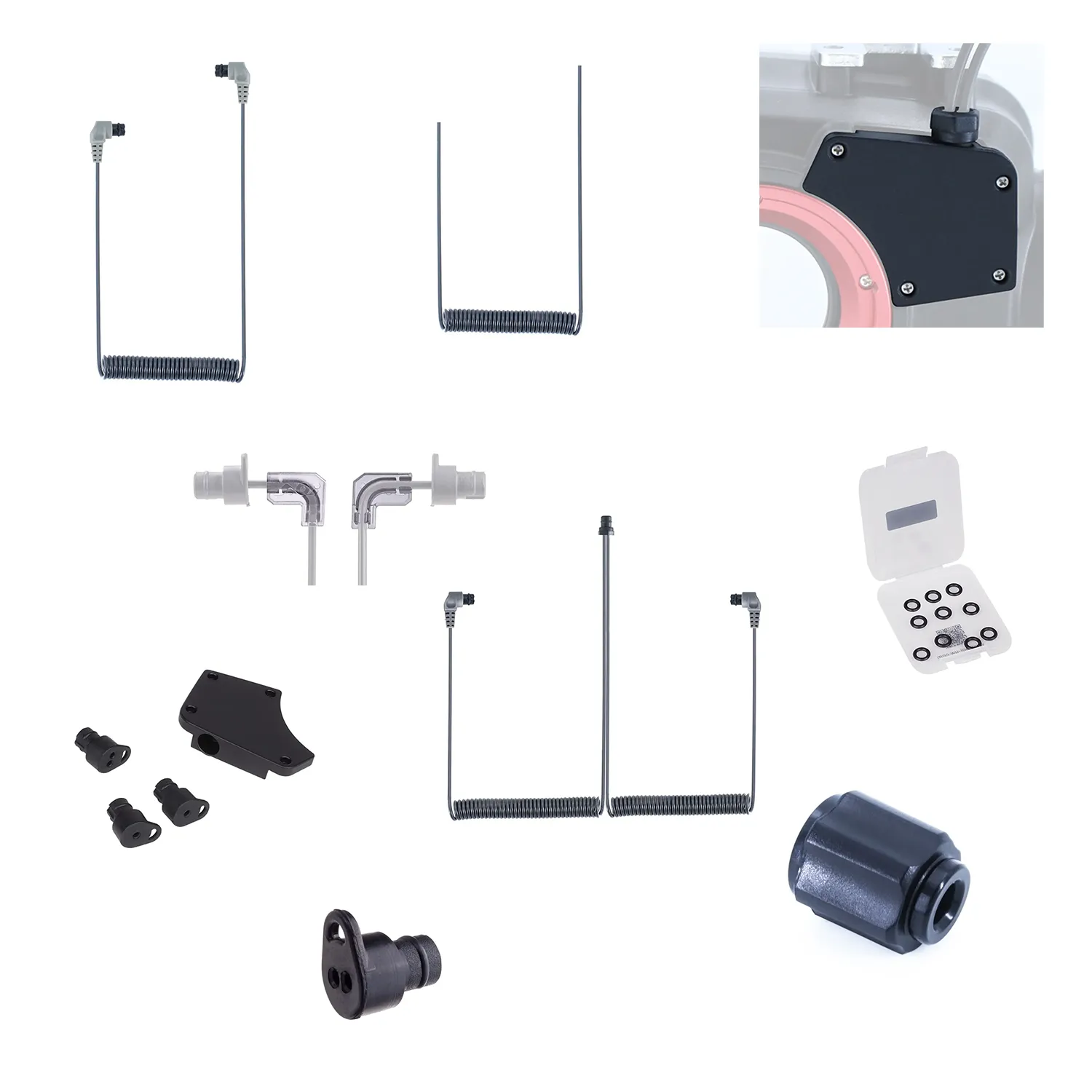

Fiber Optic Cables (FOC) In Lengths And Adapters For Different Housing And Strobe Models
Description
AOI Flash Trigger FOC Fiber Optic Cables
Fiber Optic Cables (FOC) In Lengths And Adapters For Different Housing And Strobe Models
| Fiber Optic Cables | |||
|---|---|---|---|

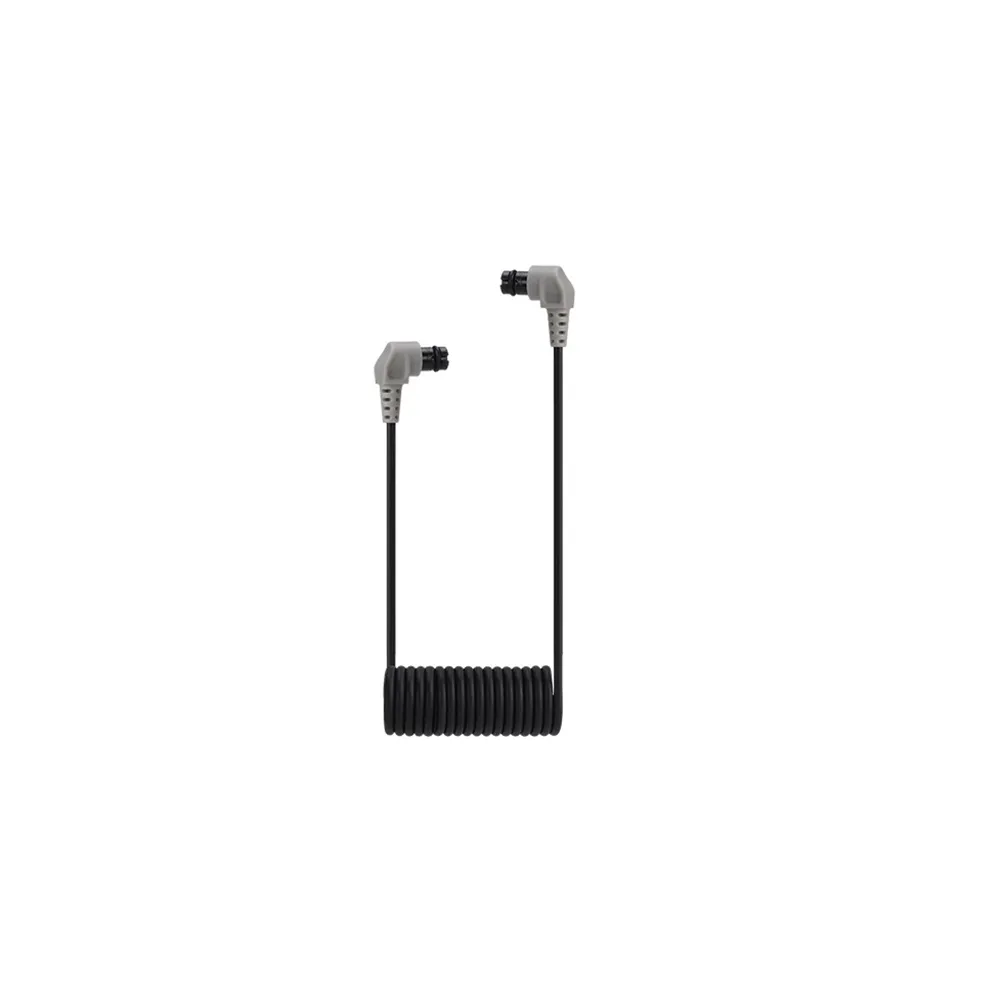

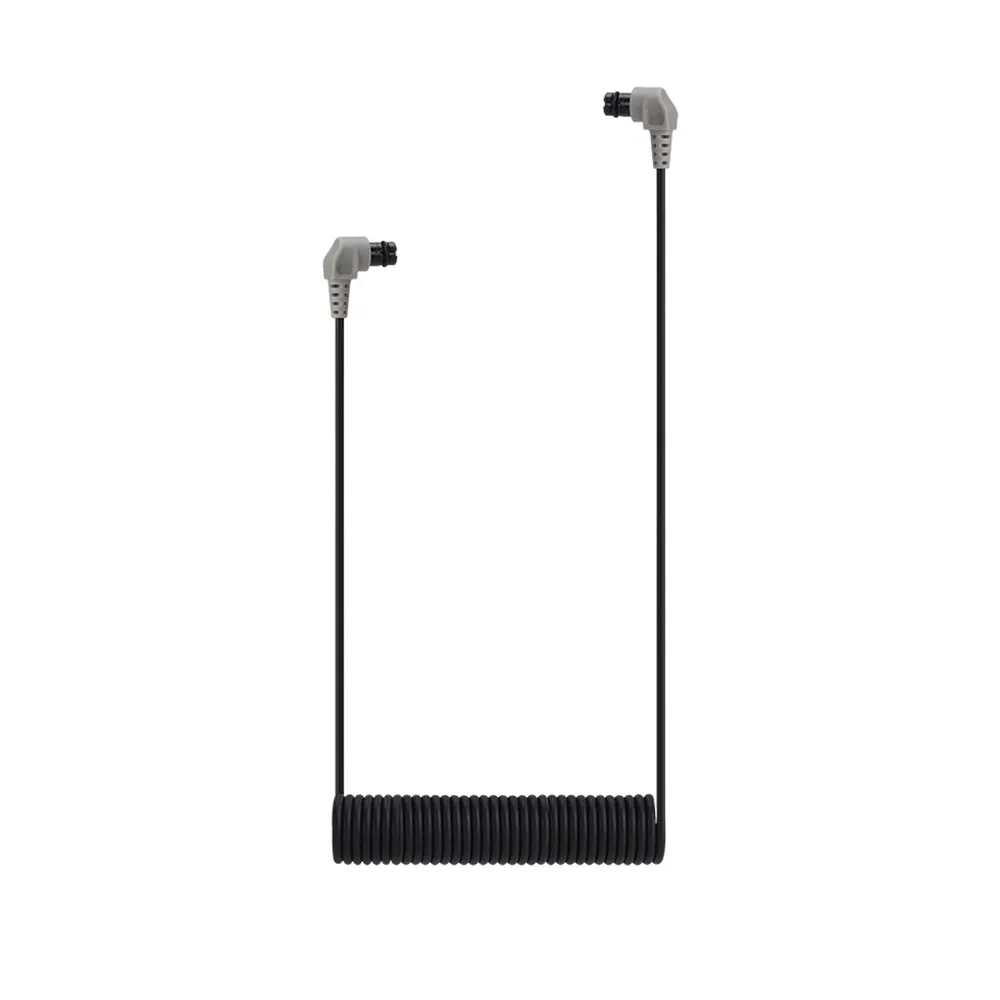

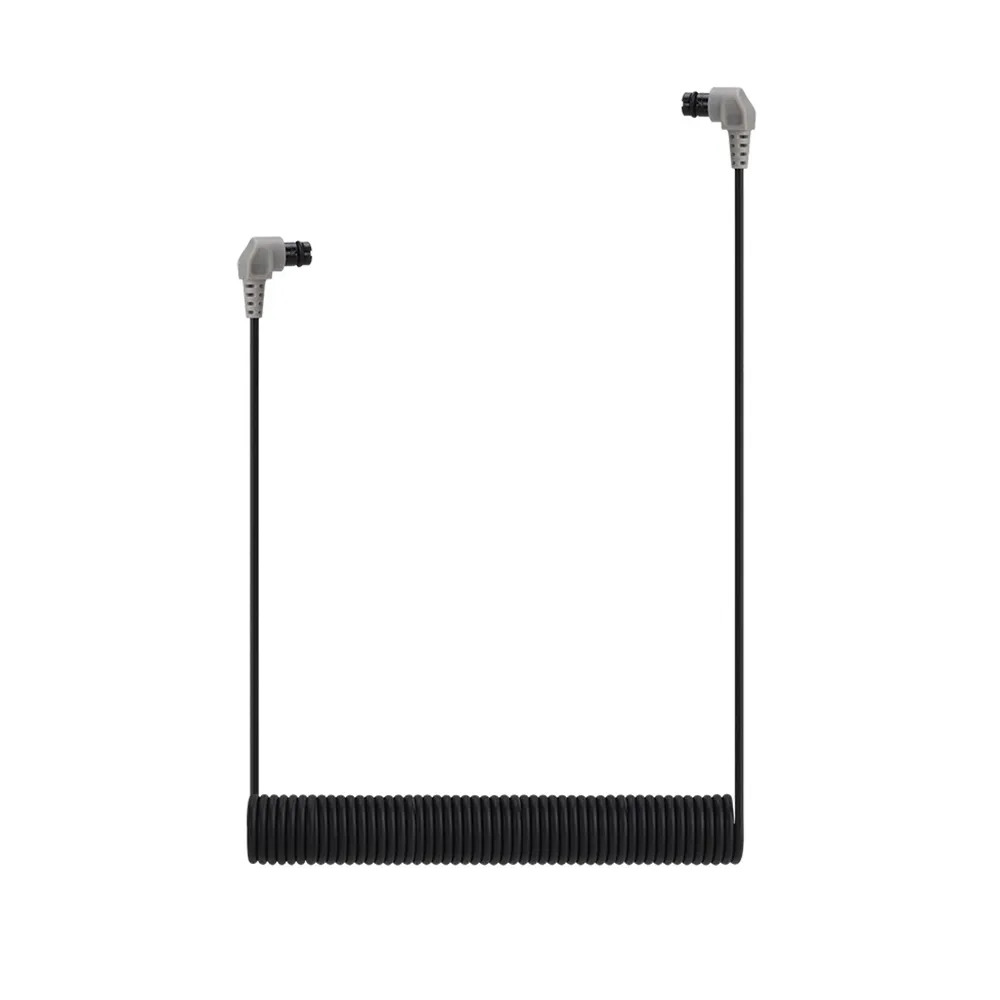

| MODEL | AOI FOC-PA-AL2-V2 | AOI FOC-PA-AM2-V2 | AOI FOC-PA-AS2-V2 |
|
|
|
|
| DESCRIPTION | Fiber Optic Cable 613-Core V2 with SS Angle Plugs | ||
| (L Size) | (M Size) | (S Size) | |
| PLUGS MATERIAL | PC / TPE | ||
| DIMENSIONS (LL / RL / CL) |
200mm / 155mm / 139mm | 200MM / 155MM / 93MM | 100MM / 75MM / 47MM |
| DIAMETER CORES / CABLE |
1.5MM / 2.7MM | ||
| NUMBER OF TURNS | 51 | 33 | 17 |
| COILS DIAMETER | 20 mm | ||
| WEIGHT | 21.7 g | 16 g | 9.7 g |
| PLUGS COLOUR | Light Gray | ||

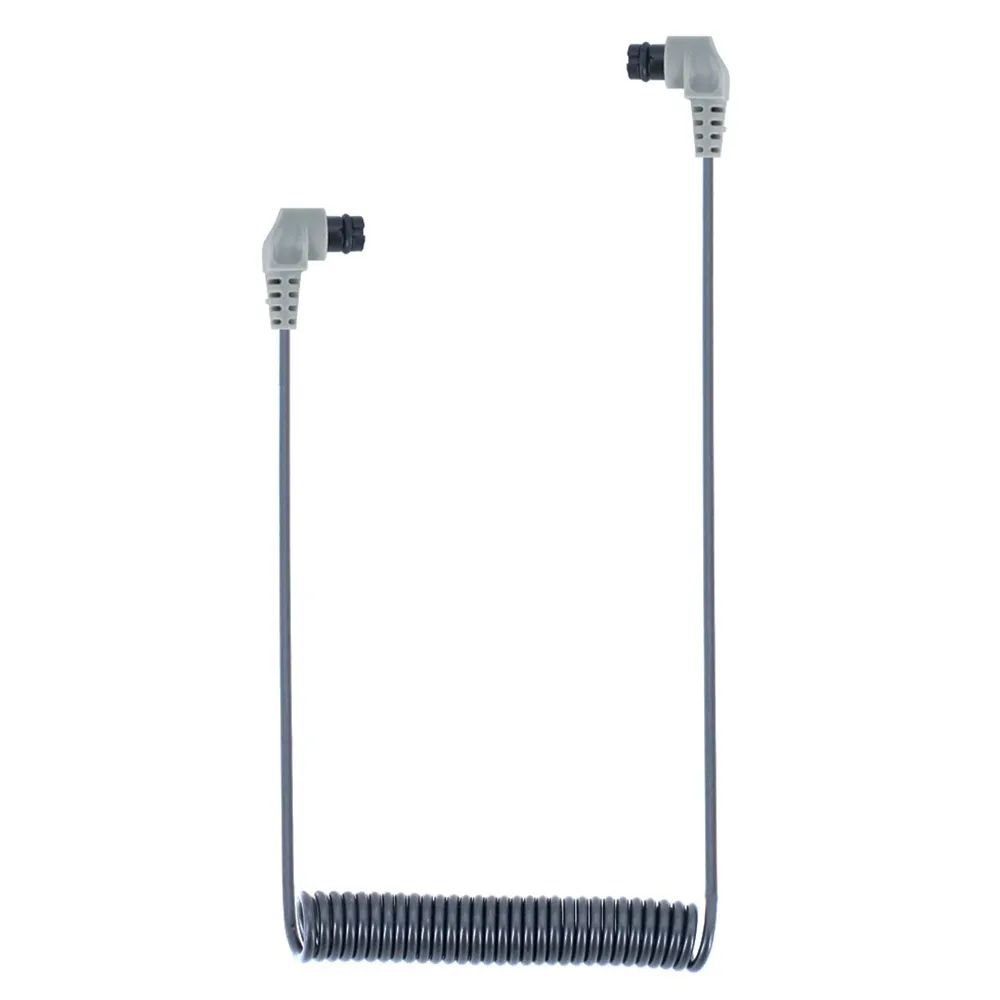

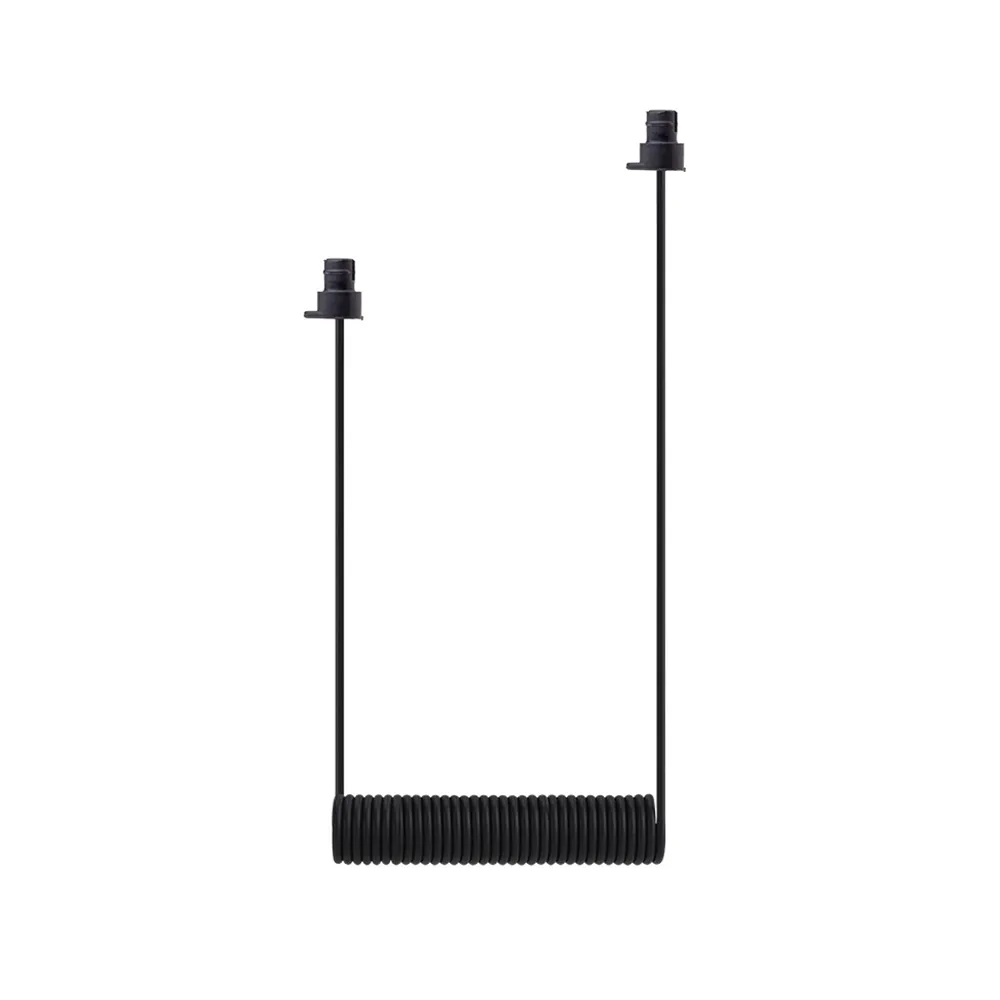

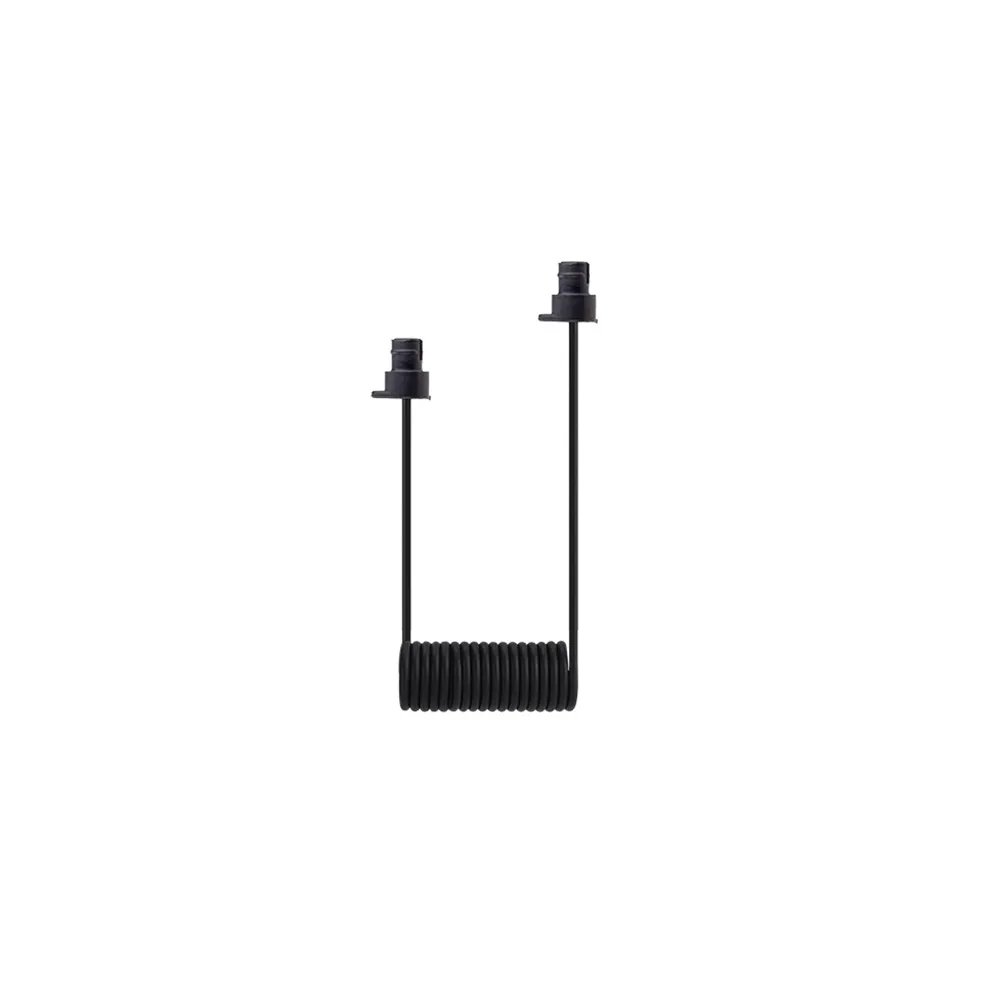

| MODEL | AOI FOC-PA-BM2 | AOI FOC-PS1-CM2 | AOI FOC-PS1-CS2 |
|
|
|
|
| DESCRIPTION | 151-Core with SS Angle Plugs | Single Core with Straight Plugs | Single-Core with Straight Plugs |
| (M Size) | (M Size) | (S Size) | |
| PLUGS MATERIAL | PC / TPE | NBR | NBR |
| DIMENSIONS (LL / RL / CL) |
200MM / 155MM / 93MM | 210MM / 165MM / 93MM | 100MM / 75MM / 47MM |
| DIAMETER CORES / CABLE |
1.0MM / 2.2MM | ||
| NUMBER OF TURNS | 42 | 42 | 21 |
| COILS DIAMETER | 13 mm | 18 mm | 18 mm |
| WEIGHT | 9.8 g | 12.4 g | 7.2 g |
| PLUGS COLOUR | Dark Gray | Black | Black |

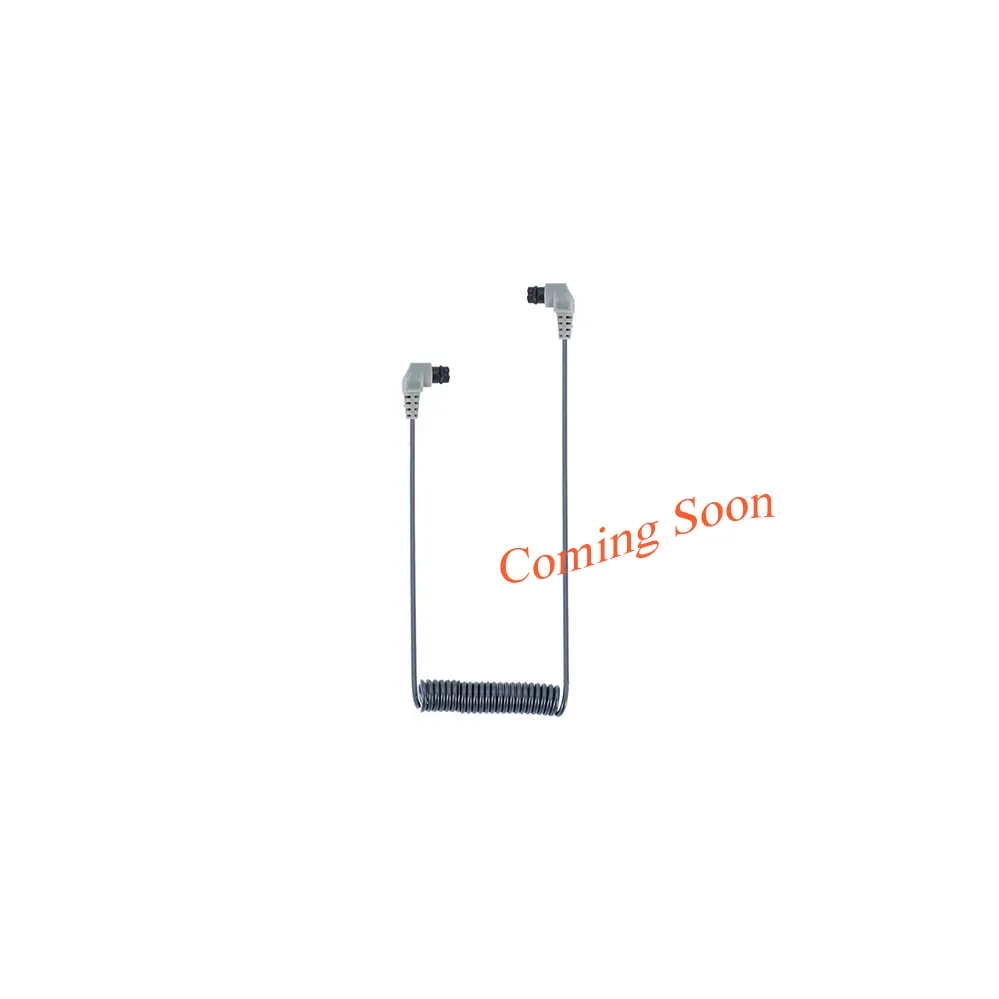

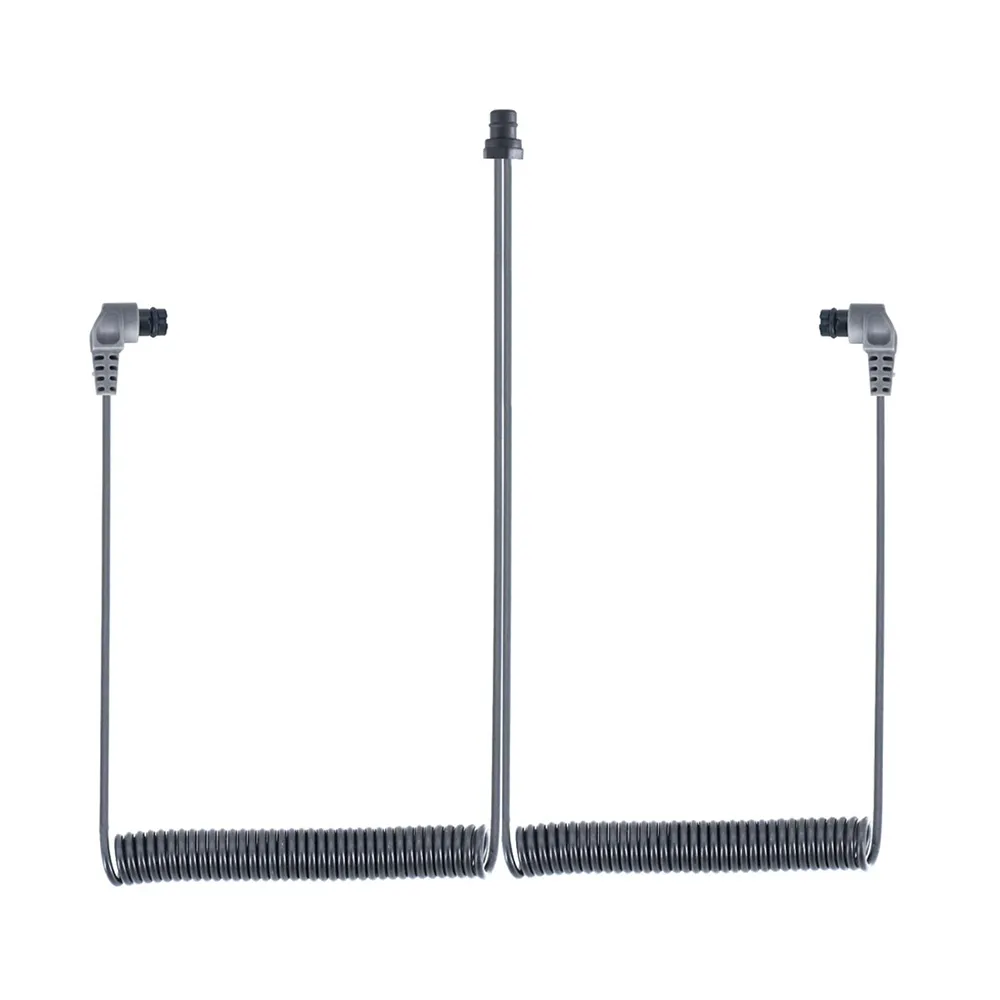

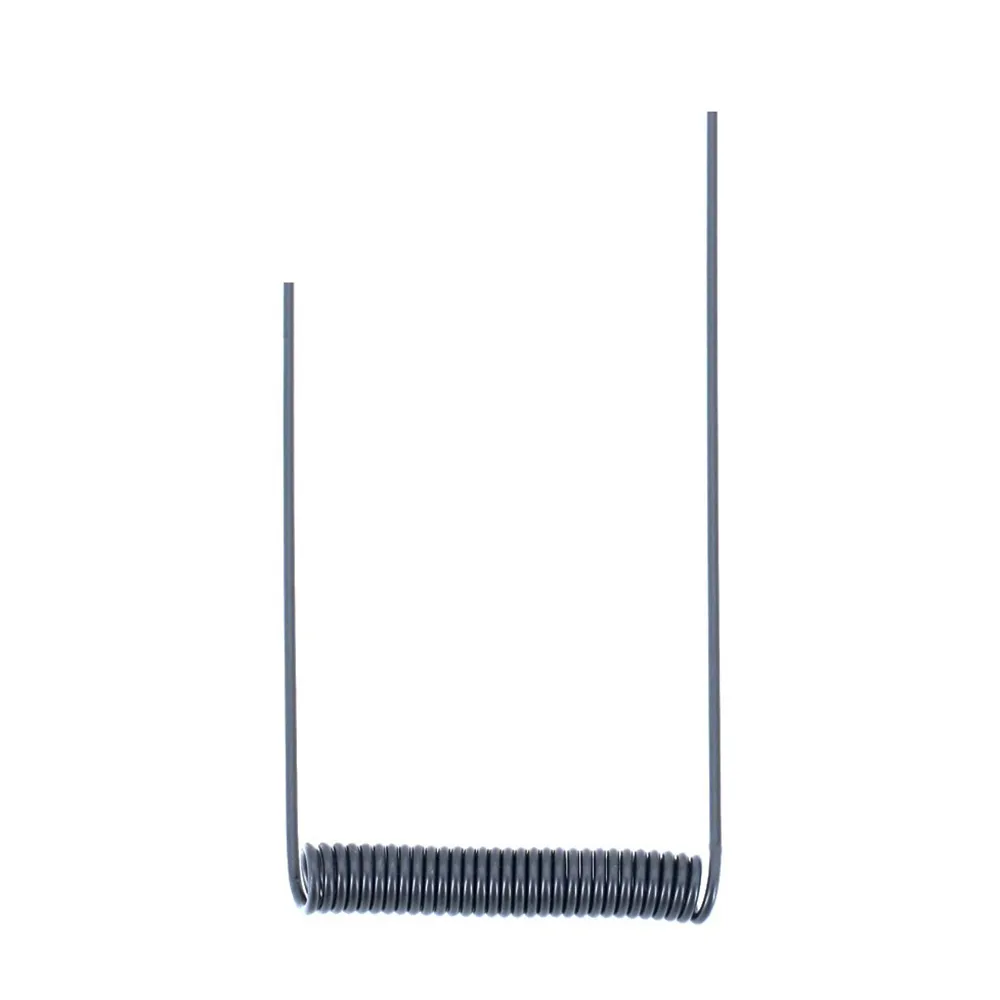

| MODEL | AOI FOC-PA-BS2 | AOI FOC-DC1-BM2 | AOI FOC-BM2 |
|
|
|
|
| DESCRIPTION | 151-Core with SS Angle Plugs | Dual Cable 151-Core with SS Angle Plugs | 151-Core without Plug |
| (S Size) | (M Size) | (M Size) | |
| PLUGS MATERIAL | PC / TPE | PC / TPE | |
| DIMENSIONS (LL / RL / CL) |
to be advised | 210MM / 155MM / 93MM | 200MM / 155MM / 93MM |
| DIAMETER CORES / CABLE |
1.0MM / 2.2MM | ||
| NUMBER OF TURNS | 21-25 | 42turns / coil | 42 |
| COILS DIAMETER | 13 mm | 13 mm | 13 mm |
| WEIGHT | To be advised | 17.9 g | 6.7 g |
| PLUGS COLOUR | Dark Gray | Dark Grey | Black |
| Related Accessories | |||
| MODEL | AOI FCA-01 | AOI OCP-PS-01 | AOI OCP-PS-02 |
|
|
|
|

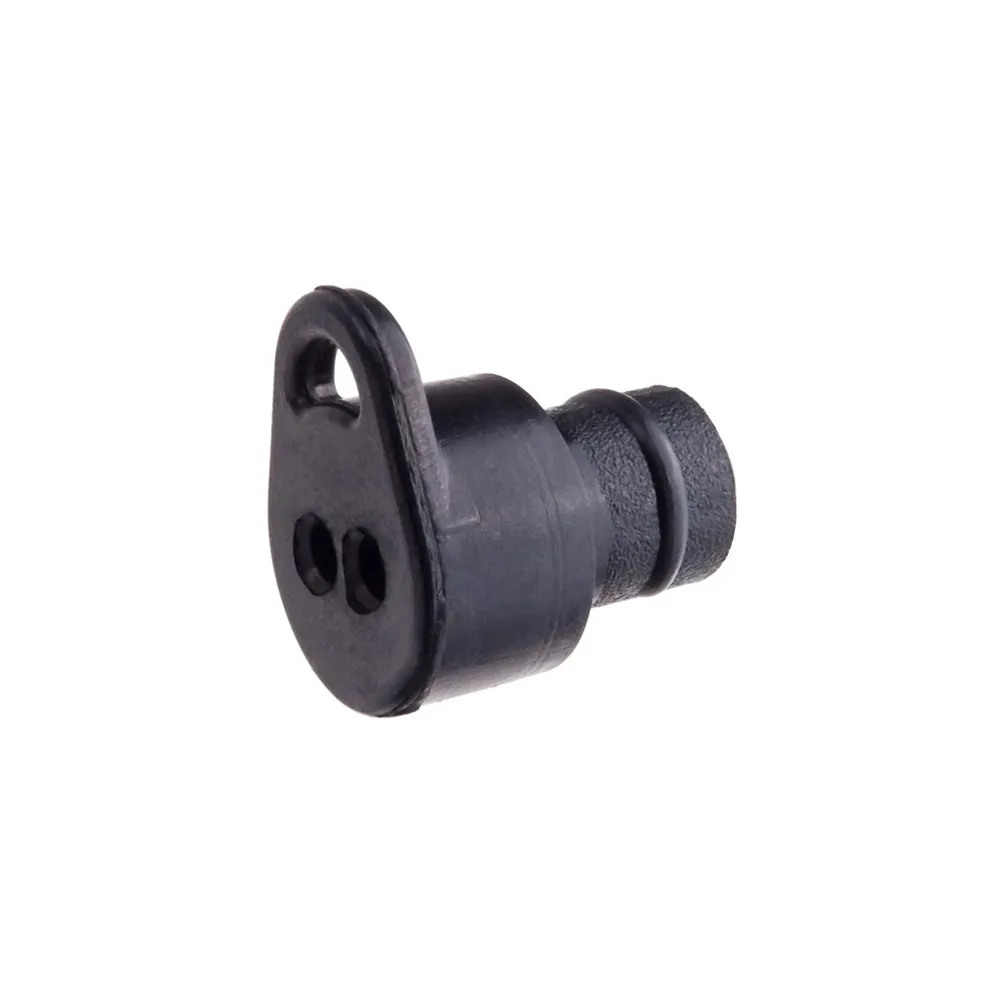

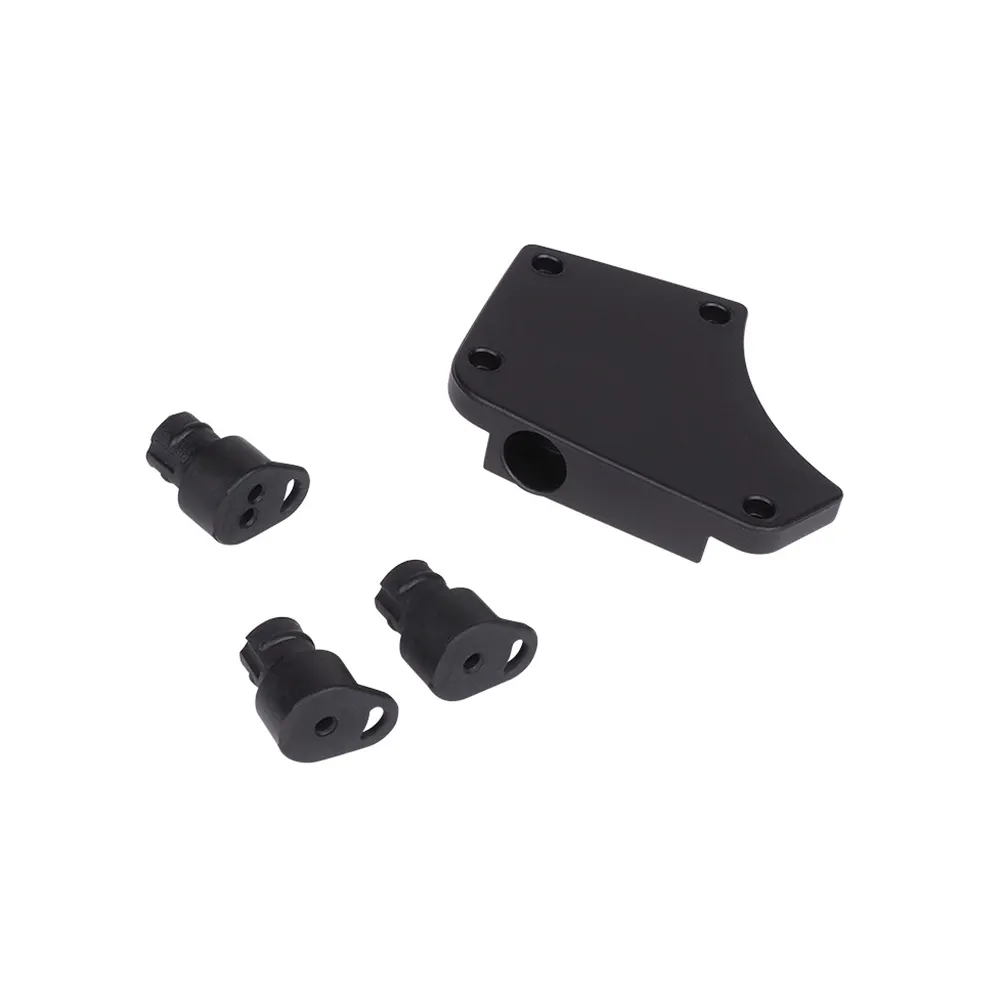

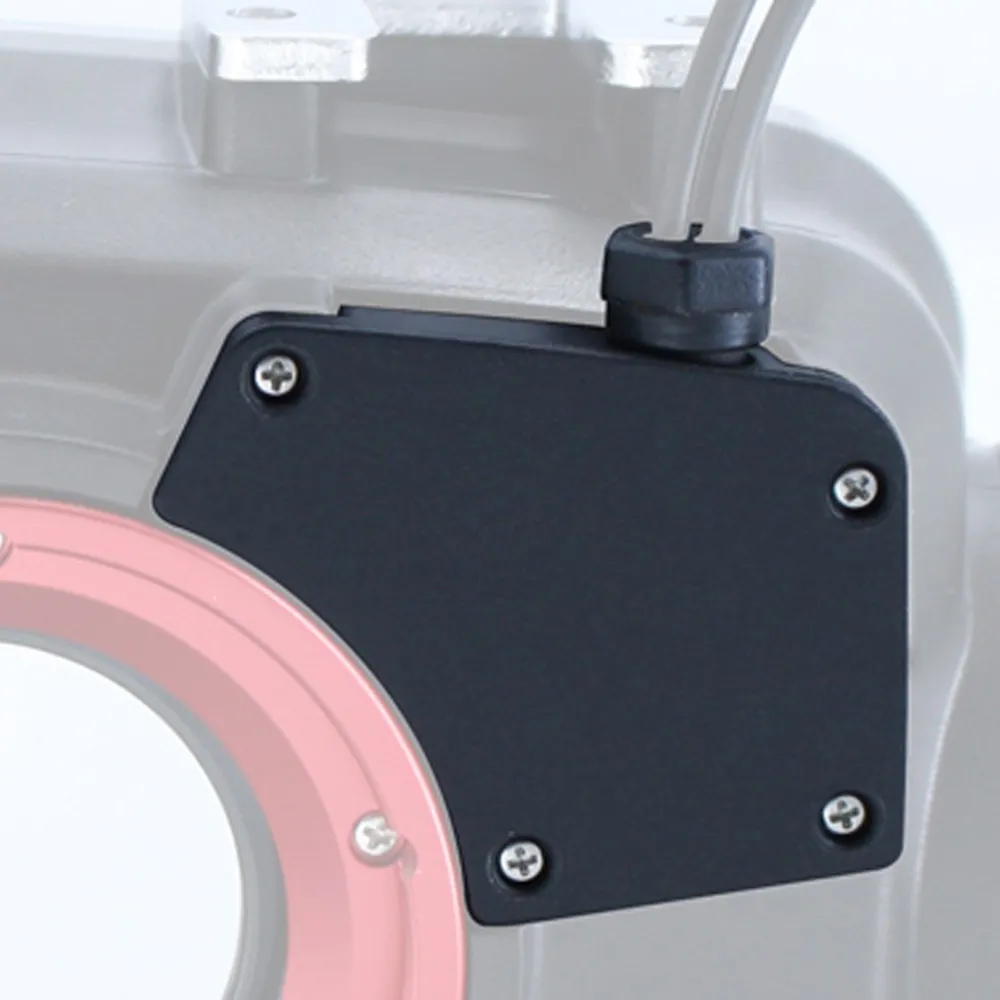

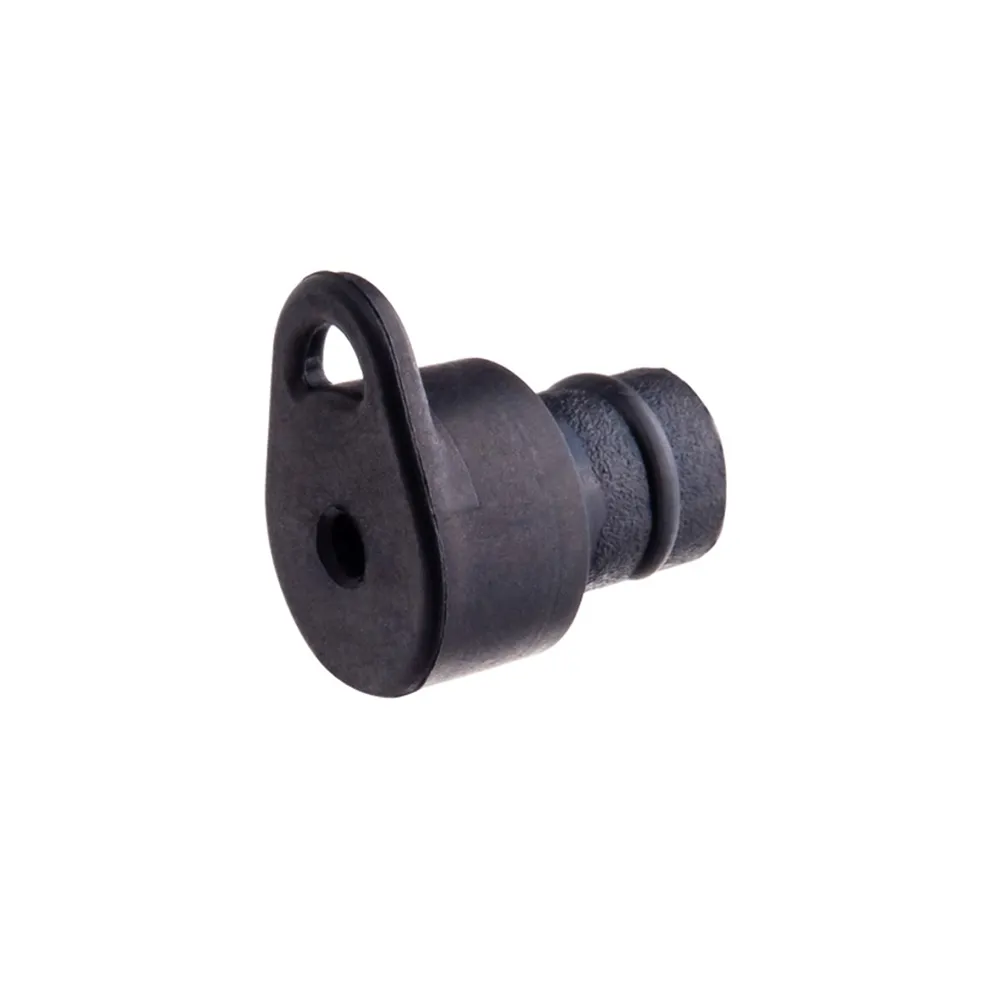

| DESCRIPTION | Fiber Optic Cable Adapter for TG-4/5/6 | Straight Plug with One Hole (for 2.2mm Cable) | Straight Plug with Two Holes (for 2.2mm Cable) |
| MATERIAL | Polycarbonate, EPDM | NBR70° | NBR70° |
| DIMENSIONS | 44.5mm (L) X35.5mm (W) X9mm (H) | 10mm x 13.5mm (L) | 10mm x 13.5mm (L) |
| WEIGHT | 4 g | 0.94 g | 0.93 g |
| Accessories | Dual Hole Fiber Cable Plug (FCP-DH1) x 1pcs, Single Hole Fiber Cable Plug (FCP-SH1) x 2pcs, Screws x 4pcs |
||

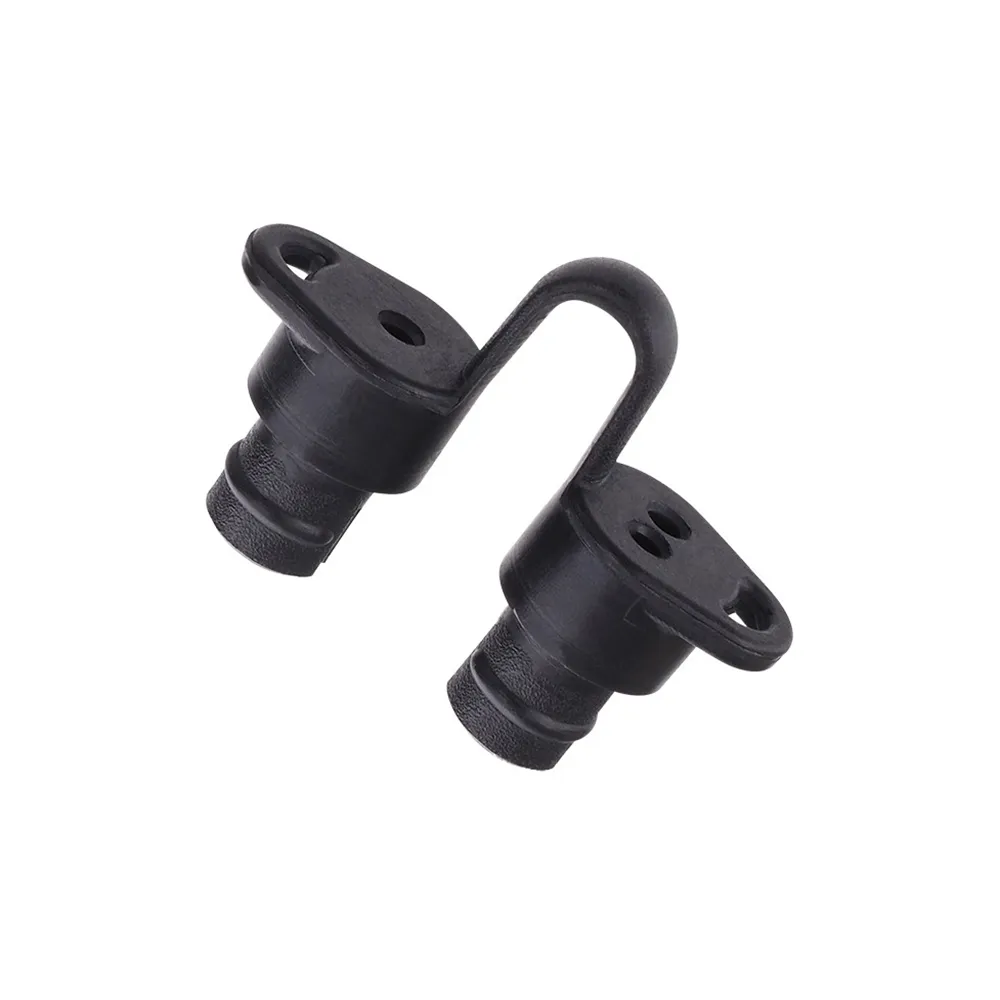

| MODEL | AOI OCP-PS-05 | AOI OPC-NA | AOI OPC-IN |
|
|
|
|

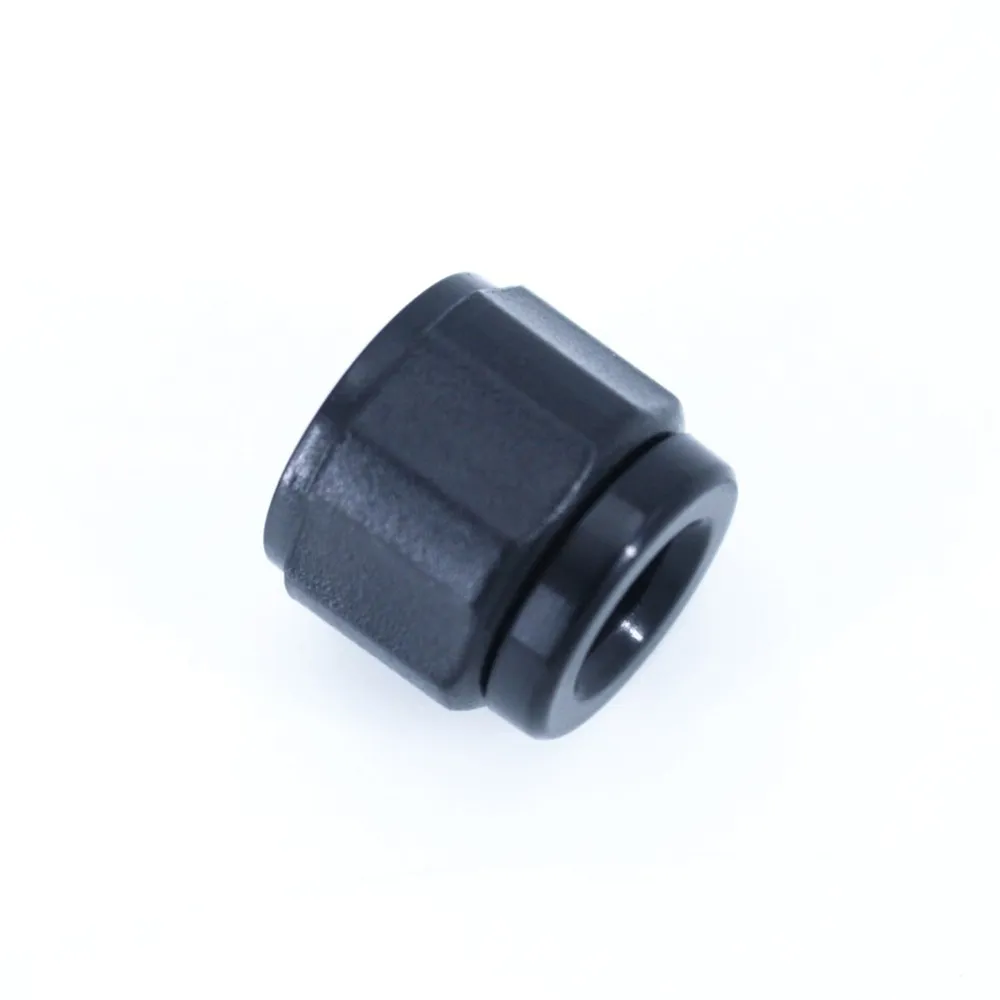

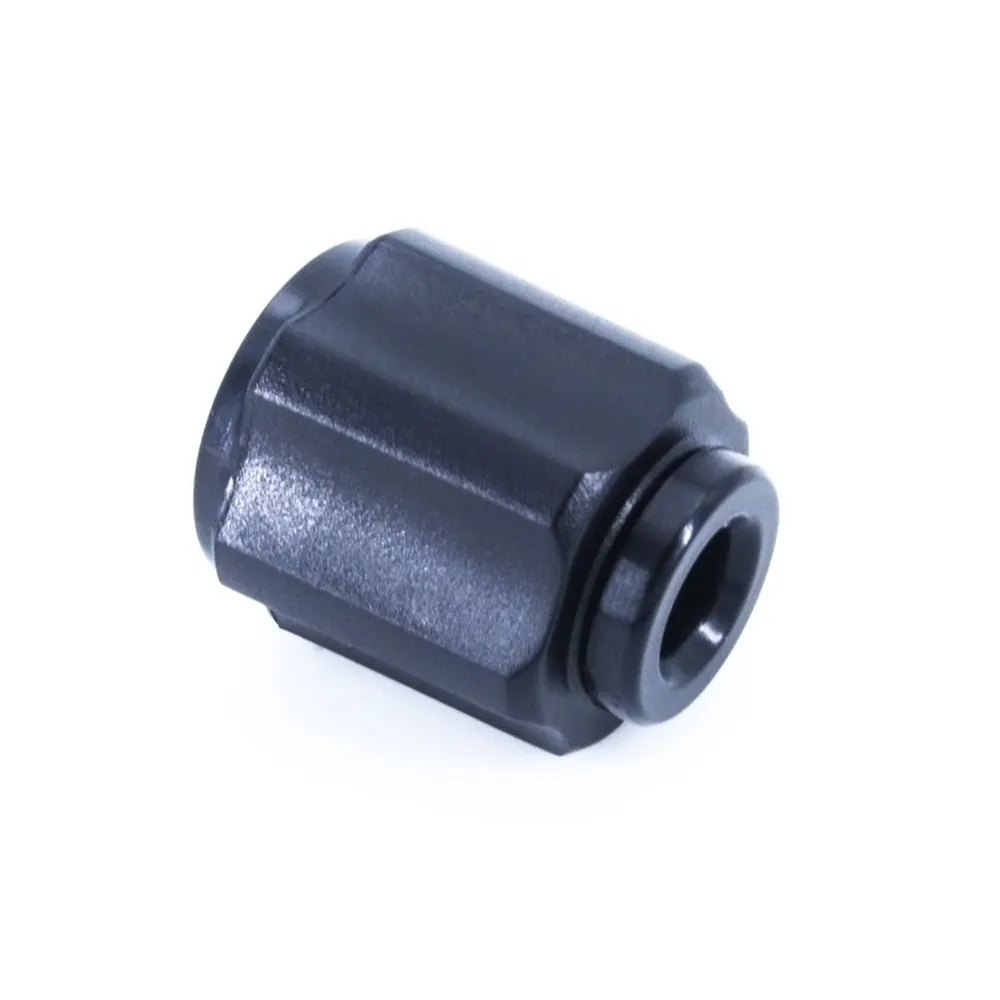

| DESCRIPTION | Port (Blind Hole) Plugs in One Pair | SS Plug Connector for Nauticam Housings | SS Plug Connector for INON Strobes |
| MATERIAL | NBR70° | PC | PC |
| DIMENSIONS | Φ10mm x 32mm(L) x 13.5mm(H) | Φ16.3 X14.4mm(L) | Φ22 X24.6mm(L) |
| WEIGHT | 2 g | 1.93 g | 4.26 g |

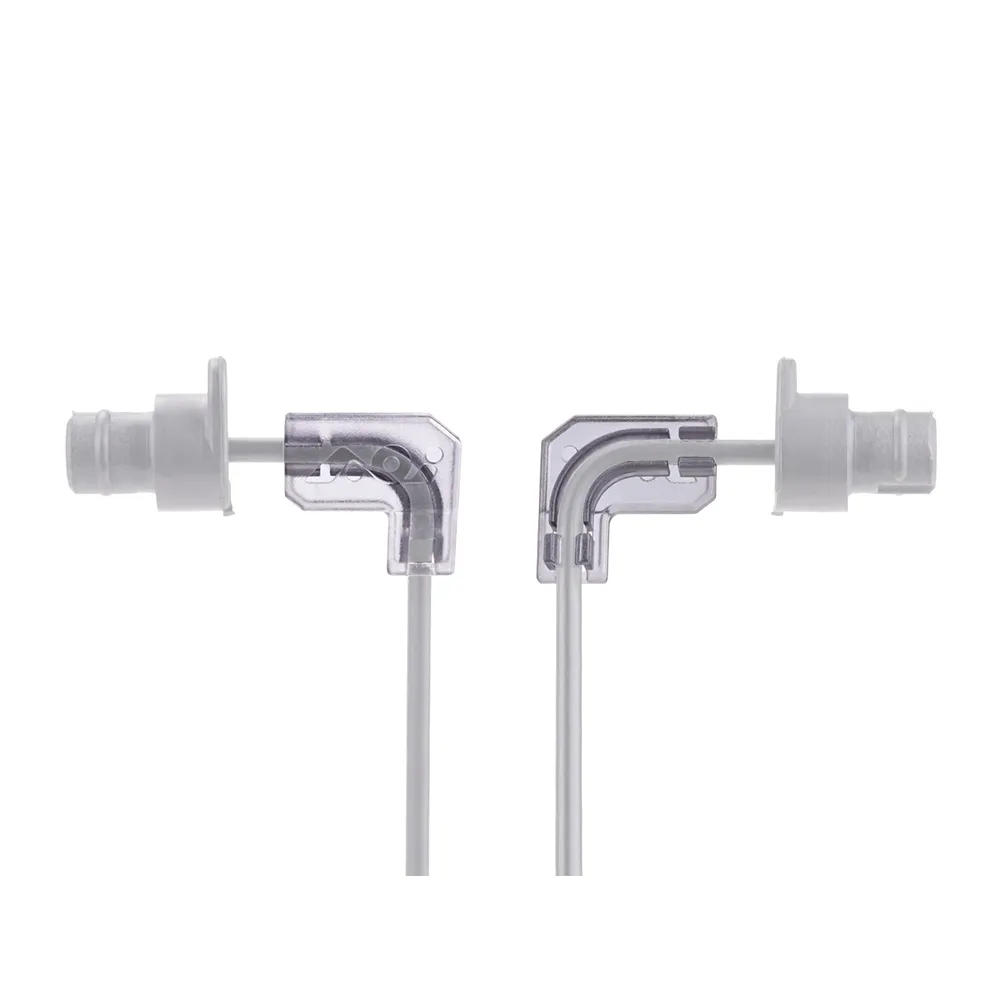

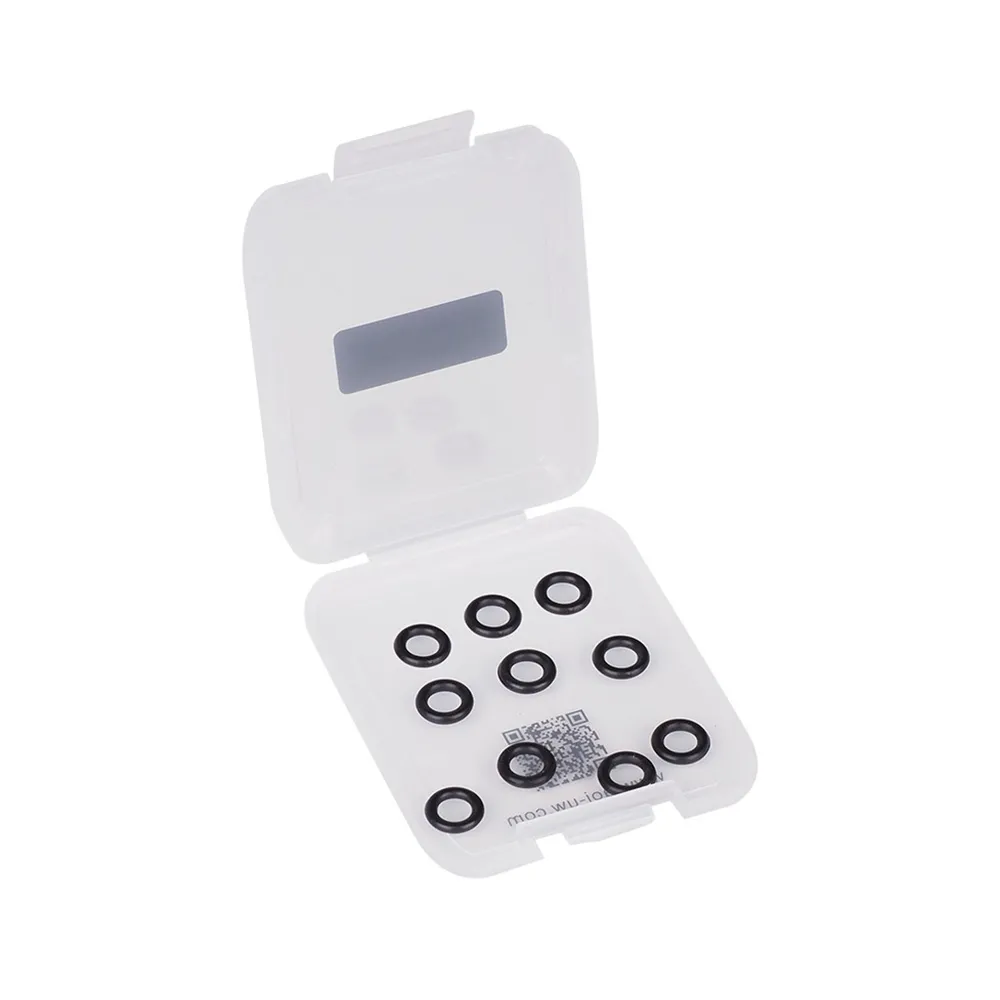

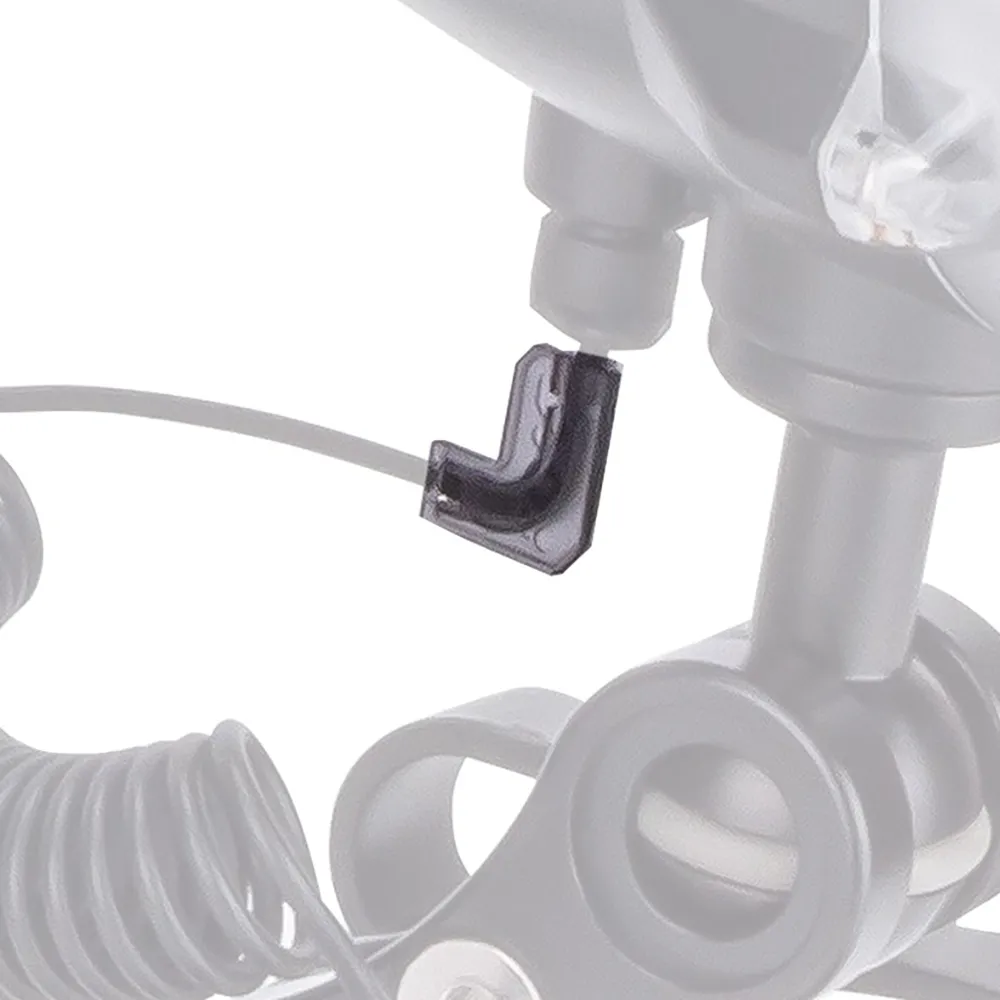

| MODEL | AOI FOCC-01-6 | AOI SOR-06-BLK-12 | |
|
|
||
| DESCRIPTION | Clip for 2.2mm Cable (6pcs Packed) | O-Ring for Fiber Optic Cable (12pcs Packed) | |
| MATERIAL | PC | NBR70° | |
| DIMENSIONS | 15mm (L) x 14.7mm (W) x 4.4mm (D) | ID4.0 x OD1.5mm | |
| WEIGHT | 0.3 g | 0.03 g | |
